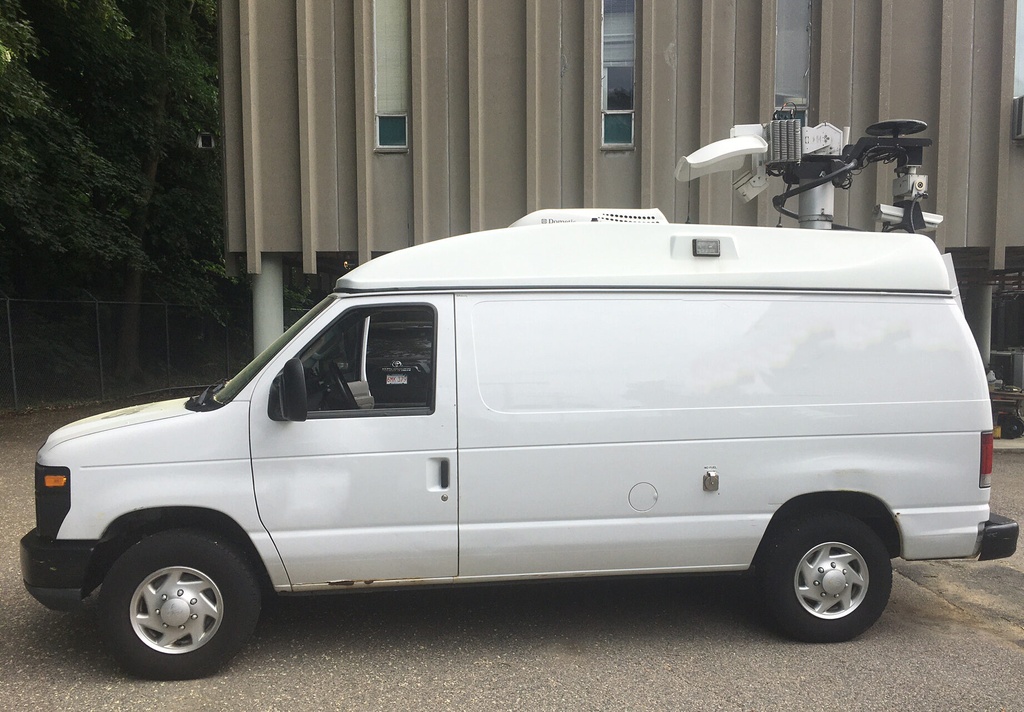

#549 – 2013 Ford E250, 42ft Tempest Mast, NuComm Microwave System

Microwave ENG Van

2013 Ford E250
98,000 Miles
9,600lbs GVWR
Engine mounted MEPS 6.3Kw generator, Heat shield and high idle kit
Shore power single phase 50 amp

Custom Raised Roof with Work Platform
Roof mounted 15,000 Duotherm Air Conditioner
42′ Tempest Mast with 120V Compressor and Solenoid Control. Redundant mast up warning system with interlock

Intertest EH6500 Mast Camera System with Pelco Housing and Pan/Tilt
Nucomm 101175-1925/6774 Newsblaster Antenna 2/7 Ghz
Nucomm Low gain Collinear Omni Antenna 5.6-7.1Ghz. Low gain Collinear Antenna 1.98-2.40GHz
Nucomm MW transmitter Outdoor Unit 2, 2.5,& 7Ghz

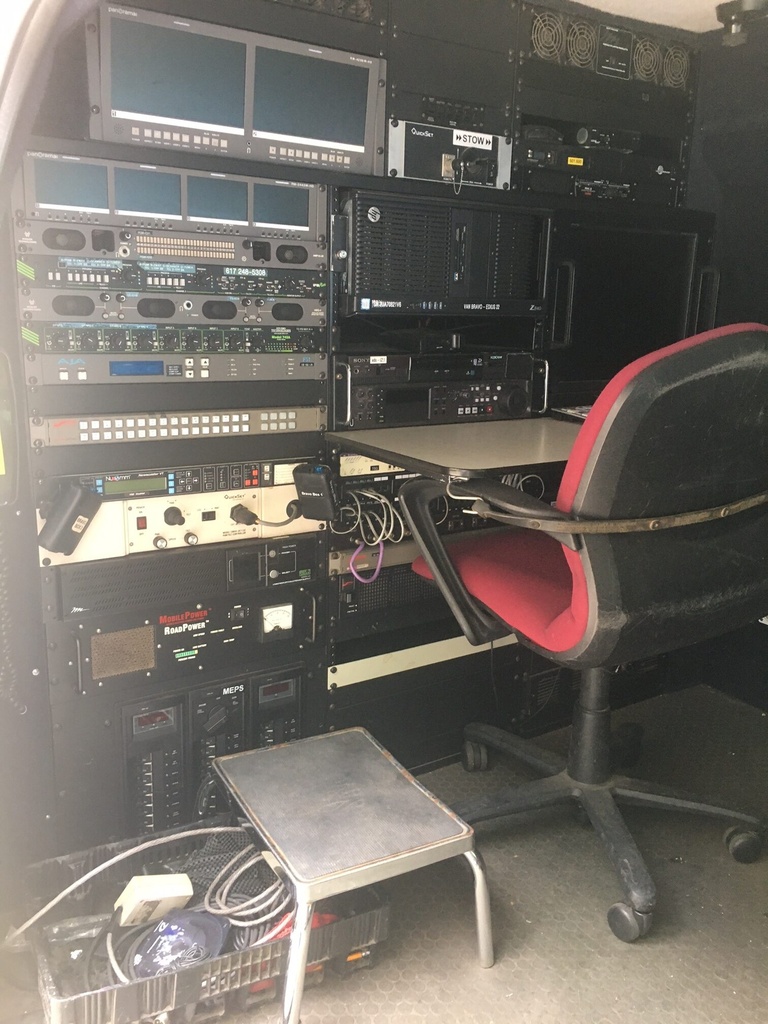

Rack Mounted Equipment:
Wohler VMQ-4 Audio Monitor
Sound Technology 742A Audio Mixer
AJA FS 1 Frame Sync
(2) Ross Video RCP-NK1 Router Panel
Nucomm Newscaster VT Transmitter 2,2.5,7GHz VSB enabled
QuickSet C90VS-DC114B Pan/Tilt controller
Middle Atlantic UPS 2200R 2200VA/1650W
Ensemble Designs Brite eye 56 HD/SD test and Sync Gen
Ross Router NK-ND16 HD
Ross DFR8321 open gear frame with: DRA8602, Four MUX-8258-4C, ADC-8732B-C, SEA-8203A, SEA-8203A, “B” MPEG -4 Encoder, UDA-8705A, ADA-8045C, PS-8300, and PS-8300.
