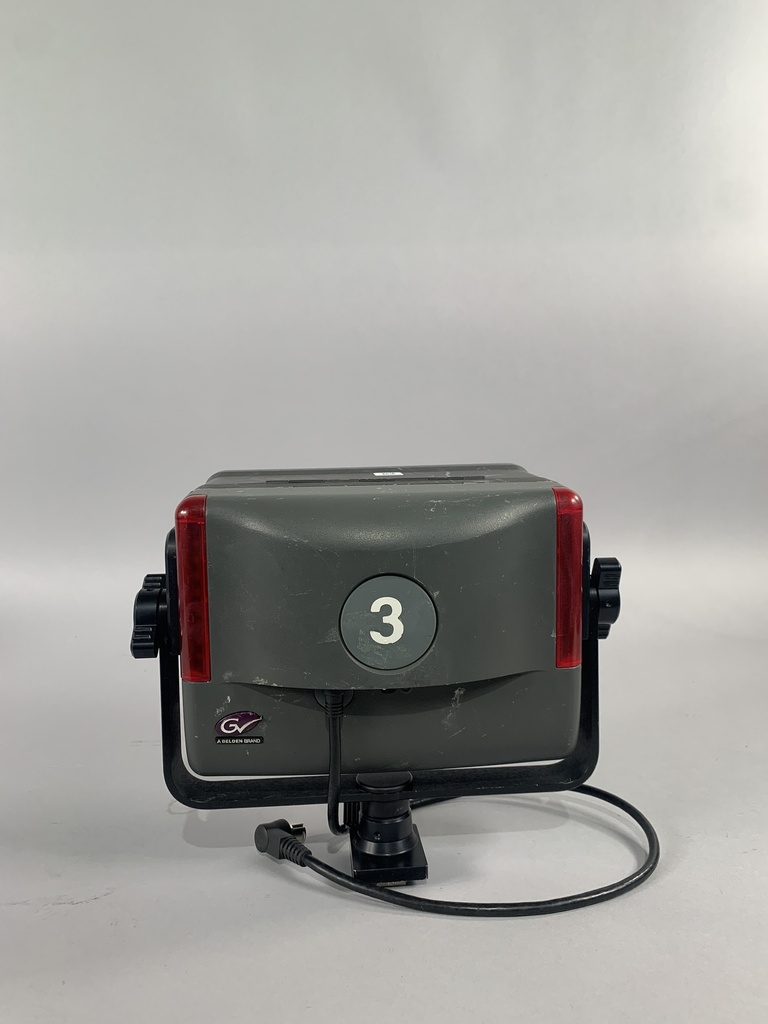

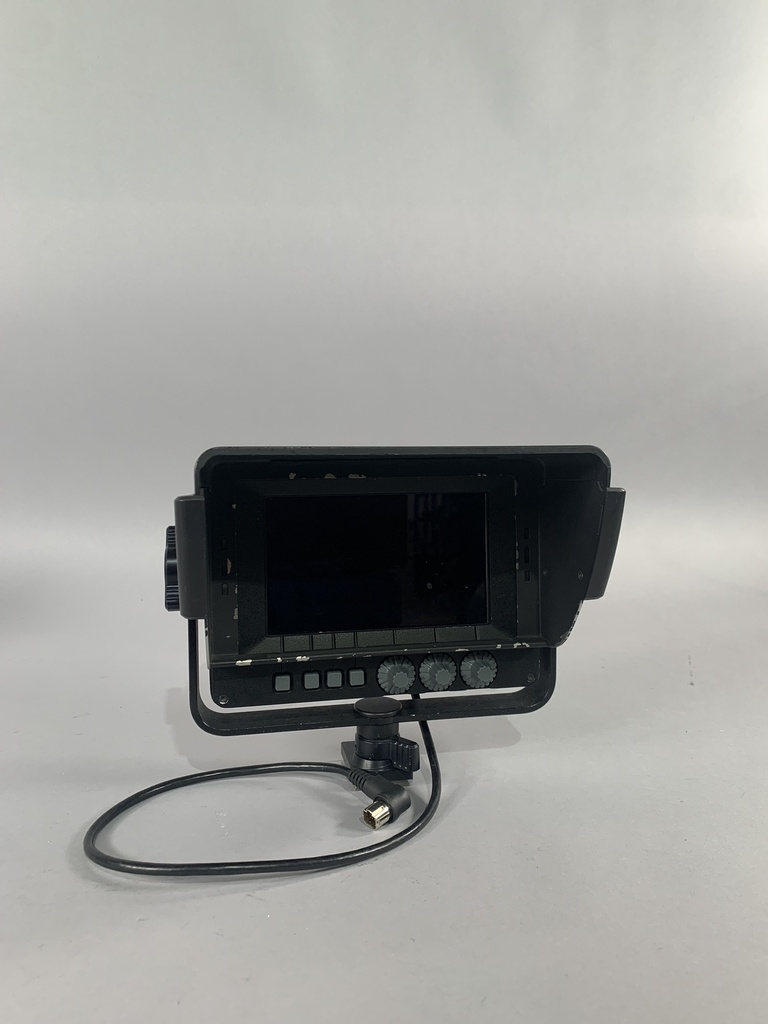

Grass Valley LDK-5307 (used)
$ 1,500.00
7″ LCD HD Viewfinder
Select Condition
Need a Personalized Quote?
Add the product to the quote list now.
Grass Valley LDK-5307 (used)
7" LCD HD Viewfinder
The LDK 5307 is a high-quality flat panel LCD viewfinder designed to work with LDX Series and LDK HD cameras. The LDK 5307 is suited to indoor and outdoor applications with a fast refresh rate and high brightness and contrast. You can even adjust the color temperature of the display without any effect on the main video signal.
Features
Connectors
Camera connector: 20-pin Hirose
Controls
Menu button
3 assignable user buttons
Brightness rotary control
Contrast rotary control
Peaking rotary control
Indicators
LED indicators front:
ISO (yellow)
On-air (red)
Call (green)
LED indicators back:
2x on-air (left/right) adjustable
General
Power consumption: 12W (supplied by camera head)
Operating temperature: -20°C to 45°C (-4°F to 113°F)
Storage temperature: -25°C to 70°C (-13°F to 158°F)
Weight: 1.8 kg (3.97 lbs.)
LCD*
Diagonal size: 177.8 mm (7 in.)
Total display: 16:10 800 (H) x 480 (V) pixels
Active video: 16:9 800 (H) x 450 (V) pixels
Viewing angle: 160° horizontal, 140° vertical
Response rate: 18 ms
Performance
Color depth: 16.7 million colors
8-bit color
Brightness: 350 Cd/m2
Contrast ratio: 850:1
Color temperature: 6500K (adjustable)
Pixel pitch: 0.1905 x 0.1905 mm
Supported formats: All current HD formats
Input signals: Y,Pr,Pb
Supplied Accessories
Complete mounting kit
Short sunhood
Cabling
User’s guide
General
Dimensions (W x H x D) 281 x 229 x 90 mm (11.1 x 9.1x 3.5 in) without
sunhood, including mounting bracket.
Weight (approx.) 1.8 kg (4.0 lbs) without sunhood, including
mounting bracket.
Operating temperatures -20 to +45 °C (-4 to +113 °F)
Storage temperatures -25 to +70 °C (-13 to +158 °F)
Power supply -50 to -100 VDC (supplied by the camera head)
Power consumption (typ.) 12 W (supplied by the camera head)
Input signals Y, Pr, Pb
Controls Menu button, assignable user buttons (3), rotary
controls (3) for brightness, contrast and peaking.
Indicators ISO (yellow), On-Air (red), Call signal (green), Tally
lights (red)
Screen
Diagonal screen size 7 in (~180 mm)
Colour depth 16,7M colors (8 bits/color)
Total display area 800 (H) x 480 (V) pixels
• Mounting bracket (supplied)
• Short sunhood (supplied)
• User’s guide (supplied)
• LDK 6400/20 Set of identification numbers (optional)
Active image area 800 (H) x 450 (V) pixels (16:9 aspect ratio)
Viewing angle -80° to +80° (horizontal); -80° to +60° (vertical)
Pixel pitch 0.1905 x 0.1905 mm (0.0075 x 0.0075 in)
Brightness 350 Cd/m2
Contrast ratio 850:1
Color temperature 6500 K (adjustable)
Screen coating Anti reflective layer
