Ross Video Ultrix FR2 (Old Style Frame) (Used)
$ 7,500.00

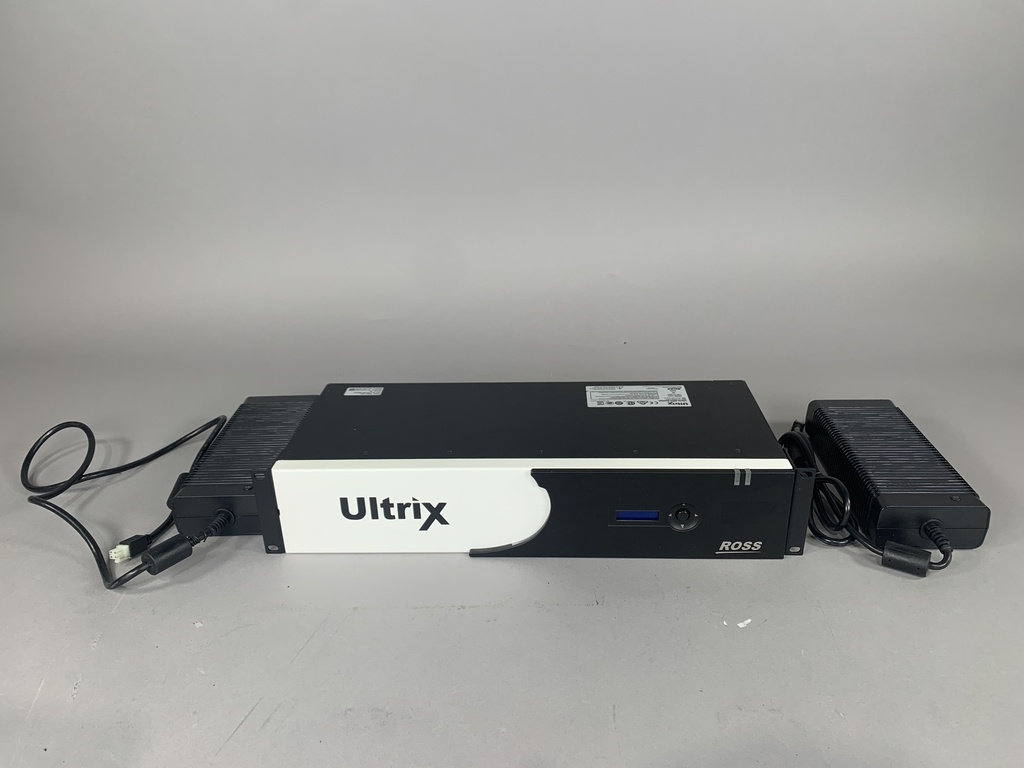

Mint Condition (Low to Zero cosmetic flaw). Comes in opened box with original packaging and accessories box and two PSUs. No additional blades installed. 16x16 plus 2 AUX, capable of 64x64 with upgrade.
Select Condition
Need a Personalized Quote?
Add the product to the quote list now.
Ross Video Ultrix FR2 (Old Style Frame) (Used)
16x16 Router, upgradeable to 64x64. (Requires ULTRIX-HDB-IO-A Cards)
The award-winning Ultrix 12G Router is the ultimate routing, multiviewer, and signal processing platform for Studios, OB Vans, and Flypacks. As the only software defined platform, customers realize significant cost, space, and power efficiencies with unparalleled flexibility and agility, especially relative to competitive hybrid routers.
Features

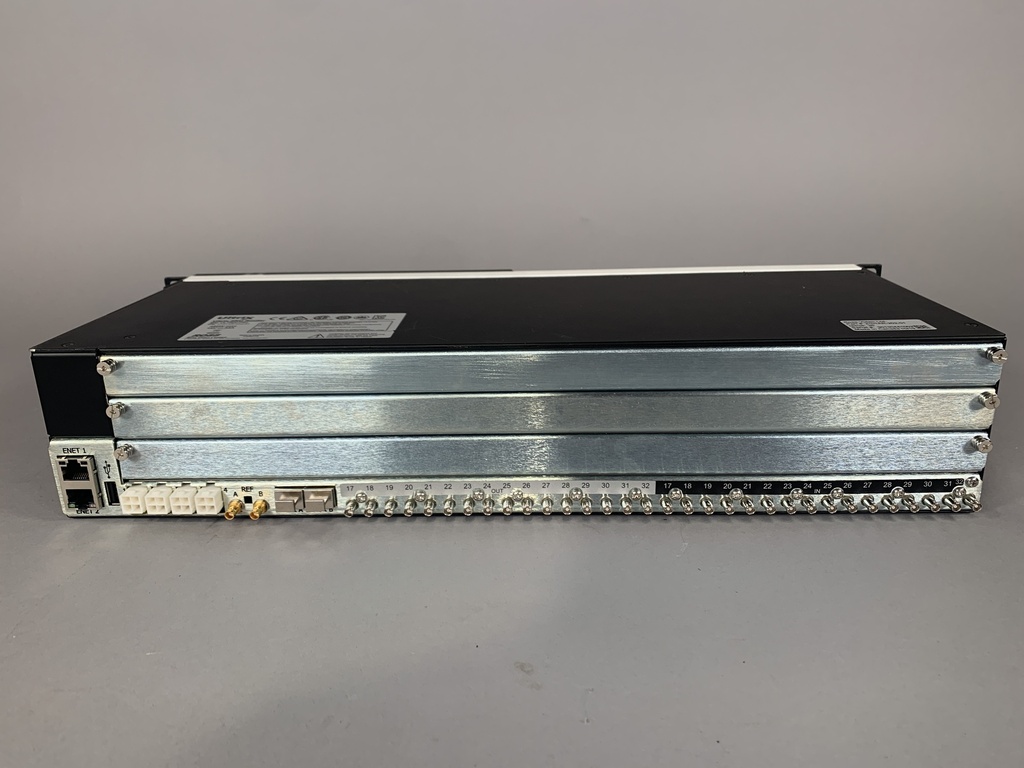

Standard 16x16 HD BNC I/O with 2 AUX I/O ports, expandable up to 64x64 with additional blades.
Comprehensive SMPTE support, supporting SMPTE 259M, 292M, 344M, and 424M natively.
Optional 12G capability via the Ultrispeed 12G license to handle SMPTE 2082 signals for single-link 4K workflows.
Embedded audio processing with included Ultrimix, enabling routing, mixing, and processing of embedded audio streams.
High-channel audio capacity, supporting up to 512x512 discrete mono audio inputs when using the AUX I/O ports and appropriate configuration.
Flexible I/O and networking, supports optional IP-IO blades and IP licenses to integrate IP-based workflows.
Redundant power, supplied with two power supplies for reliable operation during events or extended rentals.
There are three router models in the Ultrix family: ULTRIX-FR1(-NS), ULTRIX-FR2(-NS), and ULTRIX-FR5. All
routers fit into the standard 19” rack. This chapter presents information on the Ultrix front and rear panels.

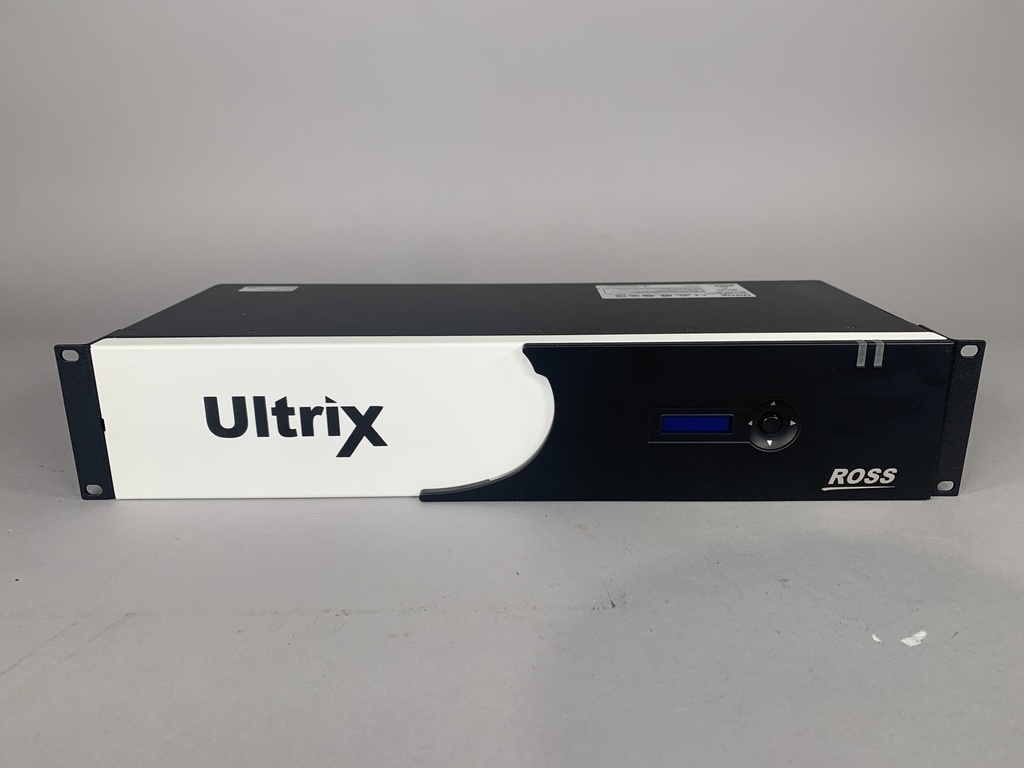

The ULTRIX-FR1-NS and ULTRIX-FR2-NS have updated frame components to allow the support of more
advanced IO modules such as ULTRIX-IP. The ULTRIX-FR1-NS and ULTRIX-FR2-NS may be identified by
the blue dot above the i on the front panel Ultrix logo.
USER MANUAL
No user manual available for download
