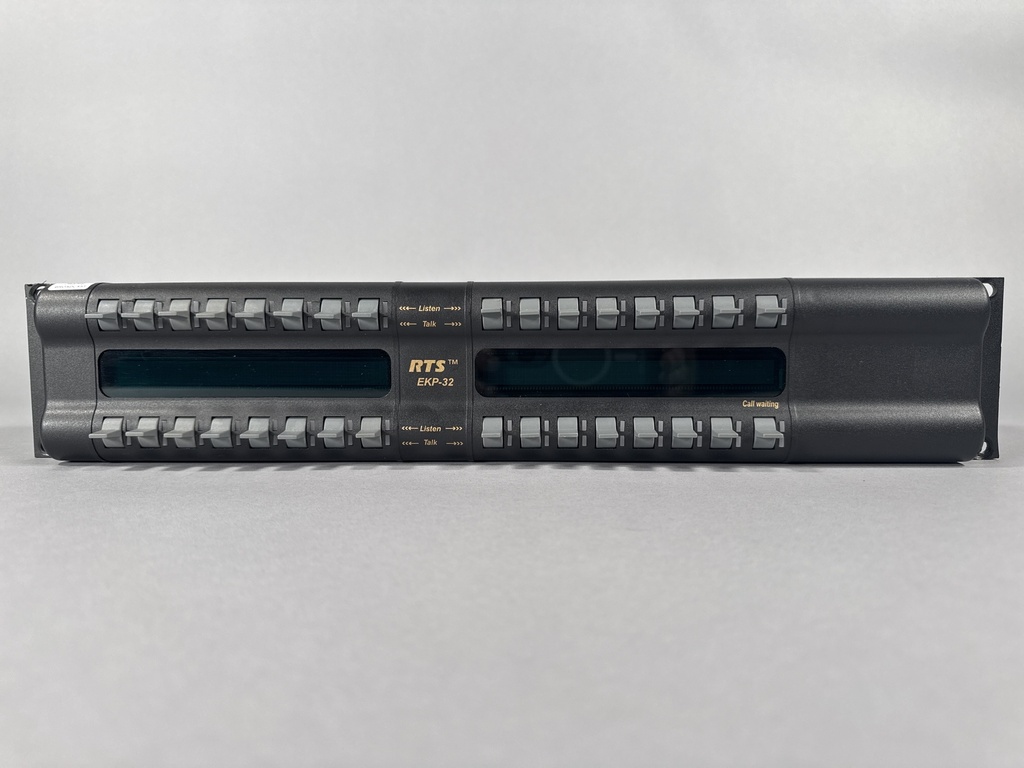

RTS EKP-32 (Black) (Used)

32 Lever Rackmount Expansion Panel for KP-32

The RTS™ Model KP-32 Keypanel fits in a standard 19" rack and is two rack spaces high. It has32 lever keys: 30 keys are for intercom talk/listen assignment; one key is for call waitingresponse; and one key is for headset/microphone/program selection and volume setup. The KP-32combines all of the programmable features of the KP9X Series Keypanels and the KP-12Keypanel. It adds significant new features such as digital signal processing and binaural headsetoperation with left/right assignment of audio signals. The KP-32 also introduces large, super-bright, long-life fluorescent displays with adjustable brightness control, making it suitable for alltypes of ambient lighting from direct sunlight to darkness

Super-bright, fluorescent displays: Provide much better visibility and useable life than LCDdisplays. A display saver mode with programmable scrolling message extends display life andconserves power during periods of inactivity.
32 lever keys, with 30 keys available for full talk/listen configuration: Doubles the number ofchannels over the KP9X series keypanels. Keys support both latching (hands-free) andmomentary (push-to-talk) operation
Enhanced programming keypad: Provides the complete KP9X keypad sequences, plus newkeypad sequences, plus an extensive scrollable menu system. Menus include helpful promptsto walk the user through setup
Only 90 mm deep behind the front panel (approximately 130 mm with connectors): Perfect forconsoles, OB vans, etc.• Digital Signal Processing (DSP): Improves microphone voice activation and limiting. Addsnew mixing, metering, and filtering capabilities.
Binaural (5-pin) Headset Connector: Works with the DSP mixing feature. Lets youindependently assign intercom, microphone, and program audio to left or right headphone.Note: monaural (4-pin) connector available as an option. For monaural operation, the mixerlets you select which items are monitored in the headphones.
Easy upgrades: Firmware updates can be received via the internet, for example, and thendownloaded to the KP-32 via the intercom connection. Ready for future communicationenhancements, including coax, fiber, and ISDN. (For further information, search for keyword"firmware" in ADAMedit help.)
