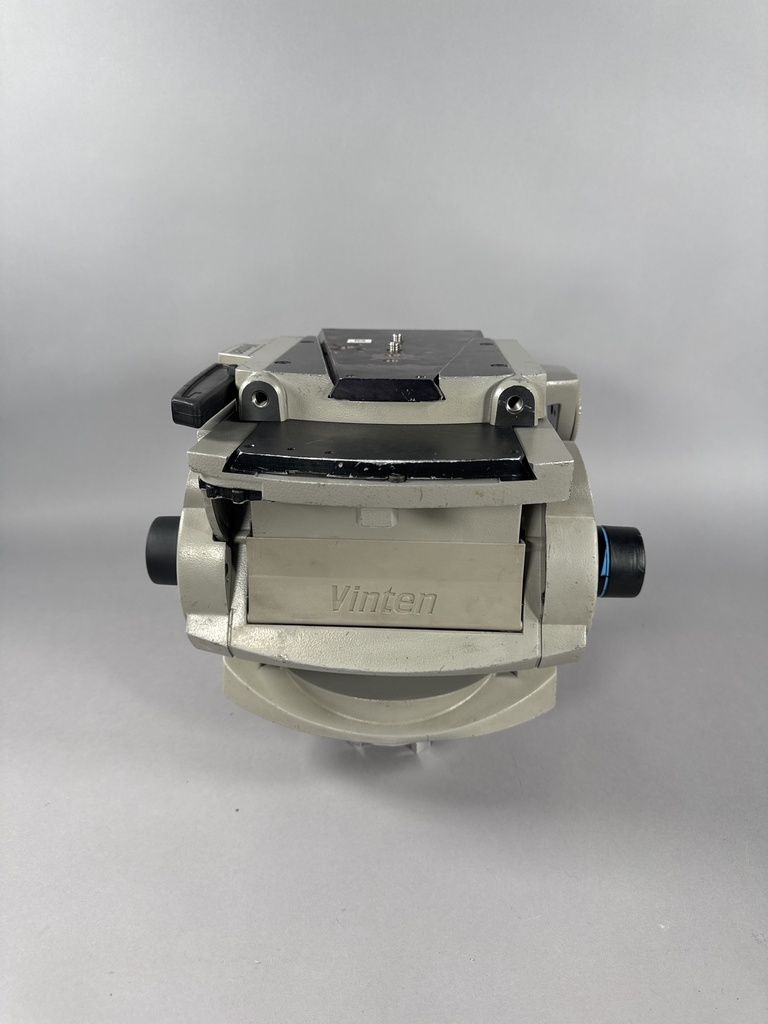

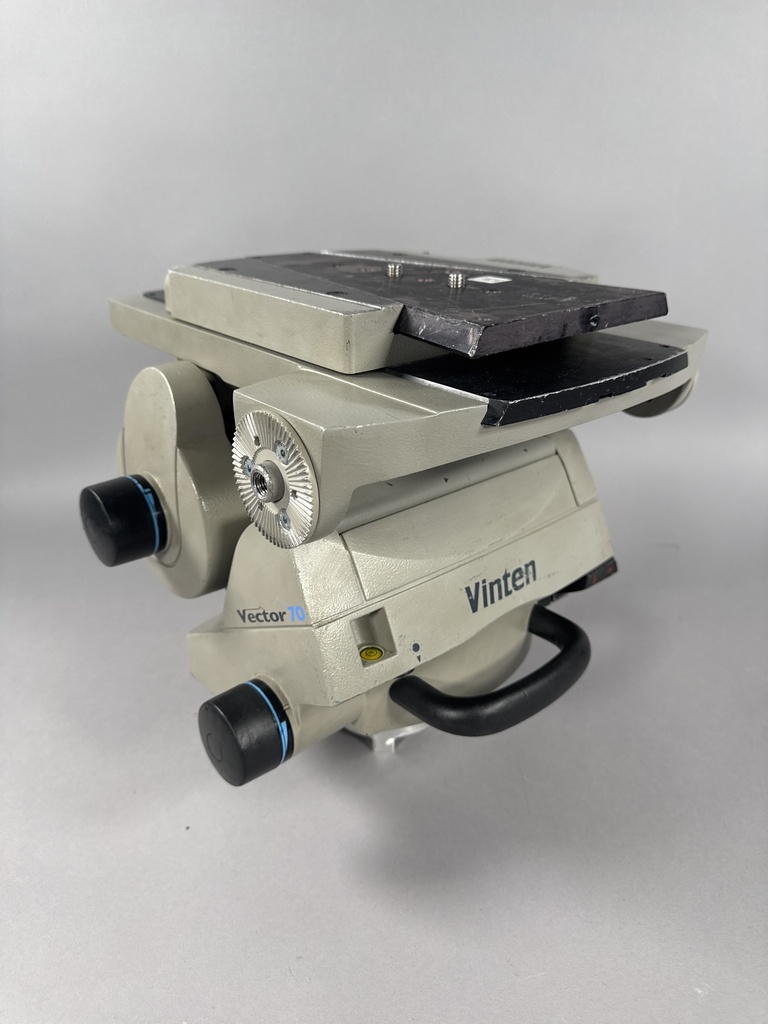

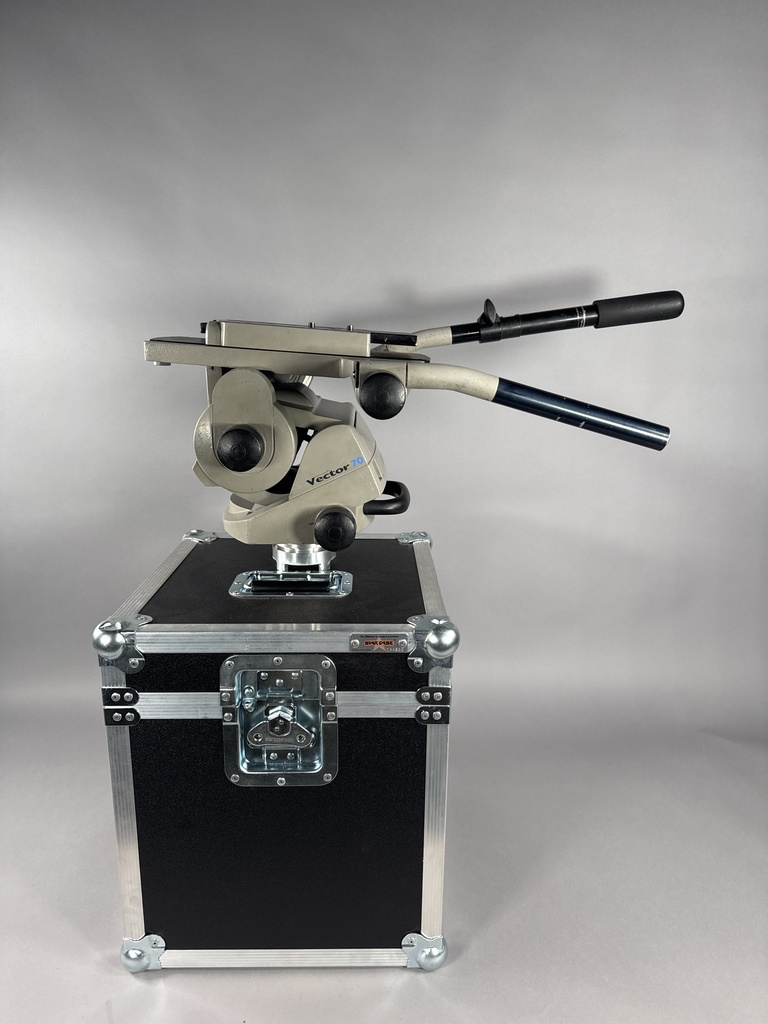

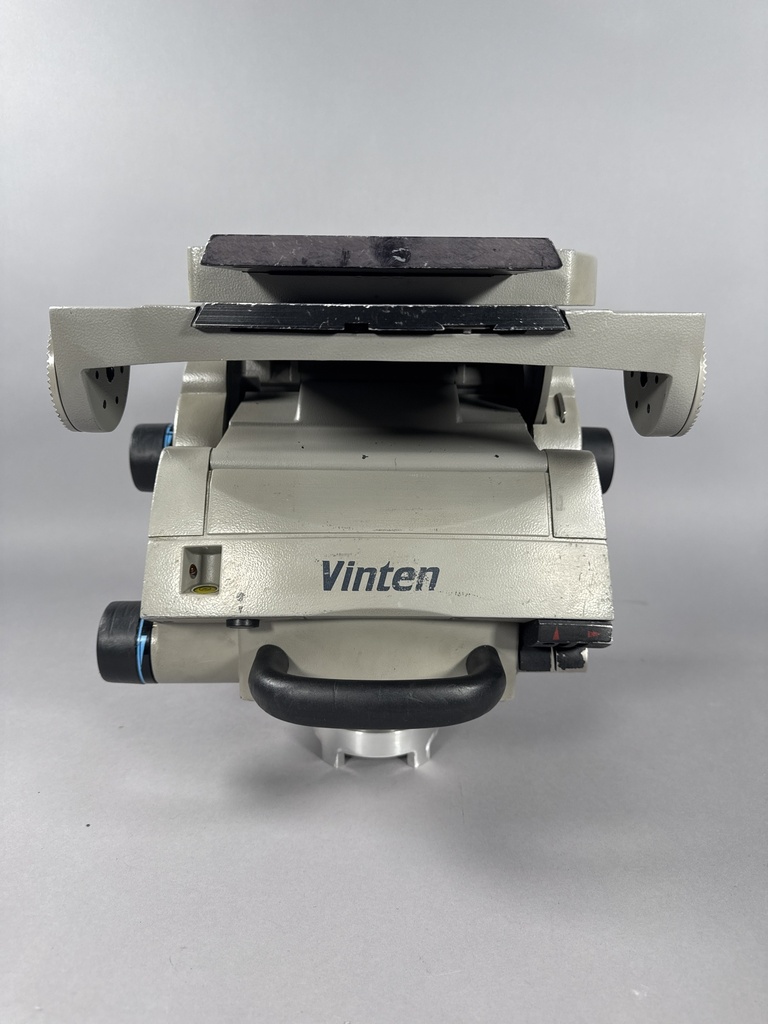

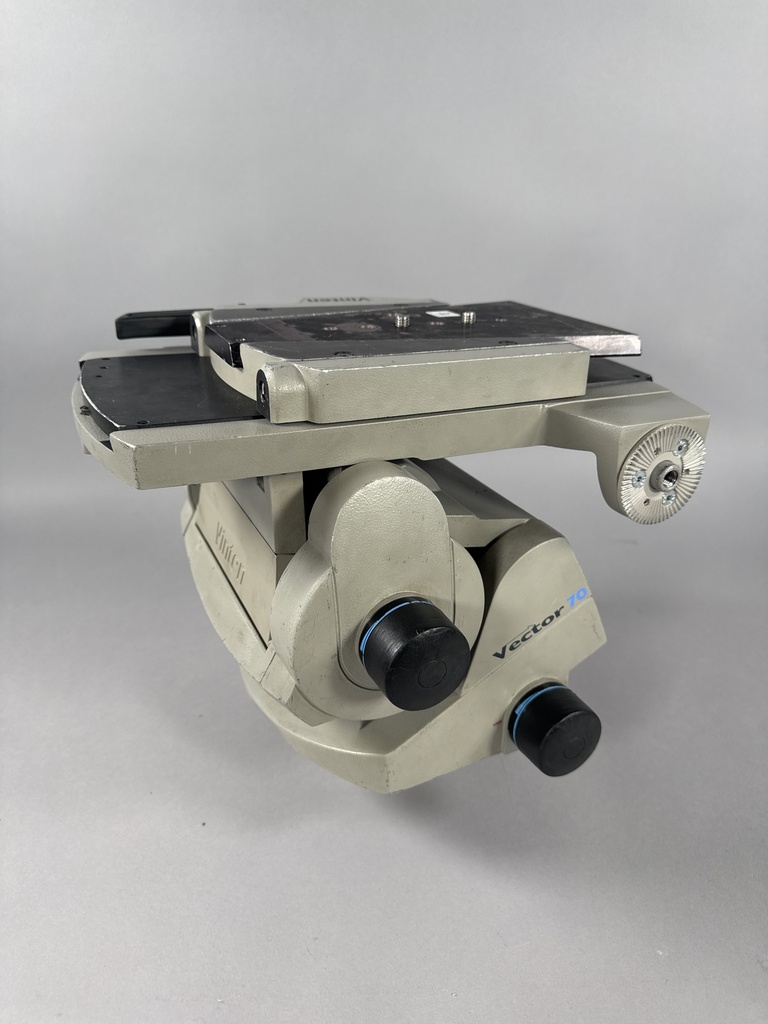

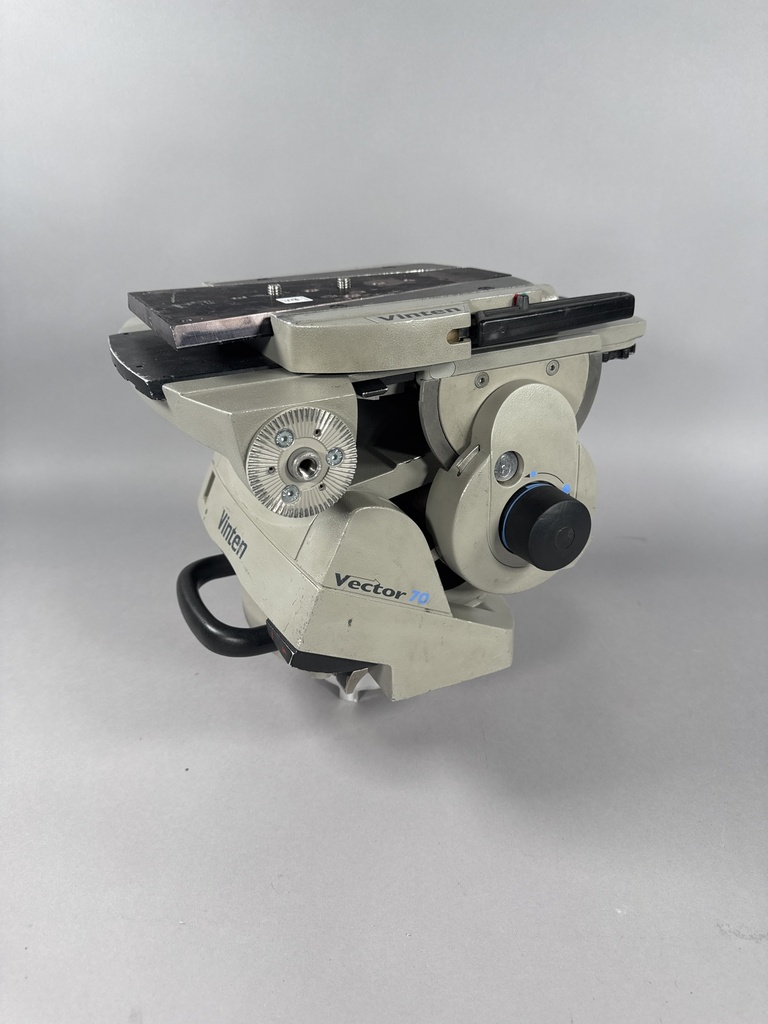

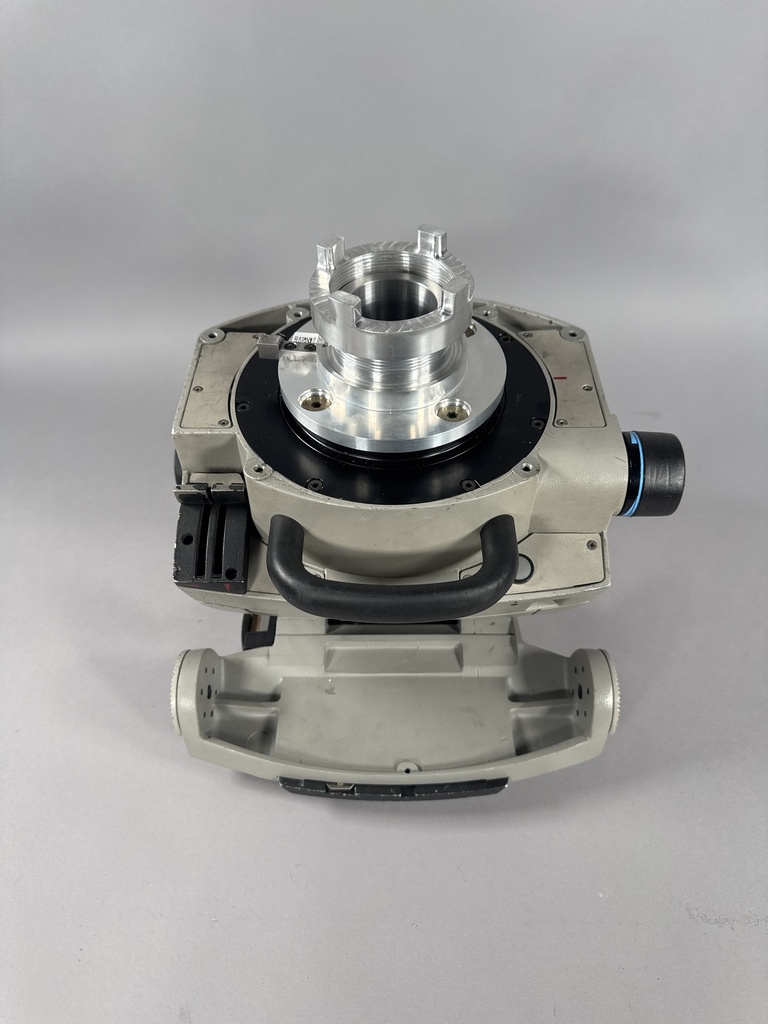

Vinten Vector 70 (Beige) (used)

Heavy Duty Tripod Head

The richly-featured Vinten Vector 70 pan/tilt head is intended for professional studio and OB camera packages weighing up to 154 lbs (70 kg).

Perfect Counterbalance
The Vector 70 achieves perfect counterbalance by means of continuously-variable spring mechanism. This allows the head to tilt through the full range of -60 to +60° in perfect balance, eliminating a considerable amount of physical effort required by the operator. Since the camera is perfectly balanced, it can be left at any angle - totally hands free - without having to engage the tilt brake.

LF (Lubricated Friction) Drag Control
To provide the appropriate amount of resistance, the Vector 70 uses the field proven Vinten LF (Lubricated Friction) damping system. It features a progressive, stiction-free drag where the torque is provided by a sliding contact between dissimilar surfaces, ensuring that the smoothest movement is always achieved. In addition, drag may be interrupted with on-demand whip pans at any point within the dampening range.

Illuminated Bubble Level
Built-in illuminated bubble level facilitates easy leveling even under unfavorable lighting conditions

Caliper Disk Brakes
To efficiently and reliably arrest pan and tilt movement, the Vector 70 employs true caliper disk brakes which, for safety purposes, are on by default, requiring operator action to release

Dual Pan Arm Rosettes
For two- or left-handed configurations depending on application and operator
