EVS XT3-4U (8-Ch) (Used)
$ 60,000.00
System Includes:

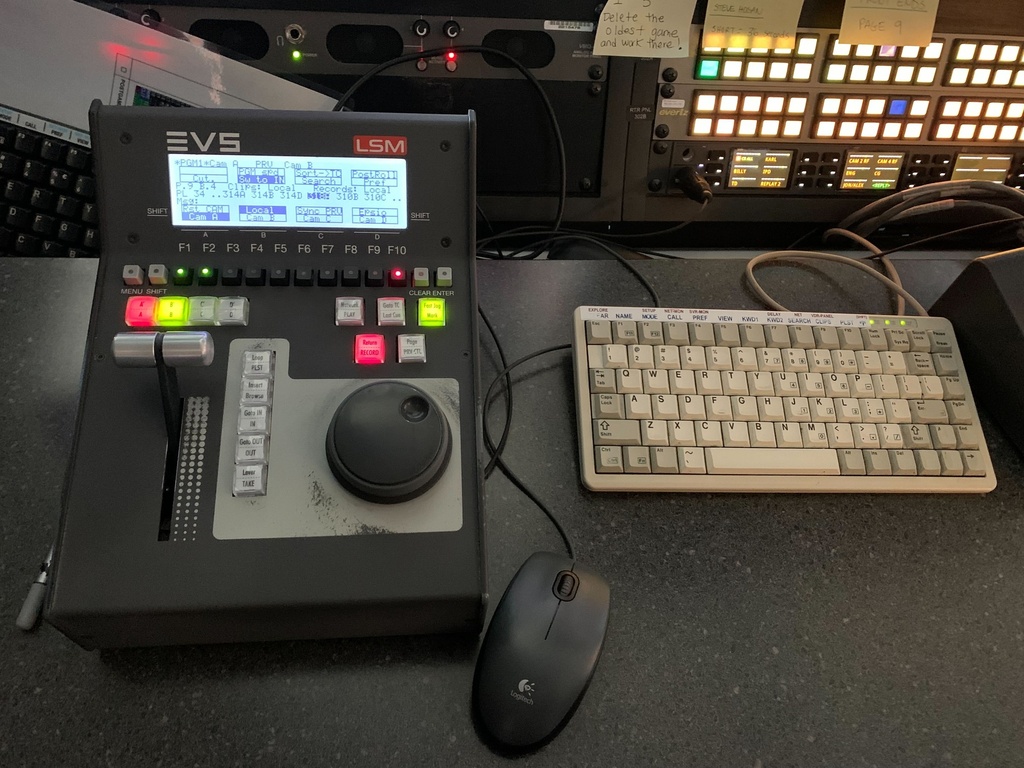

EVS LSM Connect PC x 2
EVS LSM Connect Graphics tablets x 2
EVS XFly
EVS XFile3
EVS IP Director PC
EVS XHub
Select Condition
Need a Personalized Quote?
Add the product to the quote list now.

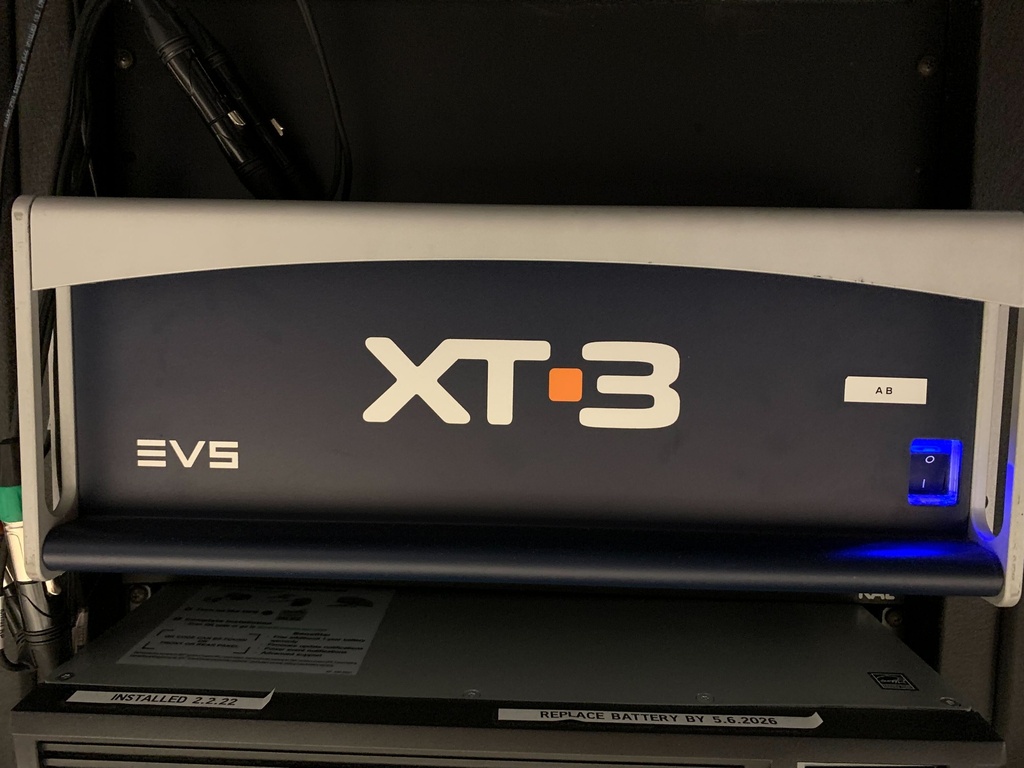

EVS XT3-4U (8-Ch) (Used)
4RU Replay Server
The EVS XT3 8-channel replay server is a high-performance system designed for live sports and entertainment broadcasting. Known for its reliability and speed, the XT3 offers eight channels for simultaneous recording and playback, allowing broadcasters to capture, edit, and play back live events in real-time. This server supports multiple formats, including HD and 4K, and integrates seamlessly with production workflows, enhancing the efficiency and quality of live broadcasts. With its advanced capabilities, the EVS XT3 is a preferred choice for professionals seeking robust and versatile replay solutions.
Features
XT3 server available as HD/SD or SD with “HD Ready”
Up to 8 HD/SD video channels
Full 3D/1080p support (3G/Dual link), max. 6 channels (DualPower technology)
HD-SDI: SMPTE 292M, 10-bit; 1080i 50/59.94Hz; 720p 50/59.94Hz
Pass-through of SMPTE 334M ancillary data
Dual-link HD SDI: SMPTE 372M; 1080p 50/59.94Hz; Full 3D 1080i 50/59.94Hz & 720p 50/59.94Hz
3Gbps SDI: SMPTE 424M (level B); 1080p 50/59.94Hz; Full 3D 1080i 50.59.94Hz & 720p 50/59.94Hz
SDI: SMPTE 259M, ITU-R601, 10-bit; 625i 50Hz; 525i 59.94Hz
Full frame synchronizer on each input
Super Motion support (double and triple speed) in SD, HD and Full 3D
Mix/wipe effects on each playback channel
Built-in downconverter with broadcast quality for each video channel (input & output)
1 monitoring output with switchable super-imposed timecode and channel status per video channel: 1 x HD-SDI or
SDI (software switchable)
New hardware with increased internal bandwidth: over 3Gbps
No technical specifications available for this model
USER MANUAL
No user manual available for download
