LiveU LU800A-PRO-HD (Used)
Price via quote
All-In-One Production-Level Field Unit
Select Condition
LiveU LU800A-PRO-HD (Used)
All-In-One Production-Level Field Unit
2 Units Available. Both come with the backpack.
Features
Enrich your productions and cover more events at a fraction of the cost of traditional transmission methods. The LU800 is the first all-in-one production-level field unit, designed for live news and dynamic sports coverage.
The LU800 combines multi-camera and superior video/audio capabilities with mission-critical transmission in a native 5G unit. Designed from the ground up to unlock 5G potential, the unit offers unparalleled quality of service and resiliency.
The LU800 enables complex remote productions (REMI), supporting up to four fully frame-synced feeds in high resolution from a single unit. Delivering the highest-quality video performance, the LU800 offers up to 4Kp60 10-bit HDR transmission for optimal color depth and richness.
The LU800 product series accommodates any customer need or production scenario with multi- and single-camera variants.
KEY FEATURES INCLUDE:
Up to 8 x 5G modems with highefficiency internal antennas
Up to 4Kp60 10-bit HDR transmission for optimal color depth & richness
Multi-camera with up to 4 fully synced feeds & flexible unit/station switching
Rich remote production tools: Video Return, Tally Light, Audio Connect
Super-fast file transfer for sending edited footage from the field
Up to 16 audio channels for richer audio production
7” ultra-sensitive capacitive touchscreen for easy unit control
Optional external antennas connections for harsh RF conditions
Dual power input (standard power supply & external battery input)
2 Ethernet & 2 WiFi interfaces for more connection options

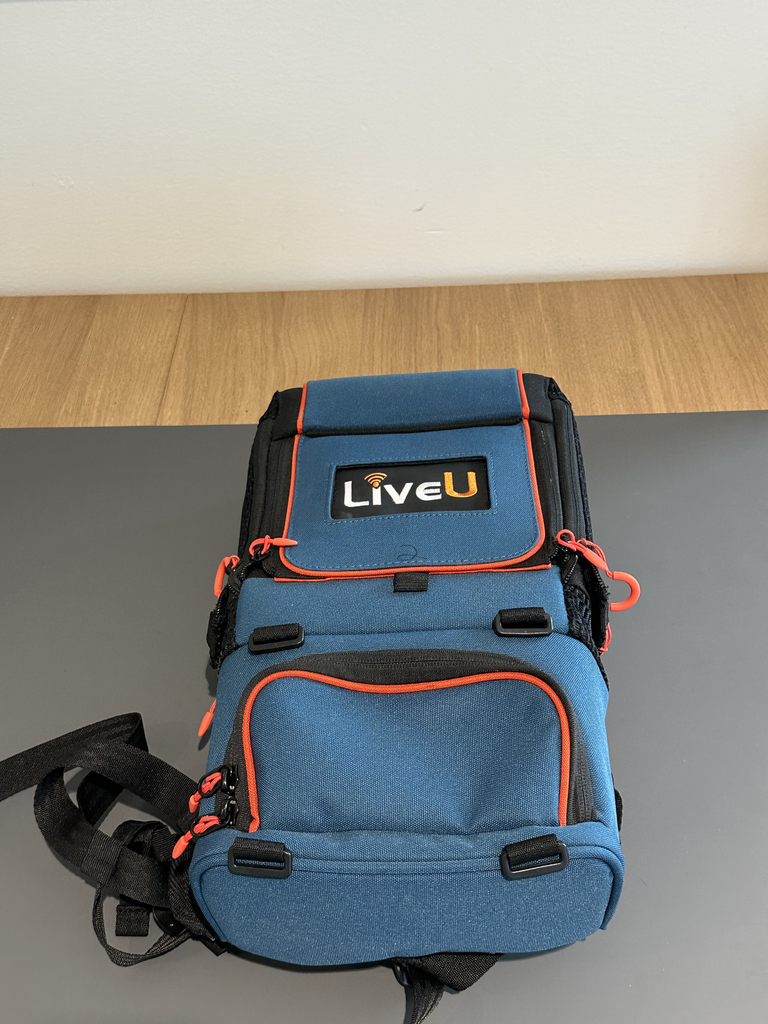

PORTABILITY Professional-grade backpack with wired remote control; car cradle
SIMULTANEOUS BONDING Up to 14 network links: 8 x internal 5G/4G/3G dual-SIM modems + 2 external 5G/4G/3G modems + 2 internal WiFi and 2 Ethernet ports
SUPPORTED TECHNOLOGIES 5G/4G /3G and internal WiFi 2.4/5GHz, 802.11ac/b/g/n support, IP Satellite (KA/BGAN)
ANTENNA ARRAYS Benefits in video quality, resiliency, coverage, operation in areas of poor coverage, on-the-move, and even in crowded areas; enhanced support for all common wireless frequencies including sub 6GHz 5G & LTE
MULTI-CAMERA Available for LU800-PRO with PRO2/PRO4 license
MODES Live & Store, Store & Forward (three quality levels), File Transfer, DataBridge with access point
VIDEO RETURN Sub-second video return on the LU800 screen or over an external display via HDMI port
MULTI-TARGET DECODER OUTPUT Diverse A/V output through SDI/SMPTE-2110/NDI and H.264 RTMP/MPEG-TS streams including integrated connectivity to social media & CDNs

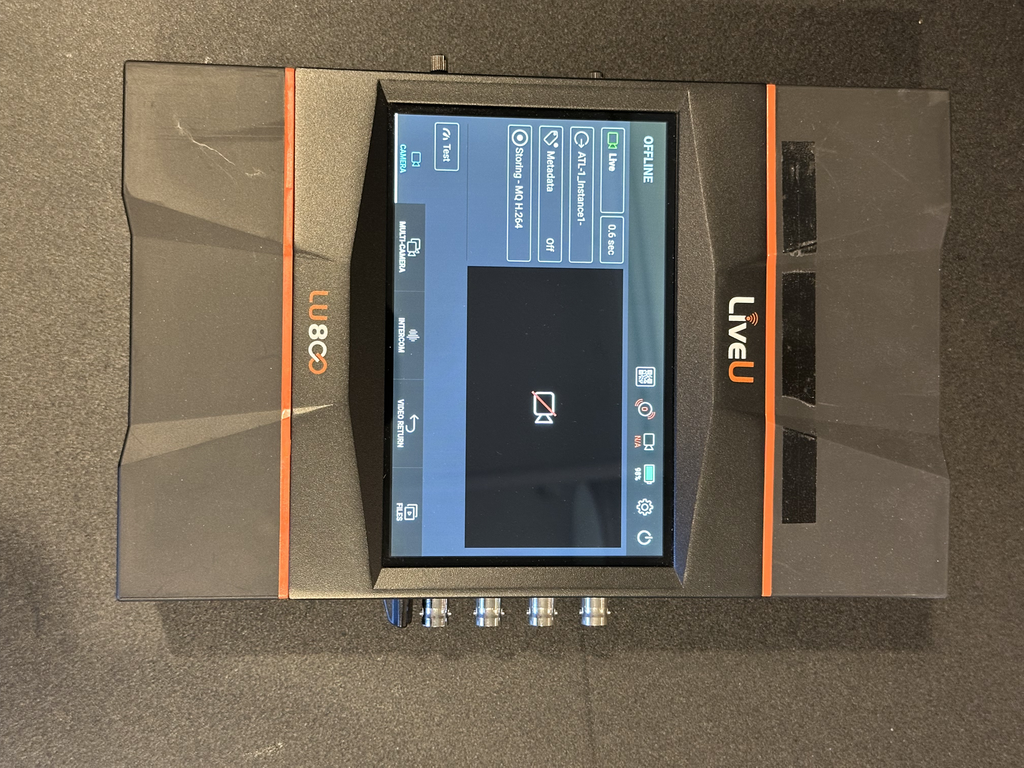

LOCAL CONTROL Full monitoring and control using 7” sensitive capacitive touch-screen and smooth user interface
REMOTE CONTROL Full web-based remote control using LiveU Central management system or LiveU Control mobile app
RESILIENCY AND QUALITY Includes LiveU Reliable Transport (LRTTM), featuring proprietary algorithms such as automatic Adaptive Bit Rate (ABR), automatic Forward Error Correction (FEC) and other lost packet recovery algorithms

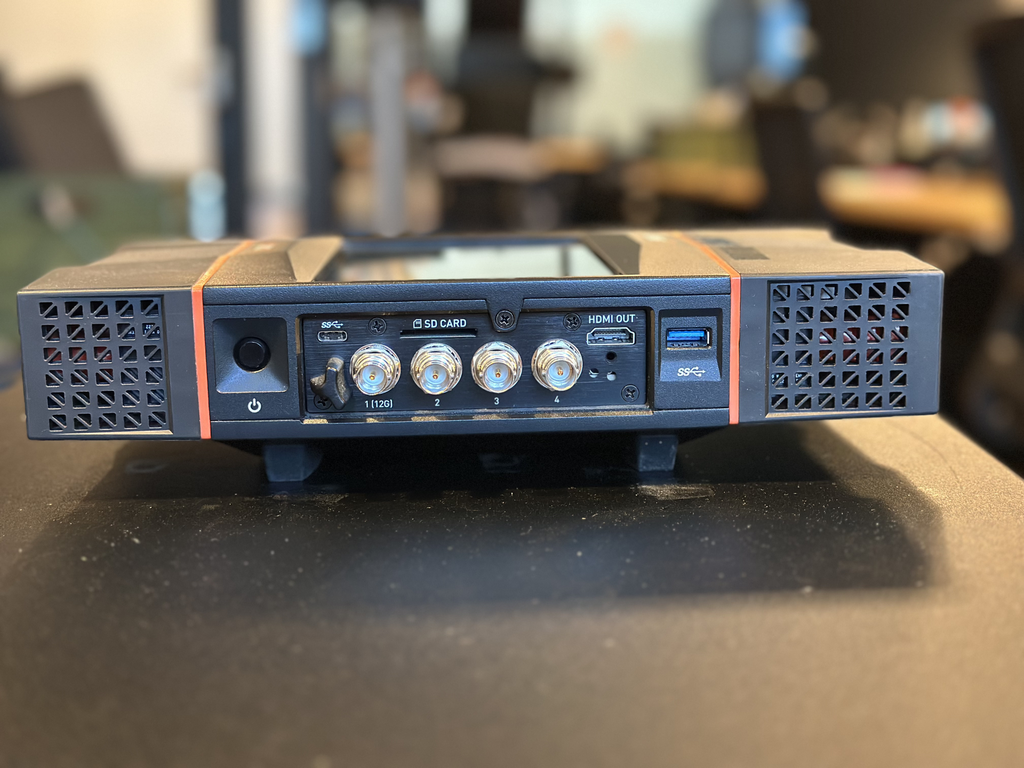

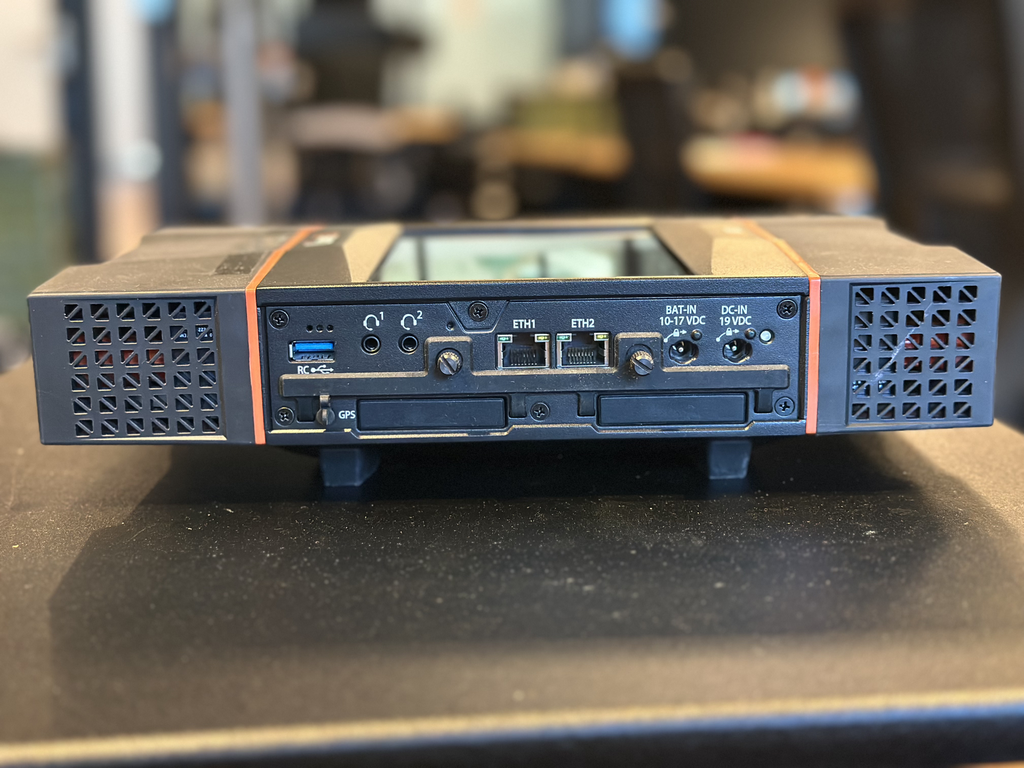

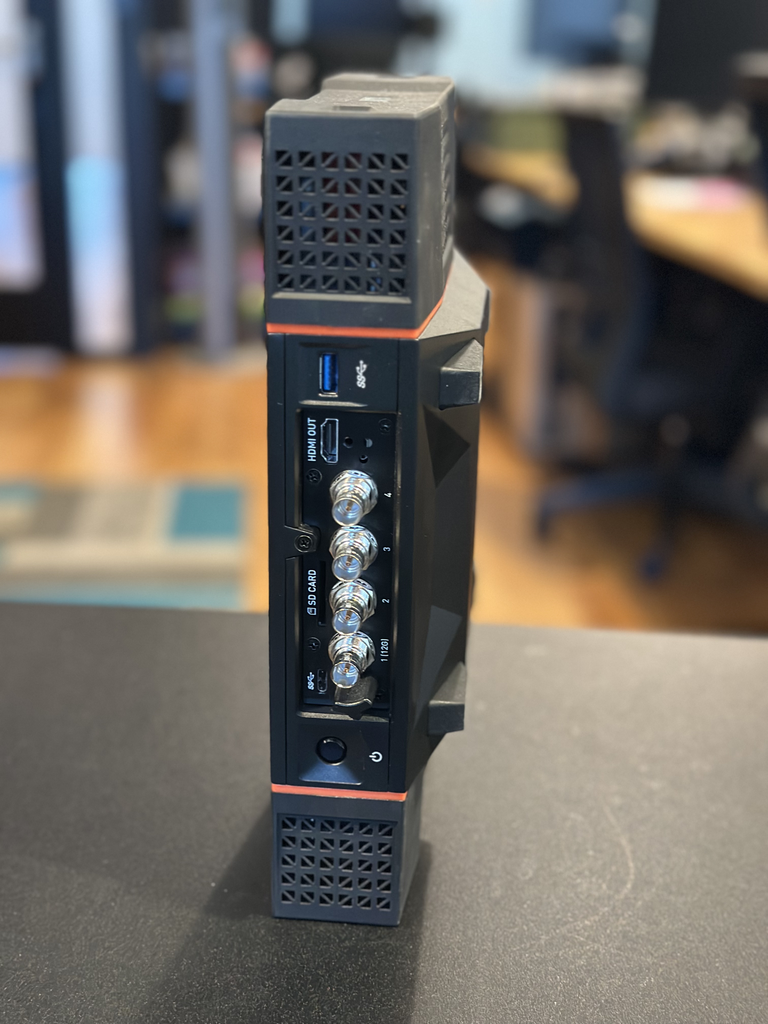

INTERFACES Full size SD Card Slot, HDMI out, USB 2.0, USB 3.0, USB-C, 2 Ethernet ports, audio jack (in + out), 16 SIM interfaces (dual SIM), Quick-Connect option for external cellular antennas & GPS
WIRELESS INTERFACES Up to 8 x 5G/4G/3G internal modems with high-efficiency antennas for worldwide support (modem count may vary by territory); 2 x WiFi (2.4/5GHz, 802.11ac/b/g/n) with internal MIMO antennas
POWER 4 hours internal battery Power input: 19V (external AC/DC adaptor 110V to 240V) Dedicated external battery input: 12-17V
DIMENSIONS 175mm x 280mm x 65mm / 6.9” x 11” x 2.5” (W x H x D) – with 4hr battery WEIGHT 1.74kg (61oz) without battery, 2.1kg (76oz) with battery
WEIGHT 1.74kg (61oz) without battery, 2.1kg (76oz) with battery
USER MANUAL
No user manual available for download
