NewTek VIZRT TriCaster TC2 Elite Production Package (Used)
$ 25,000.00

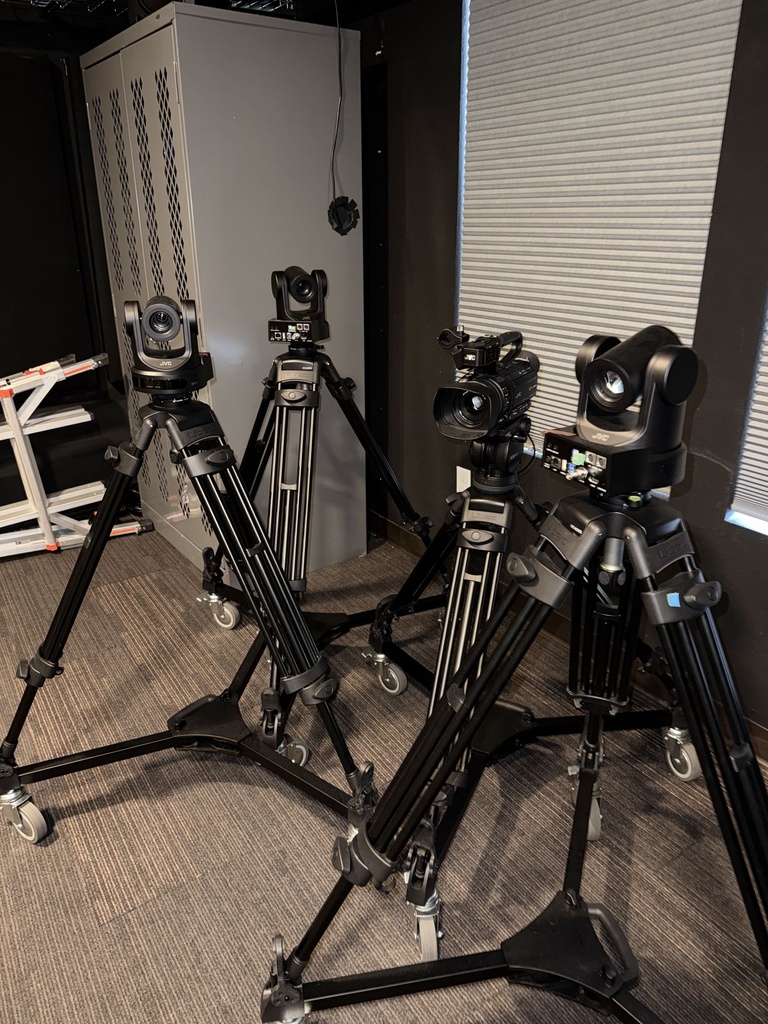

Package consists of:
1 VIZRT TriCaster TC2 Elite
1 VIZRT TriCaster 2 Stripe Panel
3 JVC KY-PZ200NBU NDI STREAMING PTZ CAMERA WITH 3G-SDI/HDMI/USB/IP OUTPUT (BLACK
2 JVC GY-HM250 4KCAM COMPACT HANDHELD CAMCORDER
1 JVC RM-LP100 Remote Control-Panel for JVC PTZ and IP Camcorders
*Tripods Not Included
Select Condition
Need a Personalized Quote?
Add the product to the quote list now.
NewTek VIZRT TriCaster TC2 Elite Production Package (Used)
Package consists of:
1 VIZRT TriCaster TC2 Elite
1 VIZRT TriCaster 2 Stripe Panel
3 JVC KY-PZ200NBU NDI STREAMING PTZ CAMERA WITH 3G-SDI/HDMI/USB/IP OUTPUT (BLACK
2 JVC GY-HM250 4KCAM COMPACT HANDHELD CAMCORDER
1 JVC RM-LP100 Remote Control-Panel for JVC PTZ and IP Camcorders
*Tripods Not Included

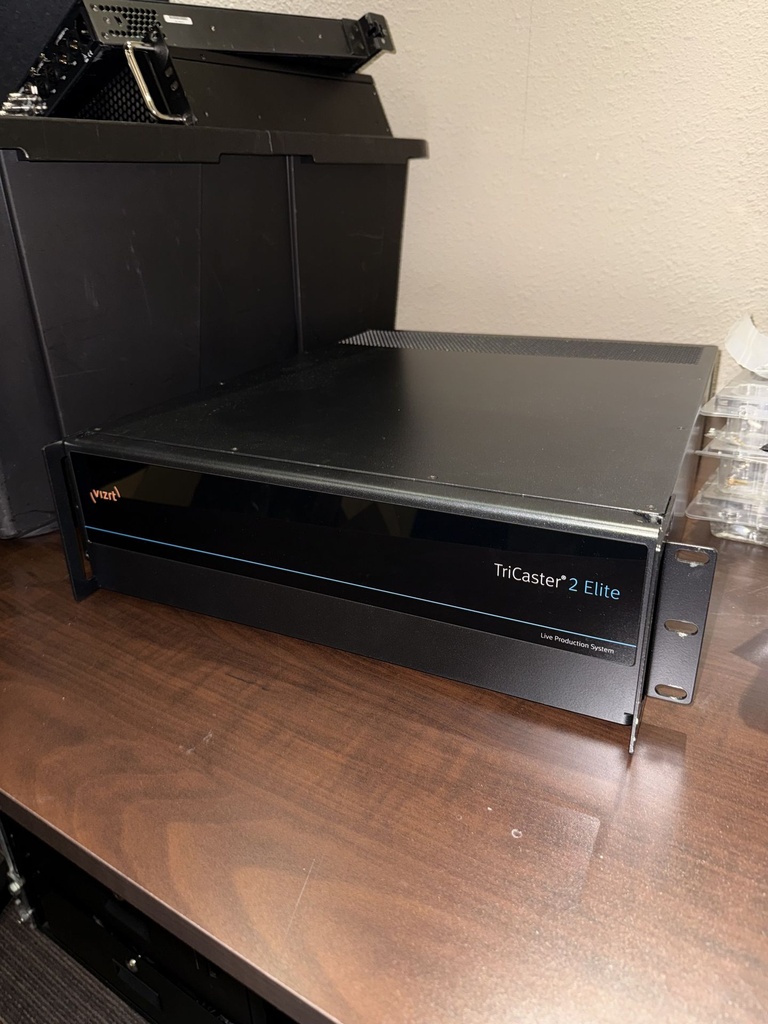

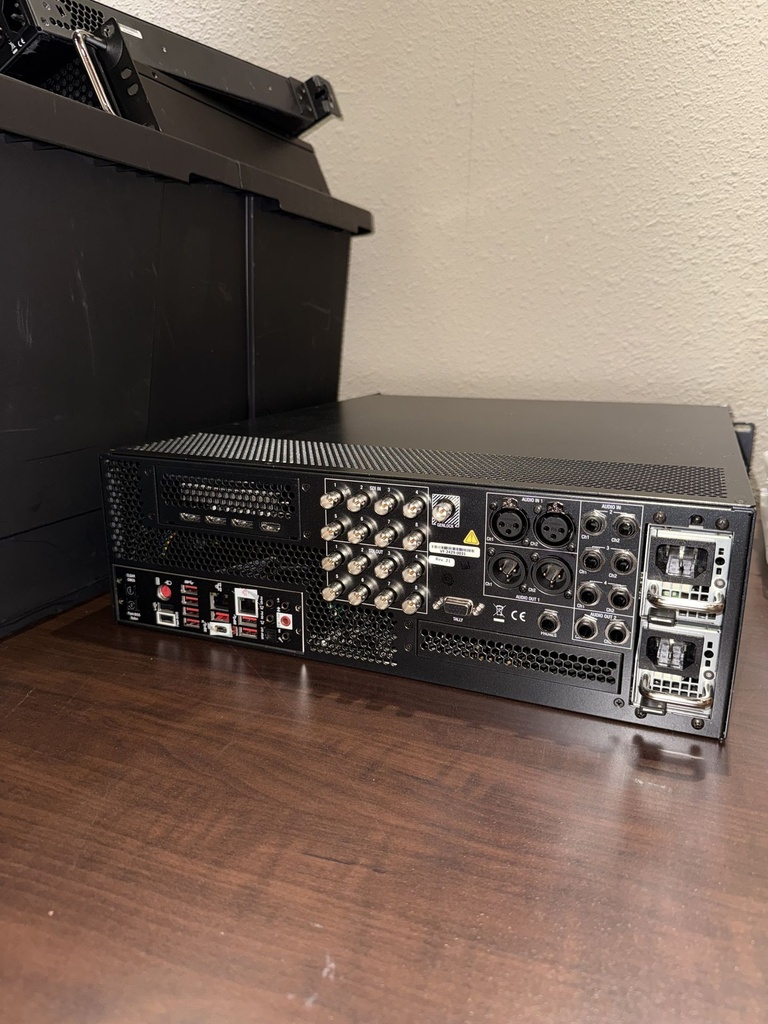

TriCaster TC2 Elite:
Complete Production
Engineered with a purpose and built with a commitment to ensuring you have everything you need to create amazing productions, Vizrt live production systems provide the most comprehensive set of tools and capabilities for modern workflows and the most value for your investment of any video solution.
See why they are the most complete video production systems on the planet.

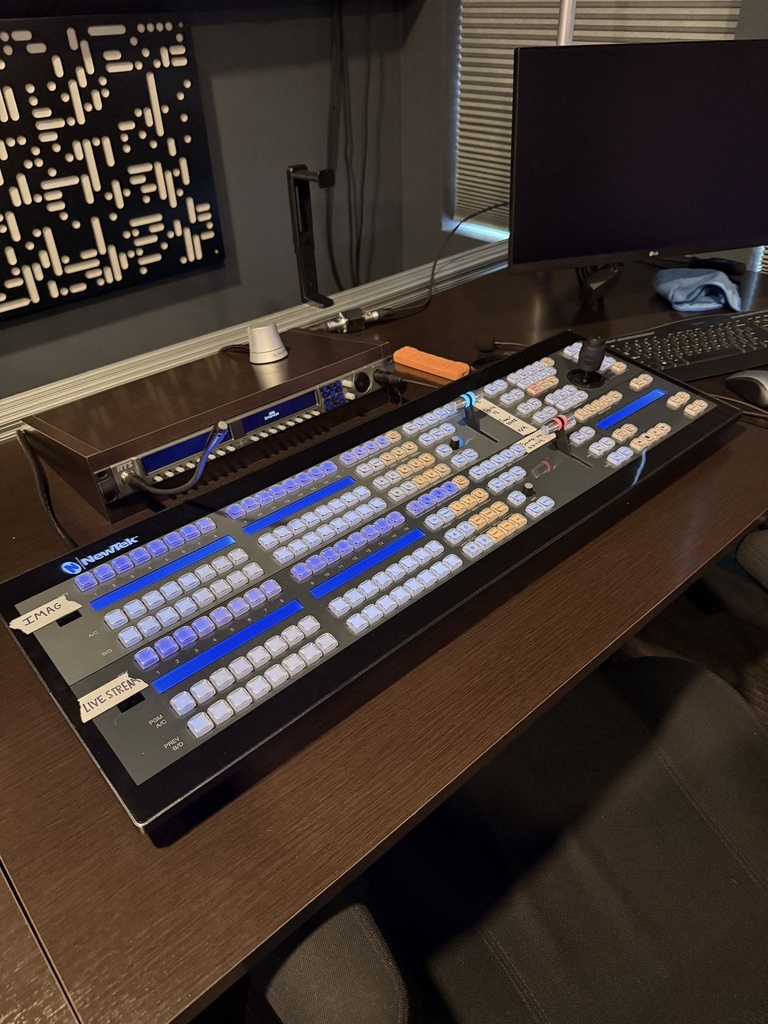

NewTek 2-Stripe Control Panel:
The NewTek 2-Stripe Control Panel features the maximum capacity control panel for the advanced multi-camera production capabilities of the TriCaster TC1 R2, TC1 R3, TC2 Elite, and VMC1.
The NewTek 2-Stripe Control Panel is made for the most demanding modern workflows. The 2-stripe control panel features 64 crosspoints per stripe (16 buttons with 4 delegate banks), the NewTek 2-Stripe Control Panel provides modern producers, publishers, and content creators with streamlined production control like never before

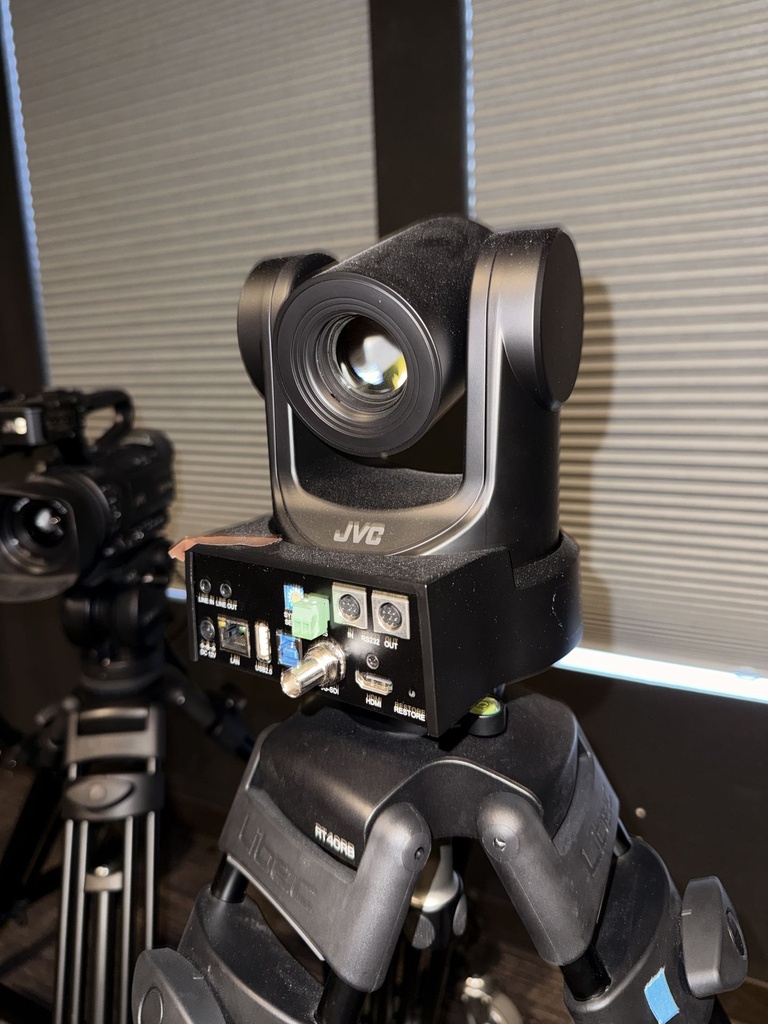

JVC KY-PZ200NBU:
For reliable, stable streaming, the camera features various QoS capabilities.
NDI®|HX is a high quality, low latency IP video transmission standard pioneered by NewTek.
SRT advanced streaming uses automatic repeat request (ARQ) and forward error correction (FEC) to prevent packet loss typical for internet connections. SRT also offers stream encryption for content protection.

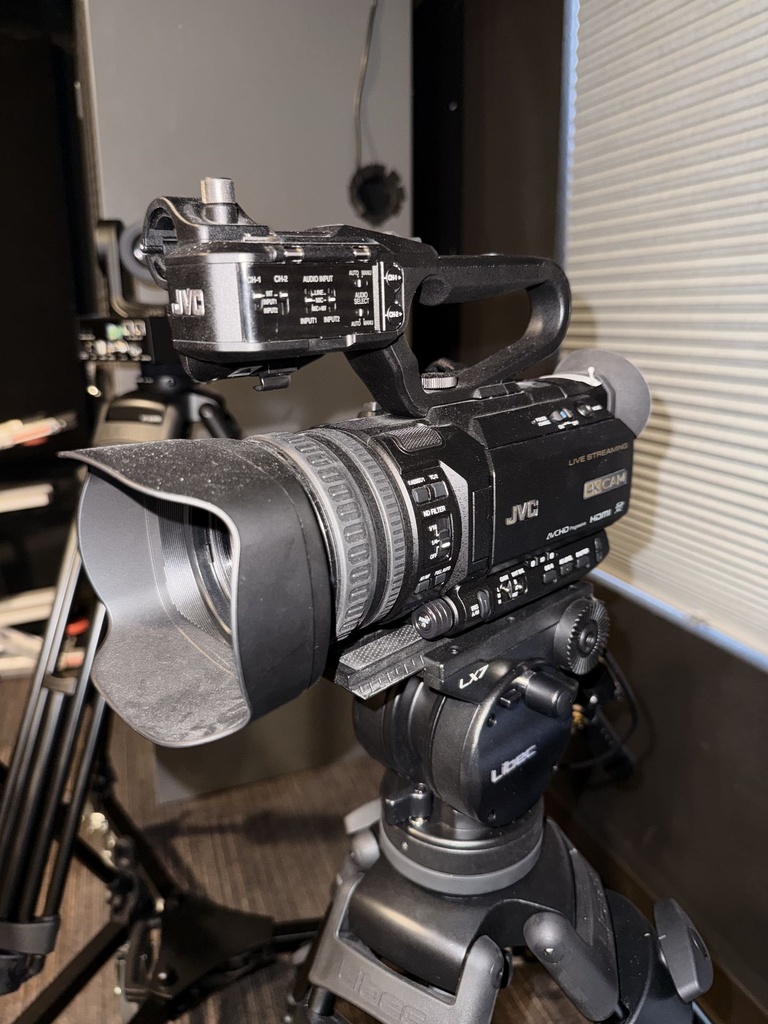

JVC GY-HM250:
The GY-HM250 does it all. This full-featured professional camcorder delivers stunning 4K Ultra HD video, the ability to stream to Facebook Live and YouTube, and the ability to add custom, integrated graphics to your recordings or live streams without an external CG or production switcher. It features a 12x optical zoom lens with tele-macro focus mode, a 4K CMOS sensor that records directly to SDHC/SDXC memory cards, and adds Zero Config for one-click configuration when joining the same LAN as other cameras.

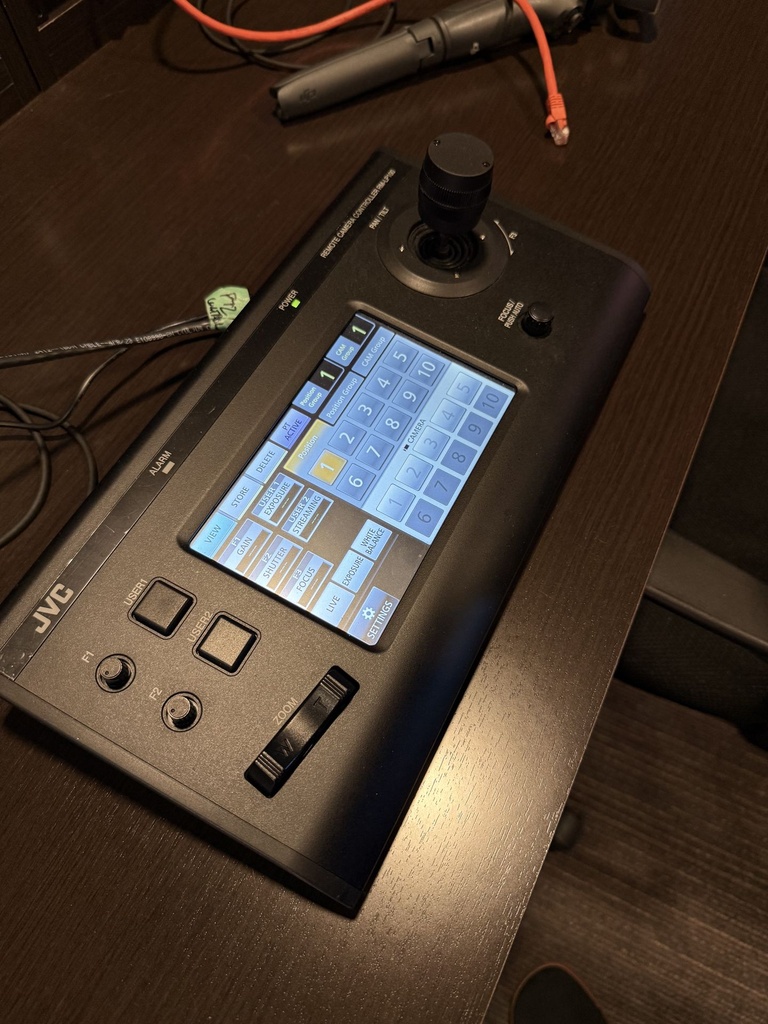

JVC RM-LP100:
This advanced controller connects to your network and provides complete IP control of cameras in your facility or anywhere in the world through the internet.
Features
TriCaster TC2 Elite:
4K UHD
Native support for 2160p video in frame rates up to 60 frames per second on all external inputs and primary mix output for true 4K UHD production.
4K UHD Workflow
Support for full-capacity 4K UHD video workflow for switching, streaming, recording, and delivery, including file playback, graphics, and mix effects.
3G
Native support for 1080p video in frame rates up to 60 frames per second on all external inputs and primary mix outputs.
Digital Media Aspect Ratios & Frame Rates
Use non–standard video aspect ratios, like 9:16 and square video, for no–compromise production, along with non–standard video frame rates and resolutions for delivery to digital screens.
*Available on TriCaster 2 Elite, 1Pro, Mini 4K and Mini X as standard. Other models will require upgrade with Premium Access.
JVC KY-PZ200NBU:
1/2.8-inch CMOS sensor (2.07 million pixels)
Optical zoom lens with 20x zoom ratio (4.42-88.5mm, f/1.8~2.8)
Can memorize 255 preset settings and positions
Multiple protocol streaming SRT, RTSP, RTMP, RTMPS
Powerful encoding engine supports H.265, H.264 & MJPEG
Simultaneous high (HD) and low resolution encoding with main and sub stream
LAN Connector supports Power over Ethernet (POE)
Compatible with RM-LP100 controller using JVC protocol and API
3G-SDI and HDMI digital outputs
Remote control via RS232, RS485 and JVC IP protocol
Ships with IR controller, mounting bracket, power adapter & RS232 cable
Still image capture
JVC GY-HM250:
4K Ultra HD recording (150 Mbps, 24/30p) to SDXC (UHS-I Speed class3) card
Single 1/2.3-inch CMOS image sensor with 12.4 million pixels (9.03 active)
High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.6-355mm)
Dynamic zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom
Broadcast features • Customizable graphic overlays (on/off switchable) • Option for custom broadcaster logos, watermark, time and temperature • Selectable pre-loaded logos
Wired remote control supported
HD-SDI (3G) and HDMI outputs (4K output via HDMI only)
Live 4K UHD output via HDMI connector
Advanced JVC streaming engine compatible with USTREAM, Zixi and Wowza Streaming Engine
IP network remote control, remote viewing, metadata editing, FTP clips (requires appropriate network connection and adapter)
4:2:2 full HD recording at 50Mbps (24-60p)
120fps HD slow motion recording
Dual SDHC/SDXC slots enable dual, backup and continuous recording
9 user button assignable functions
2 position ND filter (1/4, 1/16)
0.24-inch colour viewfinder (1.56M pixel) with smart focus assist function
3.5-inch colour LCD display (920K pixel) with smart focus assist function
Built-in stereo microphone
External microphone and WIFI or LTE Dongle not included
Includes handle unit and SSL-JVC50 7.4V battery, AC Adapter
JVC RM-LP100:
7-inch (diagonal) touch screen for PTZ and CCU functions
Professional zoom rocker for smooth, variable speed zoom control
Heavy duty joystick for precise pan and tilt control
Focus dial with push-auto function
User assignable function keys
IP control of up to 100 cameras
Tally input (d-sub)
JVC KY-PZ200NBU:
Camera Front-End Specifications
Image Sensor (inch) 1/2,8 Inch CMOS
Number of Sensors 1
Mega Pixels 2.07M
S/N in dB 41
Min. Illumination 0.5 Lux
Shutter speed Shutter speed: 1/30 to 1/10000
Optical Specifications
Optical Zoom x times 20
Dynamic Zoom x times 8
Lens F Number 1.8 to 2.8
Lens ratio from / to 4.42mm to 88.5mm
Auto Focus Yes
PTZ Head Features
PAN Angle in degree +/- 170
PAN Speed with AC Adapter max degree/sec. 100
PAN Speed with POE+ max degree/sec. 100
TILT Angle in degree -30 to 90
TILT Speed with AC Adapter max degree/sec. 69.9
TILT Speed with POE+ max degree/sec. 69.9
Preset Positions 255
Recording Formats
Encoder Encoder: H.265/H.264/MJPEG
Resolution 1920 x 1080 Yes, 60p/59.94p/50p/30p/29.97p/25p/60i/59.94i/50i
Resolution 1280 x720 Yes, 60p/59.94p/50p/25p
IP Section of the Product
IP Main Connection Ethernet LAN RJ45 1000Base-T with POE+
IP Connection supports Ethernet
IP Features Live-Streaming Yes
IP Features Remote Yes, via RM-LP100 or Web-Browser no apps needed
H.265 Codec Yes
Live-Streaming Bitrates 1~58 Mbit/s
Live-Streaming Protocols SRT, RTMP, RTMPS, RTSP
SRT Protocol Yes
NDI|HX Protocol Yes
Live-Streaming Single cast Yes
Live-Streaming Multicast Yes
IN-OUT´s Connections
OUT HDSDI Yes, 3G HDSDI
OUT HDSDI Format max. 1080/60p,50p
OUT HDMI Yes
OUT HDMI Format max. 1920x1080 60/50p
OUT Audio Line Yes, 1 times 3.5mm mini jack
USB HOST Yes
PTZ Serial Interface RS-232C in/out Yes, over 8 PIN mini DIN
PTZ Supported Protocols Serial, PelcoD, IP JVC, IP others
Power and Enviroment Spec´s
Power DC Yes, 12 Volt or 42V to 57V POE+ over Network LAN
Power consumption 12W
Operation Temperature in Celsius degrees 0 to 40
Storage Temperature in Celsius degrees -40 to 60
Mechanical Informations
Weight in Lb 3.7 lb
Measurements (WxHxD) in Inch W 5.6 x H 6.5 x D 6.7
Include Package
AC/DC adapter Yes
Cable 2 Yes, RS232 Cable
Additional s Yes, Ceiling mounting bracket
Remote Control unit Yes
Ceiling mount bracket Yes
JVC GY-HM250:
Camera Front-End Specifications
Image Sensor (inch) 1/2.3 Inch CMOS
Number of Sensors 1
Mega Pixels 12.4
Gain in dB 0 to 36
Shutter speed 1/6 to 1/10000
White Balance modes FAW, AWA, 3200K, 5600K, Manual
Color Matrix adjustment Yes
Wide Dynamic Range Mode (WDR) Yes
User selected function buttons Yes, 13 (9 Buttons 4 Cross shaped)
User Customizes Menu Yes
Optical Specifications
Lens mount Internal
Optical Zoom x times 12
Dynamic Zoom x times 24
Lens F Number 1.2 to 3.5
Lens ratio from / to 4.67mm to 56.04mm
Lens ratio equivalent to 35mm 29.6mm to 355mm
Auto Focus Yes
Special Auto Focus Features Area Focus, Near/Far Modes, Face
Optical Image stabilization Yes
Filter Diameter in mm 62mm
Built-in ND Filters None, 1/4, 1/16
Recording Formats
Media SDHC/SDXC
Media Class 4K/70 Mbps,HD and below Class 10
4K/150Mbps UHS1-U3 (no UHS-2)
Recording slots 2
Encoder H.264
File Format MOV Yes
File Format MP4 Yes
File Format AVCHD Yes
Video Codec MPEG4 AVC/H264 4K/HD Yes
Video Codec AVCHD Yes
Recording specials 4:2:2 HD Record (H.264,50Mbps)
Simultaneous recording on 2 cards Yes
Simultaneous recording in 2 modes Yes
Resolution 3840 x 2160 Yes, 29,97p/25p/23.98p
Resolution 1920 x 1080 Yes, 60i/50i
Resolution 1440 x 1080 Yes, 60i/50i
Resolution 1280 x720 Yes, 60p/50/30p/25p
Resolution 720 x 576 Yes, 50i
Resolution 720 x 480 Yes, 60i
Resolution 640 x 360 Yes, 30p/25p
High Speed Recording Yes
High Speed Recording Modes 1920x1080 QuickTime (MPEG-4, AVC/H.264)
120fps/100fps
Recording Data rate 1 150 Mbps (UHD)
Recording Data rate 2 70 Mbps (UHD)
Recording Data rate 3 8,17,24,28 Mbps (AVCHD)
Recording Data rate 4 35 Mbps (UHQ)
Recording Data rate 5 50 Mbps (XHQ/YUV422)
Recording Data rate 6 8 Mbps (SD)
Recording Data rate 7 9,8,5,3,1.2,0.8,0.3,0.2 (WEB)
SD Recording Yes
Interval Recording Yes
Pre Rec (retro) recording Yes, 5 sec. (4K)
5,10,15 sec. (HD/SD)
Clip Trimming Yes
Audio Channels 2
Audio Recording modes LPCM 2ch, 48 kHz/16 bit (4k/HD/SD MOV), AC3 2ch (AVCHD), μ-law 2ch (Proxy)
IP Section of the Product
IP Main Connection USB A Host
IP Connection supports Ethernet, WIFI - and LTE USB Adapters
IP Features Live-Streaming Yes
IP Features Remote Yes, Via Web-Browser (no apps needed)
IP Features FTP Yes, Different protocols
IP Features Meta-Data Yes, Local and Remote editing and data exchange
Live-Streaming Bitrates 1920 x 1080 (59.94i/50i) Audio AAC 128 k 12/8/5/3 Mbps
1280 x 720 (59.94p/50p) Audio AAC 128 k 12/8/5/3 Mbps
1280 x 720 (29.97p/25p) Audio AAC 128 k 8/5/3/1.5 Mbps
720 x 480 (59.94i) 720 x 576 (50i) Audio AAC 128 k/64 k 8/5/3/1.5/0.8/0.3 Mbps
640 x 360 (29.97p/25p) Audio AAC 128 k/64k 3/1.5/0.8/0.3 Mbps
Live-Streaming Protocols RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, Zixi
Live-Streaming Single cast Yes
Live-Streaming Multicast Yes
Live-Streaming reconnect Yes
Live-Streaming and simultaneous REC Yes
Live-Streaming Pre-sets of destinations 4
FTP Protocol formats FTP / SFTP / FTPS
FTP upload during REC Yes
FTP servers presets 4
Meta-Data presets of servers 4
Note for all kind of USB Adapters The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder).
Please select the device which you are going to use:
WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
Recommendation for WIFI USB Adapters (EU only) Please Note: Sometimes the Manufacturers change the Revision of the Chip-sets, but product name not changed, we can´t track such issues so may its possible that such a dongles even its mentioned here, may not work.
The Adapters below are work able in the 2,4 GHz and 5 GHz infrastructure.
WIFI Dongle 1 Sitecom WLA.1001
WIFI Dongle 2 EnGenius EUB1200AC /Realtek RTL8812AU
WIFI Dongle 3 ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 4 D-LINK DWA-172 (revA1) /Realtek RTL8811AU
WIFI Dongle 5 EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 6 D-LINK DWA-171(revA1) /Realtek 8811AU
WIFI Dongle 7 TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
WIFI Dongle 8 Wideland (over Amazon) ACWIFI DEWIFIC001A
Ethernet Dongle 1 EDIMAX EU-4208
Ethernet Dongle 2 Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 3 Hamlet HNU2GTX
Ethernet Dongle 4 D-LINK DUB-E100 (rev C1)
Recommendation for 3G/4G (LTE) Adapters Dear Customer, for the most countries we have a recommendation of adapters, please download our info sheet for LTE support, below you find a special recommendation, which should work in the most countries.
LTE Specials 1 Universal LTE dongle
Huawei E8372LTE Wingle
so far works with Telekom/O2/Vodafon , others not tested yet.
Special Features
Overlay for Broadcast-News Yes
Self Modify Templates via SDP Generator Yes, For News
Text support Yes
Logo support Yes
Watermark Yes, Free Position
Full Screen Graphics Yes, PNG or JPG Files Max 50 Images
LIVE Logo Yes, Self design
Overlay output selection Yes, REC
LIVE out
Stream
IN-OUT´s Connections
OUT HDSDI Yes, 3G HDSDI
OUT HDSDI Format max. 1080/60p,50p 8 Bit 4:2:2 EE
OUT HDMI Yes
OUT HDMI Format max. 2160/30p,25p,24p 8 bit 4:2:2 EE
1080/60p,50p 8 bit 4:2:2 EE
OUT AV Yes, 3.5mm mini jack
OUT Audio Line Yes, 1 times 3.5mm mini jack
OUT Audio Headphone Yes, 1 times 3.5mm mini jack
IN Audio XLR MIC/LINE Yes, 2 times supports LINE and MIC Level with +48V
IN Audio AUX Yes, 1 times 3.5mm mini jack
Build in Microphones Yes, Stereo MIC
Wired remote IN Yes, serial LANC 2.5mm mini jack
USB HOST Yes
USB Data Exchange (Storage) Yes
EVF and LCD
Operation Panel Type LCD
Operation Panel Resolution 920K
Operation Panel Size diagonal in inch 3.5
Electronic Viewfinder (EVF) Type LCOS
Electronic Viewfinder (EVF) Resolution 1,56M
Electronic Viewfinder (EVF) Size diagonal in inch 0.24
Power and Enviroment Spec´s
Power AC Yes, DC12V (AC Adapter)
Power DC Yes, 12V, Battery 7.4V
Power consumption Approx 8.5W (with VF in 4K REC mode, default settings)
Operation Temperature in Celsius degrees 0 to 40
Storage Temperature in Celsius degrees -20 to 50
Operation Humidity in % 30 to 80
Storage Humidity under % 85
Mechanical Informations
Weight in kg Approx.1.47 (including battery)
Measurements (WxHxD) in mm W 149 x H 191 x D 307
Handle removable Yes
Include Package
Battery Yes, x1 (SSL-JVC50)
AC/DC adapter Yes
Handle unit Yes, with Professional Audio XLR support
Instructions Yes
JVC RM-LP100:
Control Support for
Camera Type: KY-PZ200WE/BE, KY-PZ200NWE/NBE
Camera Type: KY-PZ400BE/WE, KY-PZ400NBE/NWE
Camera Type: KY-PZ510WE/BE, KY-PZ510NBE/NWE
Camera Type: KY-PZ100BE/WE
Camera Type: GY-HC550E, GY-HC500E
Camera Type: GY-HM660
Camera Type: GY-HM850 E(CHE) Lens function only with JVC original supported Fujinon Lens
Camera Type: GY-HM890 E(CHE) Lens function only with JVC original supported Fujinon Lens
Camera Type: GY-HM250E/ESB
Camera Type: GY-HM200E
Max Control of X Cameras: 100 Unit (s)
Controlled Operations
PAN YES
TILT YES
SPEED PAN/TILT YES
ZOOM YES
FOCUS YES
Focus / Push Auto YES
AE Level YES
Shutter YES
GAIN YES
IRIS YES *
Detail YES
Master Black YES (Not on KY-PZ100)
Exposure YES (only on KY-PZ100)
White Balance YES
AWB TRIGGER YES
White Paint YES
Black Paint NO
Trigger Streaming YES
Trigger Record YES
Preset Position (store/delete) YES (only on KY-PZ100)
Position Call (Cam/Group) YES (only on KY-PZ100)
Camera´s Menu Control call YES
IN-OUT´s Connections
GPI D-SUB 9 TALLY IN
Ethernet RJ 45
RS232 not in use
RS485/422 not in use
USB Service Terminal
Power and Environment Information
Power DC12 Volt via AC/DC Adapter
Power consumption 0.6A
Operation Temperature in Celsius 0 degree to 40 degree
Storage Temperature in Celsius -20 degree to 50 degree
Mechanical Informations
Dimension W:350mm - H:110mm - D:182mm
Weight 2.1 Kg
Include Package
AC Adapter YES
Instruction Doc: YES
Others Wire clamp / screw M3
USER MANUAL
No user manual available for download
