Panasonic AV-HS6000 (Used)
Price via quote

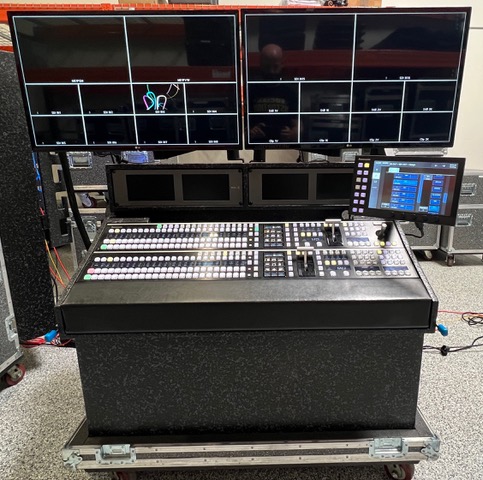

Panasonic AV-HS6000 2ME Console Case
(2) 32″ LG LED Monitor (32MA68HY)
(1) Panasonic Menu Control Panel (AV-HS60C3G)
(1) Panasonic 2 ME Console (AV-HS60C1P)
(2) Blackmagic Smart View Duo Monitor (HDL-SMTVDUO2)
(1) Panasonic 2 ME Mainframe (AV-HS6000)
Select Condition
Panasonic AV-HS6000 (Used)
2 M/E Live Switcher
2ME Live Switcher with complete system adaptability, intuitive operations, high reliability, and advanced 4K compatibility
Features
System Functionality
32 SDI and two DVI inputs and 16 SDI outputs, with a wide variety of keyers and DVEs. Versatile transition modes and extensive video production features are achieved with high cost effectiveness. Functions are scalable using plug-in software.
Operability
Intuitive operation is realized by Multi-Selection Panel, cross point buttons with color grouping function, and a OLED source name display panel. These function to enhance visibility helps quick and accurate switching.
Reliability
The power supply for the mainframe and control panel is redundant. Up to three panels can be operated through an IP connection to provide stable system operation.
32 Inputs:
• Connector: BNC x 32
• SDI IN 27, SDI IN 28, SDI IN 21, SDI IN 32、SDI IN 32 terminals are equipped with up-converters,
• SDI IN 25 to SDI IN 32 terminals are equipped with color correctors.
32 Outputs
SDI-D OUT 1 to SDI OUT 16 Terminals
During Standard mode
16 lines (2 distributed outputs per line)
• Connectors: BNC x 32
• ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLM, ME2KEYPVW, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, DSK3CLN, DSK4CLN, SEL KEYPVW, MV1 to MV4, and AUX1 to AUX16 can be assigned.
