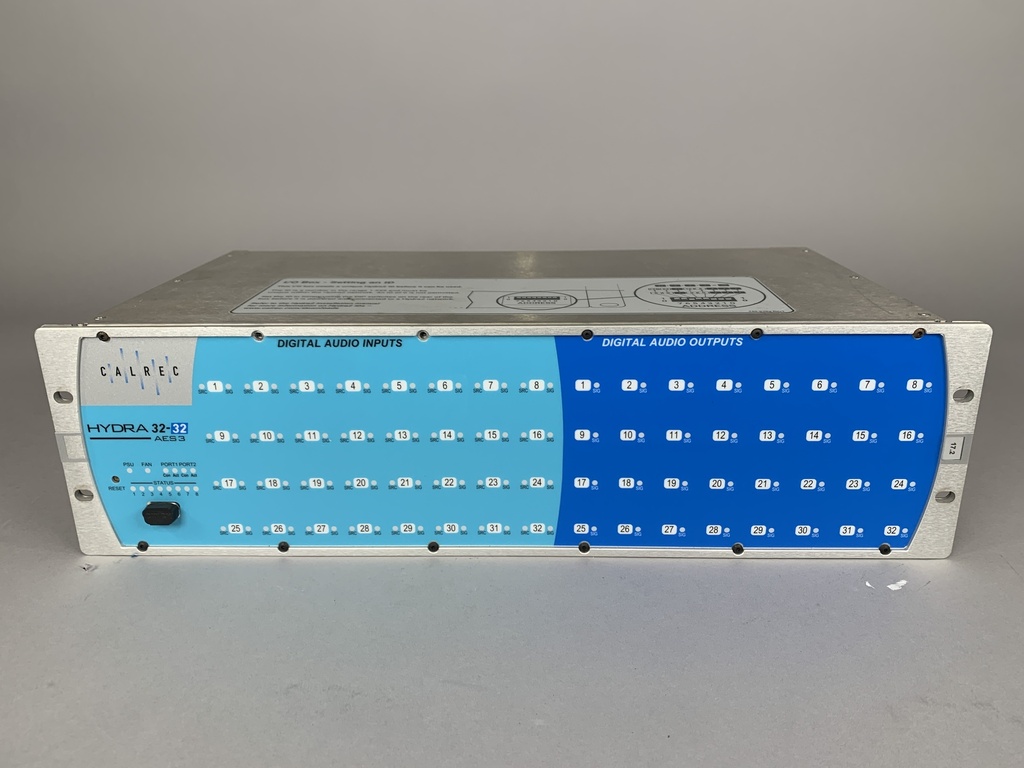

Calrec Hydra 2, JB5962, Digital AES3 Rear Mount 32in/32out - BNC (Used)

AES3 rear mount 32 in/32 out – BNC 4

Calrec Hydra2 JB5962

A range of Calrec fixed format digital AES3 I/O units are available offering various quantities of inputs and outputs via unbalanced 75 Ω BNC connections.

Balanced 110 Ω AES I/O is an option for modular I/O boxes only.

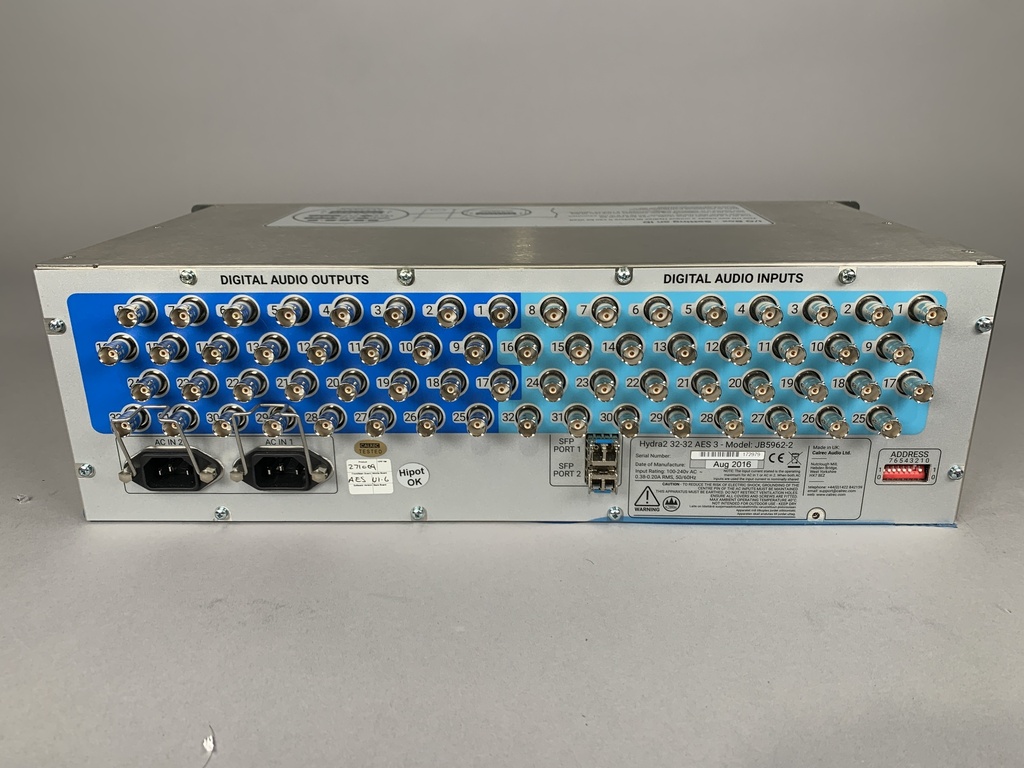

The Calrec JB5962's audio interface BNC connectors are rear panel mounted.

Please note this unit cannot be fitted with a GPIO card.

UNIT SPECIFICATIONS
Format: Digital AES3 unbalanced
Inputs: 32
Outputs: 32
Audio Connectors: BNC
Impedance: 75 Ω
Input Signal Range: 0.3–1.2 V Pk–Pk
Output Signal: 1 V Pk–Pk (nominal)
Signal to Noise Ratio (SNR): 22 Hz to 20 kHz – Better than -120 dB
Digital to Digital (AES3) Distortion: -1 dBFS, 20 Hz to 10 kHz – Better than 0.0001%
GPIO Compatible: No
Height: 3RU
Width: 19” rackmount (483 mm)
Depth: 9” (230 mm)
Depth inc rear mating connectors: 12” (300 mm)
Approx Weight: 14.3 lbs (6.5 kg)
Input Power: 100–240 V AC, 0.38–0.20 A RMS, 50/60 Hz
Acoustic Noise: 26 dB-SPL A-Weighted, 1 m from source
