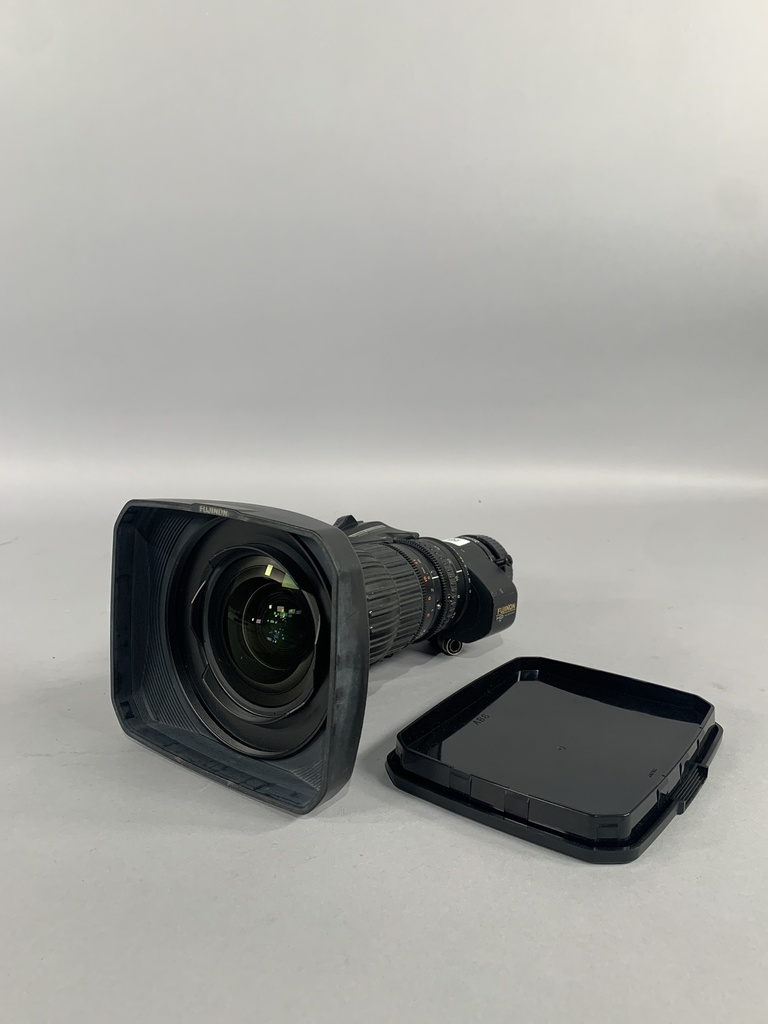

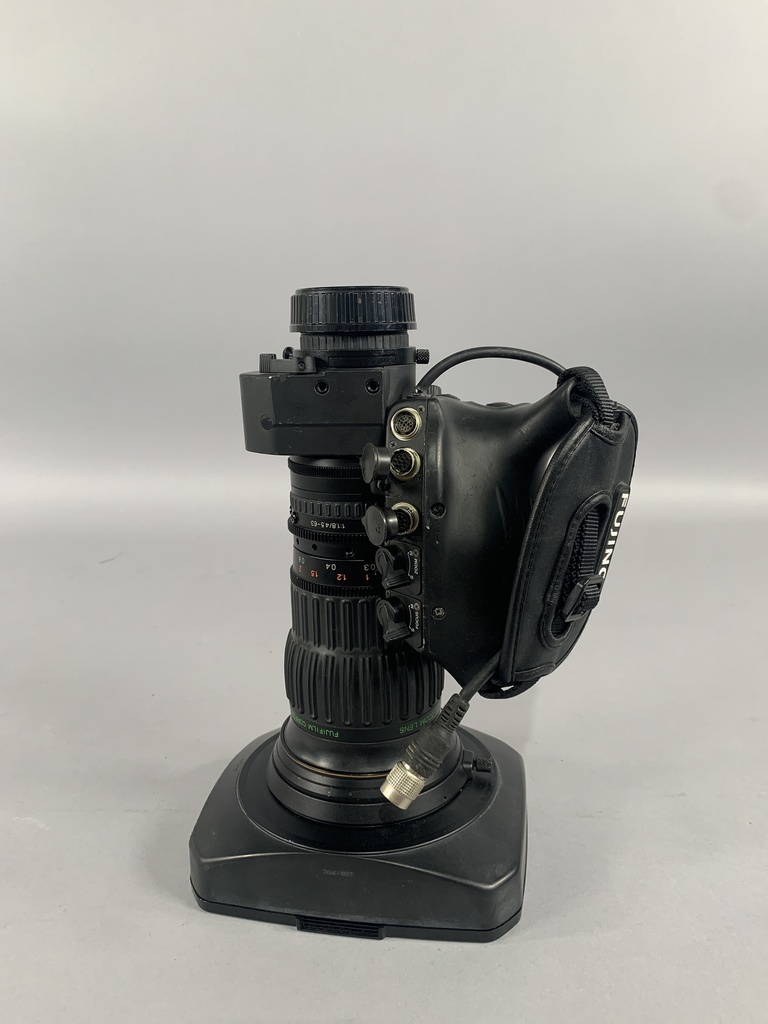

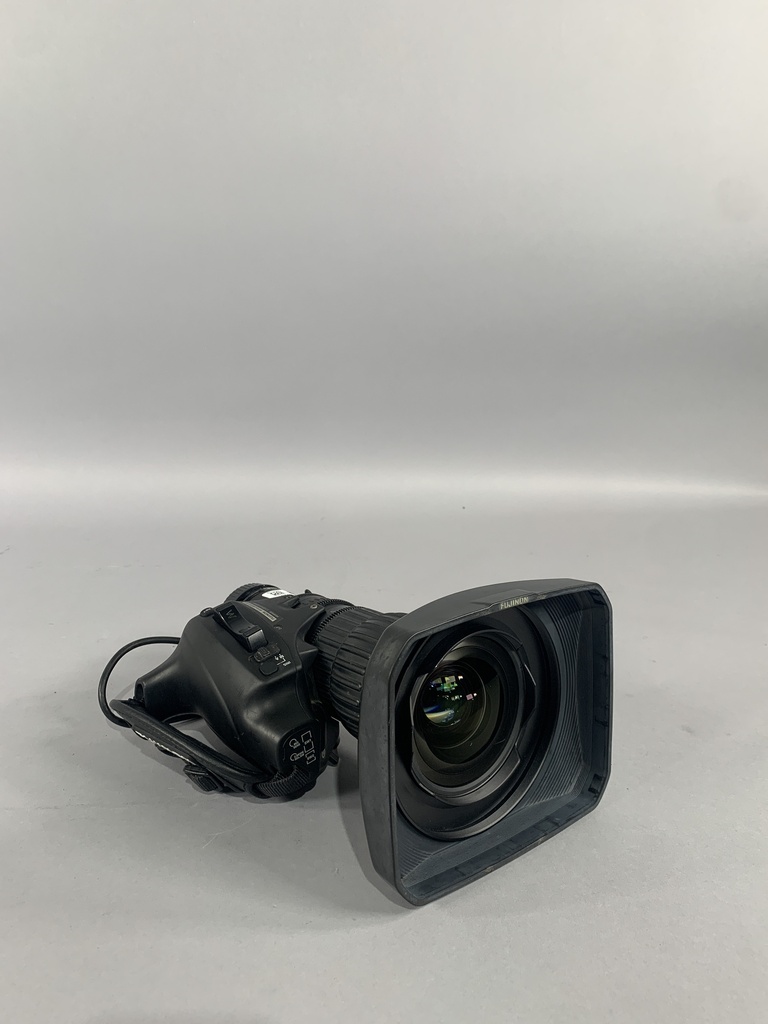

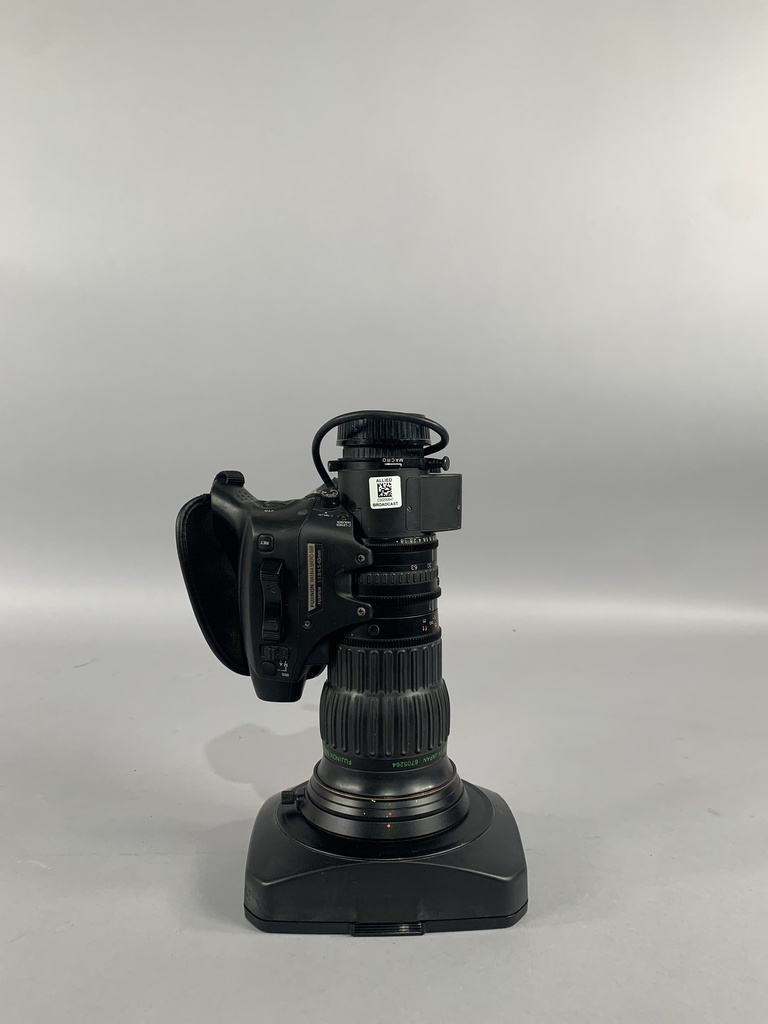

Fujinon HA14x4.5BERD-S6B (Parts)

HD ENG/EPF Super Wide Angle Lens

The Fujinon HA14X4.5BERD-S HD ENG/EPF Super Wide Angle Lens supports 2/3" format cameras and offers features such as Quickzoom and Zoom Limit. Inner focusing allows the lens to move the inner lens group without altering its length, thereby ensuring stability while focusing. With the cruise zoom feature, you can set the speed to ensure a constant zoom speed.

Supports 2/3" format cameras
Offers features such as Quickzoom and Zoom Limit
Inner focusing - allows the lens to move the inner lens group or groups without altering its length, thereby ensuring stability while focusing
Cruise zoom - allows you to start zooming in or out and set the zoom speed to ensure a constant zoom speed
3-mode fine focus feature - shifts the sensitivity from the wide side to the telephoto side of the focus range for precise focusing
Zoom, focus, and iris can be controlled using a remote control via serial digital link for digital accuracy
Digi Zoom Demand plugs into the lens remote connector located on the underside of the lens servo module and provide zoom speed control, one-shot preset, Quickzoom, focus or iris control, VTR, and return video
Contains servos for zoom and focus
14x zoom with 2.2x extender
Offers Digi-power servo for production and other applications requiring high optical quality
Focal length of 4.5 - 63 mm (1x) / 9.9-138 mm (2 x 0.2)
Maximum relative aperture - 1:1.8(4.5-41 mm) / 1:2.8(63 mm)
Minimum object distance - 0.3 m
Object dimensions at MOD - 743 x 418 mm (1x) 4.5 mm / 51 x 29 mm (2x) 63 mm
Angular field-of-view - 93°38' x 61°50' (4.5 mm) / 8°42' x 4°54' (63 mm)
Filter size - 127 mm / P = 0.75
Offers a QuickFrame option and can provide macro/close-up images
Remote control of the 2x extender is possible with the optional model ECU-2A remote extender module
