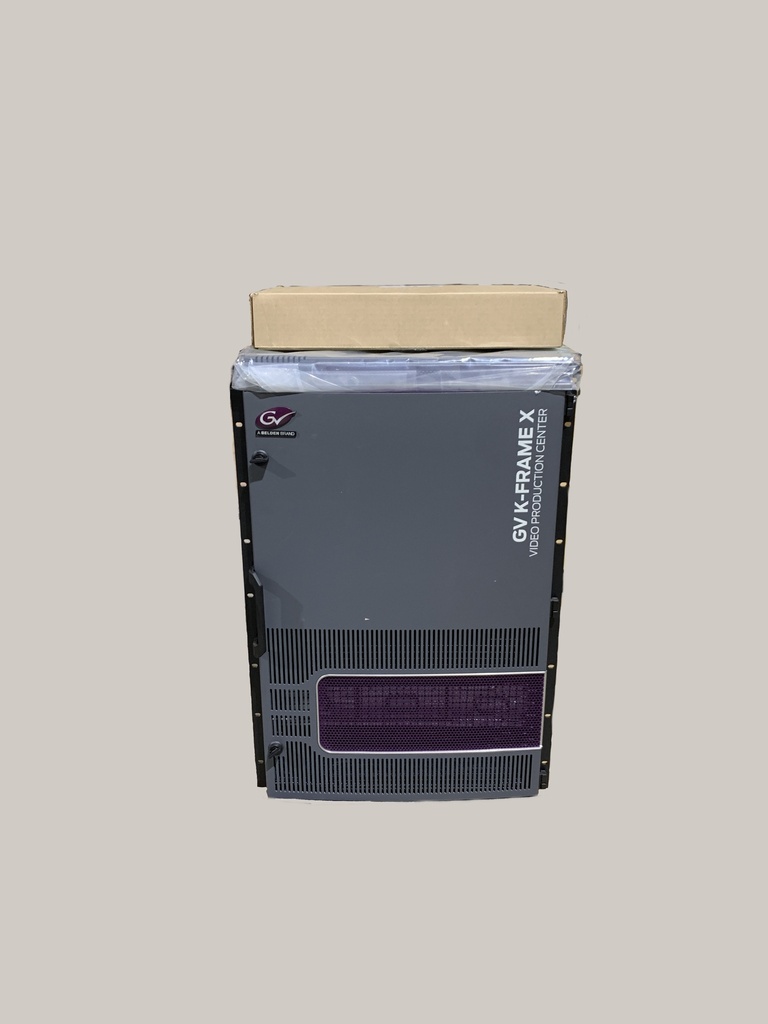

Grass Valley K-FRAME 100SX (Used)
Price via quote

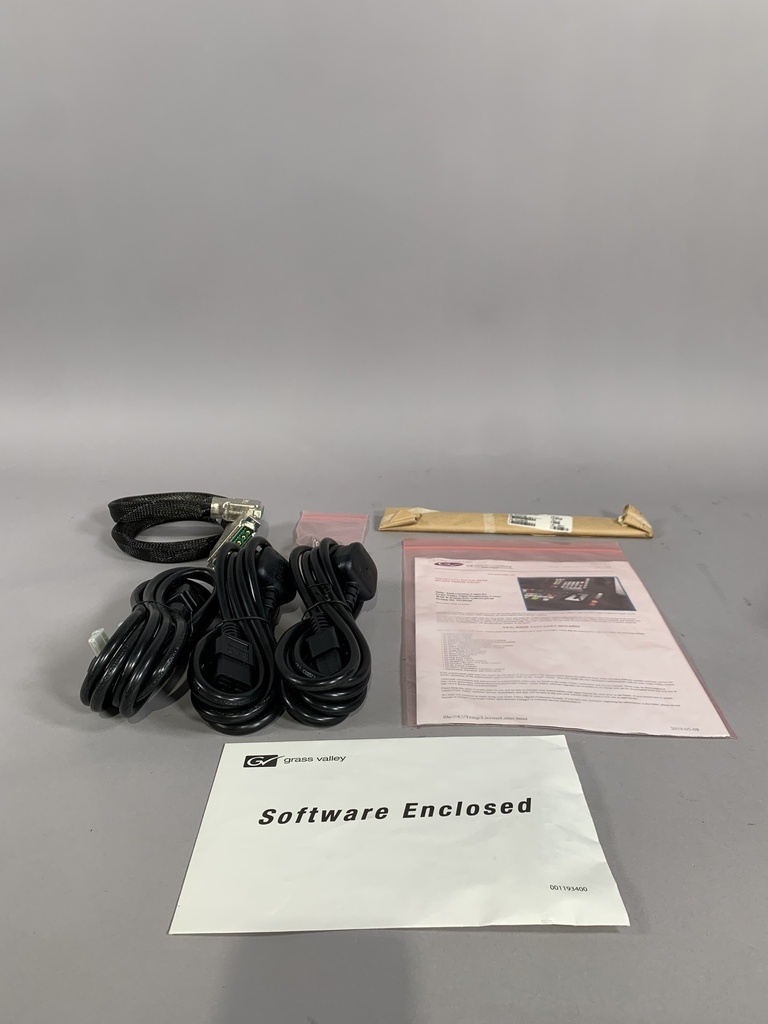

Good Condition (Light Corrosion on SDI Ports, Surface Rust on SFP Ports). Comes with Power Supply Frame with 2 PSUs installed, accessories box which includes 3 power cables, 1 interconnnect power cable, and software documentation.
Select Condition
Grass Valley K-FRAME 100SX (Used)
15RU Video Production Center
Features
Video production switcher frame supporting HD, 3G, and UHD 2160p formats
Modular SDI and IP I/O capability with SFP expansion
Scalable up to 192 inputs and 96 outputs depending on configuration
Supports up to nine mix/effects banks
Six full-function keyers per M/E
Integrated still and clip store with audio playback
Redundant power supply design for reliability

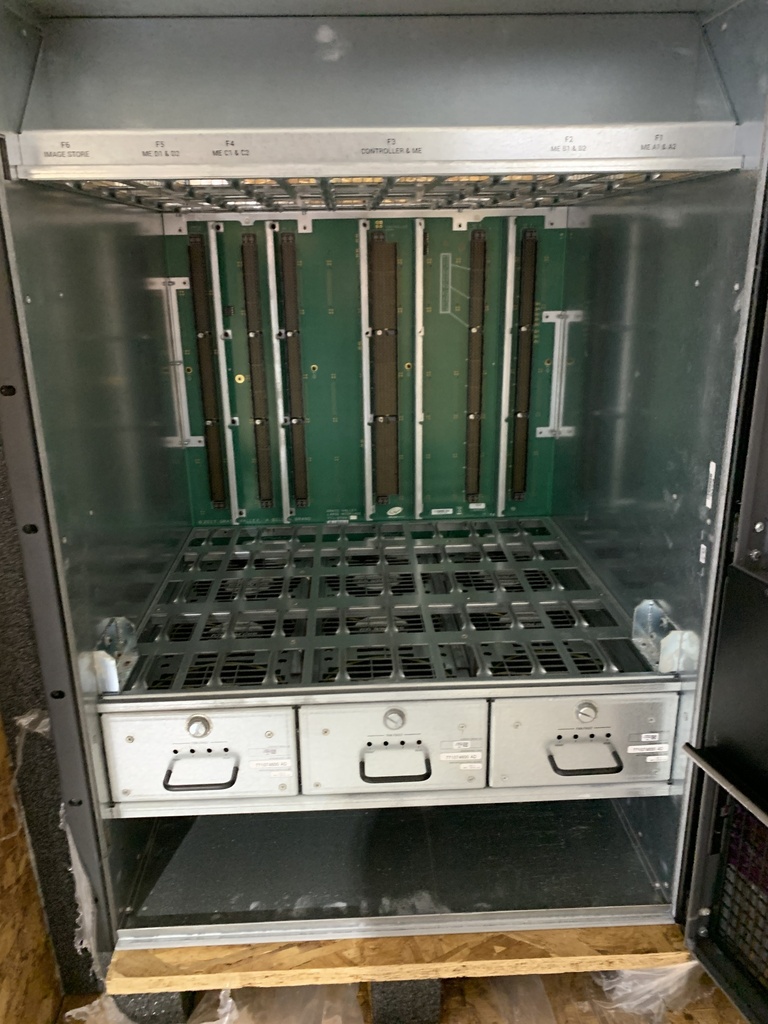

15 rack-unit chassis with separate external power frame
Supports both square-division and two-sample interleave methods for 4K UHD signal transport
Full 10-bit 4:2:2 video processing with optional 4:4:4 RGB modes
Independent processing per channel, allowing mixed SD, HD, 3G, and UHD sources in the same system
Frame syncs and format converters available on every input when licensed
Internal multiviewer outputs with customizable layouts
Low-latency processing path optimized for live production
Audio-follow-video capability with embedded audio handling
Ethernet-based system control, with remote panel or software operation options
Hot-swappable modules and fans for service without downtime
Designed for continuous 24/7 broadcast operation in live and studio environments
Frame dimensions approximately 26 inches high, 20 inches wide, 26 inches deep
Frame weight about 128 pounds depending on card population
USER MANUAL
No user manual available for download
