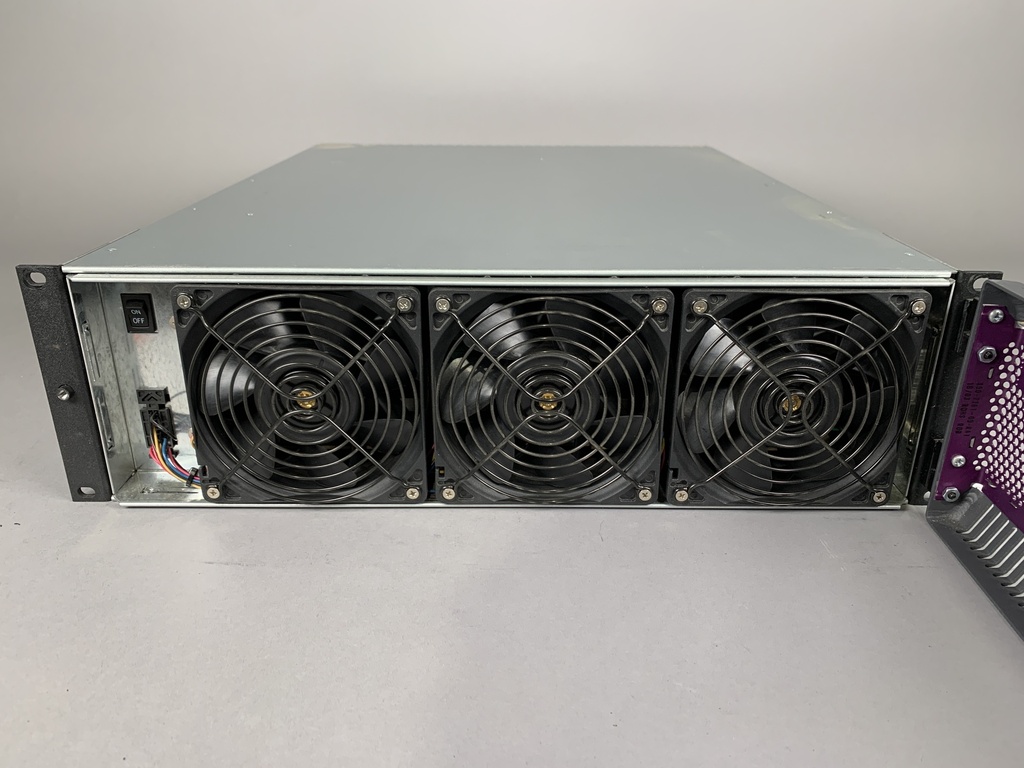

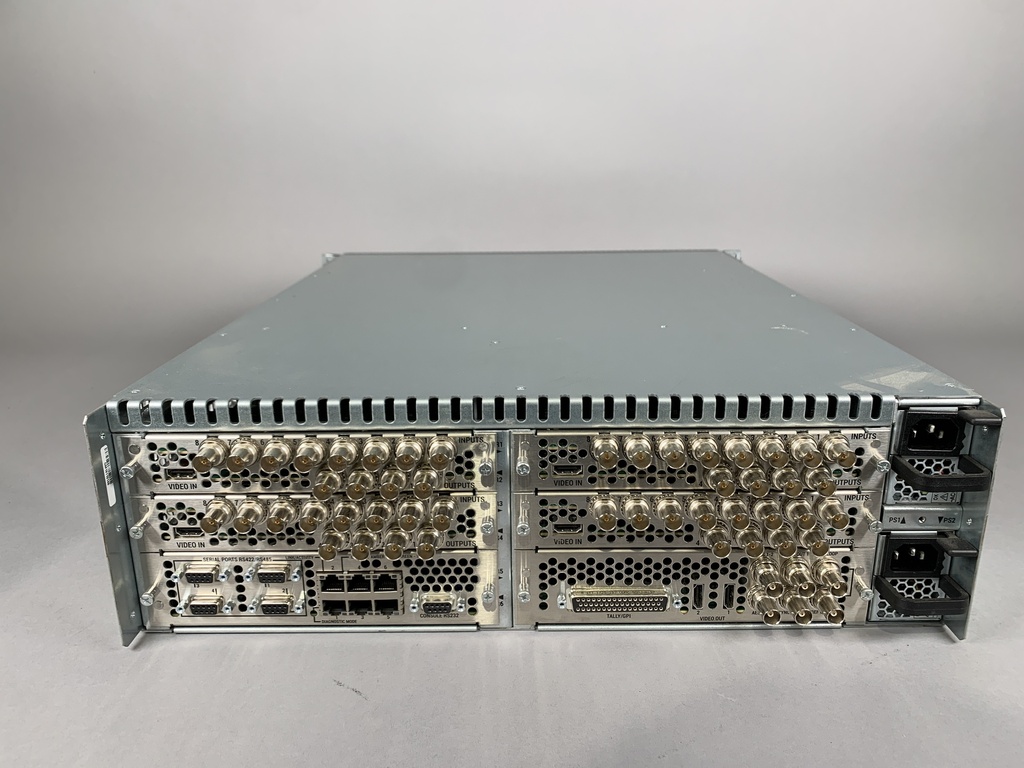

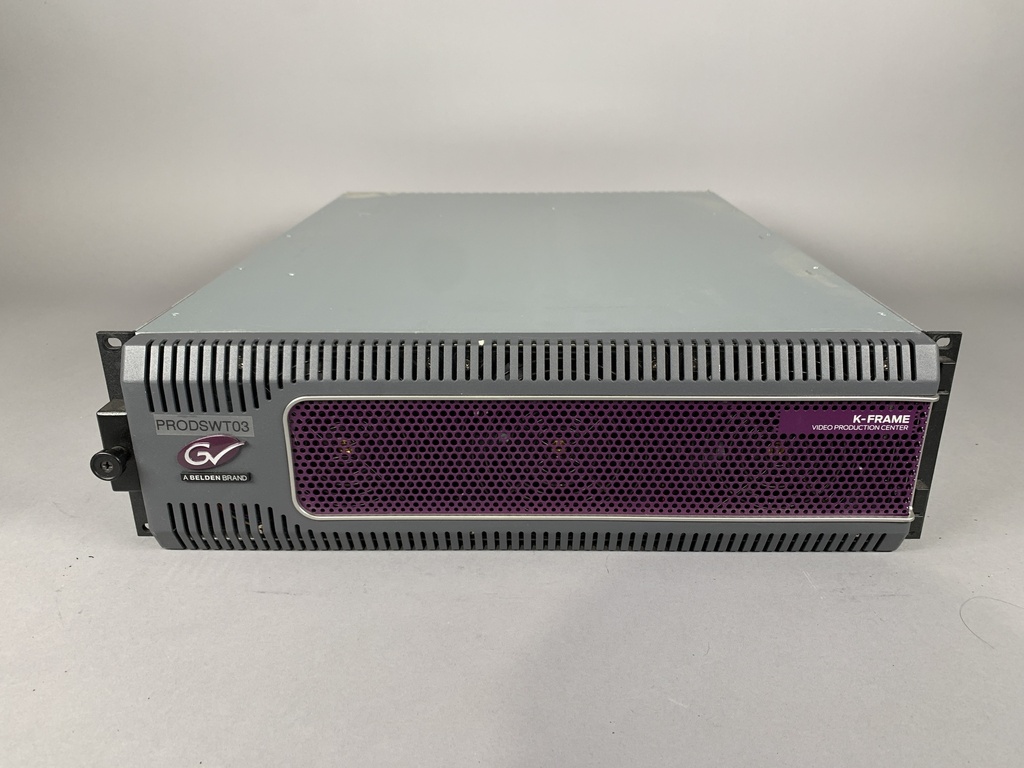

Grass Valley K-Frame-100V (Used)

Video Standards
4K UHD Mode:
2160p 50/59.94/60
4K 2SI Quad Link 50/59.94/60
4K SDQS Quad Link 50/59.94/60
3G Mode: 1080p50/59.94/60, Level A and Level B
HD Mode:
1080p 23.976/24/25/29.97/30
1080i25/29.97/30
1080PsF23.976/24/25/29.97/30
720p50/59.94/60
SD Mode:
525i29.97
625i25

Serial Digital Video Inputs
Interface:
4K UHD-SDI (12 Gb/s): SMPTE ST 425-5, SMPTE ST 2082-10
3G (3 Gb/s): SMPTE ST 424
1080PsF (3 Gb/s): SMPTE RP 211
HD (1.5 Gb/s): SMPTE ST 274, SMPTE ST 292, SMPTE ST 296
SD (270 Mb/s): SMPTE ST 259 ITU-R BT.656
Return loss:
>15 dB, 5.0 MHz to 1.5 GHz
>10 dB, 1.5 GHz to 3.0 GHz
>7 dB, 3.0 GHz to 6.0 GHz
>4 dB, 6.0 GHz to 12.0 GHz
Type of connector: 75Ω BNC (SMPTE ST 259)
Nominal amplitude: 800 mVp-p terminated
Input impedance: 75Ω
Max. cable length: Using Belden 1694A type cable
12G: 60 meters (197 ft.) typical
3G: 140m (459 ft.) typical
HD: 200m (656 ft.) typical
SD: 350m (1,148 ft.) typical

Media Port Inputs & Outputs
SD:
720p (1440) x 480i 29.97 Hz
720p (1440) x 576i 25 Hz
HD:
1280x720p 50/59.94/60 Hz
1920x1080i 25/29.97/30 Hz
1920x1080p 50/59.94/60 Hz

Serial Digital Video Outputs
Interface:
4K UHD (SMPTE ST 2082) 12.0 Gb/s
3G: SMPTE ST 424
HD (1.5 Mb/s): SMPTE ST 292
SD (270 Mb/s): SMPTE ST 259 ITU-R BT.656
Return loss:
>15 dB, 5.0 MHz to 1.5 GHz
>10 dB, 1.5 GHz to 3.0 GHz
>7 dB, 3.0 GHz to 6.0 GHz
>4 dB, 6.0 GHz to 12.0 GHz
Type of connector: 75Ω BNC (SMPTE ST 259)
Nominal amplitude: 800 mVp-p across 75Ω ± 10%
Rise and fall times:
12G: ≤ 45 ps between 20% and 80%amplitude
3G & HD: ≤ 135 ps between 20% and 80% amplitude
SD: 400 to 1400 ps between 20% and 80% amplitude
Timing jitter:
12G: ≤ 2.0 UI
3G: ≤ 2.0 UI
HD: ≤ 1.0 UI
SD: ≤ 0.2 UI
Alignment jitter:
12G: ≤ 0.3 UI
3G: ≤ 0.3 UI
HD: ≤ 0.2 UI
SD: ≤ 0.2 UI
Output impedance: 75Ω
DC offset: <50 mV with 75Ω termination
Ancillary and embedded data: Blanked or passed (user
selectable)
EDH: Blanked
IP Interfaces
Video:
SMPTE ST 2110-20
SMPTE ST 2110-21 => Receiver Type N (gapped only), Sender
Type N
SMPTE ST 2022-6
4K UHD TICO over SMPTE ST 2022-6
Audio: SMPTE ST 2110-30
Ancillary Data: SMPTE ST 2110-40
Redundancy: SMPTE ST 2022-7
Timing: SMPTE ST 2110-10 (future release)
Analog Reference Input
Video standard: Tri-level sync or color black, analog equivalent to
the currently configured standard being used
Return loss: >40 dB, up to 5.0 MHz
Connectors: 2 BNC loop-through
Impedance: 75Ω external termination
DC offset: <50 mV with 75Ω termination

Reference Output
Return loss: >40 dB, 0 to 5.0 MHz
Nominal amplitude: 1 Vp-p into a 75Ω load

Communications
Connections: Panel to frame: LAN cable 100m (328 ft.) max.
length
Interoperability: The GV Korona K-Frame V-series Video Produc-
tion Center is interoperable with the Sirius, Encore, Jupiter, SMS-
7000 and NV9000 routing control systems; LDK Series and LDX
Series cameras using Connect Gateway; and with the K2 media
server family (including K2 Summit and K2 Solo), sQ servers,
legacy Profile servers, M-Series iVDRs, Turbo iDDRs and T2 iDDRs.

Supported Control Protocols
The GV Korona K-Frame V-series Video Production Center sup-
ports Ethernet and serial AMP protocol (standard in all systems),
serial BVW and Odetics protocols, as well as controlling devices
using PBus II and GPIs
RossTalk (for Xpression control)
Single-point-of-control integration for graphics with
ChyronHego Click Effects PRIME
Serial BVW-75 for VTR control
AMP (advanced media protocol) for Profile PVS, Profile XP
Media Platform, K2, M-Series, Turbo iDDR and T2 iDDR sys-
tems over Ethernet and serial
Grass Valley native protocol for routers/routing control systems
(Trinix/Trinix NXT, Venus, Triton, NVISION and third-party rout-
ers; Jupiter, Encore and NV9000 router control systems)
Ethernet tally
Grass Valley remote Aux panels via Ethernet
Ethernet CPL to control Grass Valley external remote Aux
panels
GV Editor protocol for edit controllers and external control
VDCP serial and Ethernet

Power
Video Processing Frame 3 RU:
Line voltage: 100-240 VAC ±10% power factor corrected with
automatic line-voltage sensing for 120V and 240V sources
Line frequency: 50/60 Hz ±5%
Power consumption: max. 500W
Leakage current: <2.5 mA
Control Panel:
Line voltage: 100-240 VAC ±10% power factor corrected with
automatic line-voltage sensing for 120V and 240V sources
Line frequency: 50/60 Hz ±5%
Power consumption: max. 50W (GV Korona control panels)
Leakage current: <2.5 mA

Environmental Conditions
Storage temperature: -20 to 70º C (-4 to 158º F)
Operating temperature: 0 to 40º C (32 to 104º F)
Relative humidity: 0-95% (non-condensing)
Electromagnetic environment: E2 (according to EN55103-1, -2)
