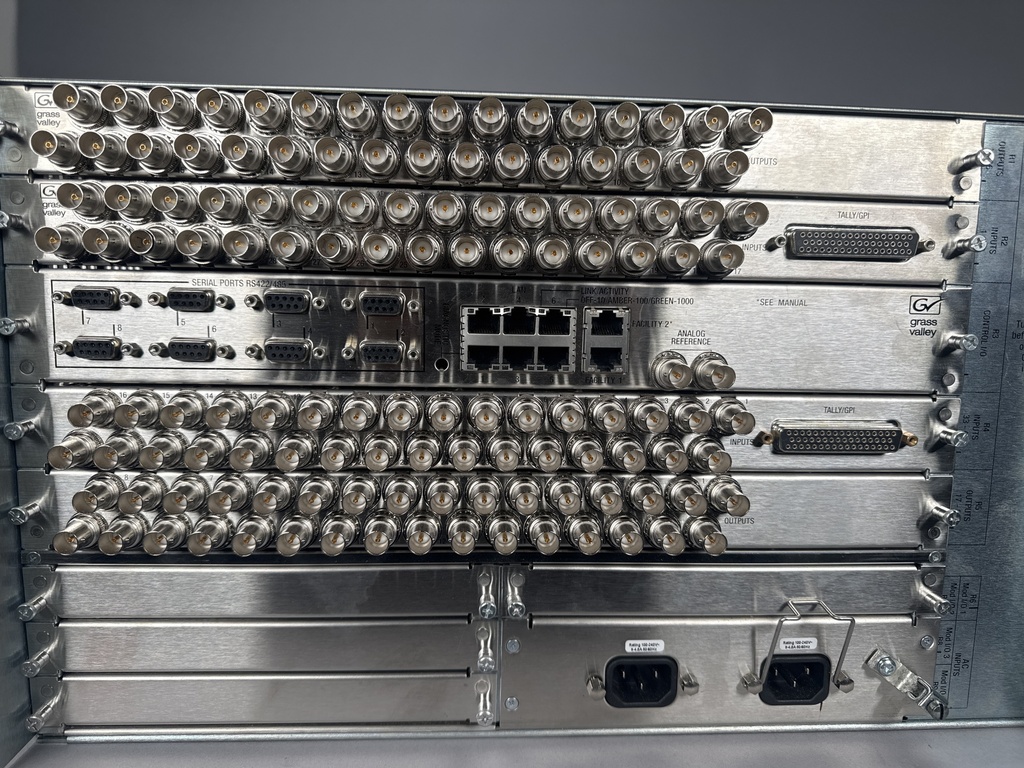

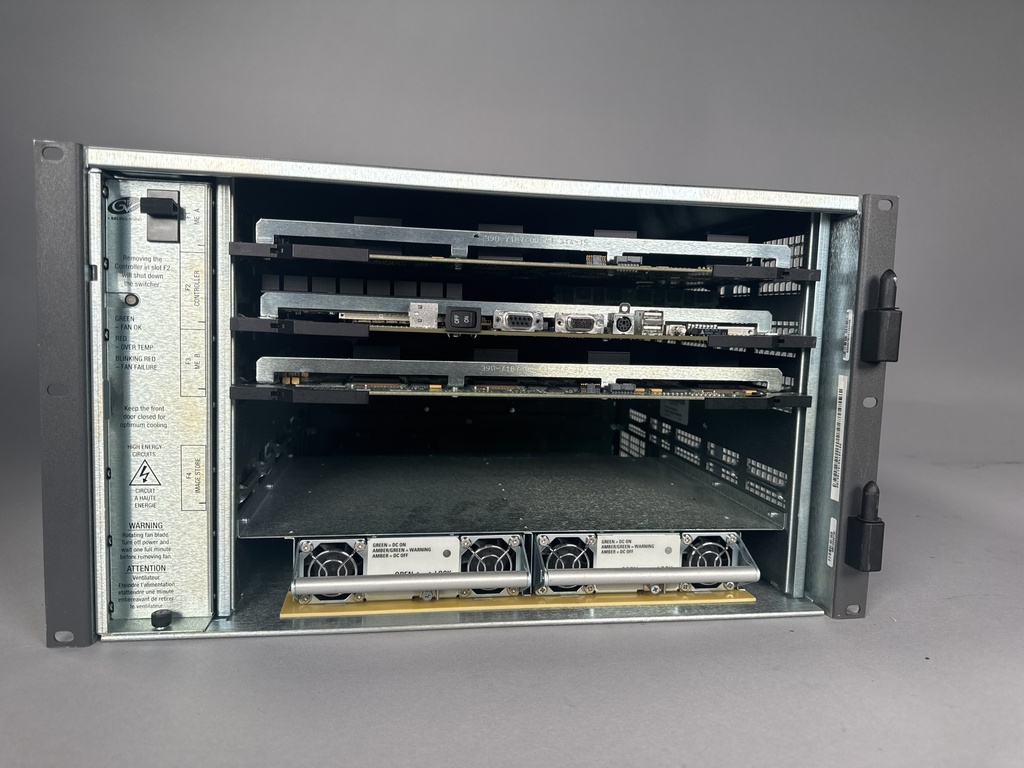

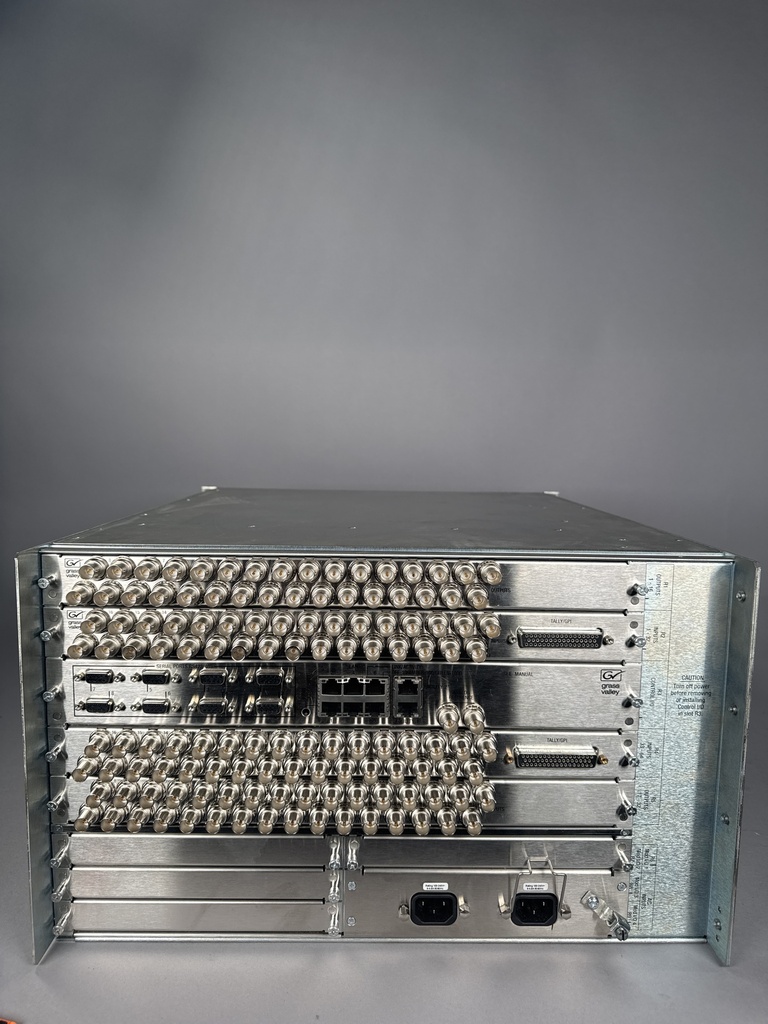

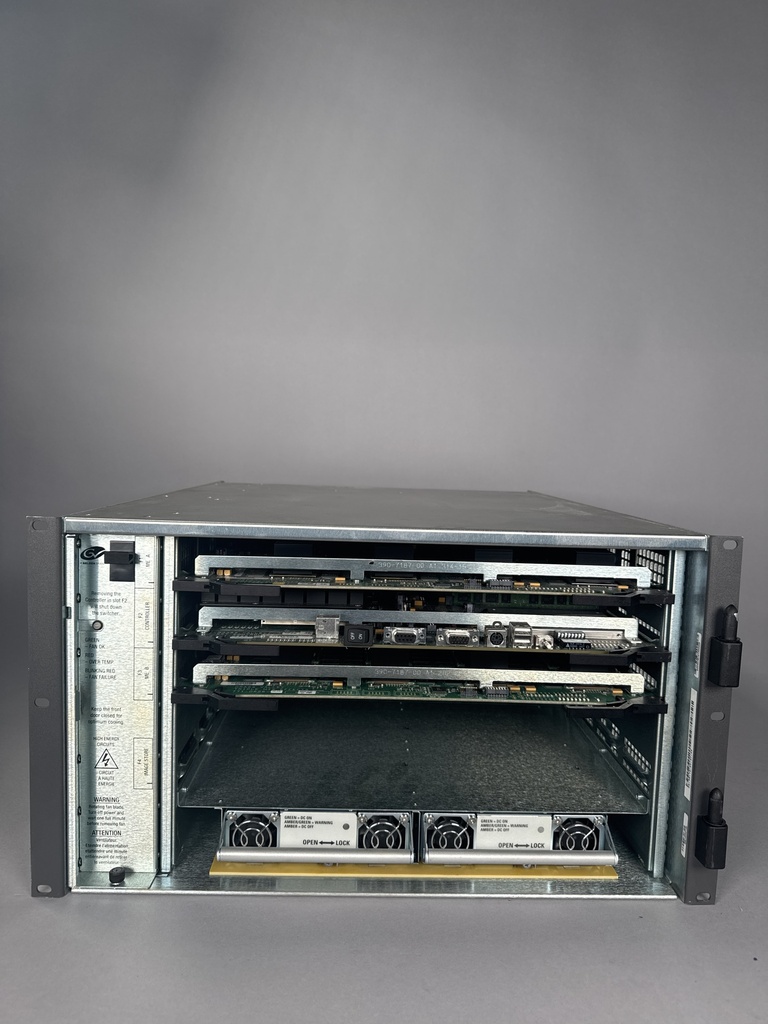

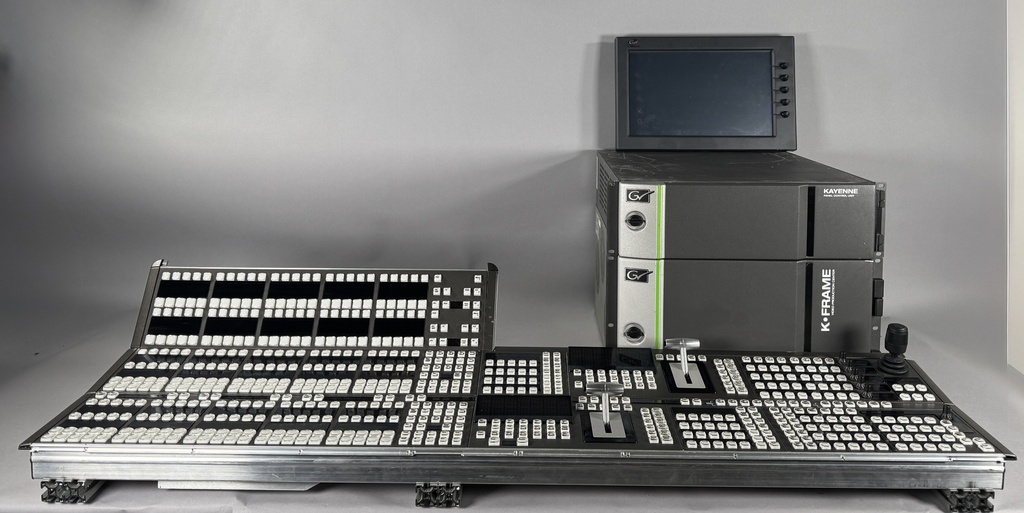

Grass Valley K-FRAME 6RU (Used)
Price via quote
K-FRAME 6RUPACKAGE INCLUDES
Available Video Formats
525i 29.97 Hz 4:3 / 29.97 Hz 16:9
625i 25 Hz 4:3 / 25 Hz 16:9
720p 50 Hz / 59.94 Hz / 60 Hz
1080i 25 Hz / 29.97 Hz / 30 Hz
1080sf 23.98 Hz / 24 Hz / 25 Hz / 29.97 Hz / 30 Hz
1080p-A 50 Hz / 59.94 Hz / 60 Hz
1080p-B50 Hz / 59.94 Hz / 60 Hz
Licenses
Full MEs: 4
Chroma Keyers: 2
DPM Channels: 6
Image Store Cache Size: 32 GB
FlexiKey™: Yes
DoubleTake™: Yes
Ethernet Tally: Yes
2D DPMs: Yes
Image Store Movies: Yes
Multiviewer: 2
No Modular I/O boards installed
32/IN
32/Out
SW Version V14.6.7 July 19 2021

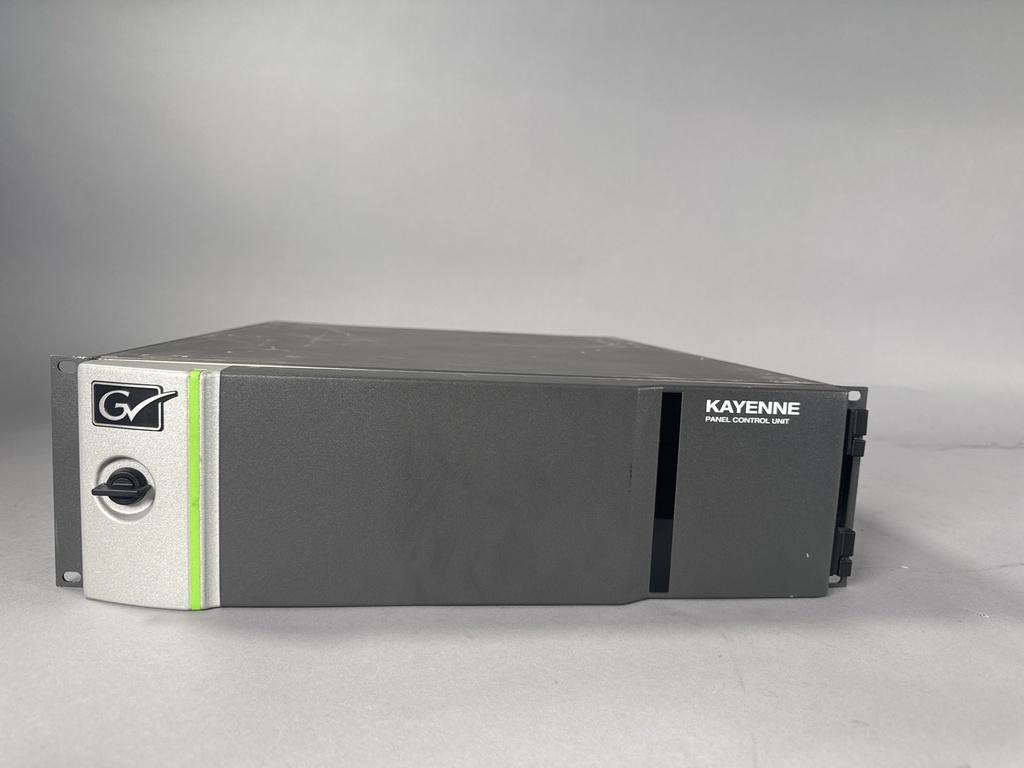

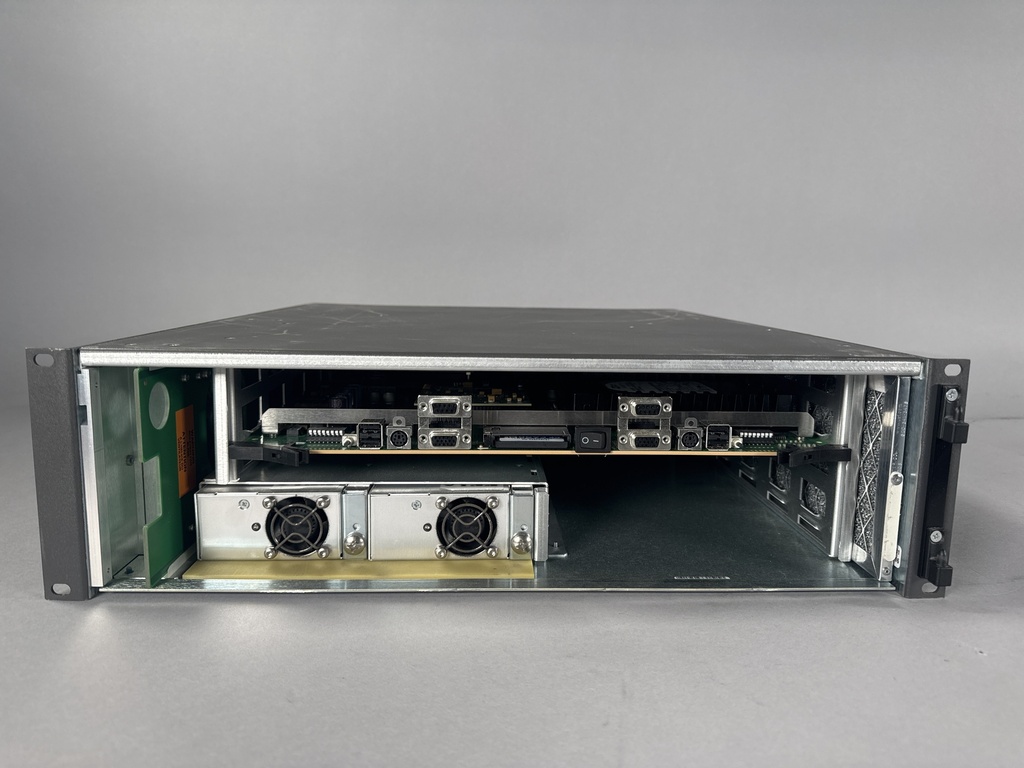

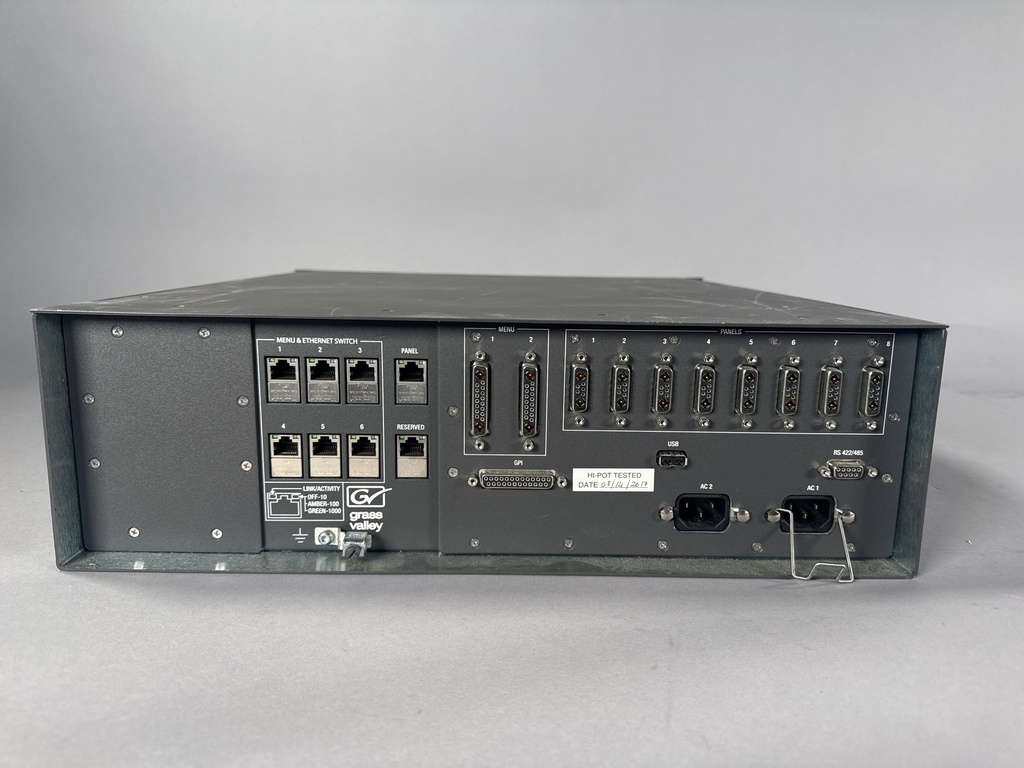

KAYENNE PCU (PANEL CONTROL UNIT) QTY-1

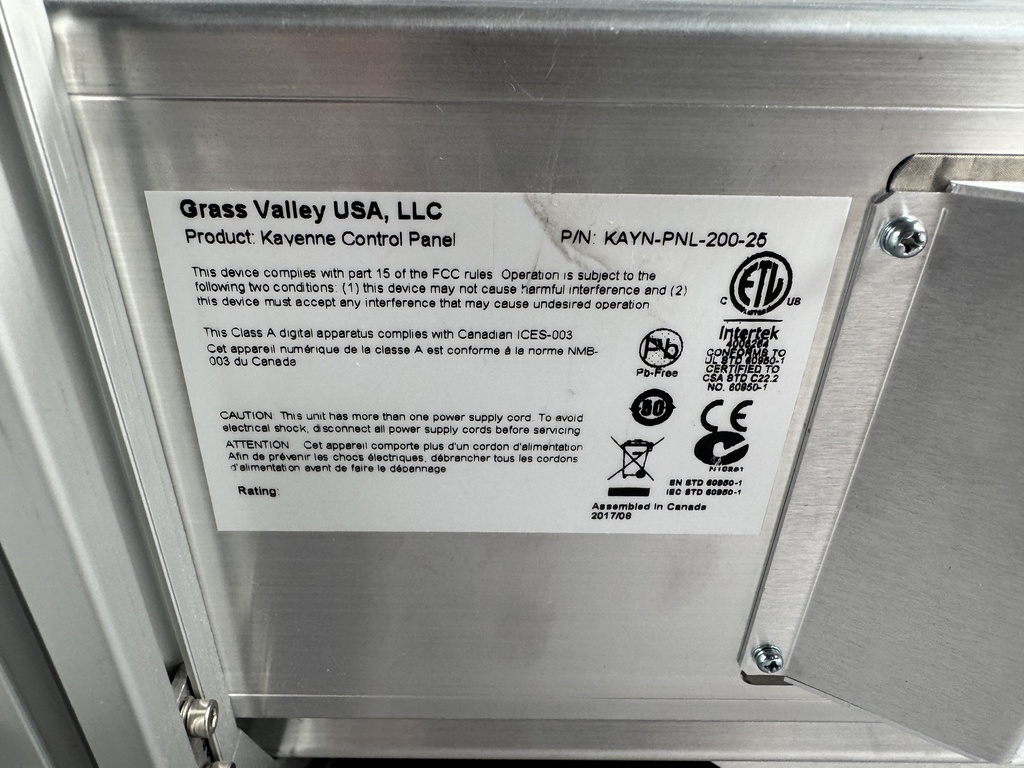

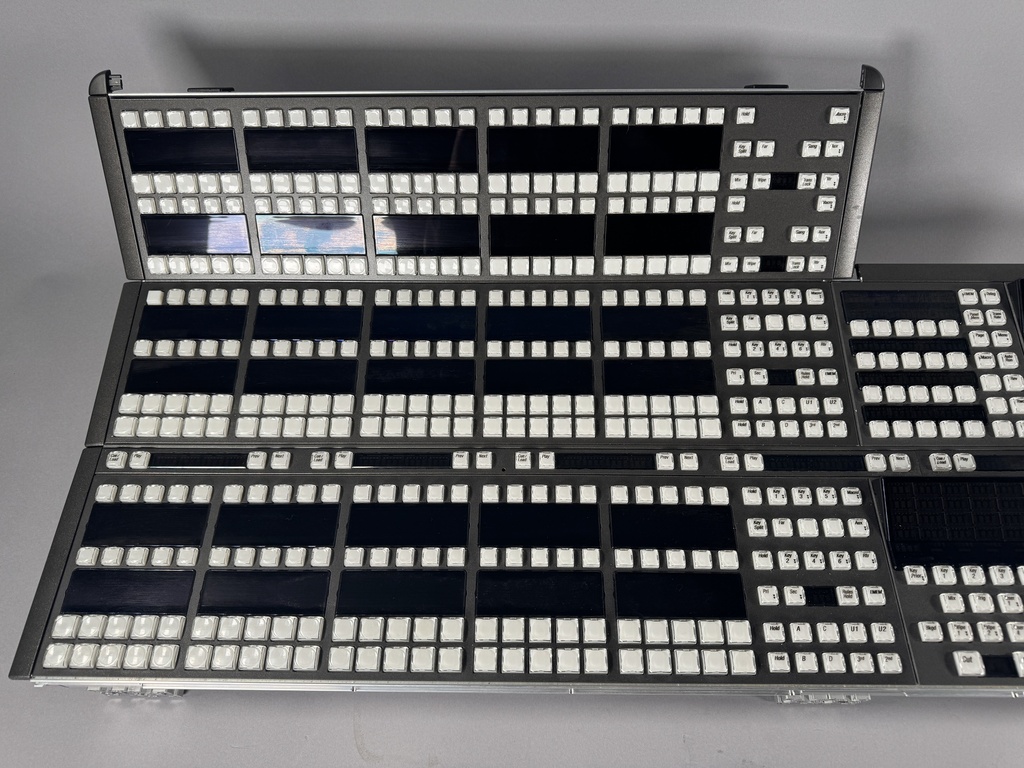

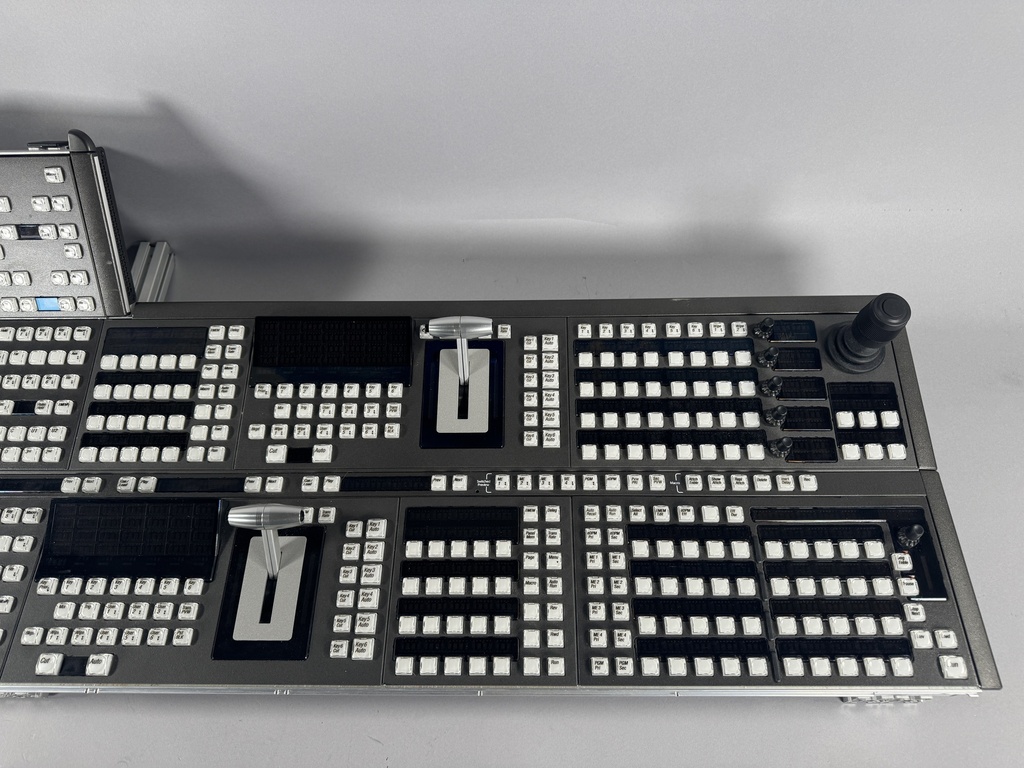

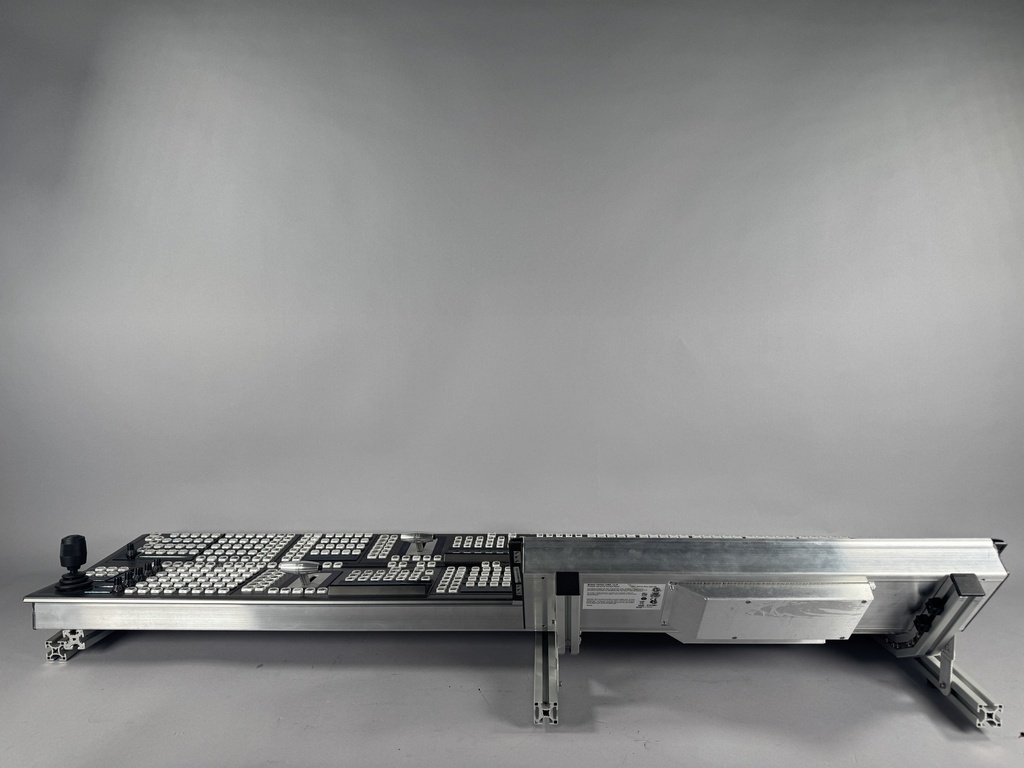

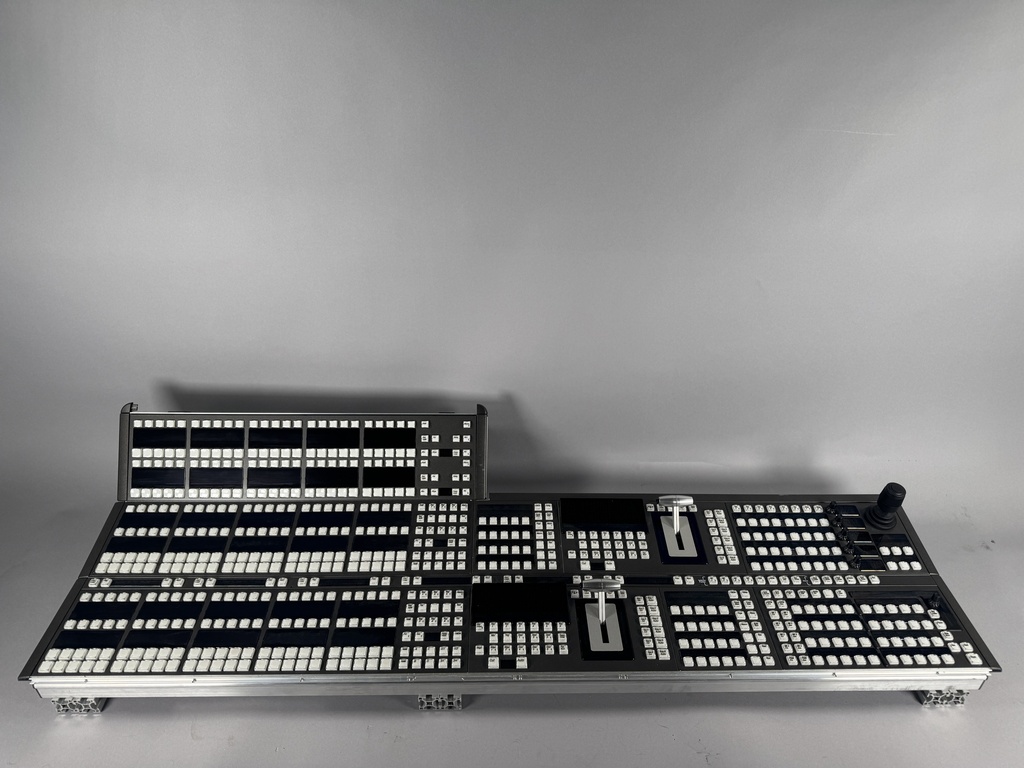

KAYN-PNL-200-25 (2M/E PANEL) QTY-1

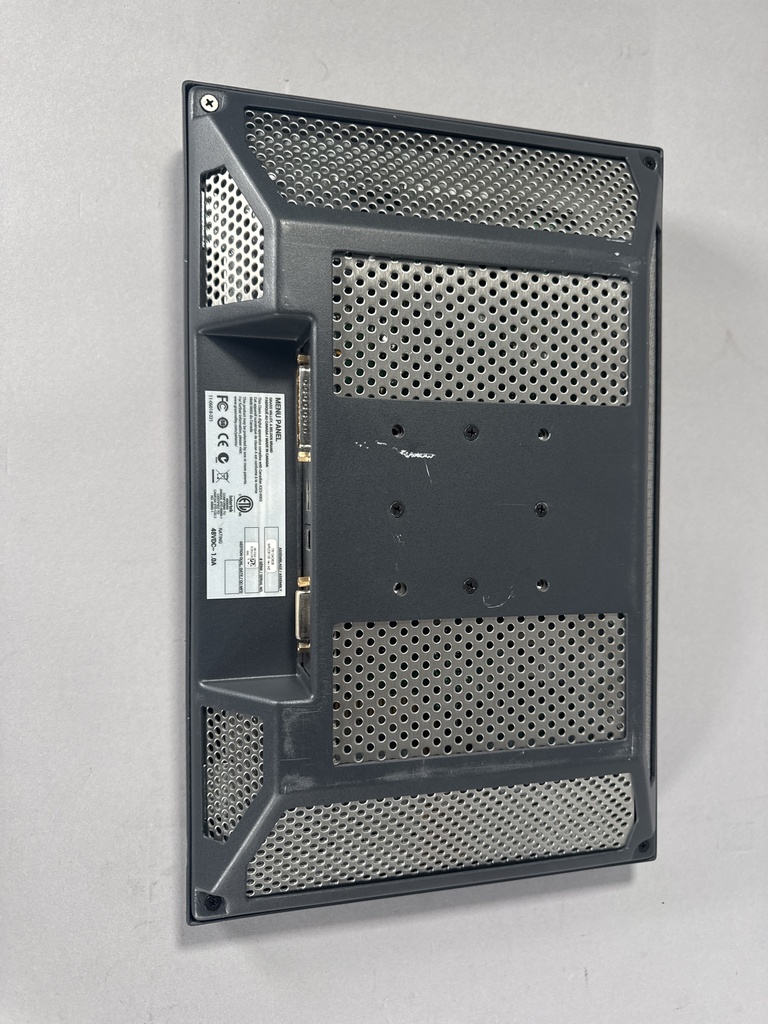

MENU PANEL (TOUCHSCREEN FOR PANEL) QTY-1
No Cables Included!
Select Condition
Grass Valley K-FRAME 6RU (Used)
6RU Video Production Center
Features
Compact 6 rack-unit chassis designed for trucks and smaller studios
Integrated internal power supply modules with redundancy
Hot-swappable I/O and cooling modules for service without shutdown
10-bit 4:2:2 video processing with low-latency design
Support for SD and HD video, with optional 1080p capabilities on later revisions
Flexible input capacity around 30 to 40 sources depending on card population
Output capacity typically in the teens to mid-40s depending on configuration
Multiple mix/effects banks with full keyers per M/E
Keyers support chroma, luma, linear, and pattern modes
Optional digital picture manipulator channels for 2D transformations
Built-in still store with key channel support for graphics playback
Integrated multiviewer outputs with tally and labeling
Aux buses with transition capability
Macro system and effects memory for storing complex switcher setups
Format conversion and frame sync options available on select input cards
Ethernet-based control and panel connectivity
Designed for continuous 24/7 broadcast operation in live environments
Frame height: 6RU, approximately 10.5 inches
Frame depth: about 20 to 22 inches depending on card set
Frame weight: around 70 to 90 pounds fully loaded
Power draw: typically 1,200 to 1,600 watts depending on options installed
Operating voltage: auto-sensing 100–240 VAC, 50/60 Hz
Cooling: front-to-rear airflow with modular fan assemblies
Ambient operating temperature range: 0 to 40 °C
Relative humidity tolerance: 10% to 90% non-condensing
Control interface: Ethernet 10/100/1000 for panels and external device control
Reference input: Black burst or tri-level sync
Genlock capability with automatic timing adjustment
Latency: one line through-processing delay typical
Embedded audio pass-through on SDI with up to 16 channels supported
GPI/O connections for external triggers and tally
Serial ports for legacy control or device communication
