Grass Valley LDX-82 (Used)
Price via quote

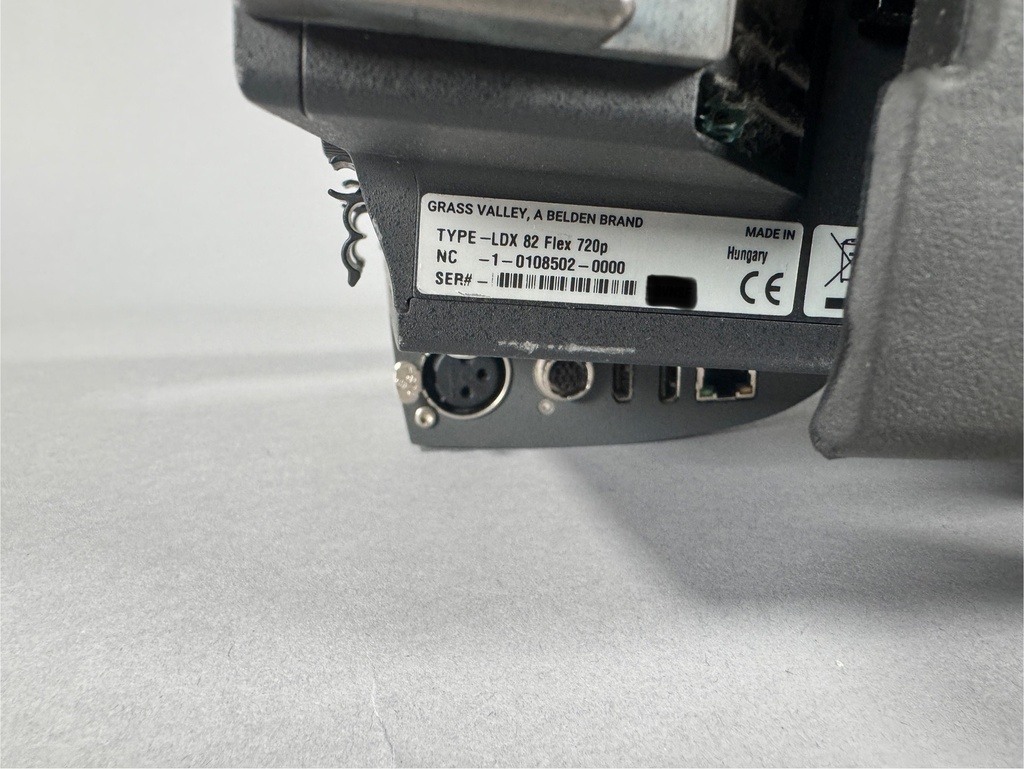

Camera Head Only! Flex License Single Format 1080i/50/59.94 Or 720P/50/59.94
Select Condition

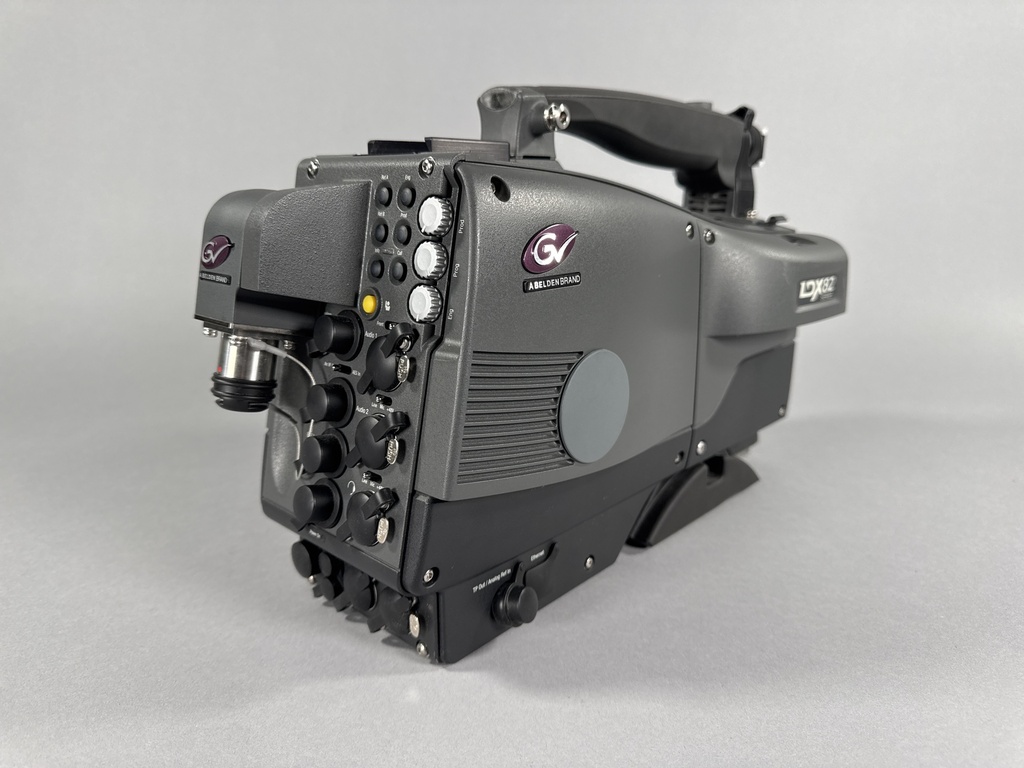

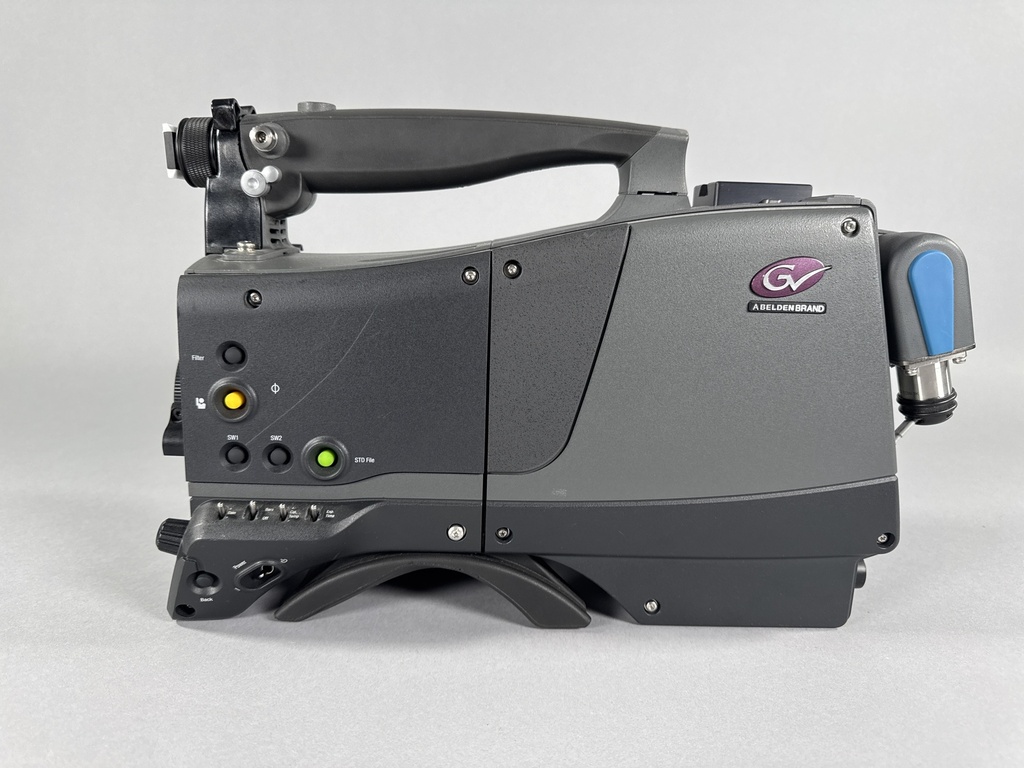

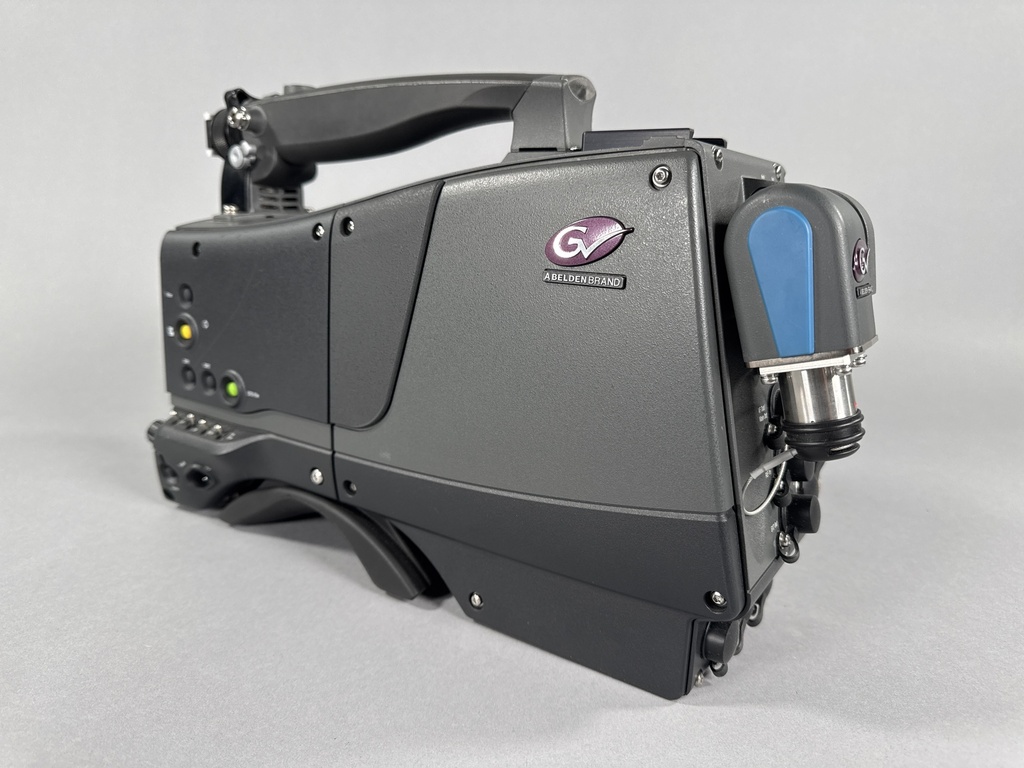

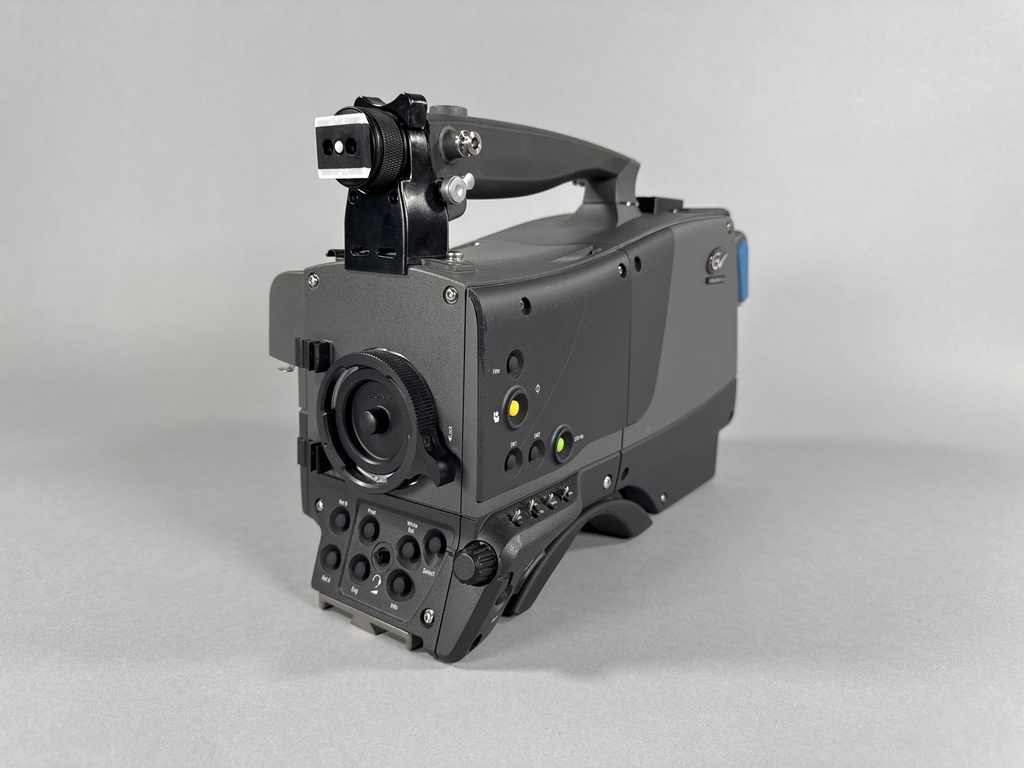

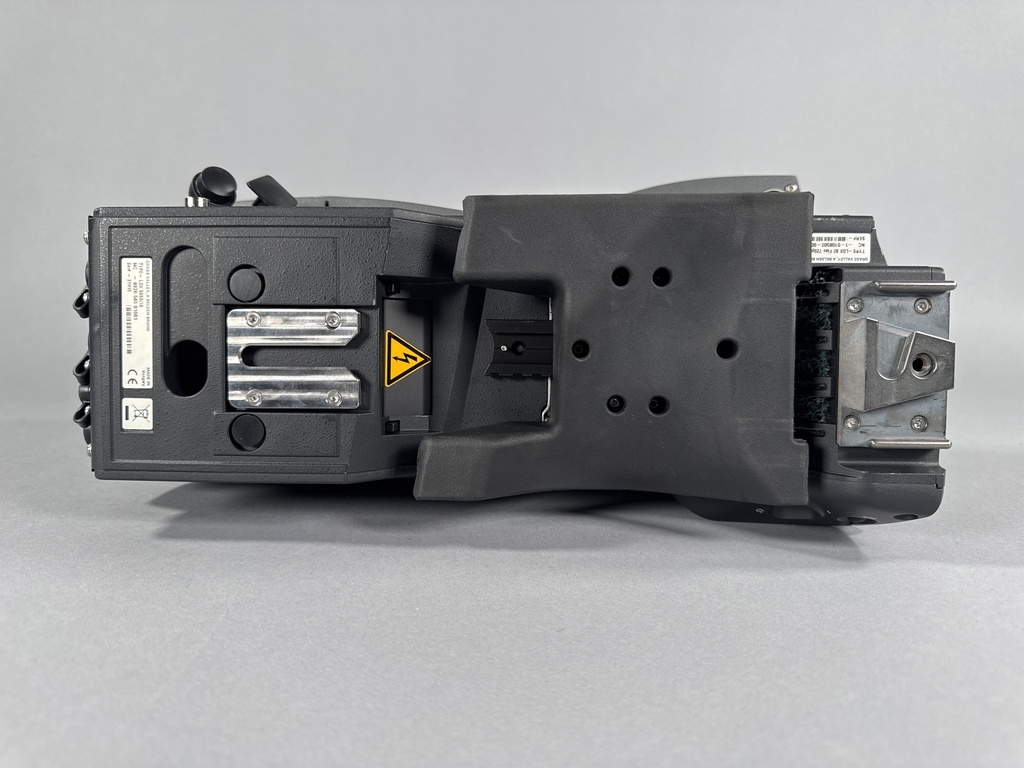

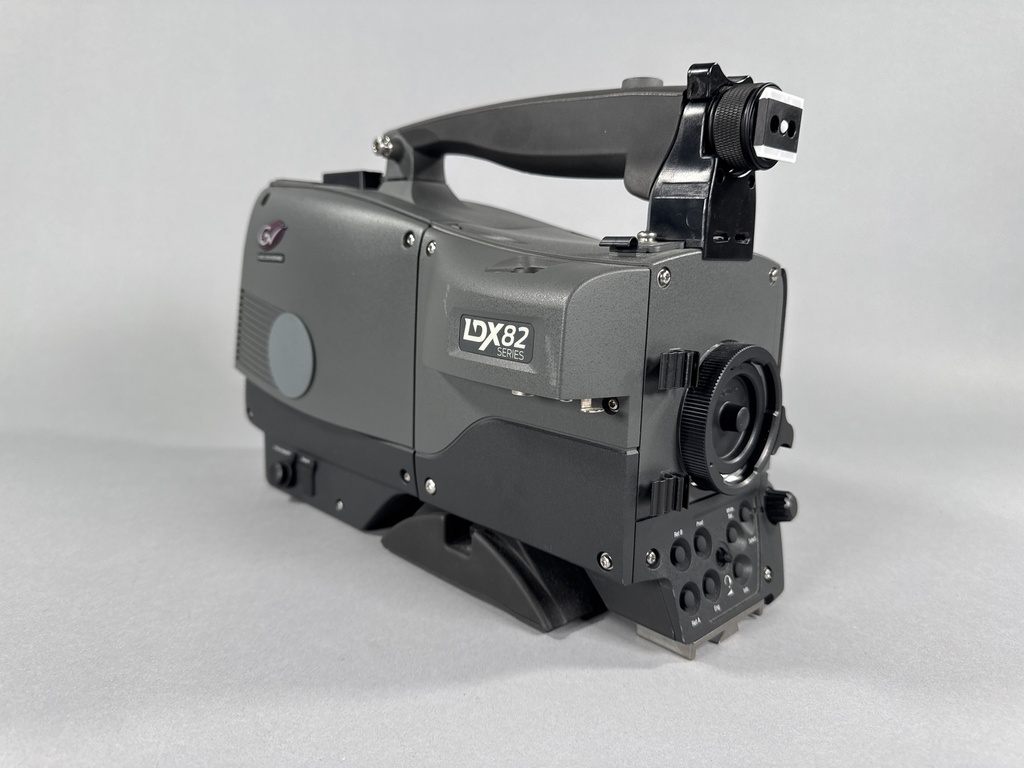

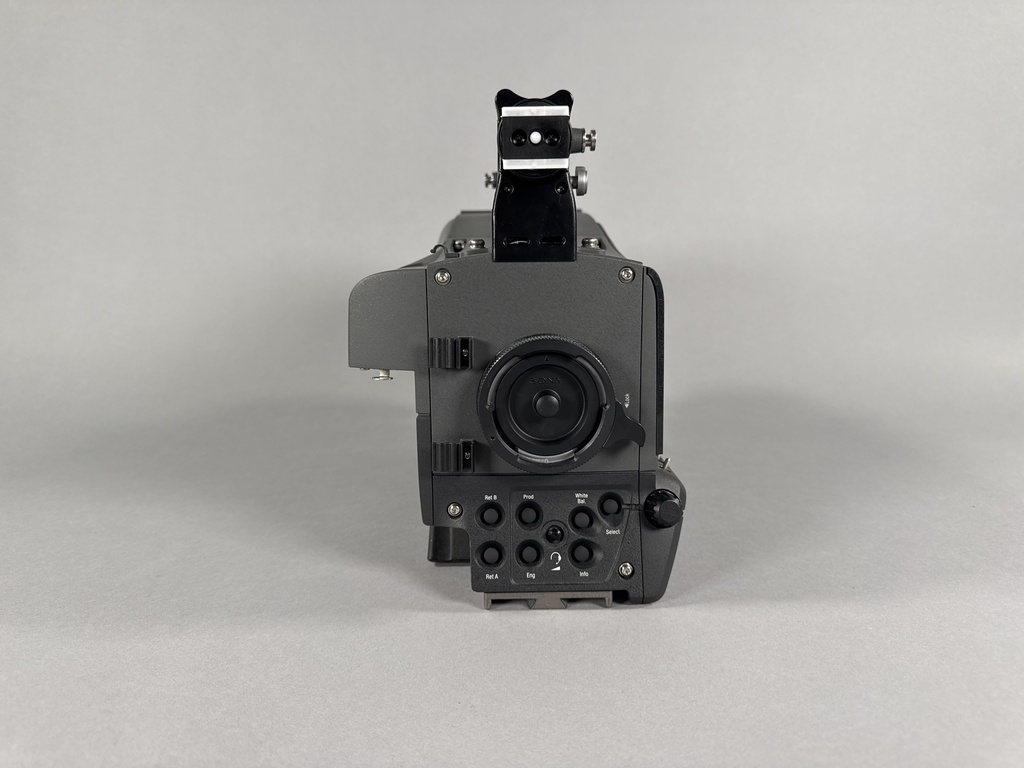

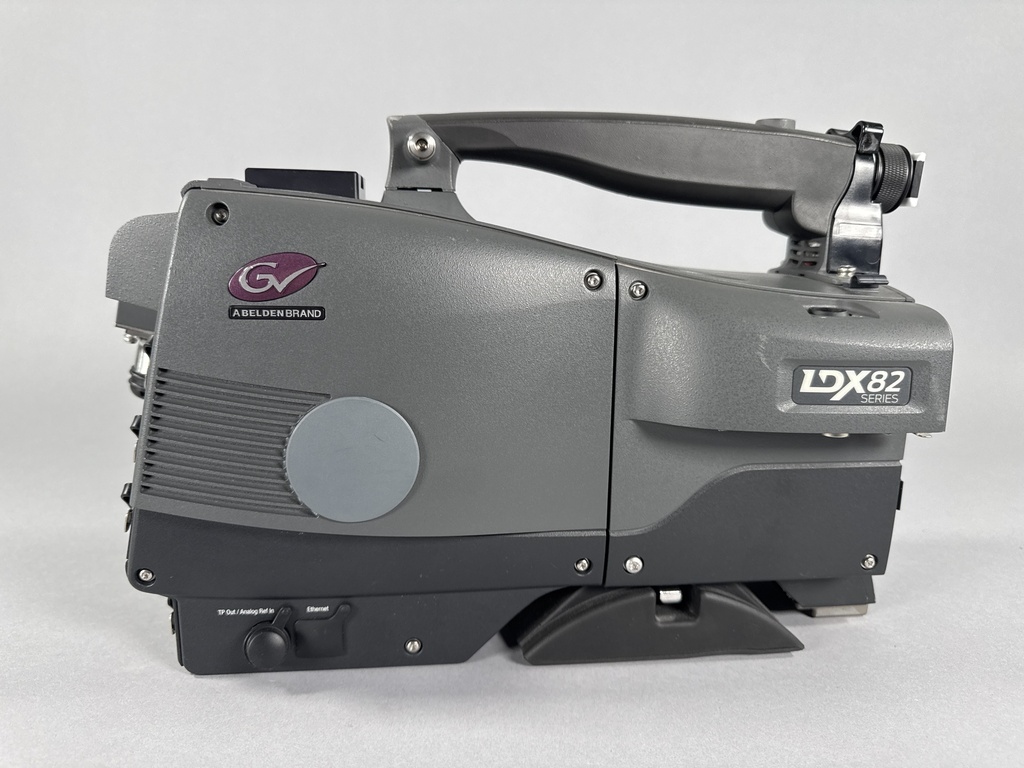

Grass Valley LDX-82 (Used)
720p/1080p HD Triax/SMPTE Camera Head
The LDX 82 Series is a line of high-performance live production cameras built around Xensium-FT CMOS imagers with enhanced sensitivity and dynamic range. Each LDX 82 camera head integrates advanced optics, imagers, and digital image processing, while transmission can be configured by docking interchangeable adapters such as 3G Fiber, 3G Triax, or XF Universe. The modular design provides flexibility for studio, field, and OB applications, while the series also adds HDR capability, wide color gamut support, and a licensing system that allows feature upgrades across Flex, Première, Elite, and WorldCam models.
Features
2/3-inch Xensium-FT CMOS imagers with high sensitivity and wide dynamic range
Extended Dynamic Range (XDR) option for HDR with up to 15 stops latitude
Very low noise performance with excellent detail preservation
Global shutter-like imaging for clean progressive capture
Support for wide color gamut including Rec. 2020
Contour and Content Equalizer for shadow and highlight detail management
Dynamic Detail Equalizer for sharpness control across the image
ArtTouch intuitive control interface
PickMe and Info buttons for quick access to functions
Ergonomic design with side grip and streamlined operator menus
Dockable transmission adapters available: 3G fiber, 3G triax, XF Universe
Full compatibility with Grass Valley C2IP Ethernet-based control system
Upgradeable feature set via Grass Valley eLicense (Flex, Première, Elite, WorldCam levels)
Imager: 2/3-inch Xensium-FT CMOS sensors
Sensitivity: F12 at 2000 lux in 50 Hz, F11 at 2000 lux in 59.94 Hz
Signal-to-noise ratio: 60 dB typical
Dynamic range: Up to 15 stops with Extended Dynamic Range option
HDR: Supported, including HLG and ST 2084 curves
Color gamut: Supports Rec. 709 and Rec. 2020
Lens correction: Chromatic Lens Aberration and Sharpness correction
Detail control: Dynamic Detail Equalizer with independent control of shadows, midtones, and highlights
Gain: –6 dB to +19 dB in 3 dB steps, plus continuous gain control
Formats by model: Flex supports a single HD format, Première supports 1080i and 720p, Elite adds 1080PsF, WorldCam adds full 1080p at 50 and 59.94
Shutter: Global shutter-like performance for progressive capture

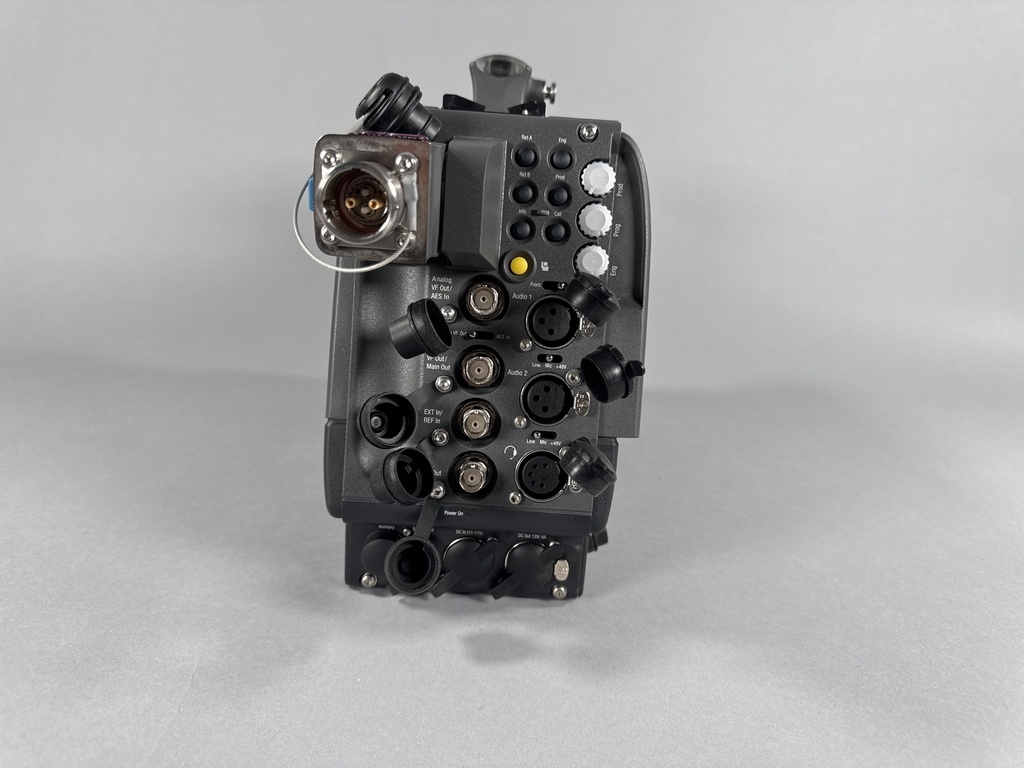

Outputs: Multiple SDI outputs, viewfinder outputs, return video, and reference inputs

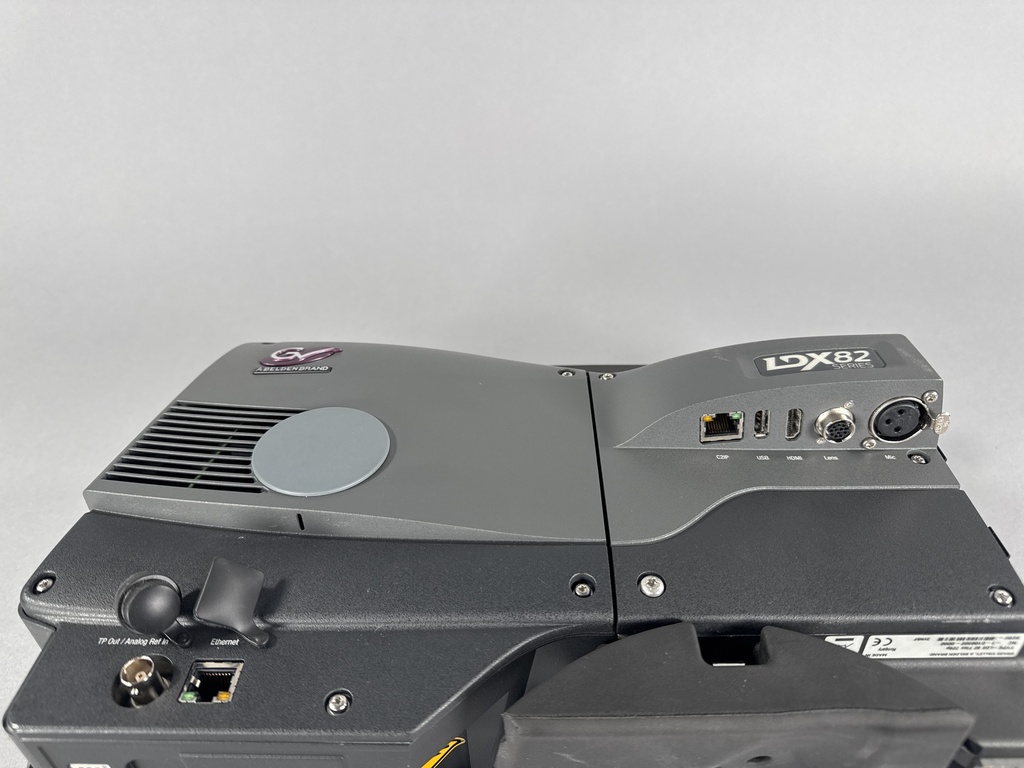

Inputs: Microphone input with +48 V phantom power, 12-pin lens connector, Ethernet, USB 2.0
Power consumption: Approximately 48 W with camera head, triax adapter, and viewfinder
Transmission adapters: Dockable 3G triax, 3G fiber, or XF Universe
Maximum cable length: Up to 1500 meters on triax, up to 3000 meters on fiber or XF
Control system: Fully compatible with Grass Valley C2IP Ethernet-based control
Licensing: Upgradeable feature set via Grass Valley eLicense for Flex, Première, Elite, and WorldCam levels
Physical: Compact modular camera head with ergonomic side grip and operator controls
