Grass Valley LDX-C82 Premiere (Used)
Price via quote
LDX-C82 Only! with Premiere License Single Mode 720P/50/59.94 or 1080i/50/59.94
Select Condition

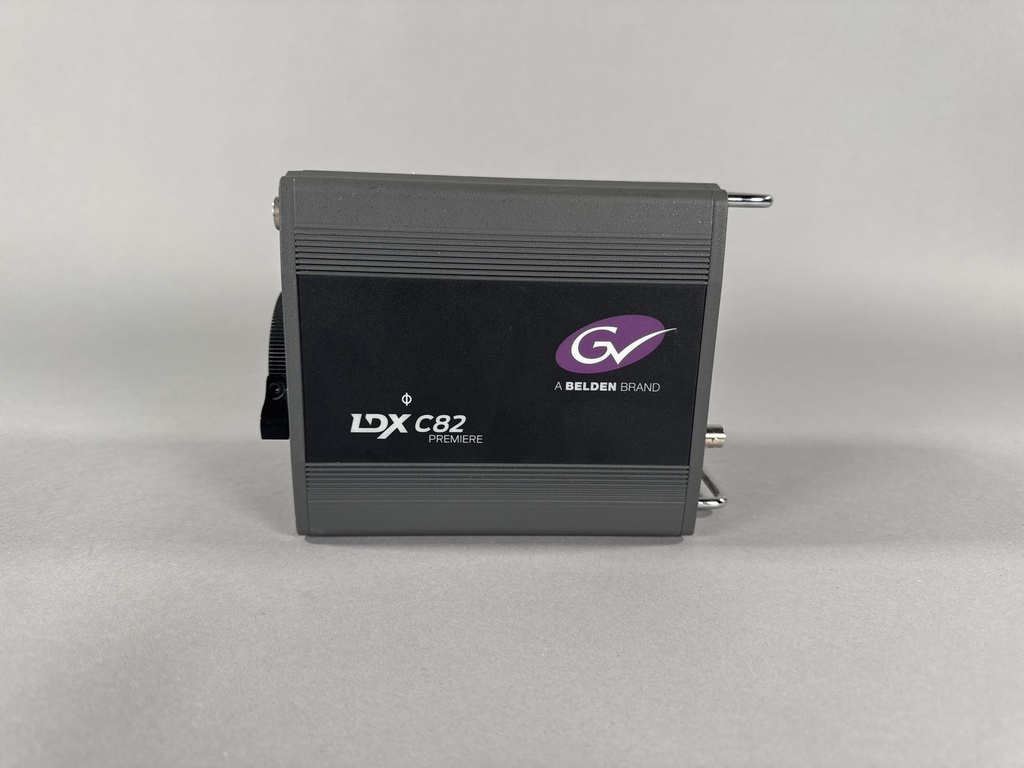

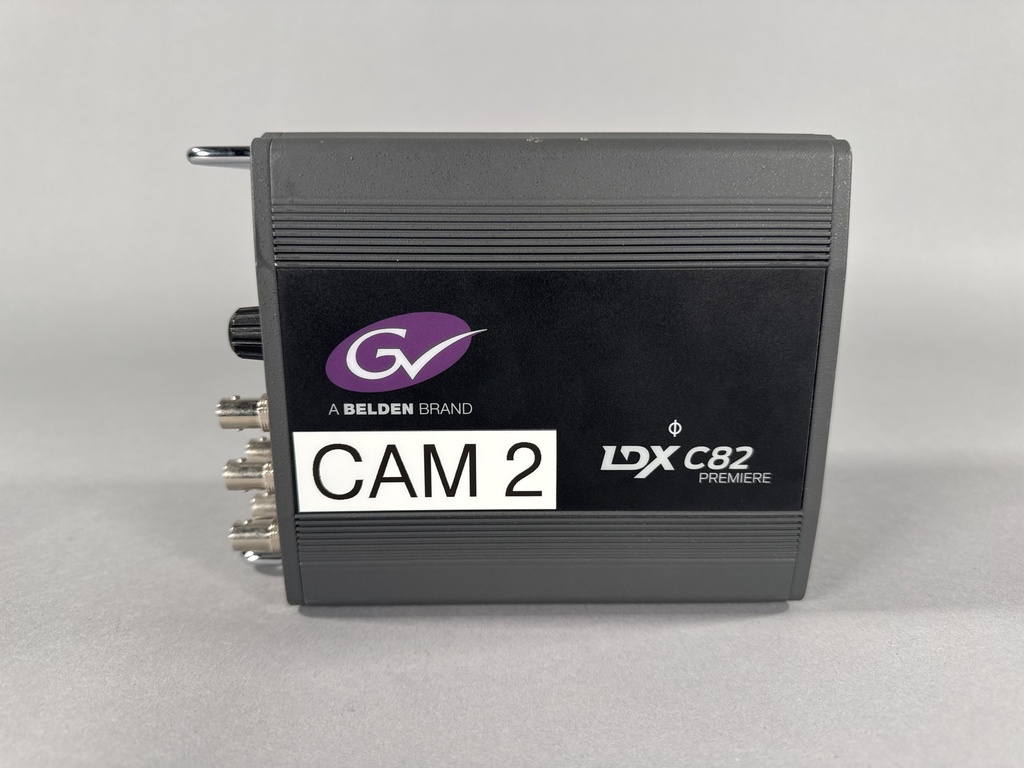

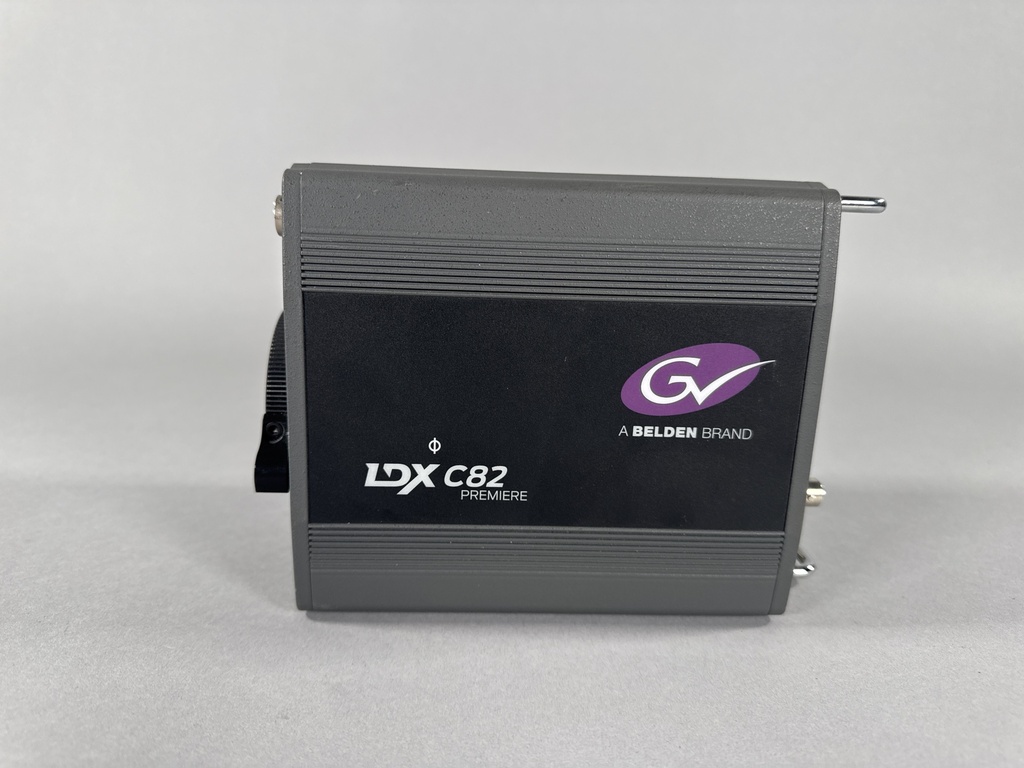

Grass Valley LDX-C82 Premiere (Used)
Compact HD Broadcast Camera
The Grass Valley LDX C82 Premiere is a compact broadcast camera from the LDX 82 series, designed for applications where space and flexibility are critical, such as handheld, jib, robotic, or POV positions. It uses the same Xensium-FT imagers as the full-size LDX 82 cameras, so it delivers the same imaging quality in a smaller package
Features
Compact form factor camera head for robotic, handheld, jib, or POV use
Uses 2/3-inch Xensium-FT CMOS sensors for high sensitivity and low noise
Native HD resolution up to 1920 × 1080
Supports wide color gamut and HDR operation with licensing
Provides consistent image quality with other LDX 82 series cameras
Includes advanced processing features such as dynamic aperture correction, contour equalizer, gamma control, and noise reduction
Preserves fine image textures across all processing modes

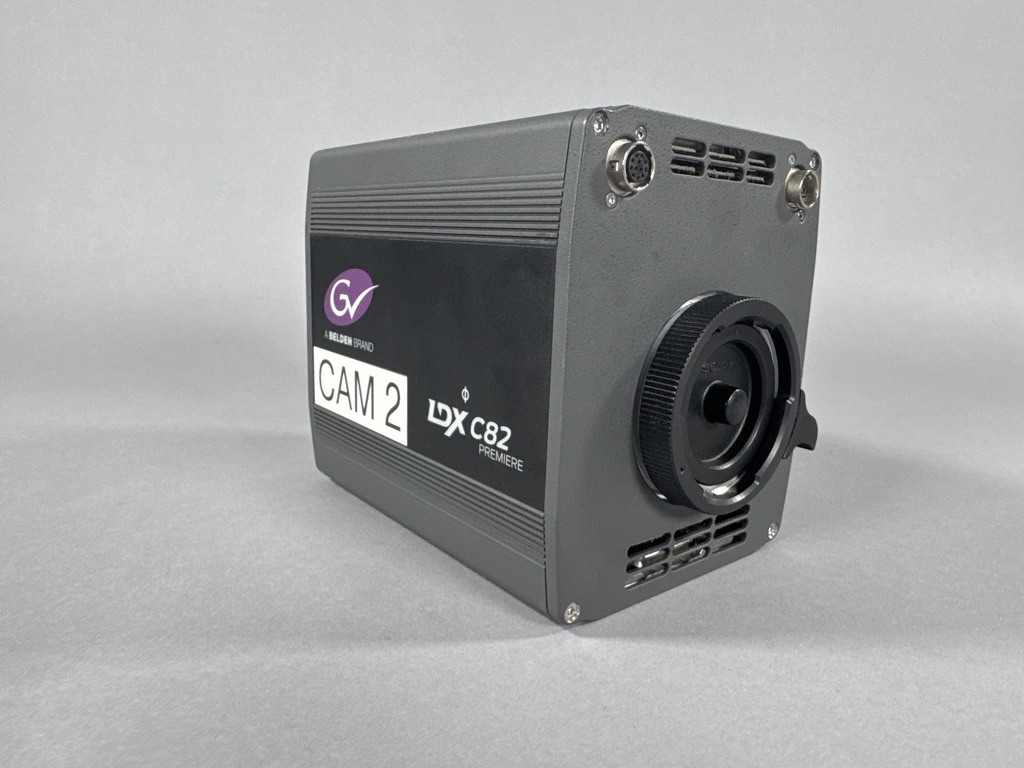

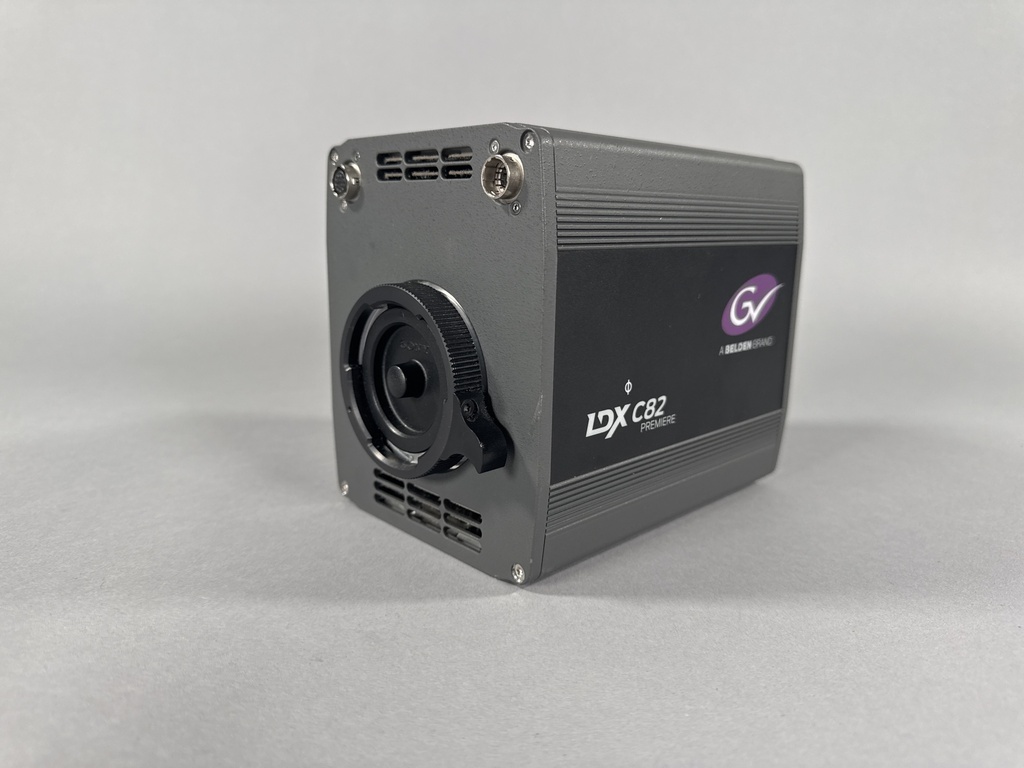

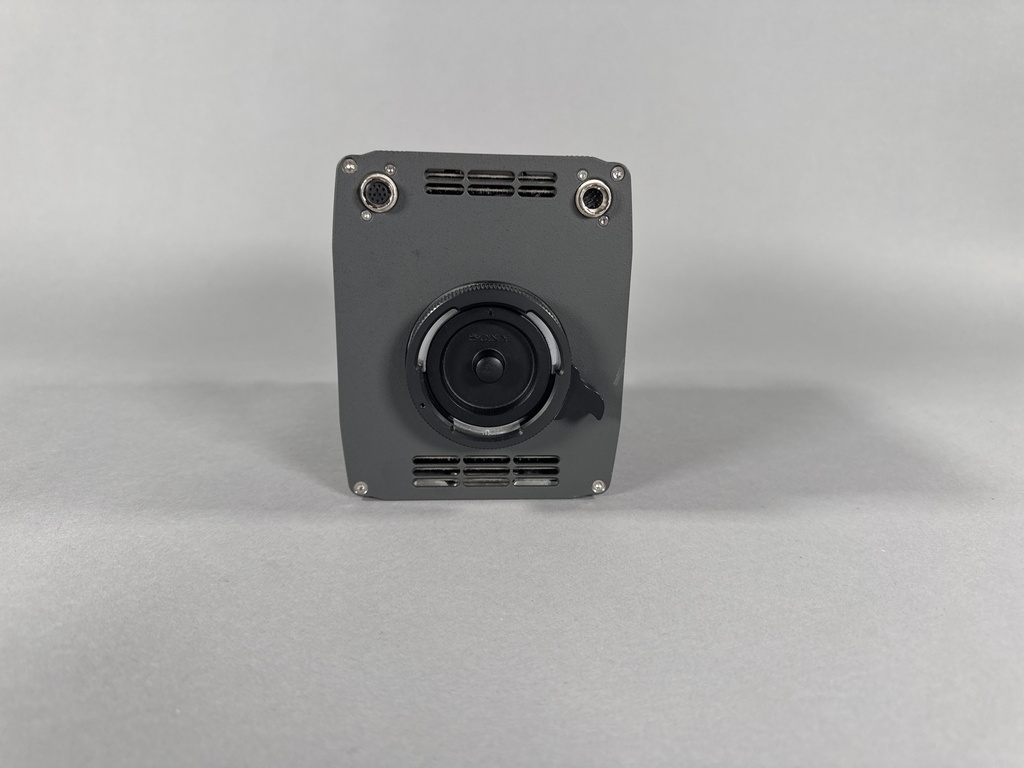

Equipped with B4 2/3-inch lens mount for standard broadcast lenses
Compatible with Grass Valley XCU base stations for fiber or triax connectivity
User-assignable control buttons and multiple camera control options
Reference sync input and auxiliary I/O for integration into broadcast systems
Designed for full remote operation in compact environments while maintaining the performance of full-size LDX cameras
Sensitivity: F11 at 2000 lux with 89.9% reflectance, typical broadcast illumination standard
Minimum illumination: approximately 0.001 lux with +36 dB gain
Gain range: from −6 dB to +36 dB in 3 dB steps
Shutter range: from 1/60 up to 1/2000 second, with extended electronic shutter options
Digital noise reduction: selectable levels for low-light operation
Power consumption: around 32 W typical depending on configuration
Power input: supplied through XCU base station connection over fiber or triax
White balance: manual, automatic, and preset modes
Black balance: automatic or manual selectable
Reference input: accepts tri-level sync or blackburst for genlock
Control: fully compatible with Grass Valley OCPs and C2IP camera control systems

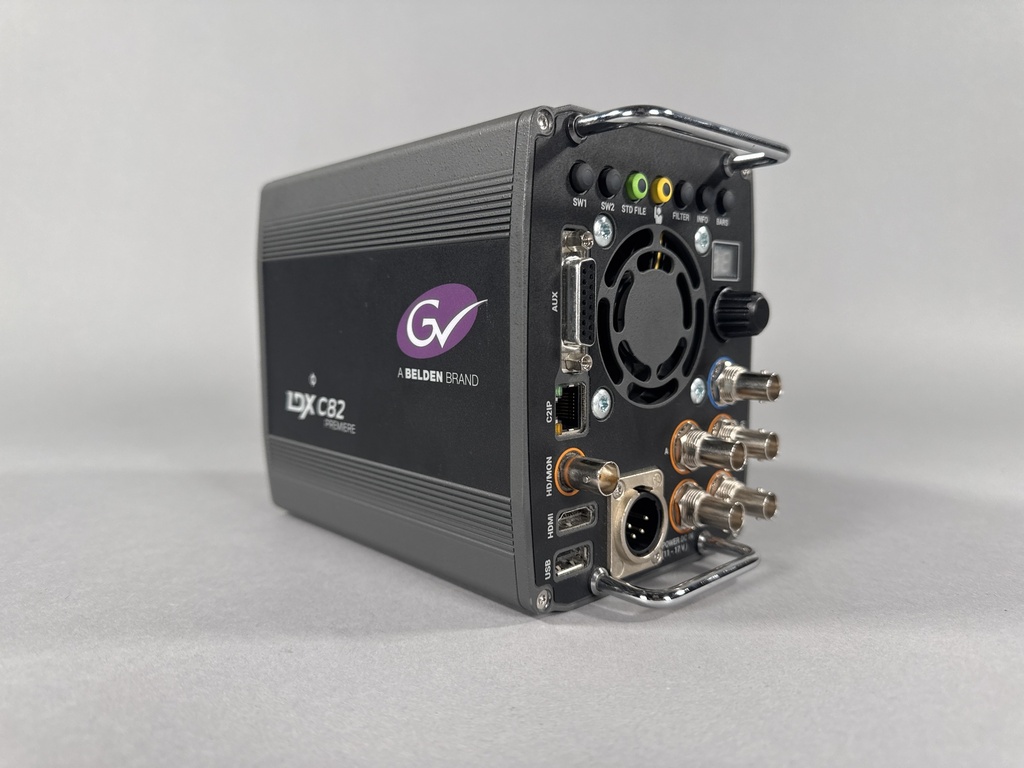

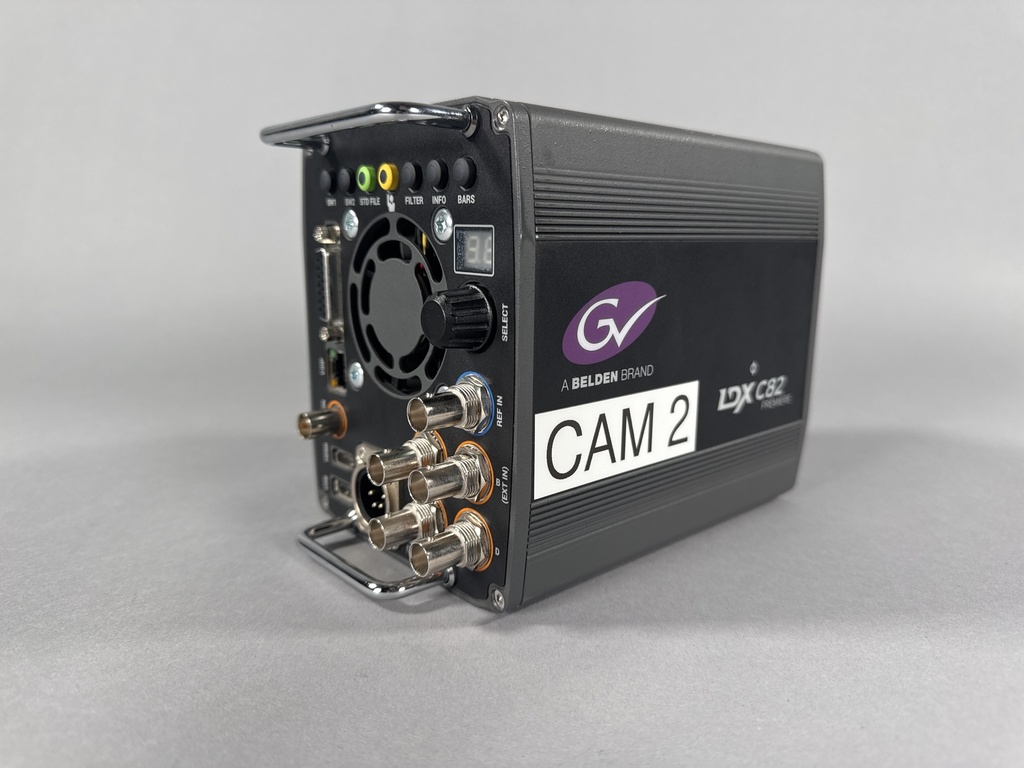

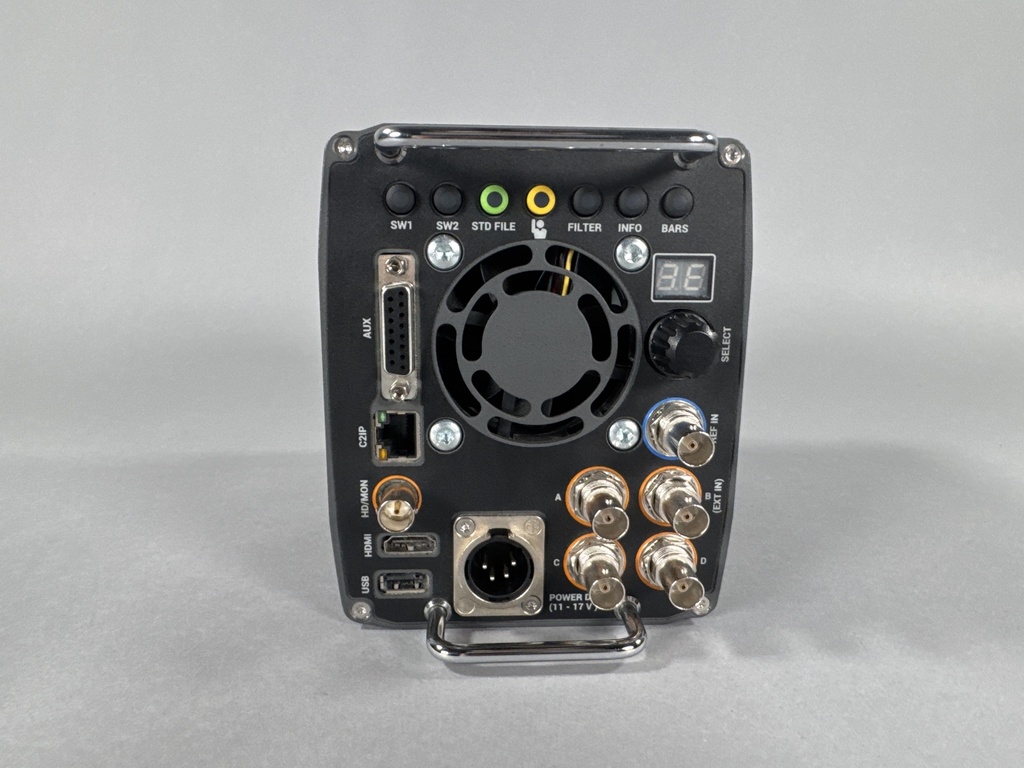

Connectors on camera head: lens interface, intercom headset, return video, and genlock input
Operating humidity: up to 90% non-condensing
Storage temperature: −22 °F to +140 °F
USER MANUAL
No user manual available for download
