Grass Valley VFR 600-H (Used)
Price via quote

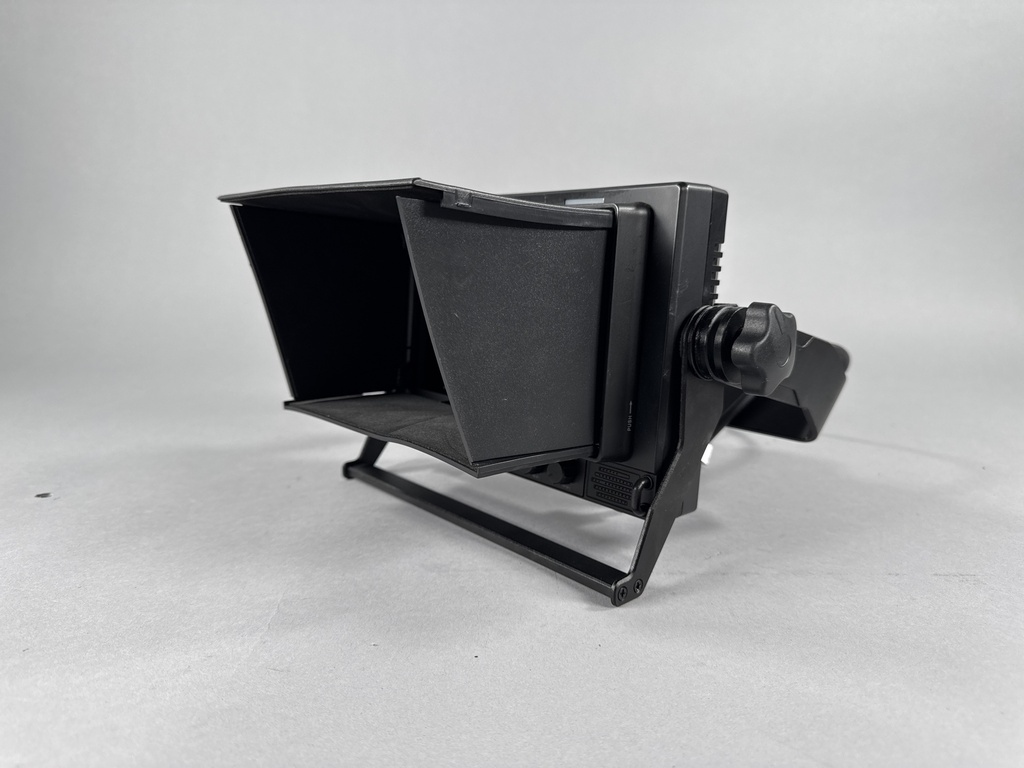

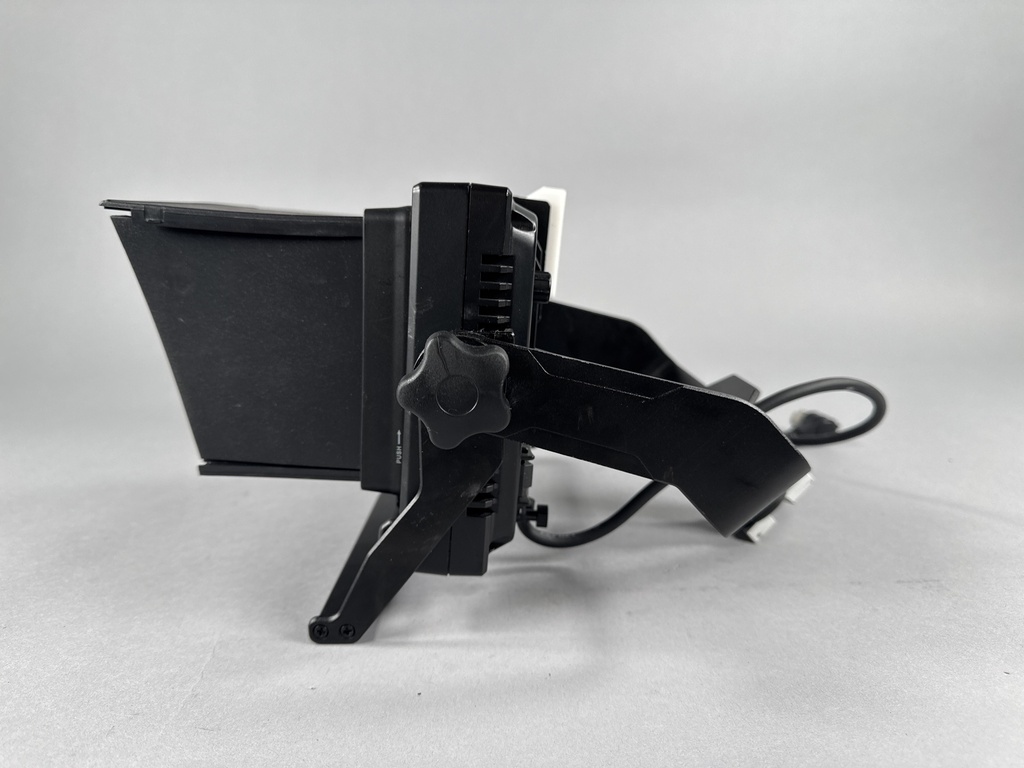

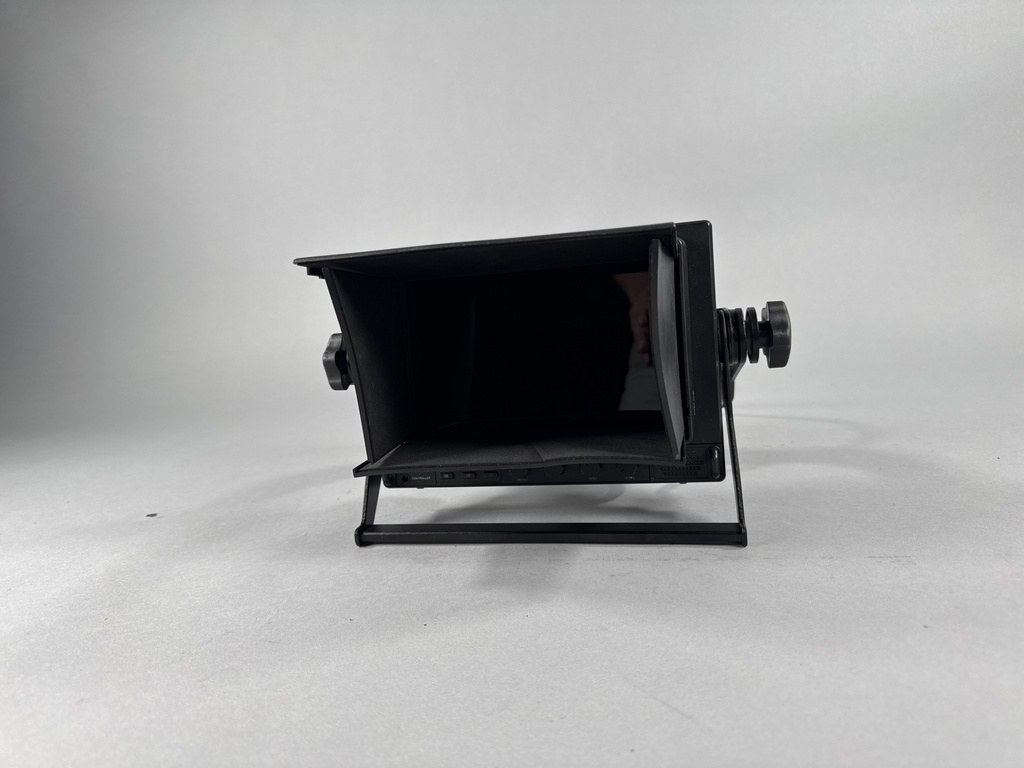

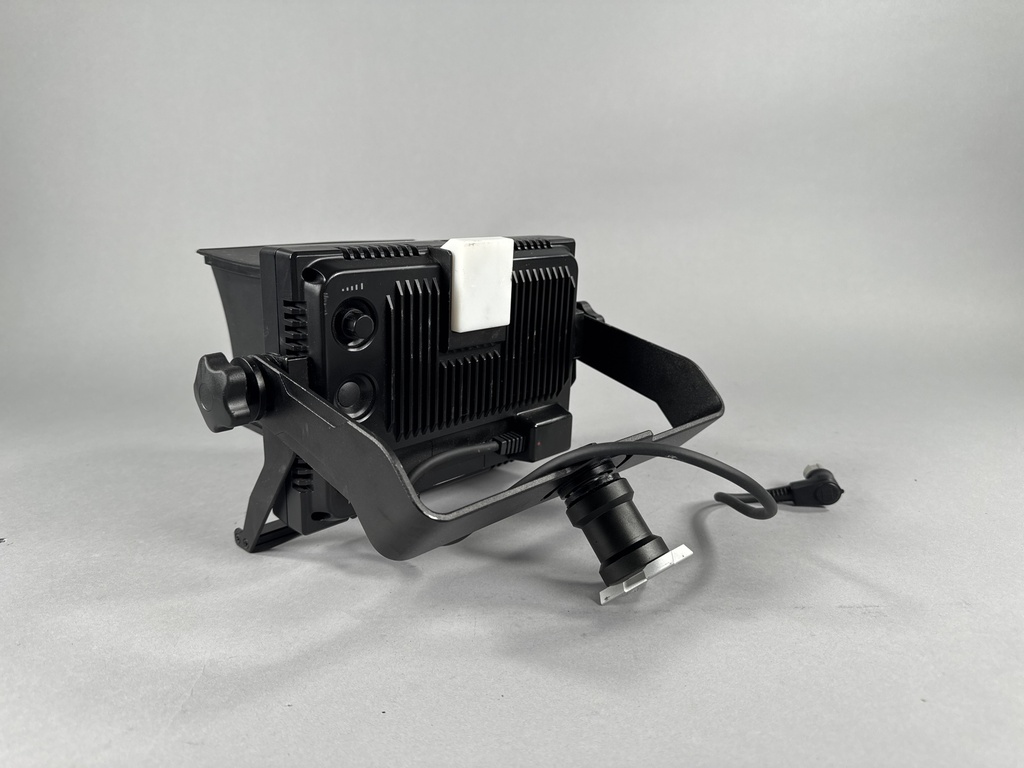

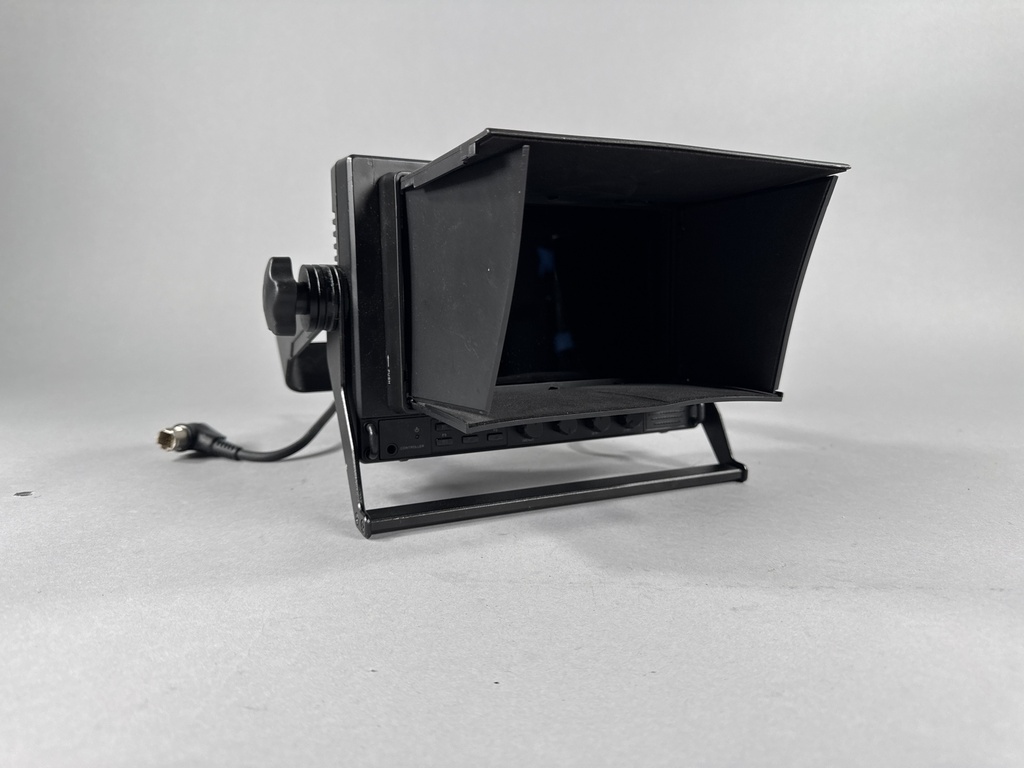

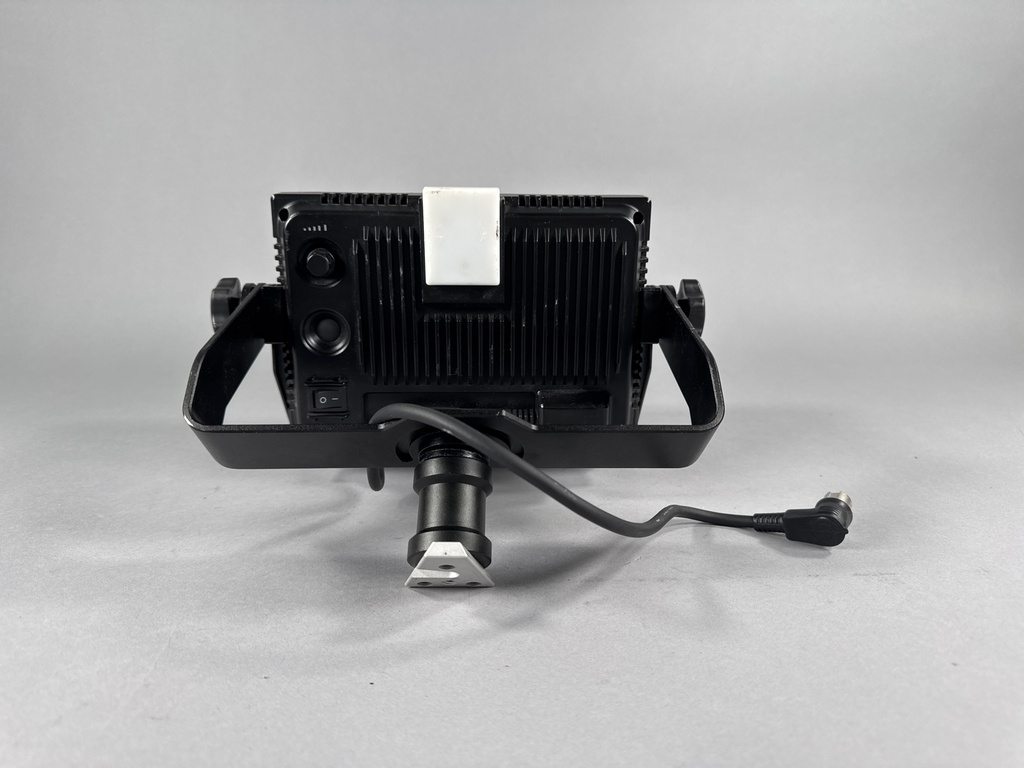

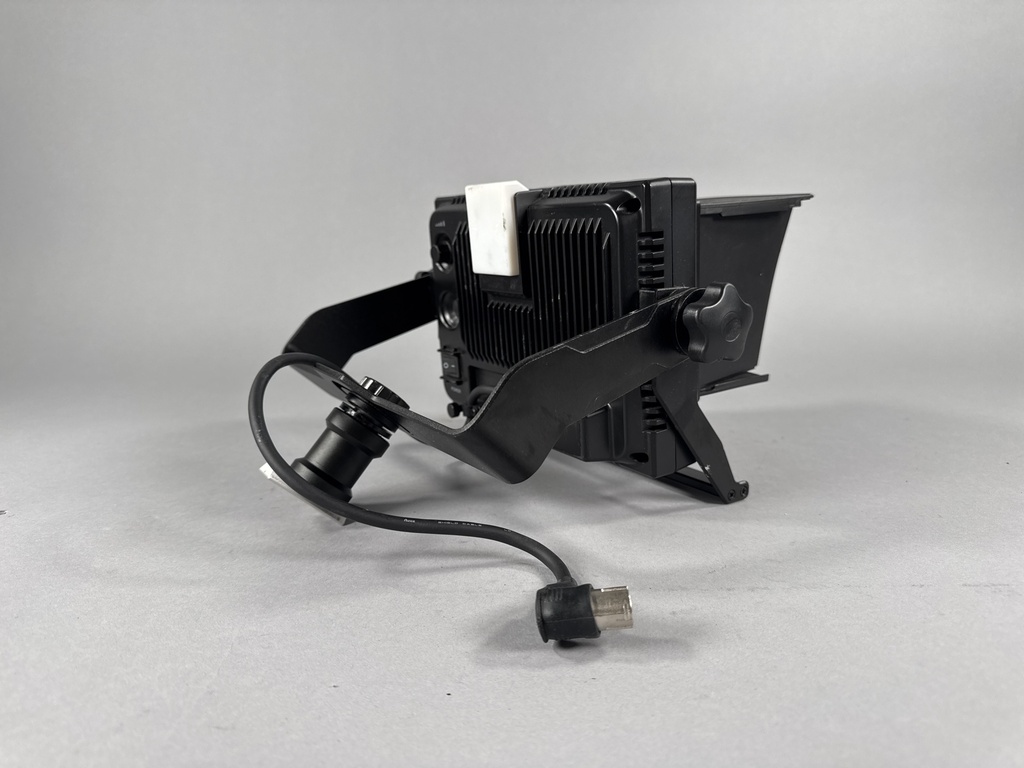

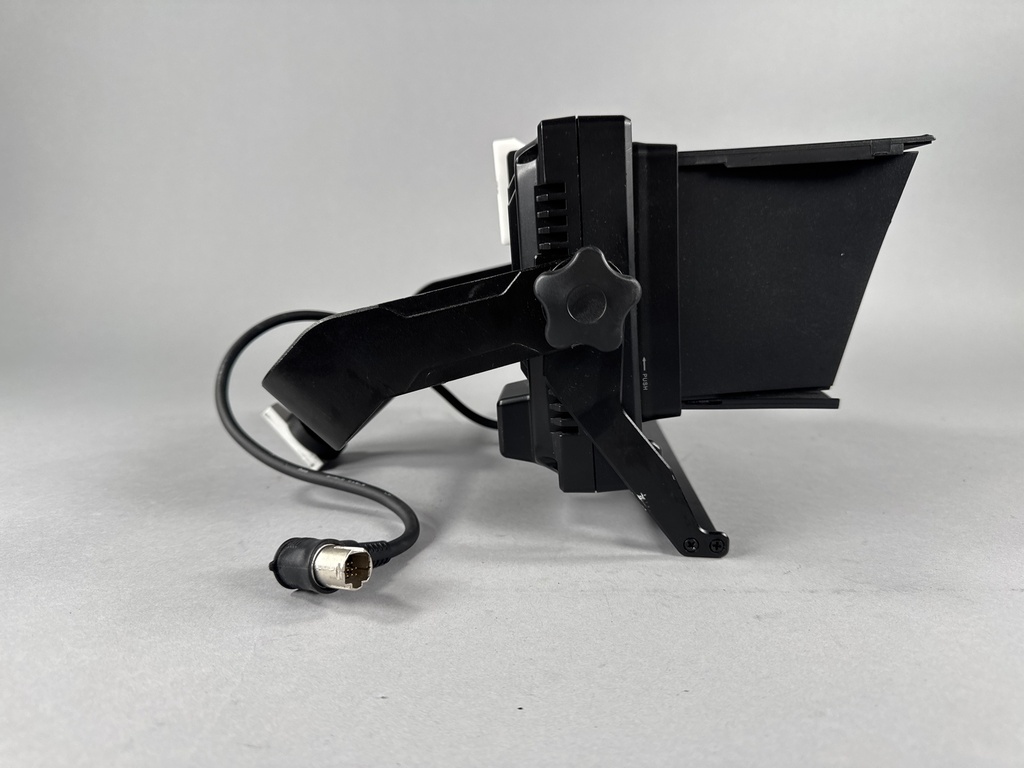

7-Inch LCD (flat panel) Studio Viewfinder Includes Mounting Bracket, VF Cable, And Hood.
Select Condition
Grass Valley VFR 600-H (Used)
7-Inch LCD (flat panel) Studio Viewfinder
Features
7-inch IPS LCD panel
HD resolution: 1280 × 800 pixels (active video)
Good brightness and contrast
Adjustable box (on-screen framing guides/markers)
Supports all current HD formats
Selectable pixel-to-pixel mode
Also supports 4K/UHD operation
Designed for EFP (Electronic Field Production) and SuperXpander mounting/use
Easy-accessible front panel controls
Compatible with Grass Valley LDX series camera heads
Camera connector: 20-pin Hirose
Controls: menu button; 5 user-assignable push buttons; rotary knobs for brightness, contrast, saturation, peaking
LED indicators: front on-air (red); back on-air
Power consumption: ~11 Watts (powered by the camera head)
Operating temperature range: about -10°C to +40°C (14°F to 104°F)
Weight: ~1.5 kg (3.3 lbs)
Viewing angle: ~178° horizontal and vertical
Color depth: 8-bit, ~16.7 million colors
Brightness: around 400 cd/m²
Contrast ratio: ~800:1
Color temperature: approx. 6500K (adjustable)
Pixel pitch: ~0.117 × 0.117 mm
Input signals: Y, Pr, Pb
Panel size measures 154 × 87 mm (active display area)
Screen diagonal is 177 mm
Image aspect ratio is 16:10
Signal input connector is 20-pin, supplying both video and power from the camera head
Nominal input voltage is 12 V DC provided by the camera system
Typical power draw equals 0.9 A
Display response time is about 25 ms
Effective color gamut covers approximately 72% NTSC
Backlight uses LED illumination
Relative humidity tolerance is up to 85% non-condensing
Storage temperature range spans from −20°C to +60°C
Chassis finish is a matte black protective coating for glare reduction
Physical housing integrates a fold-down sunshade frame, though no detachable field hood option
Dimensions excluding protrusions are roughly 204 mm wide × 148 mm high × 58 mm deep
