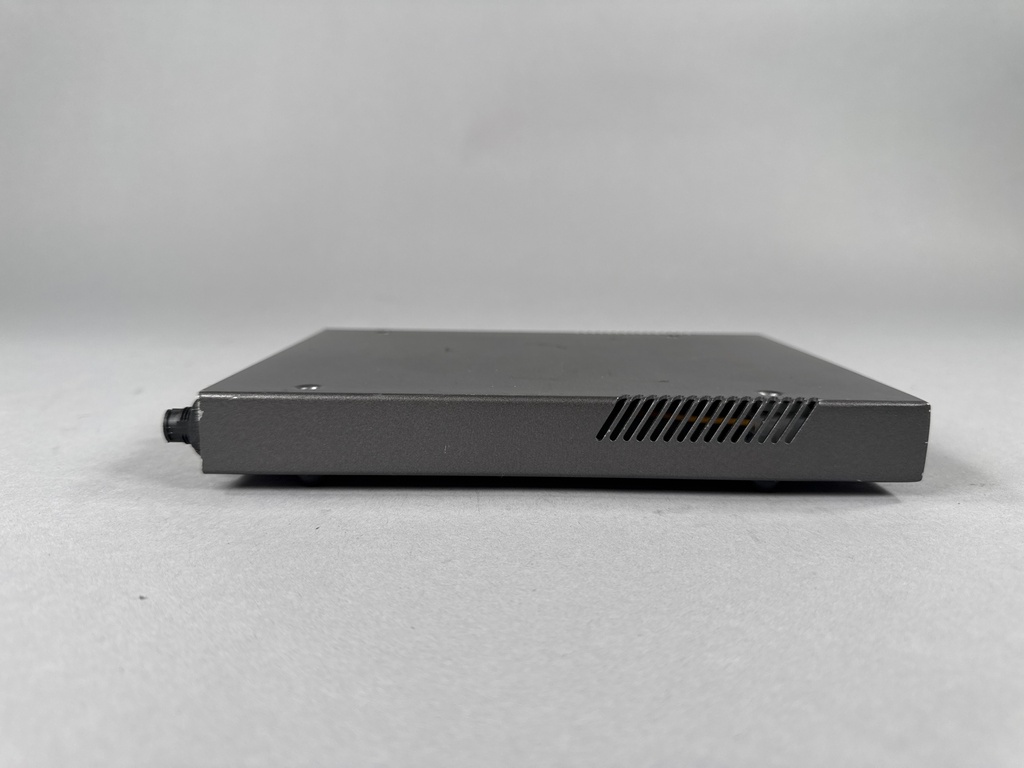

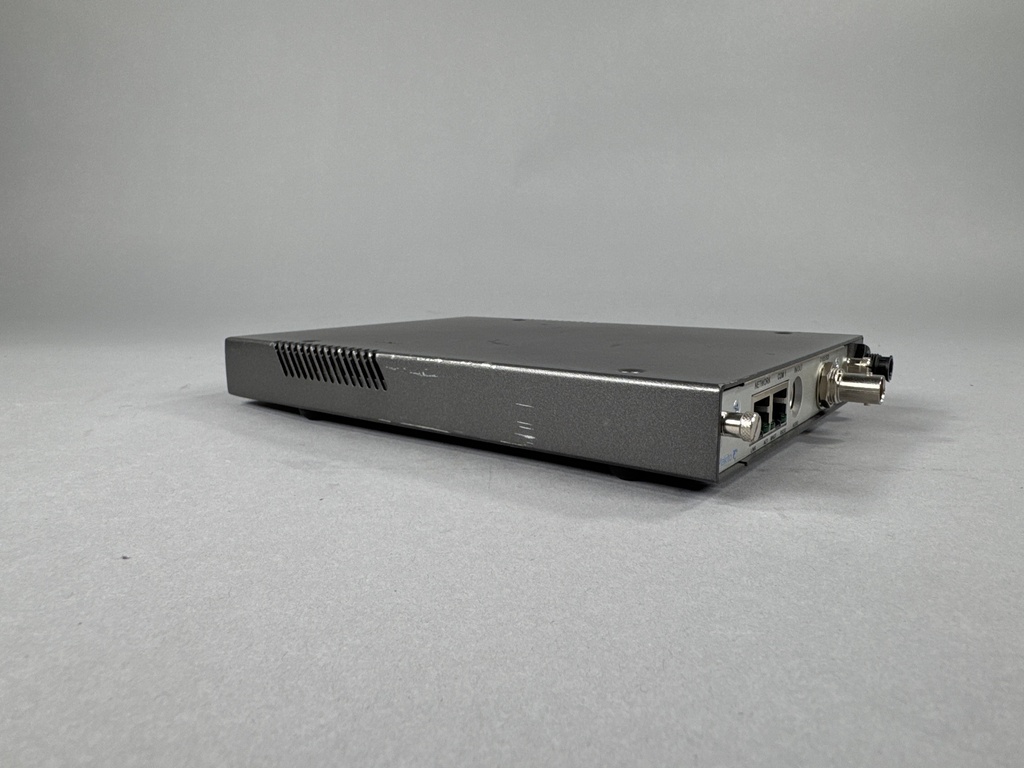

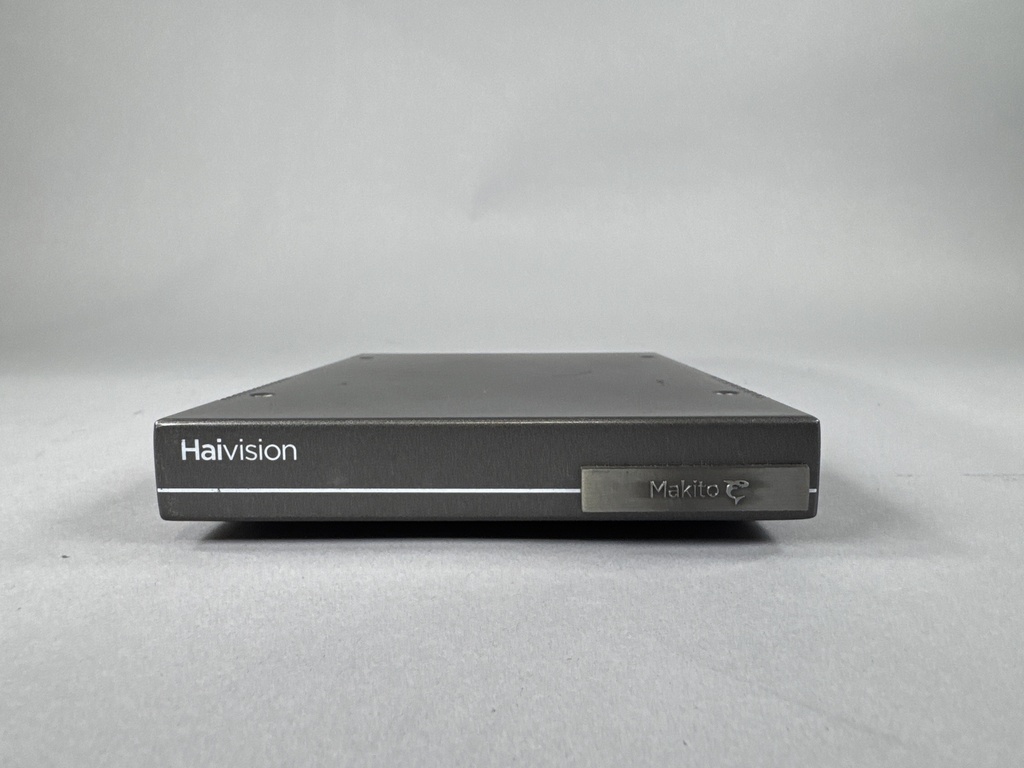

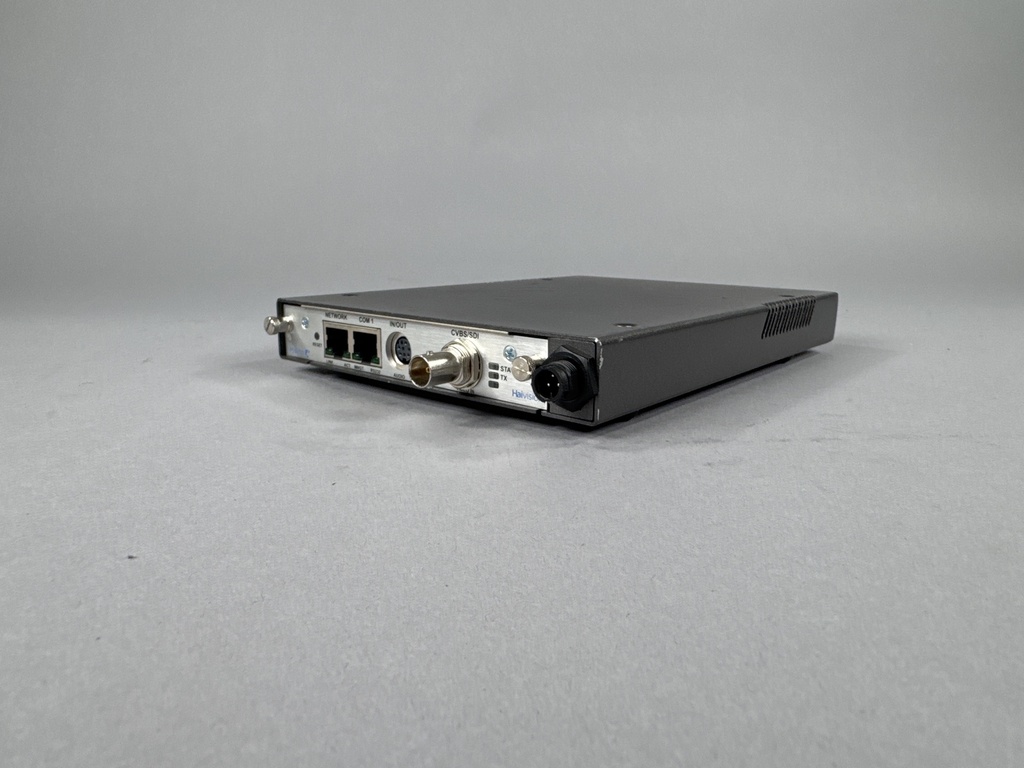

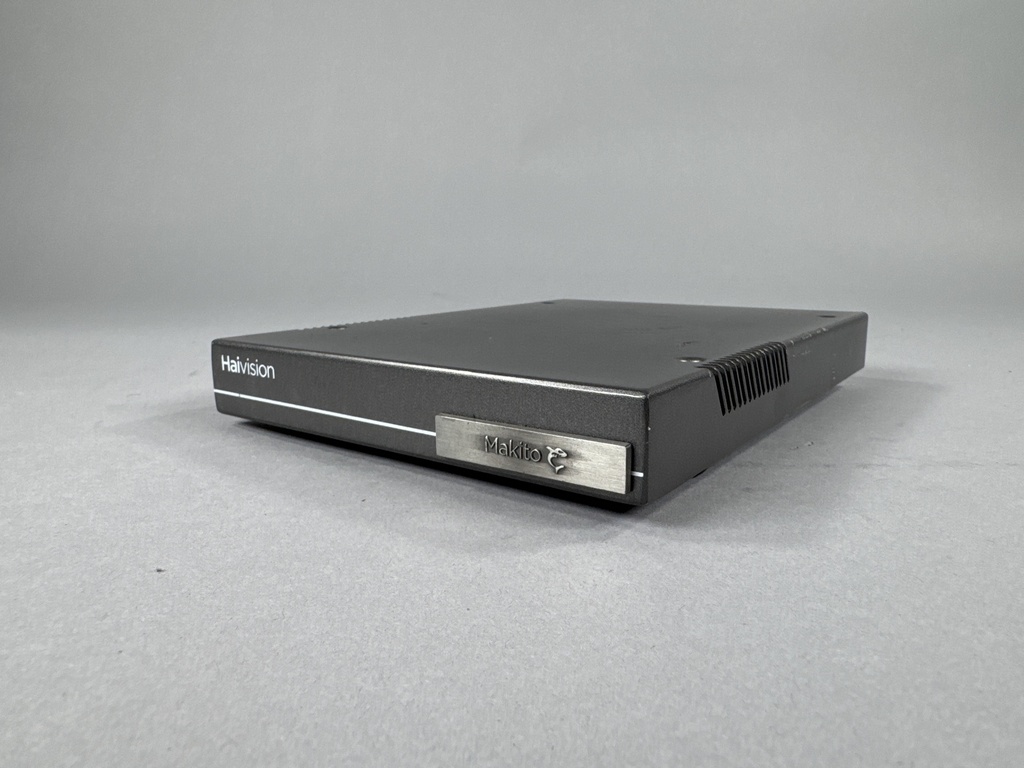

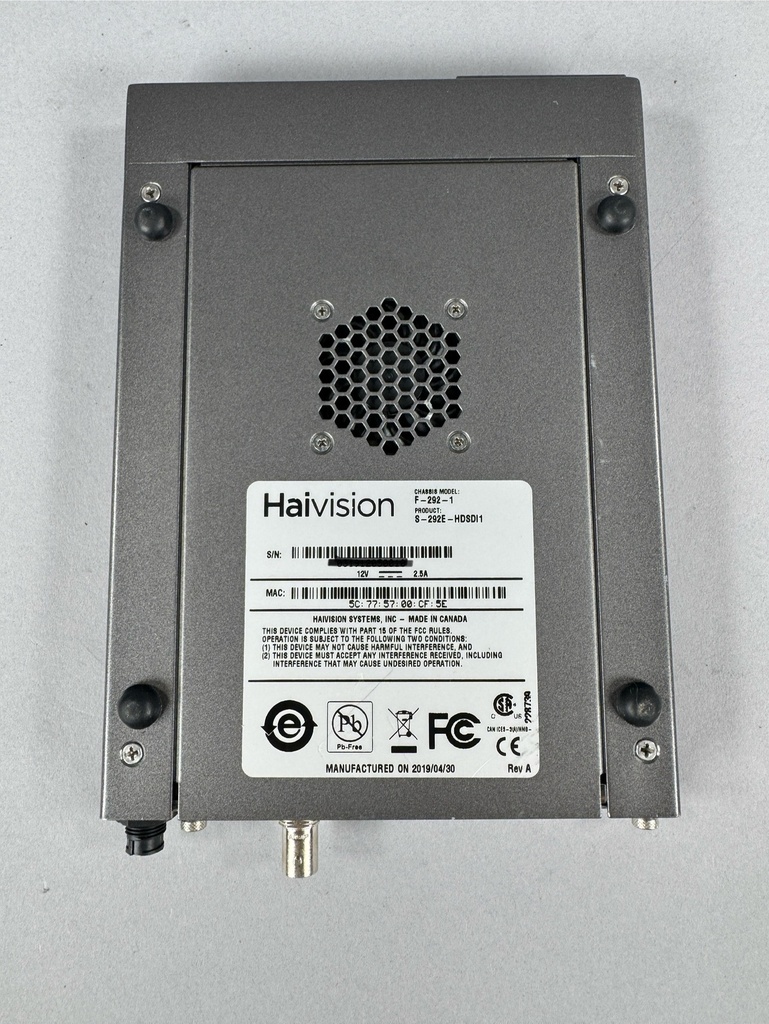

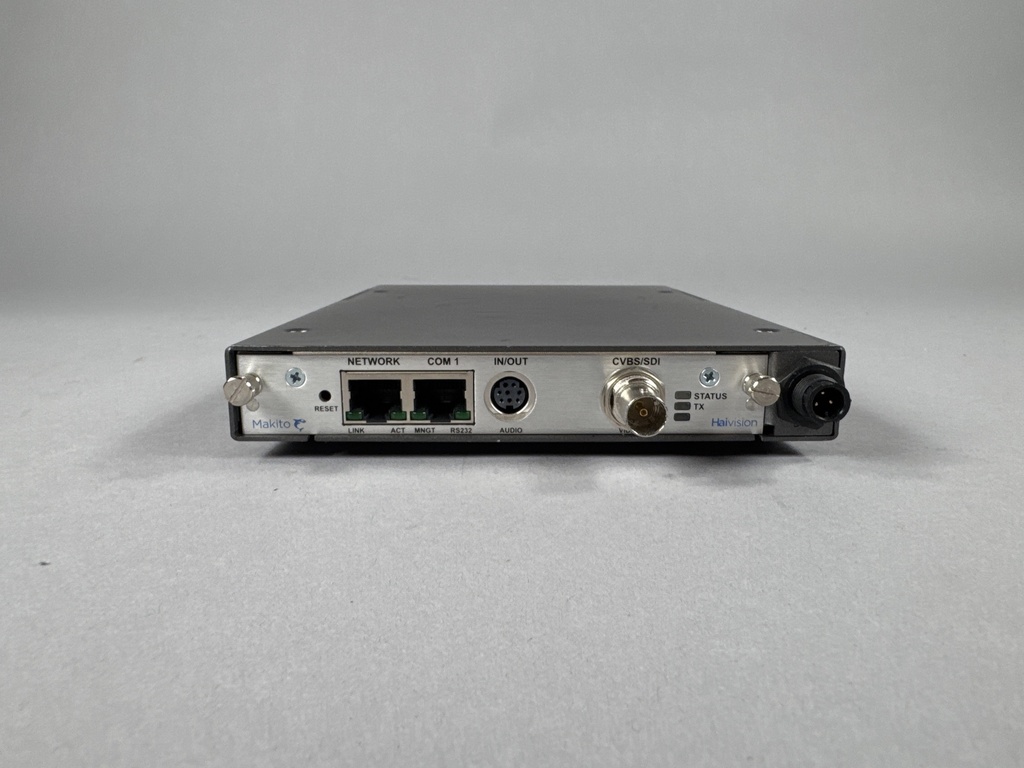

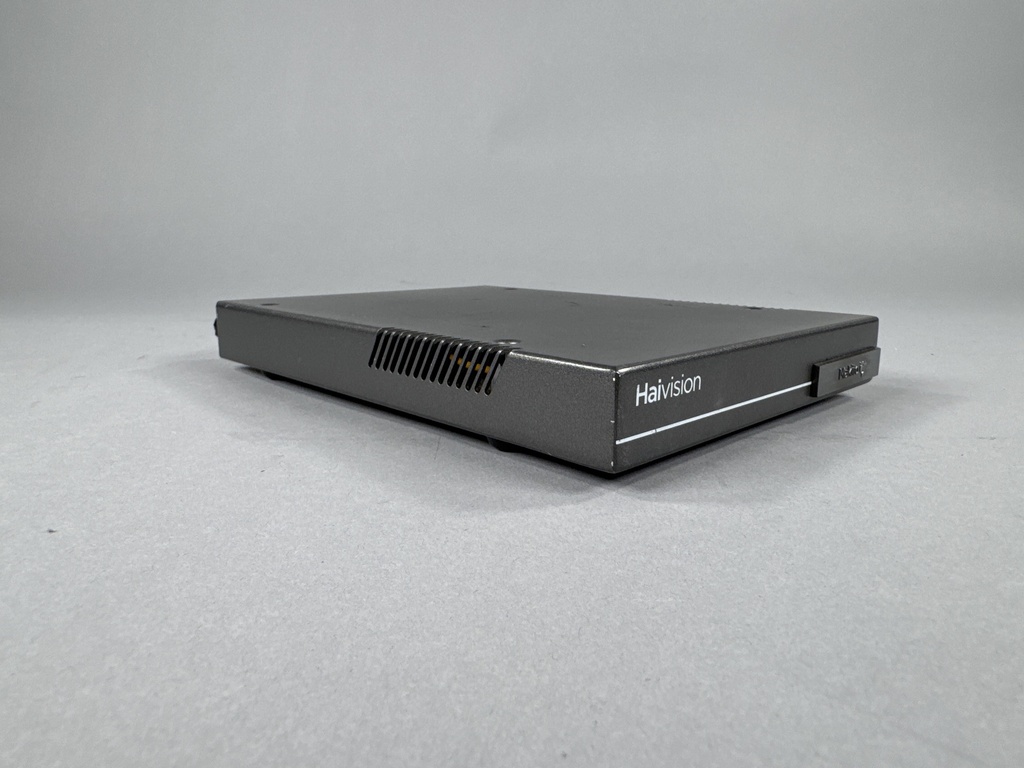

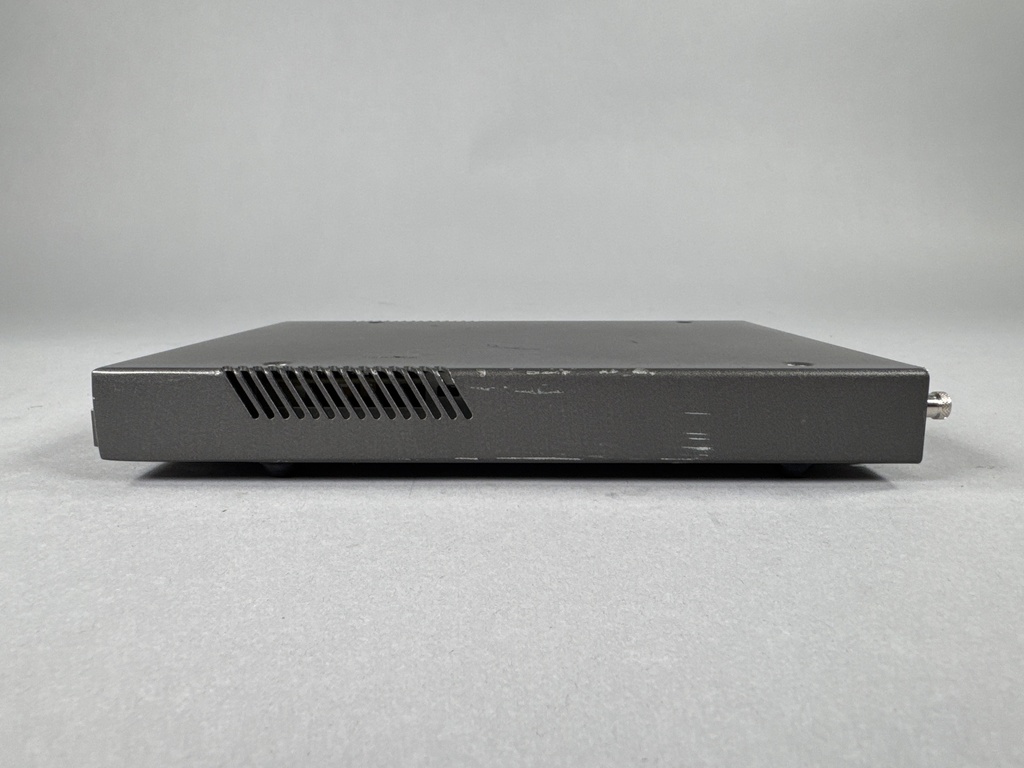

Haivision S-292E-HDSDI1 (Used)
Price via quote
Single channel SDI (HDSDI) Video Encoder *No Power Supply*
Select Condition
Haivision S-292E-HDSDI1 (Used)
Single channel SDI (HDSDI) Video Encoder
Features
Single 3G/HD/SD‑SDI video input; also supports composite video (CVBS).
Up to 1080p60 resolution support.
Embedded digital audio (up to 16 channels over SDI) and analog audio input.
H.264 High Profile encoding with bitrates from ~32 kbps to ~25 Mbps.
Supports SRT streaming with network adaptive encoding.
Unicast, multicast, and RTMP streaming support.
Gigabit Ethernet output for IP streaming.
External 12 VDC power input via locking connector.
Compact appliance form factor suitable for broadcast/live production.
Low-latency encoding optimized for live contribution.
Forward error correction for resilient streaming over unreliable networks.
Web-based interface for configuration and monitoring.
SNMP support for network management integration.
Supports SDI signal formats SMPTE 292M/424M/259M, including 480i, 576i, 720p, 1080i, 1080p.
Video sampling at 4:2:2, 10-bit YCbCr.
Typical end-to-end latency under 120 milliseconds at standard bitrates.
Supports Baseline, Main, and High Profile encoding.
One 10/100/1000Base-T Ethernet port with DHCP or static IP.
RS-232 serial control and HTTP API available for system integration.
Operating temperature 0–40°C; storage –20–60°C.
Relative humidity tolerance up to 95% non-condensing.
Optional rack-mount; can also operate on desktop.
Dimensions approximately 190 mm × 120 mm × 35 mm.
Weight around 0.9 kg.
Meets CE and FCC Class A standards.
Optional AES-128/256 encryption for secure streaming.
Adjustable jitter buffer for variable network conditions.
