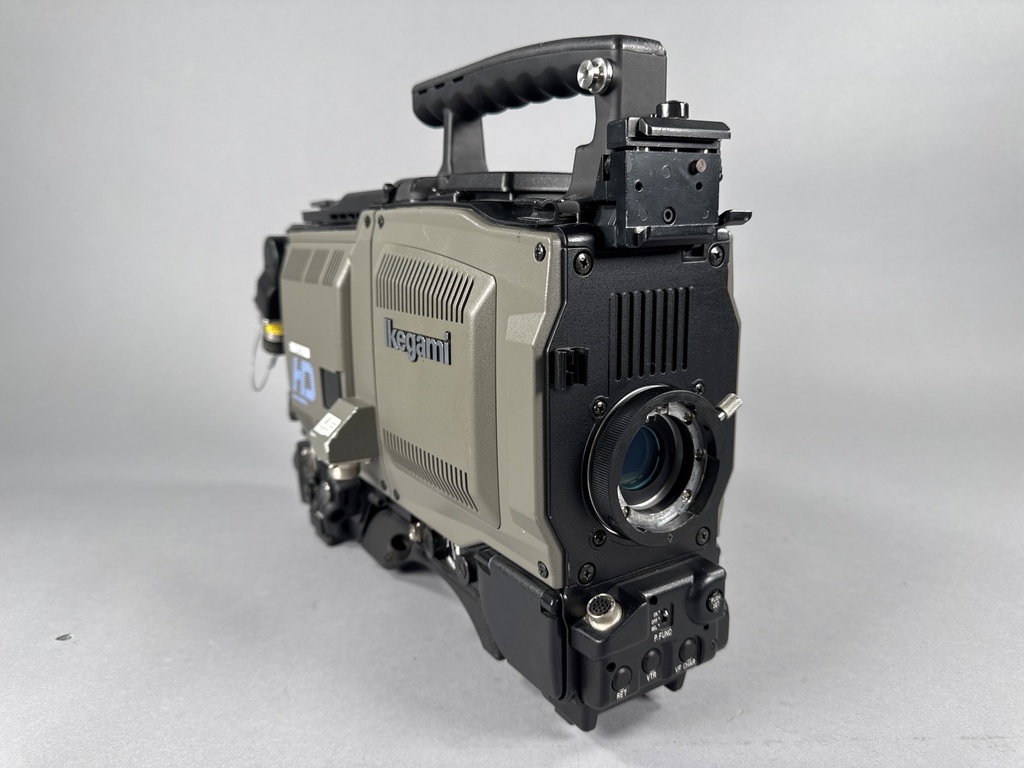

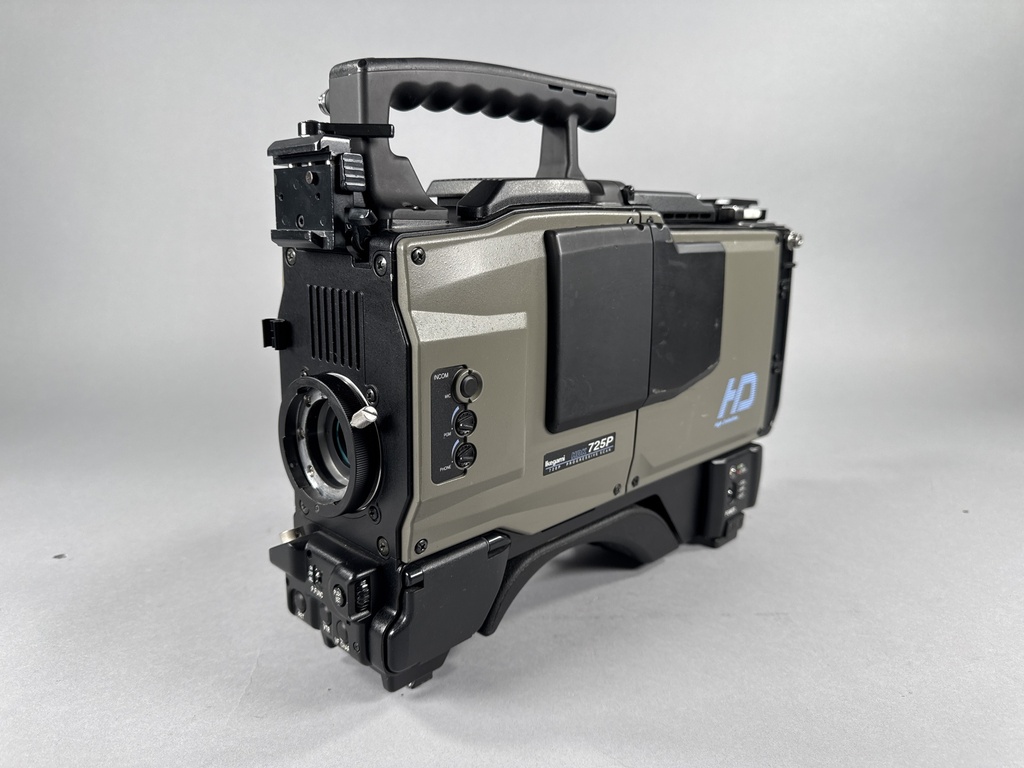

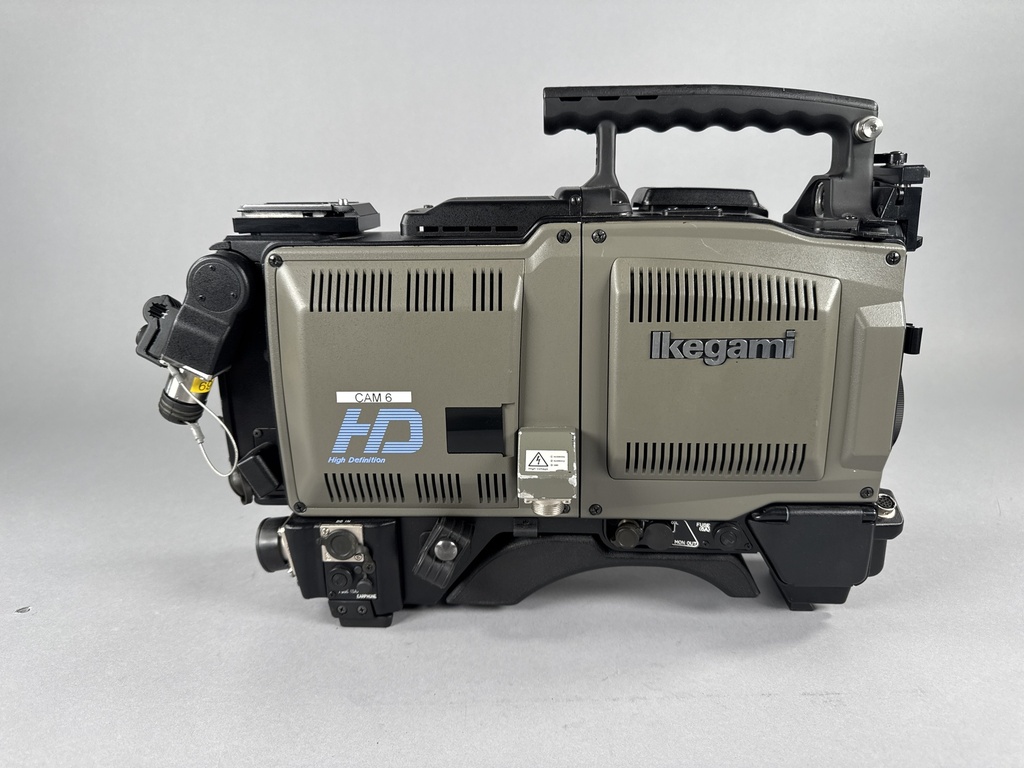

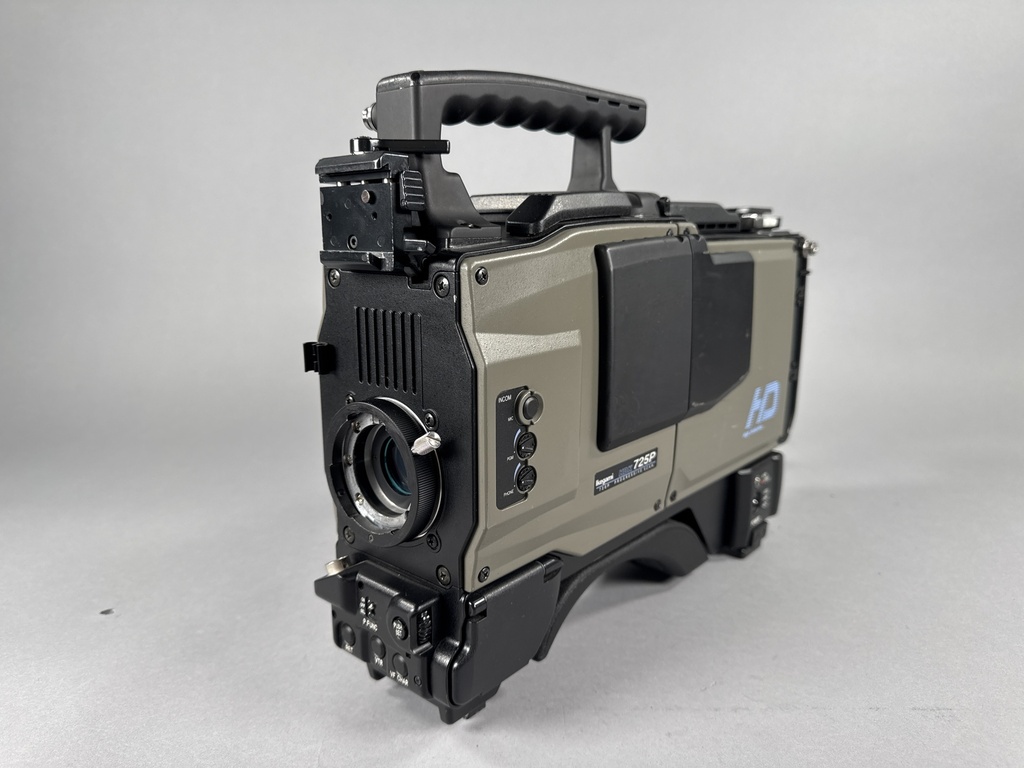

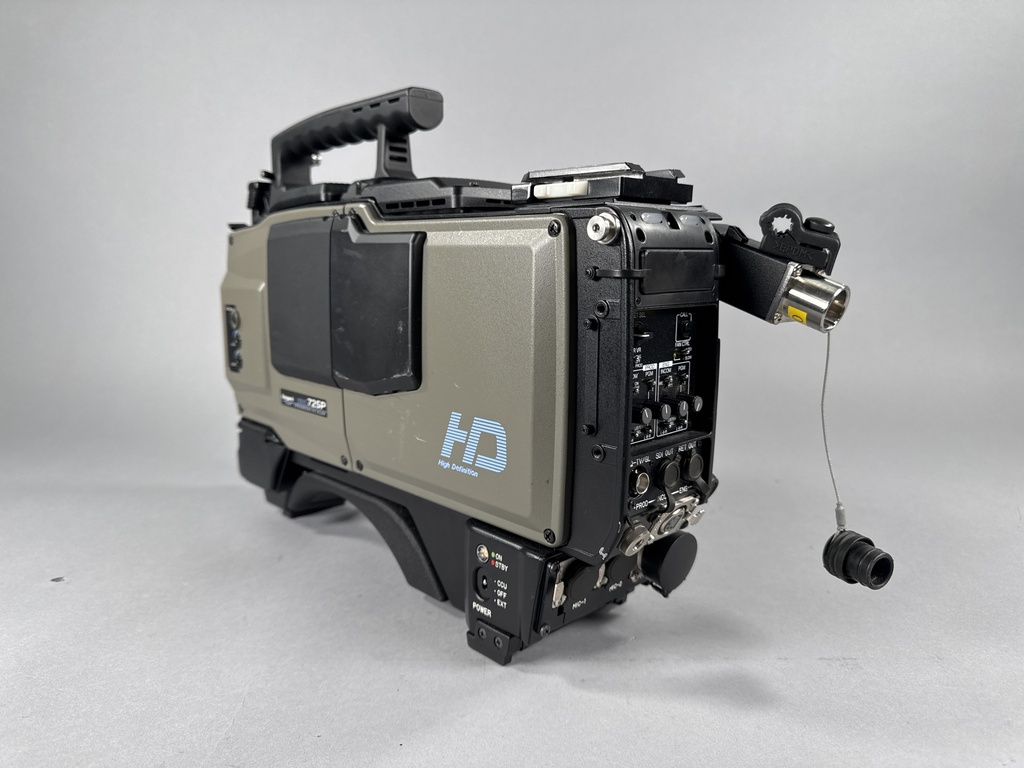

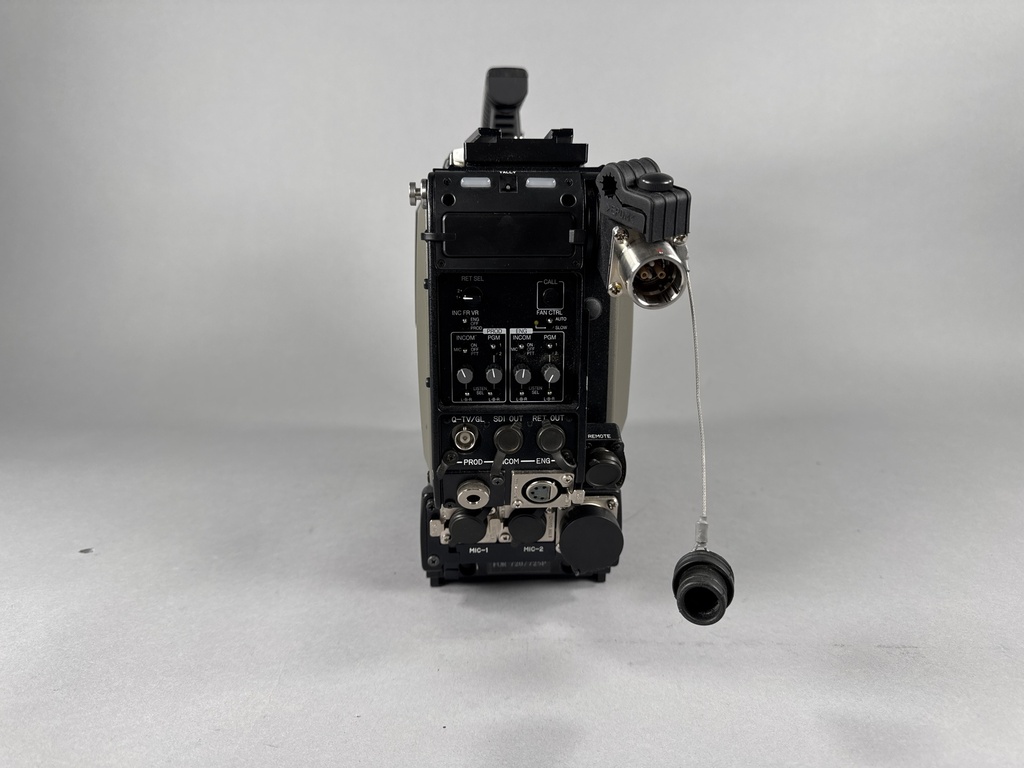

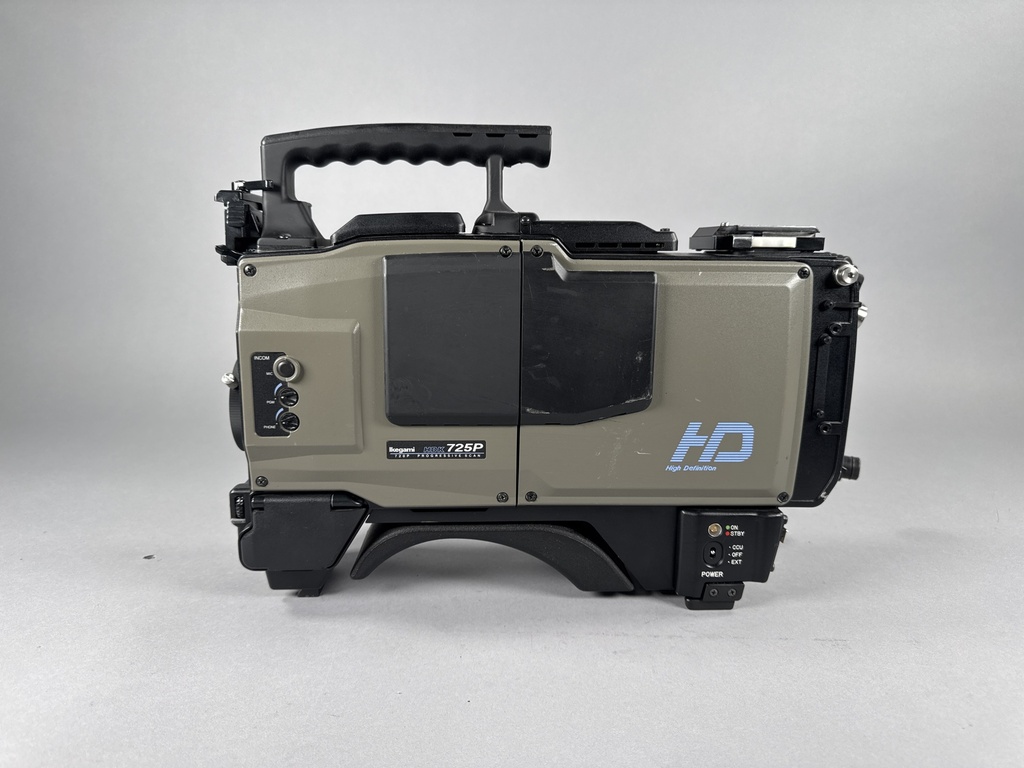

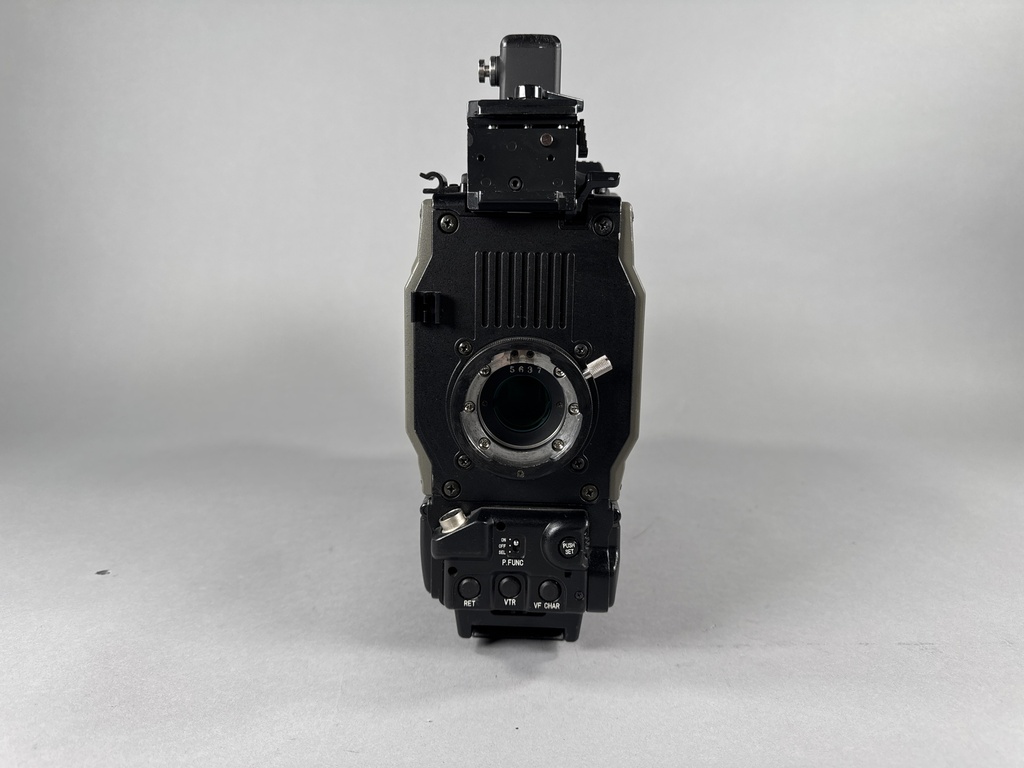

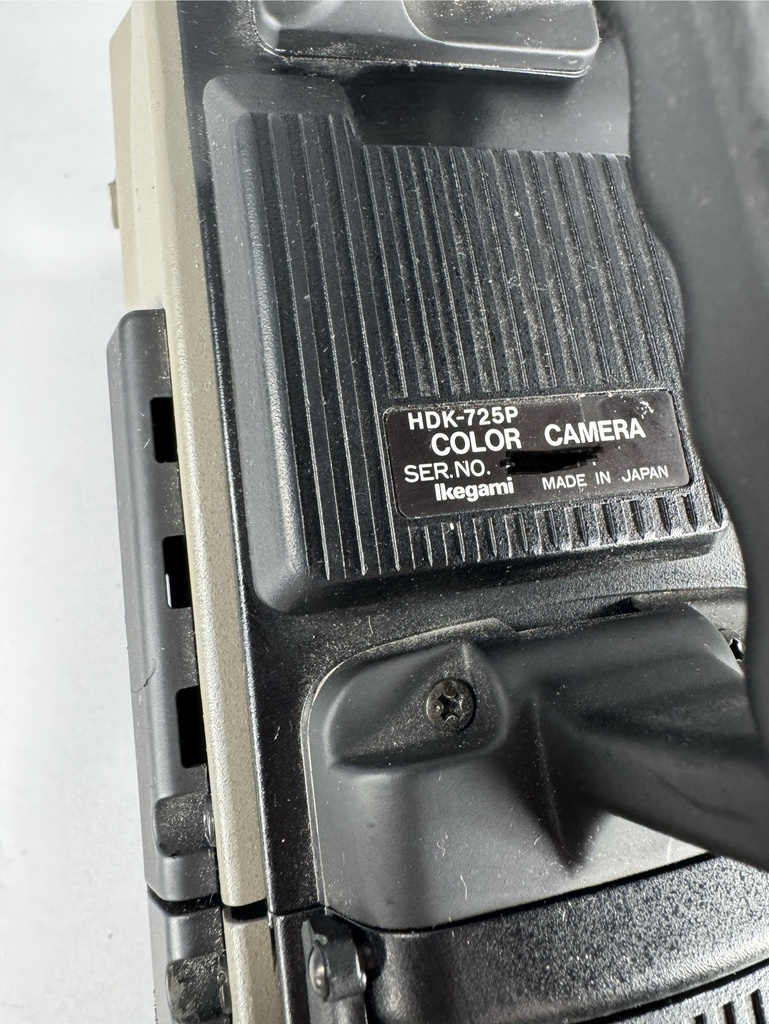

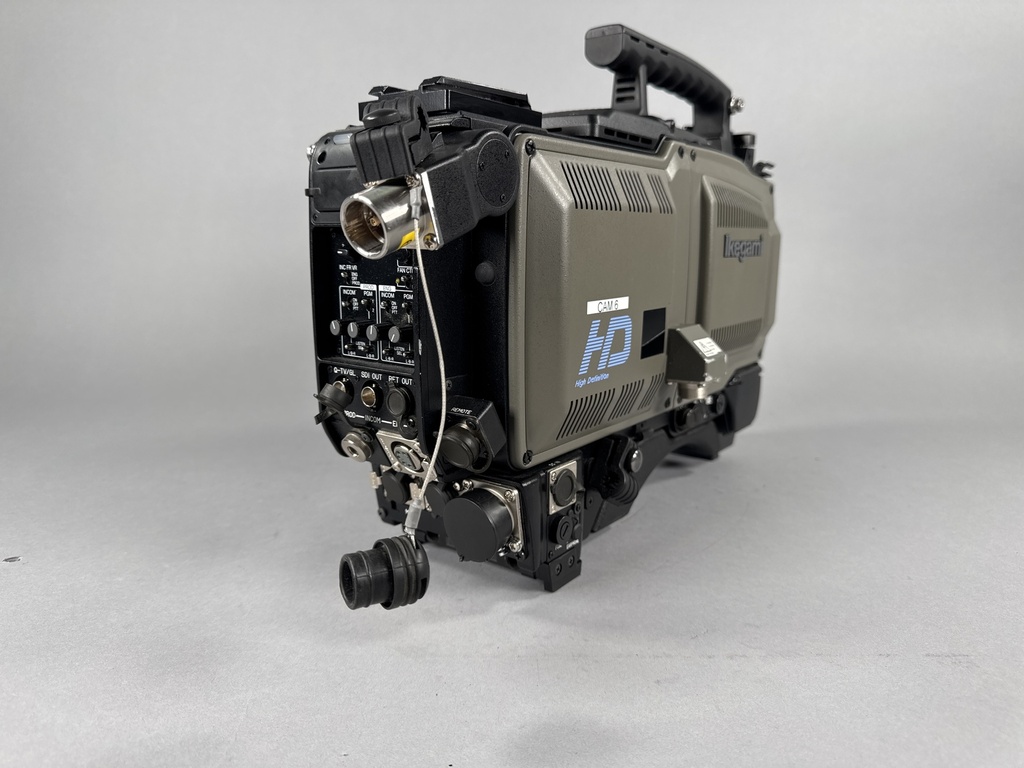

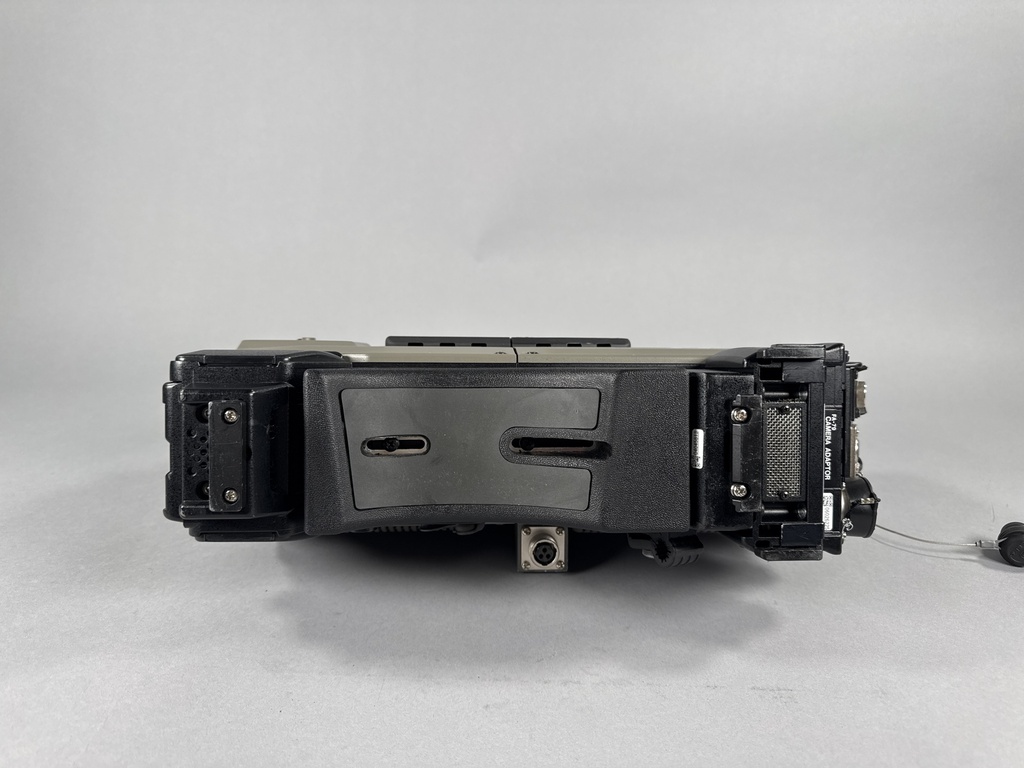

Ikegami HDK-725P (Used)
Price via quote
(No Front glass Cap) Single Mode HD Camera 720p/59.94 Includes FA-79 Fiber Camera Back Adapter.
Select Condition
Ikegami HDK-725P (Used)
Single Mode HD Camera 720p/59.94
Features
High-definition imaging using 2/3" IT CCD sensors with 380,000 pixels.
12-bit A/D conversion and up to 38-bit internal digital processing for high-quality output.
Compatible with CCU-790A for full camera control and system integration.
Triax adapters and optional fiber converters for flexible signal transmission.
Supports VF477HD and VF1317HD viewfinders for accurate monitoring.
Includes OCP-790 remote control panel for adjusting camera settings remotely.
Compatible with a wide range of B4-mount lenses.
Sensor type: 2/3" IT CCD with progressive scan capability.
Resolution: Supports 720p HD; can be upgraded to 1080i via factory upgrade.
Signal processing: 12-bit analog-to-digital conversion with up to 38-bit internal digital processing.
Output formats: HD-SDI and triax signals.
Power requirements: 12 VDC input via external power supply.
Dimensions: Approximately 190 mm × 120 mm × 35 mm.
Weight: Approximately 0.9 kg.
Compliance: CE and FCC Class A.
Operating temperature range: 0–40°C.
Storage temperature range: –20–60°C.
Relative humidity tolerance: Up to 95% non-condensing.
Optional secure streaming or fiber conversion accessories available.
