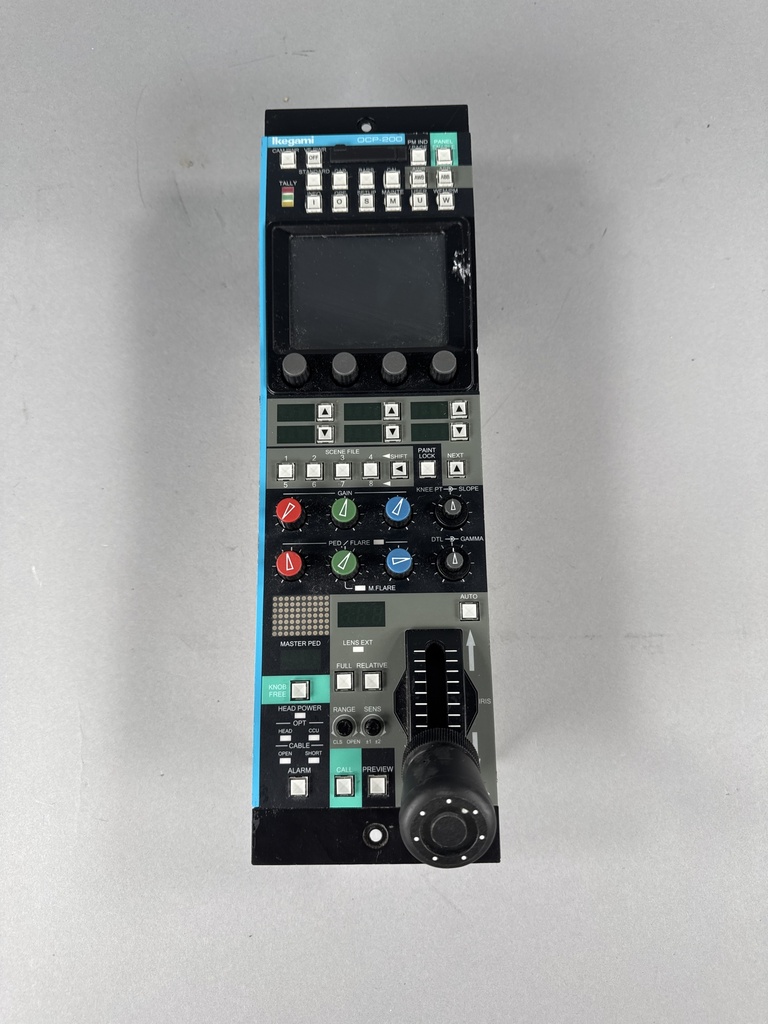

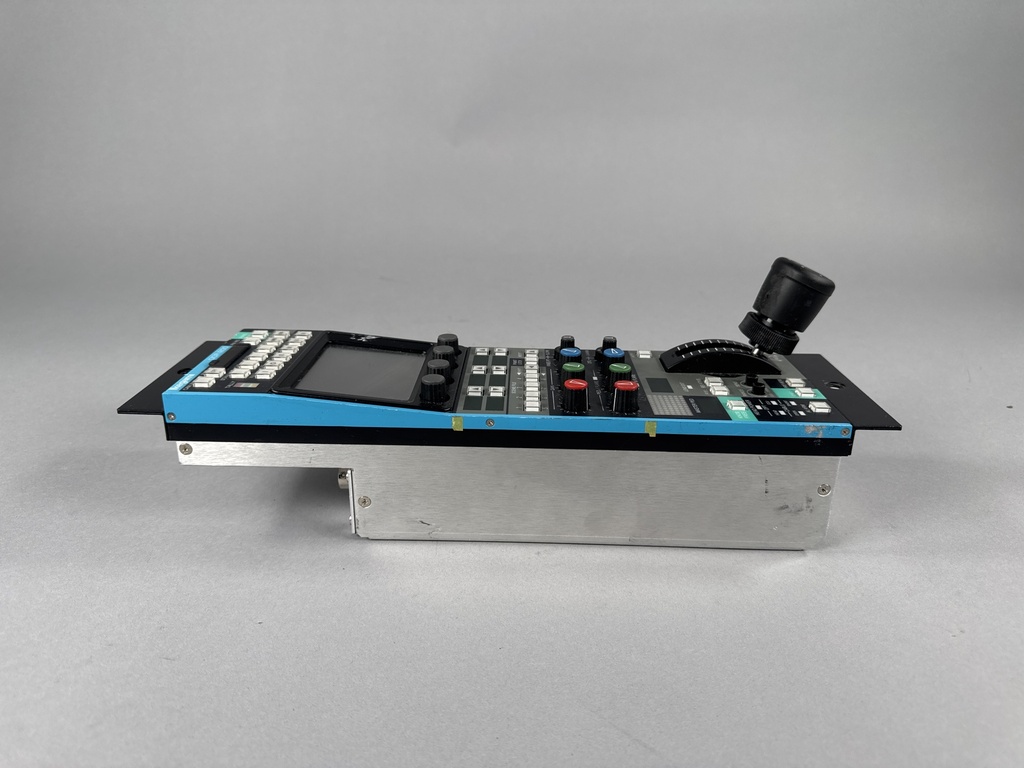

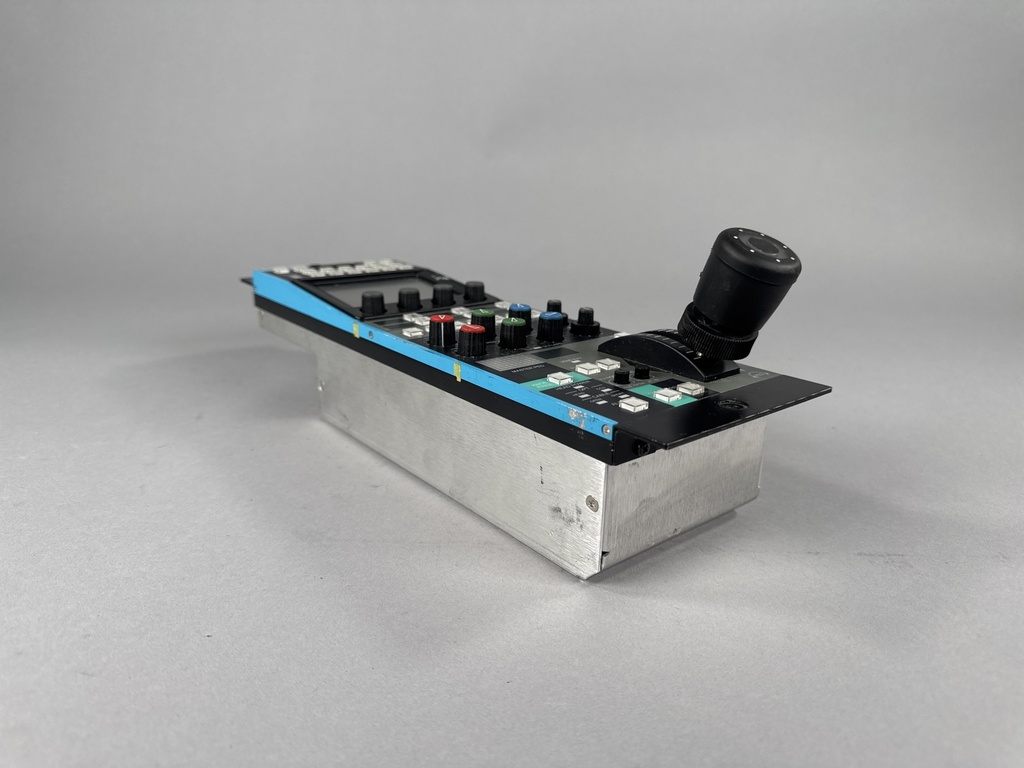

Ikegami OCP-200 (Used)

Discontinued operation control panel for camera/CCU systems

Supports up to 96 cameras in one system

LAN-based control for real-time response

Panels connect via coaxial cable through hubs between CCU/BS rack and panel

Color LCD touch screen interface

Power requirement: DC +12V (operating range +10V to +14V)

Power consumption: approximately 8.7 watts

Maximum cable length: 50 meters in network control mode, 80 meters in serial command mode

Operating temperature range: 0 °C to +45 °C

Storage temperature range: −25 °C to +60 °C

Operating humidity: 30% to 90%, non-condensing

Dimensions (joystick version): 102 mm wide × 354 mm high × 128.7 mm deep

Weight (joystick version): about 1.55 kg
