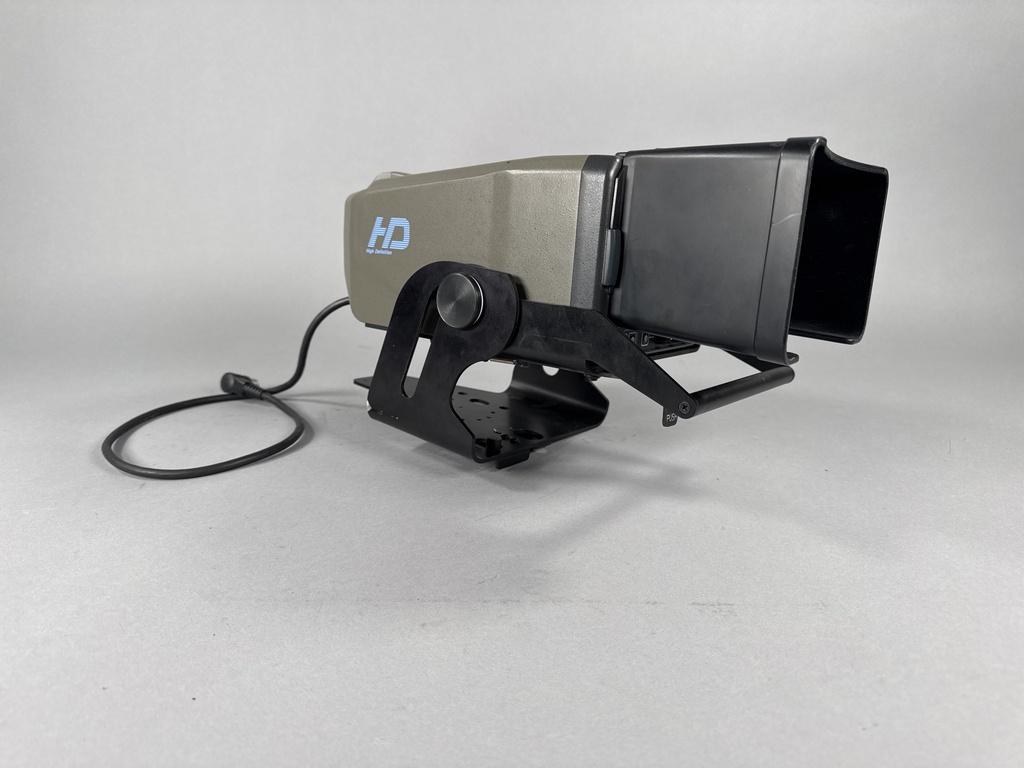

Ikegami VF1317HD (Used)
Price via quote

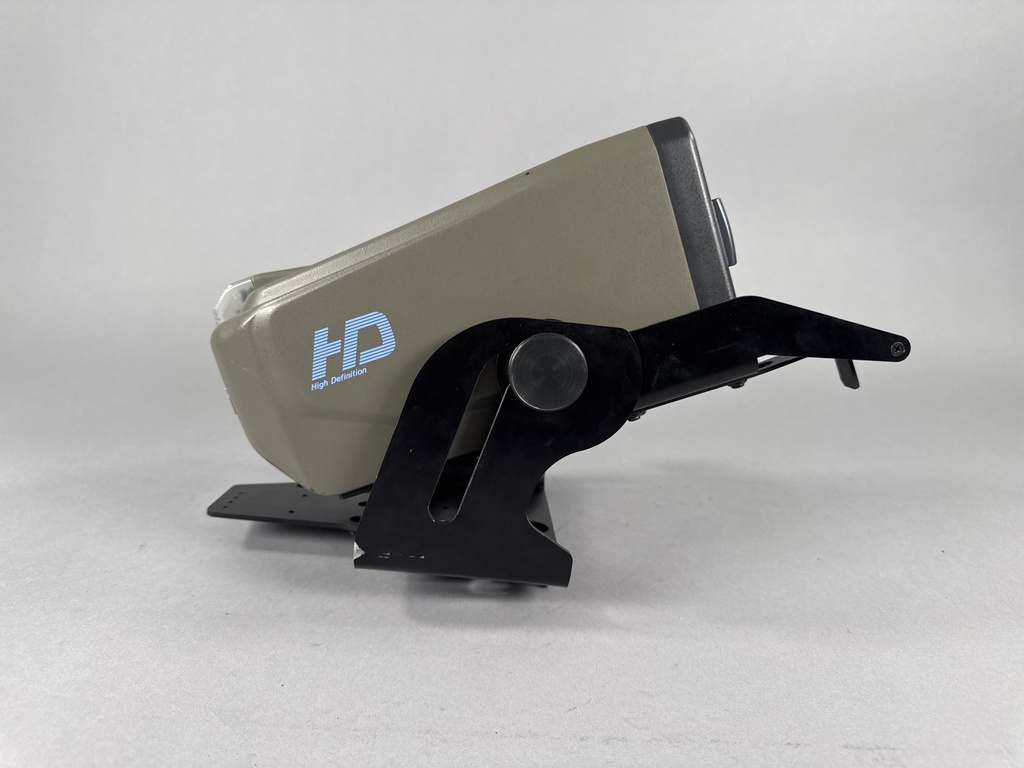

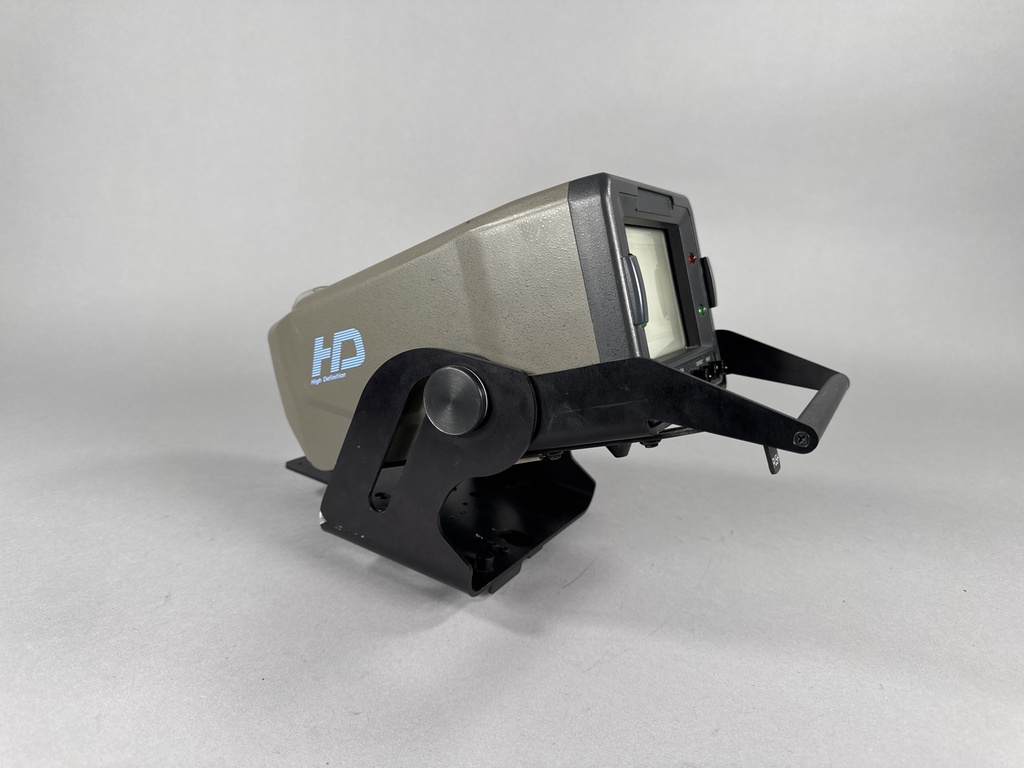

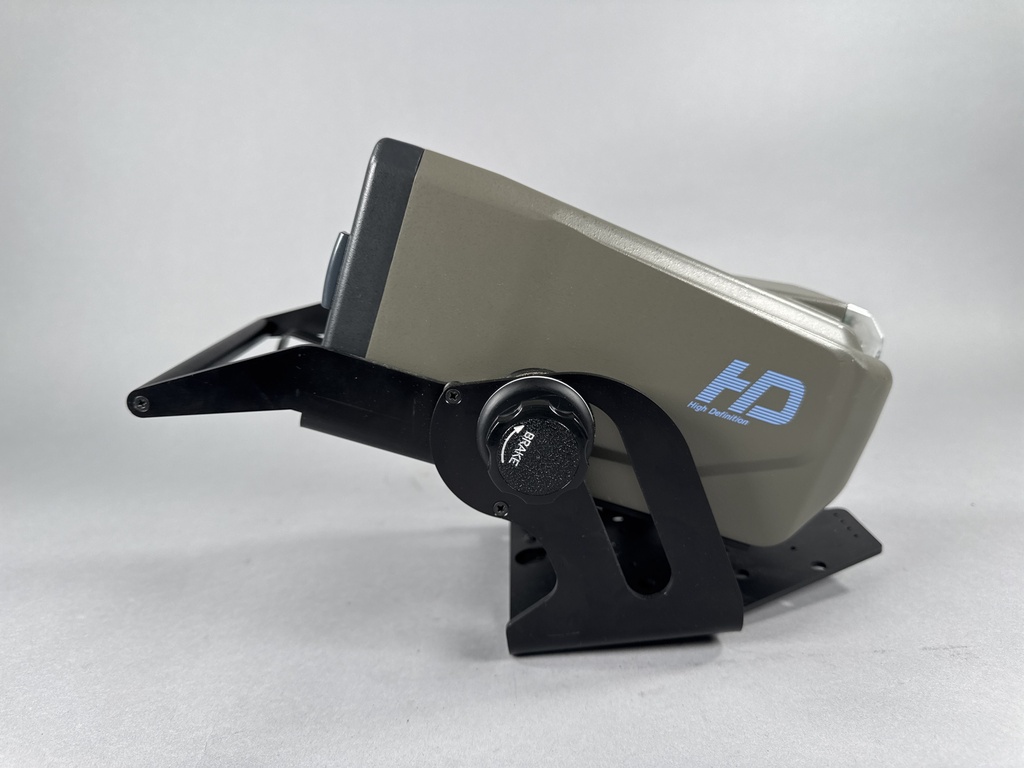

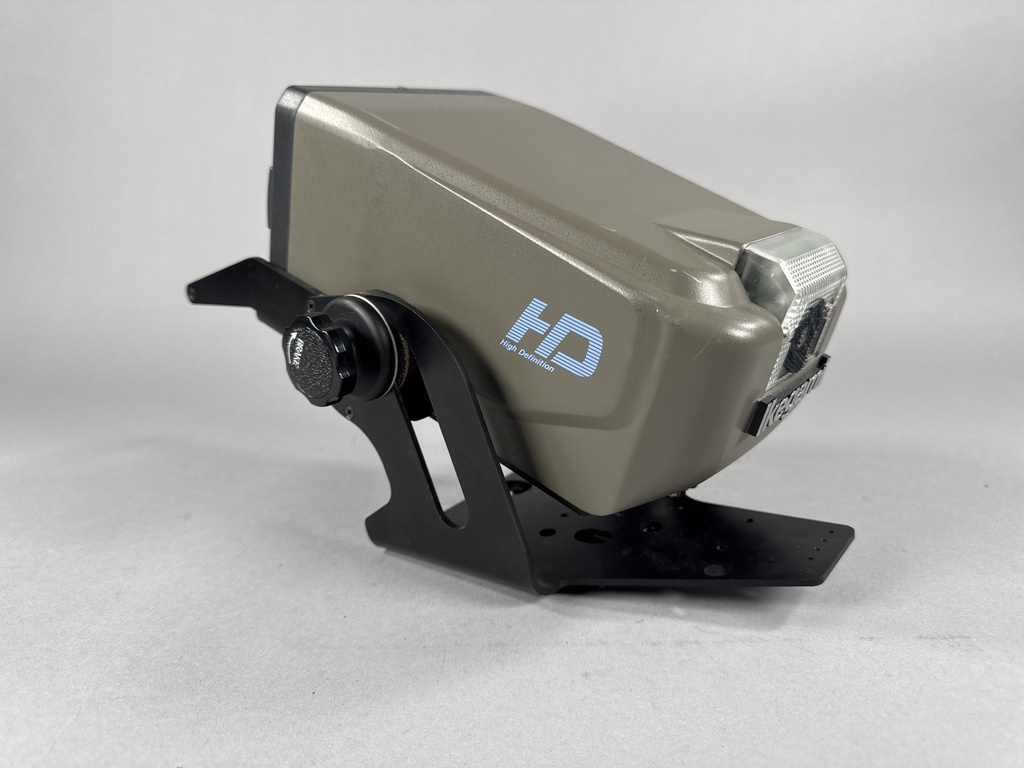

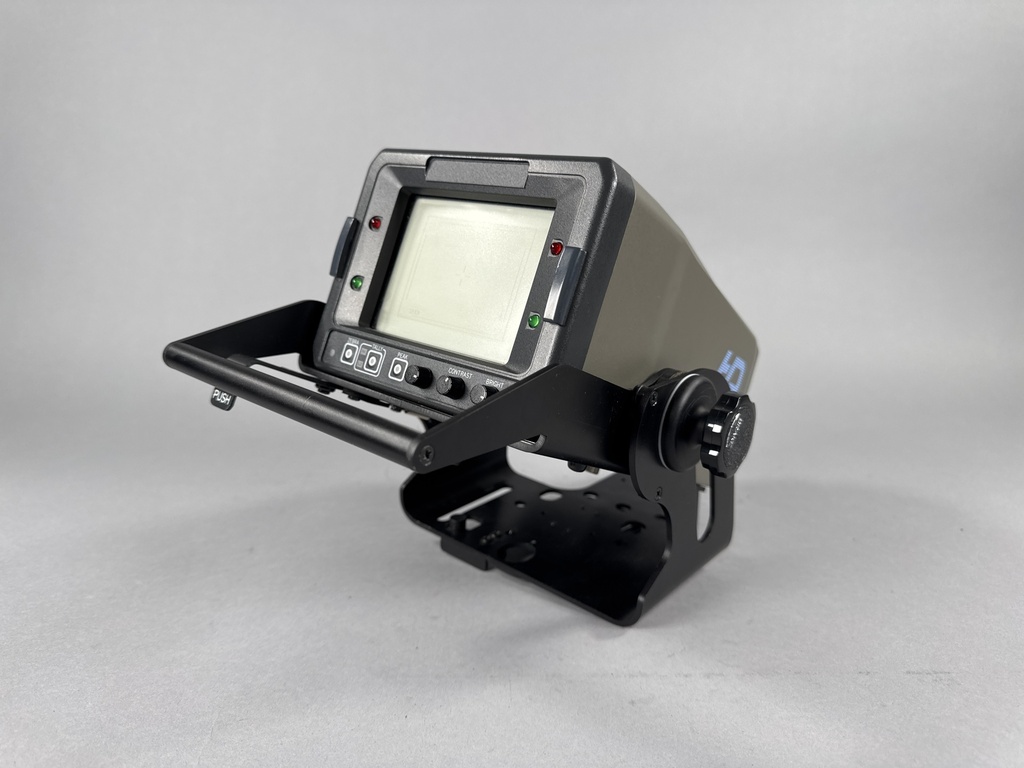

5" Monochrome CRT Viewfinder Includes hood, Cable, And Mounting bracket.
Select Condition
Ikegami VF1317HD (Used)
5" Monochrome CRT Viewfinder
high-resolution monochrome viewfinder that provides on-camera monitoring
Features
High-resolution display delivering over 650 TV lines for sharp, detailed images.
Compatible with 1080i/60, 59.94, 50 and 720p/60, 59.94, 50 SMPTE standards.
Operates on 12V DC input (10.5V–17V) for flexible power options.
Compact and lightweight, approximately 1.9 kg (4.2 lbs).
Mounting system for stable attachment to Ikegami professional HDTV cameras.

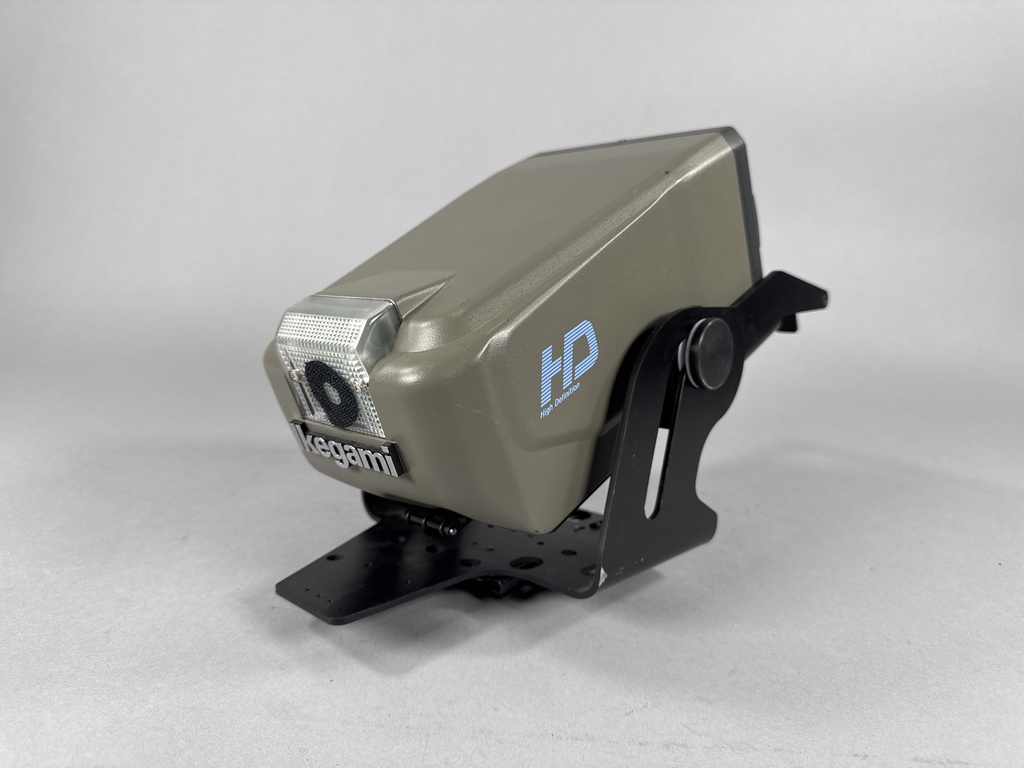

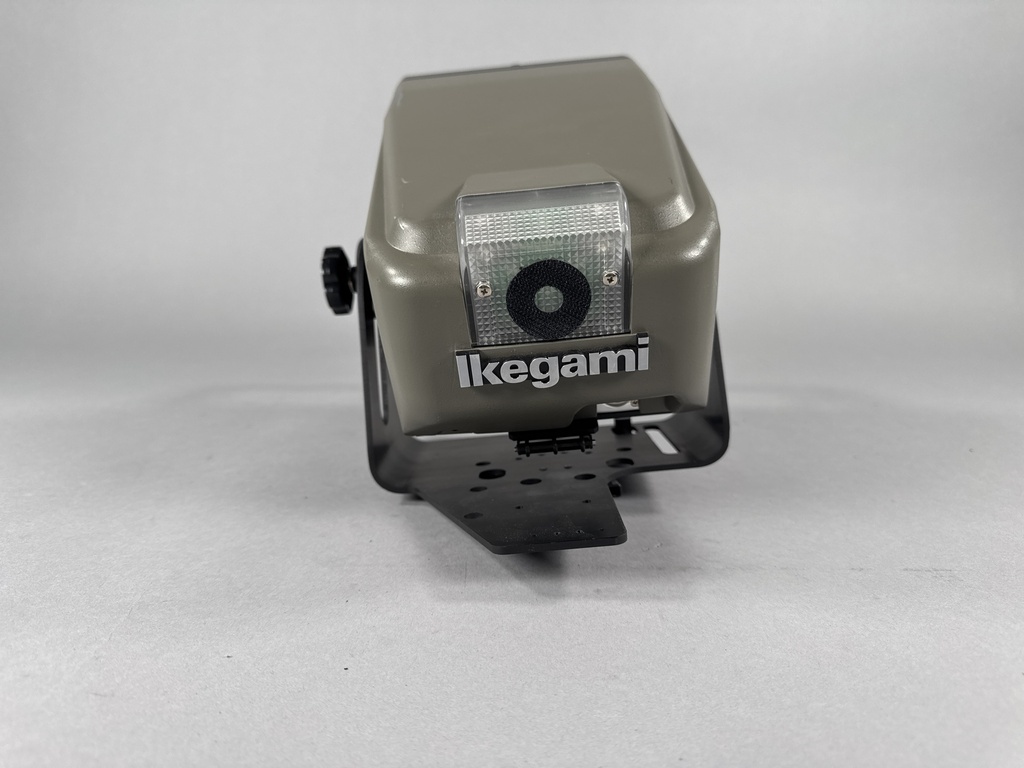

Front-facing green/red and rear-facing red tally indicators for status signaling.

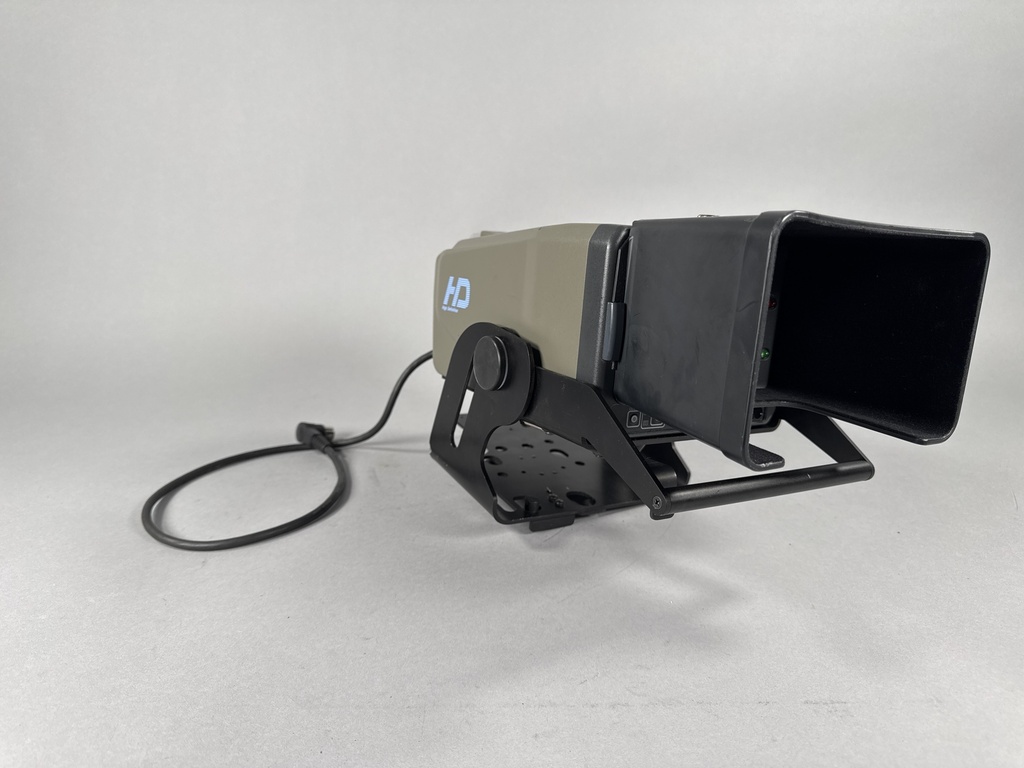

Includes two types of sunshades for enhanced eyepiece visibility in different lighting conditions.
Durable construction suitable for professional broadcast environments.
Display type: Monochrome CRT.
Screen size: 5 inches diagonal.
Resolution: Approximately 650 TV lines.
Power consumption: ~20 watts typical.
Input signal format: 1080i and 720p compatible HD signals.
Video input connector: Standard BNC.

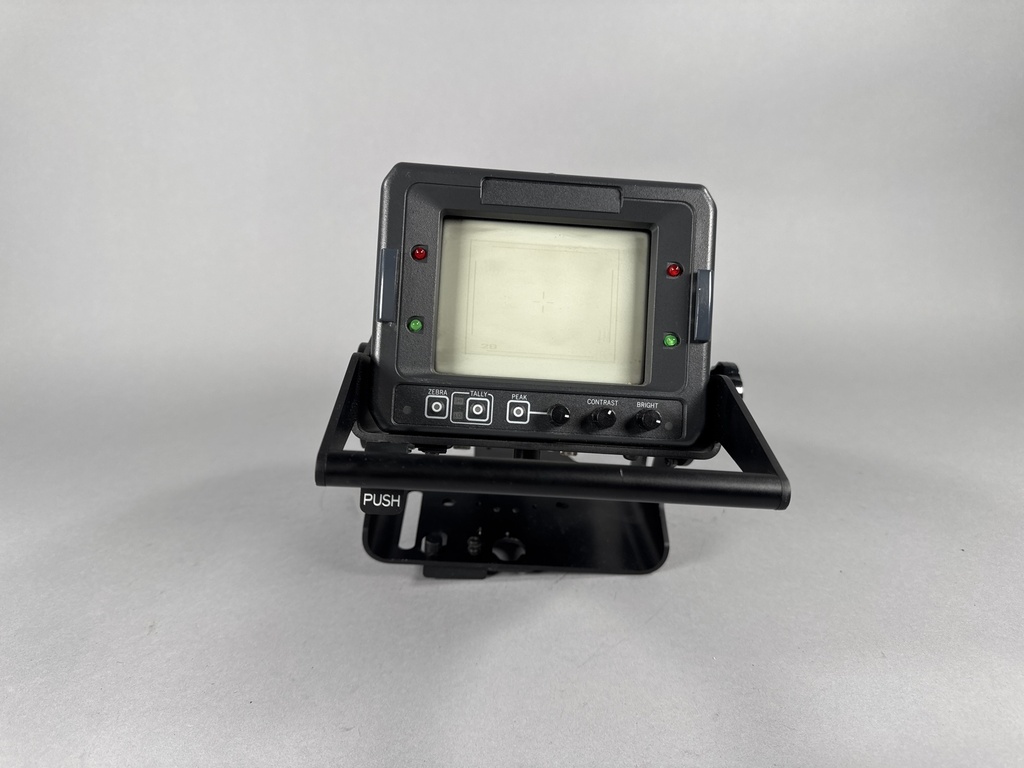

Adjustable brightness and contrast controls.
Eyepiece diopter adjustment: –5 to +5 for operator vision correction.
Dimensions: Approximately 180 mm × 150 mm × 120 mm.
Weight: ~1.5 kg (3.3 lbs).
Operating temperature: 0–40°C.
Storage temperature: –20–60°C.
Humidity tolerance: Up to 95% non-condensing.
USER MANUAL
No user manual available for download
