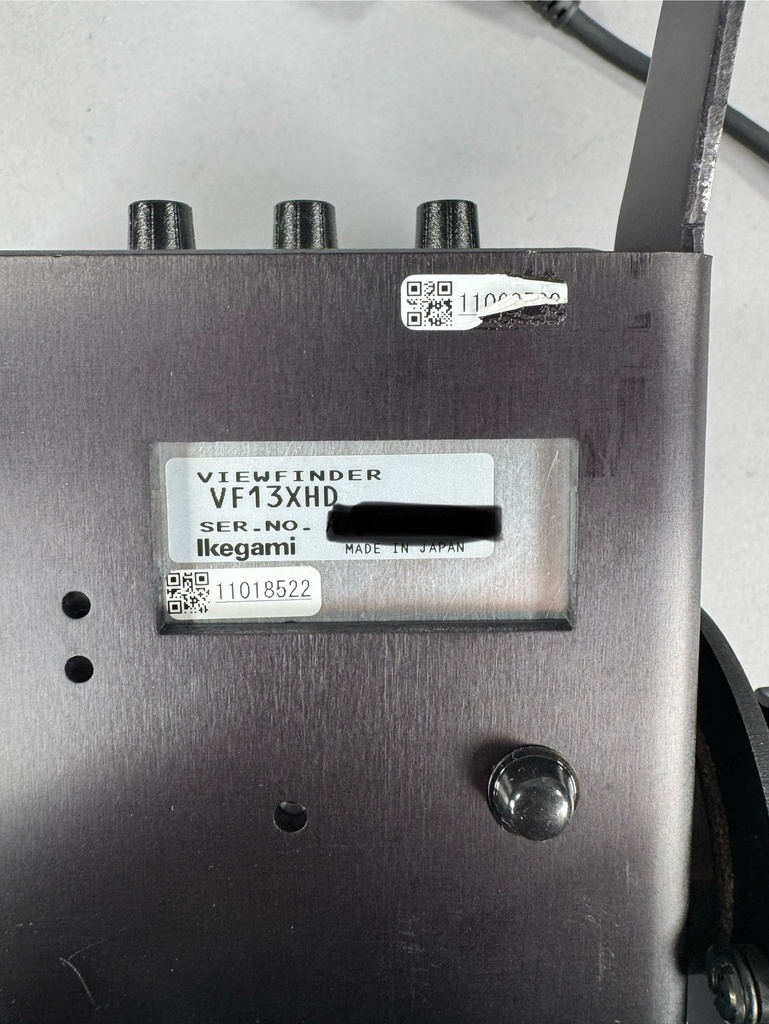

Ikegami VF13XHD (Used)
Price via quote

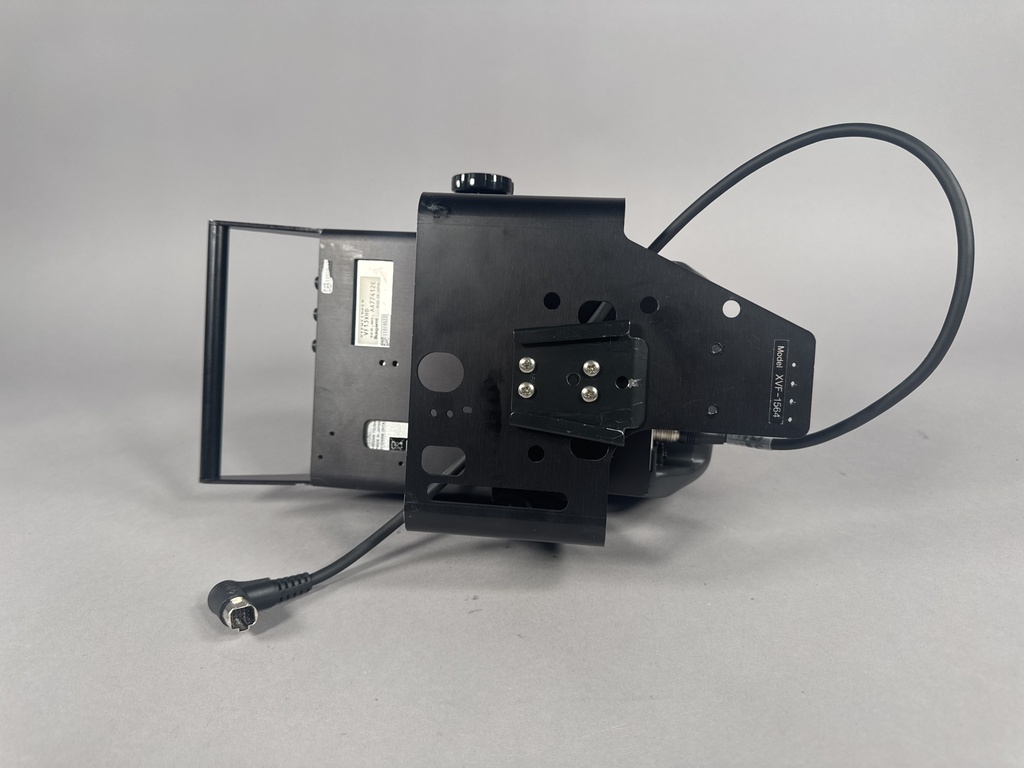

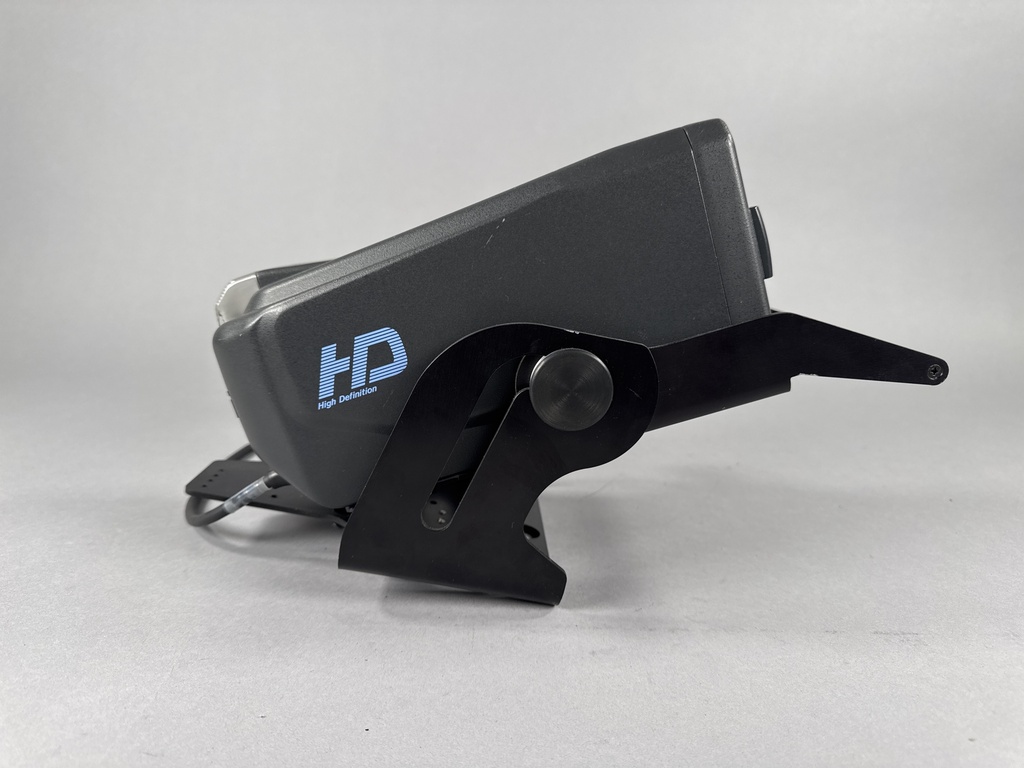

5" Monochrome CRT Viewfinder Includes Cable and VXF-1565 Mounting Bracket.
Select Condition
Ikegami VF13XHD (Used)

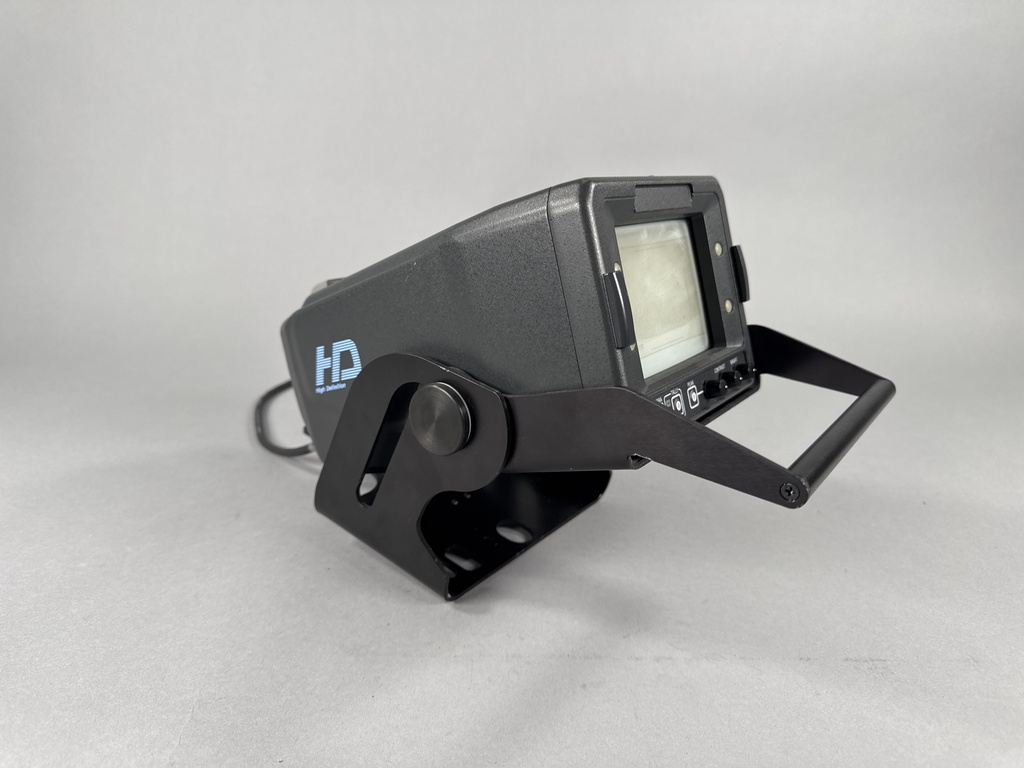

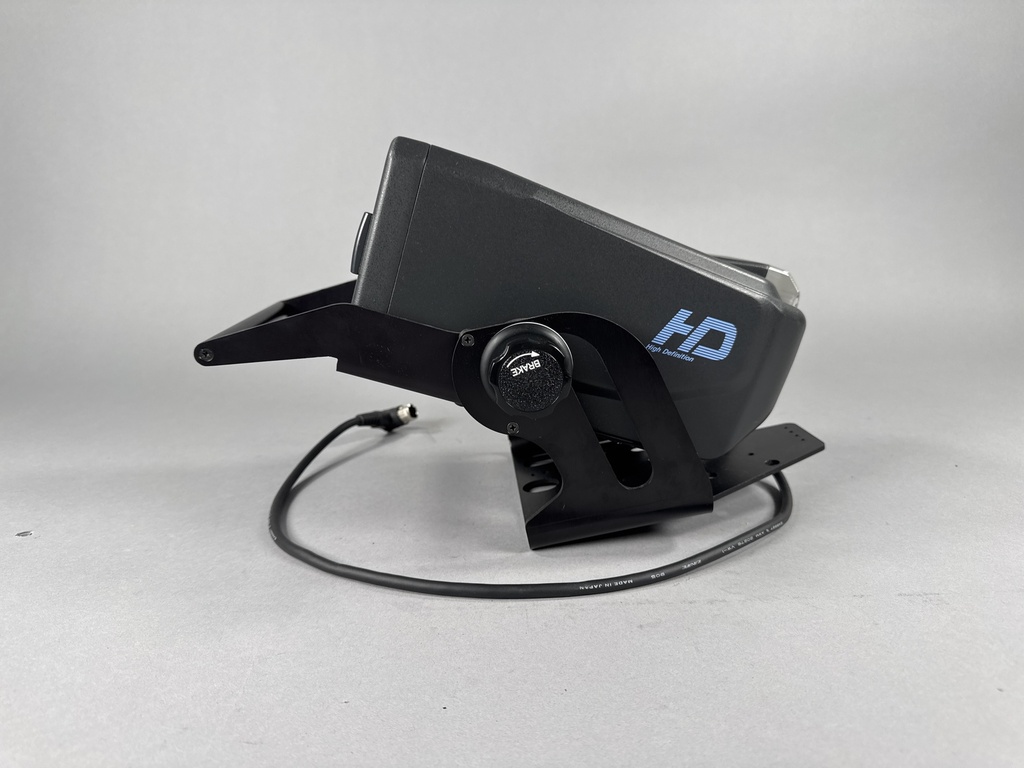

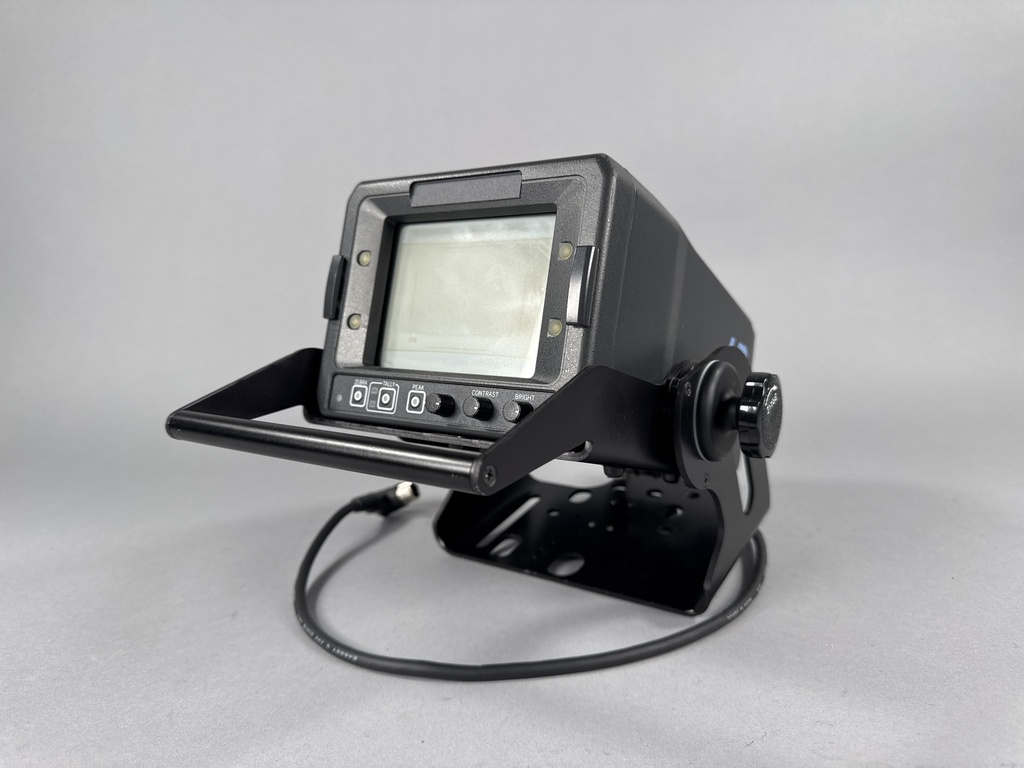

5" Monochrome CRT Viewfinder
5" HDTV B&W
Features
High-resolution display with over 650 TV lines for sharp and detailed monitoring.
Compatible with 1080i/60, 59.94, 50 and 720p/60, 59.94, 50 SMPTE standards.
Operates on 12V DC input (10.5V–17V) for flexible power setups.
Compact and lightweight, approximately 1.9 kg (4.2 lbs).
Mounting system for stable attachment to Ikegami professional HDTV cameras.

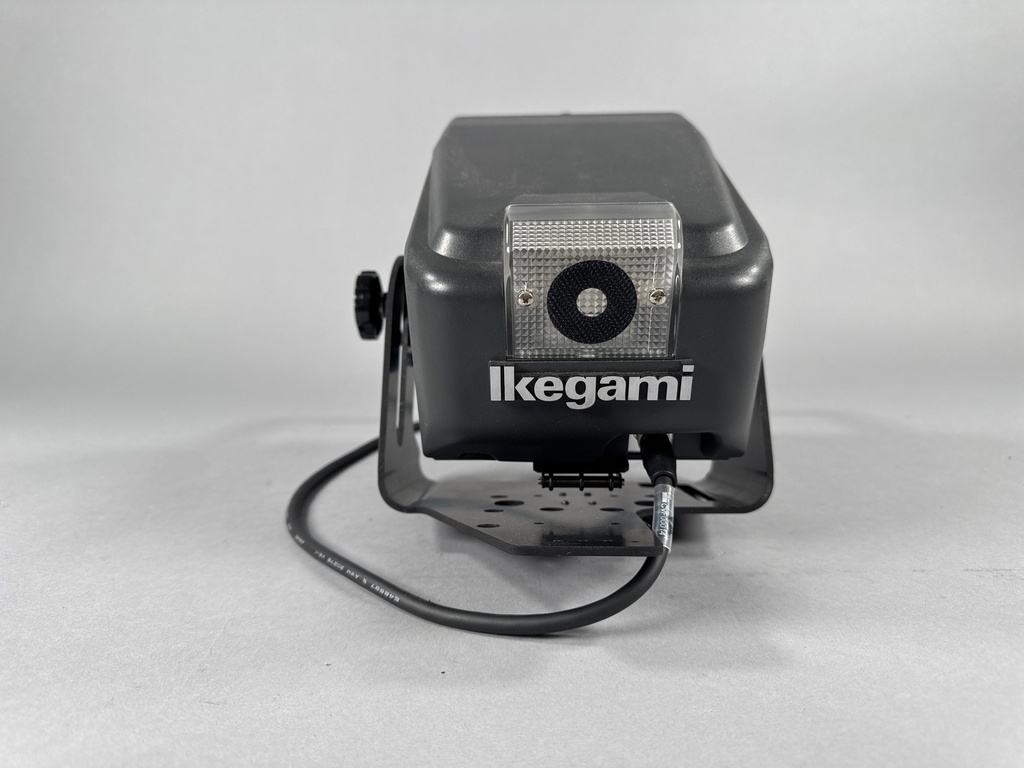

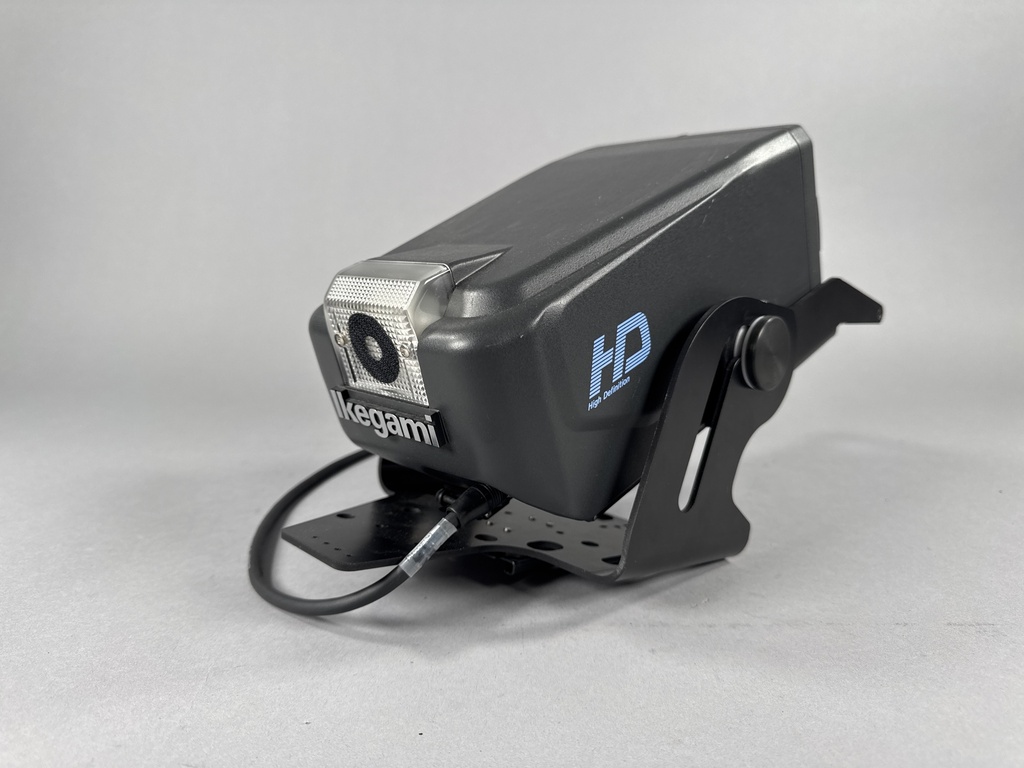

Front-facing green/red and rear-facing red tally indicators for status signaling.
Includes two types of sunshades for enhanced eyepiece visibility under various lighting conditions.
Durable construction suitable for professional broadcast use.
Display type: Monochrome CRT.
Screen size: 5 inches diagonal.
Horizontal resolution: Approximately 650 TV lines.
Power consumption: ~20 watts typical.
Video input: Standard BNC connector for HD signals.

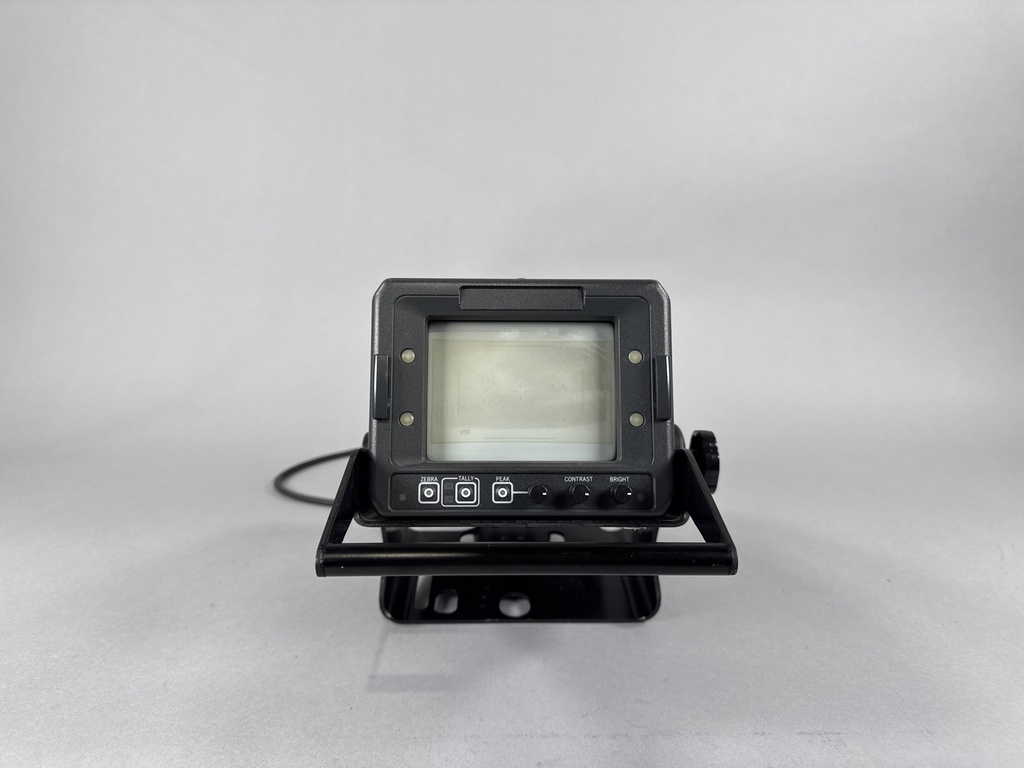

Brightness adjustment: Adjustable control for operator preference.
Contrast adjustment: Adjustable control for fine image tuning.
Eyepiece diopter adjustment: –5 to +5 for vision correction.
Operating temperature: 0–40°C.
Storage temperature: –20–60°C.
Relative humidity tolerance: Up to 95% non-condensing.
Dimensions: Approximately 180 mm × 150 mm × 120 mm.
Weight: ~1.5 kg (3.3 lbs).
USER MANUAL
No user manual available for download
