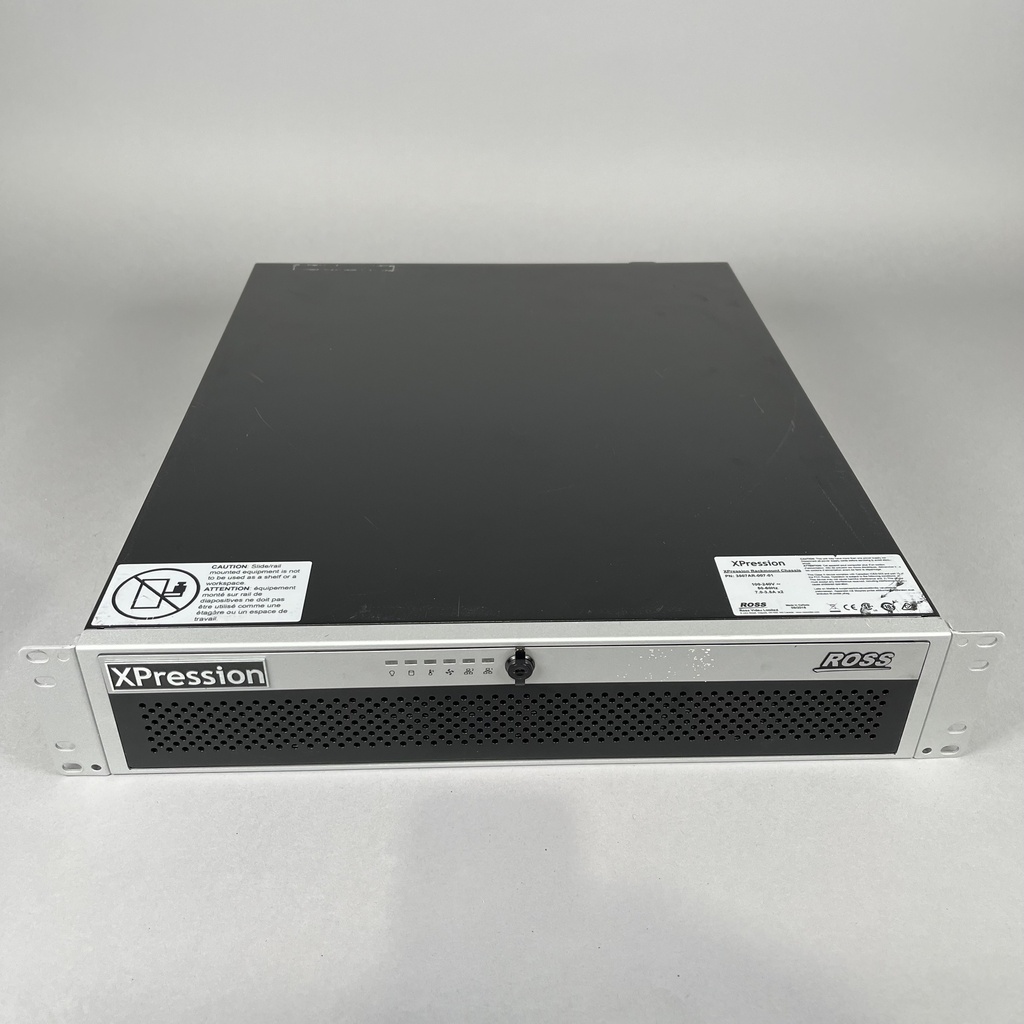

Ross Video Xpression M7 2RU (Used)
$ 5,500.00
Mint Condition (Low to Zero Cosmetic Flaw) 2RU Chassis Only! No Licenses. Storage Capacity: x2 250gb SSDs, 2 1TB SSDs (RAID Configured, total storage 1.2TB)
Select Condition
Need a Personalized Quote?
Add the product to the quote list now.

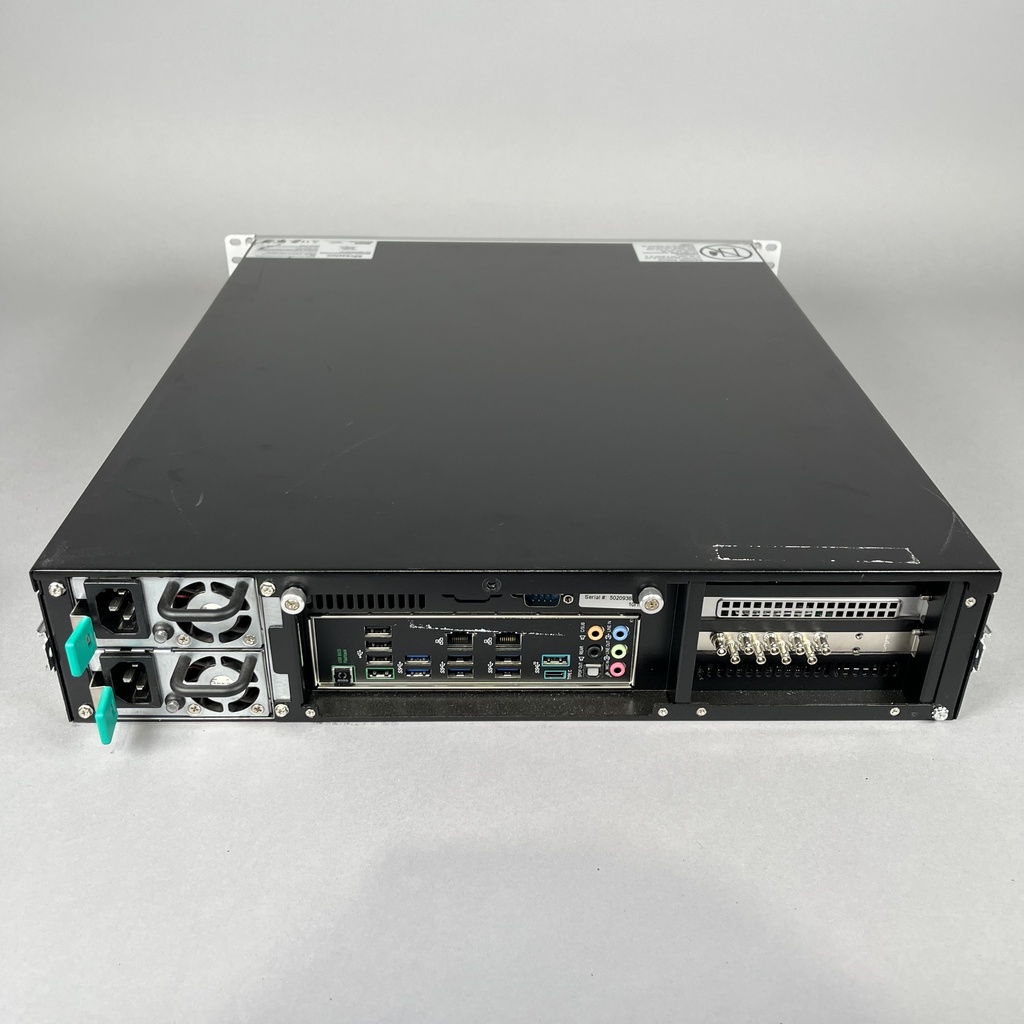

Ross Video Xpression M7 2RU (Used)
2RU HD-SDI Chassis
2RU HD-SDI Chassis
Features
Hardware
Chassis 2RU Chassis (rackmount)

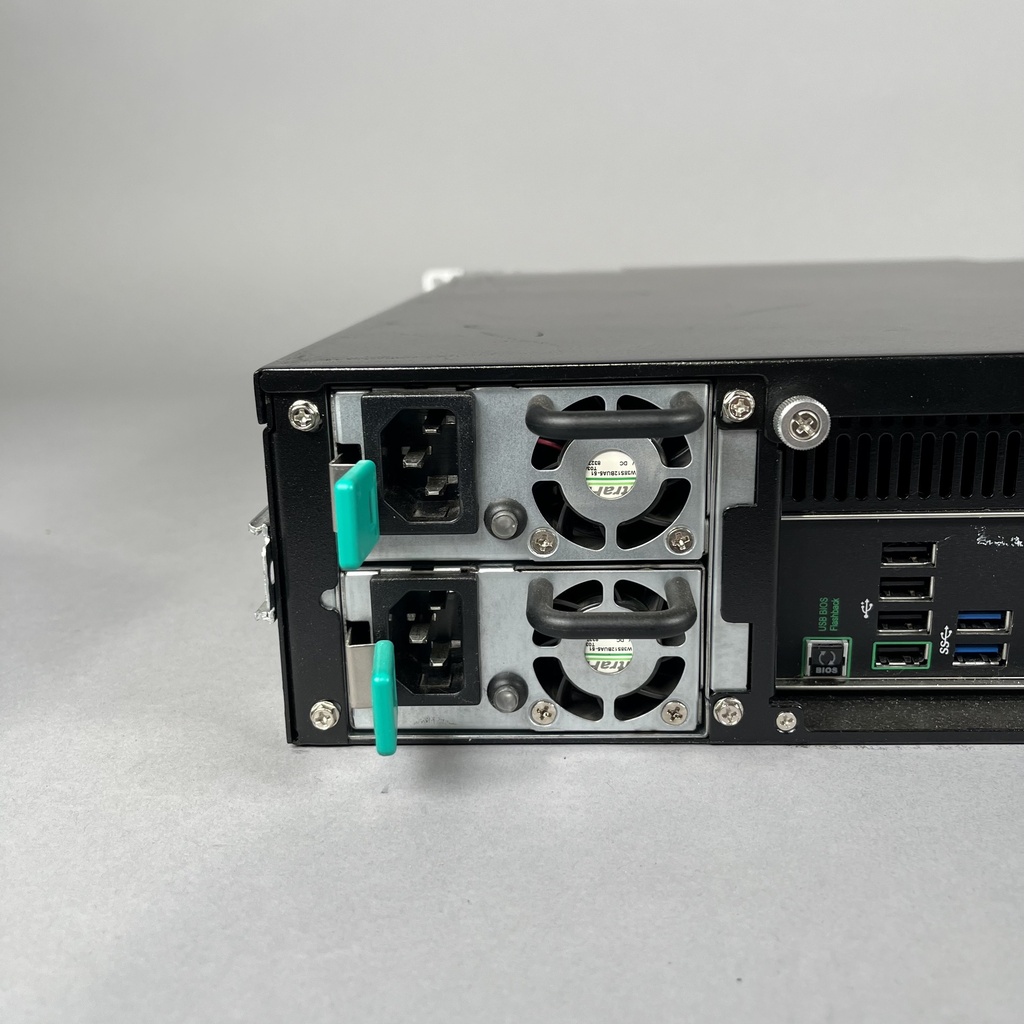

Power Supply
2x 550W single power supply
Voltage Range 100-240 VAC
Input Current 3.7A-7.4A
Power
Consumption @110V - Idle 170w, Under Load 450w
Fan Noise Between 57dB to 63dB
System Drive 465G (2x 500GB 3D NAND 2.5” SSD RAID1)
Media Drive 3.8TB (2x 4TB 3D NAND 2.5” SSD in RAID1)
CPU
Intel© Xeon® Silver 4410T, 10-Core,
26.25MB Cache, 2.70GHz, 4.0 GHz Turbo
Memory 64GB (4x16GB) 4800MT/s DDR5
RDIMM with ECC
GPU NVIDIA™ RTX 4000 Ada 20GB
GDDR6, 4x Display Port 1.4a Ports
Video I/O HD-SDI or Quad-link SDI
Matrox® DSXLE4/44/100, NDI®
O/S Microsoft® Windows® 11 Professional
for Workstation
Server
Management
Integrated VGA Output
1x RJ-45 IPMI Management LAN Port

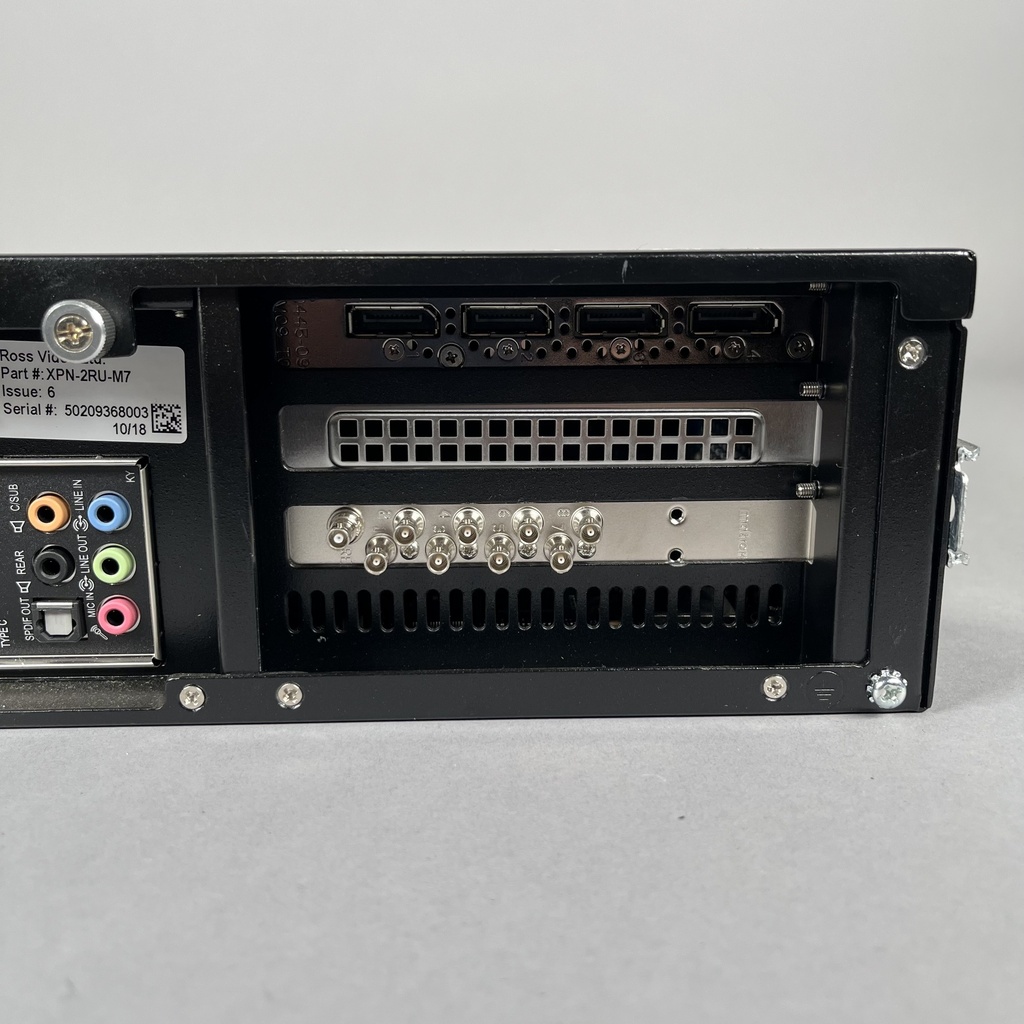

Inputs / Outputs
Video
4x HD-BNC out and 4 Bi-directional
HD-BNC for Up to 4 Channels (Video/Key
Pair) of 1080P or 1 Channel Quad-Link
UHD Output
Audio Embedded Audio Only
Reference 1x Analog Black Burst
