RTS Cronus (Used)

Model #: Cronus

Price via quote

https://www.alliedbroadcast.com/web/image/product.template/66522/image_1920?unique=d12da94

32-Channel Unit, Includes 4 Front AIO-8 Cards Installed (9030-7784-001) , 3 MDR Backplane cards (9030-7800-001), 1 AIO backplane card (9030-7787-001). Cards SW Versions. AIO-8 2.4.0, Controller Card 2.4.0


Select Condition
Used
32-Channel Unit, Includes 4 Front AIO-8 Cards Installed (9030-7784-001) , 3 MDR Backplane cards (9030-7800-001), 1 AIO backplane card (9030-7787-001). Cards SW Versions. AIO-8 2.4.0, Controller Card 2.4.0
Price via quote
Used
(Missing USB-C Port on Front Faceplate) 32-Channel Unit, Includes 4 Front AIO-8 Cards Installed (9030-7784-001) , 3 MDR Backplane cards (9030-7800-001), 1 AIO backplane card (9030-7787-001). Cards SW Versions. AIO-8 2.4.0, Controller Card 2.4.0
Price via quote

This combination does not exist.

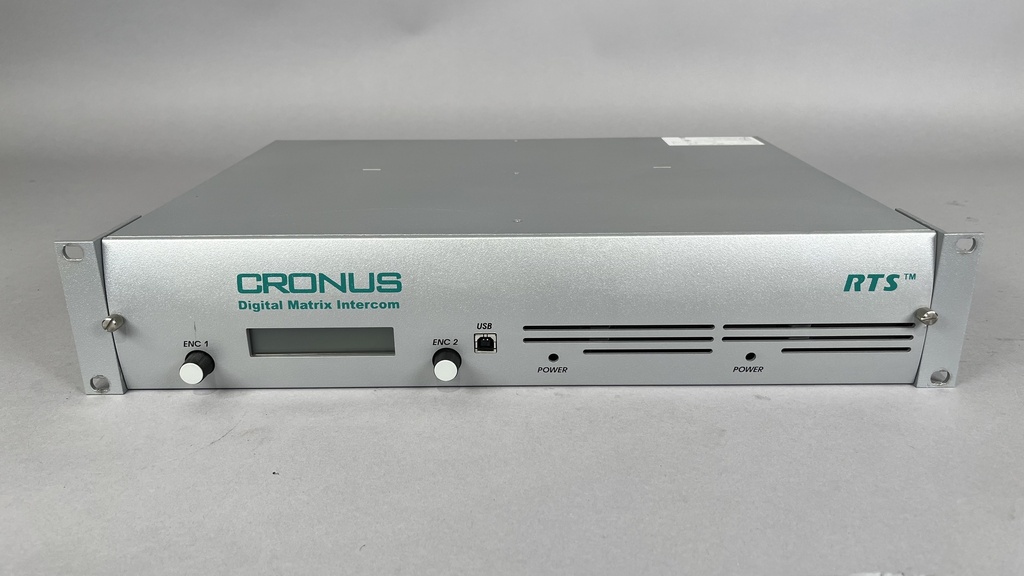

RTS Cronus (Used)

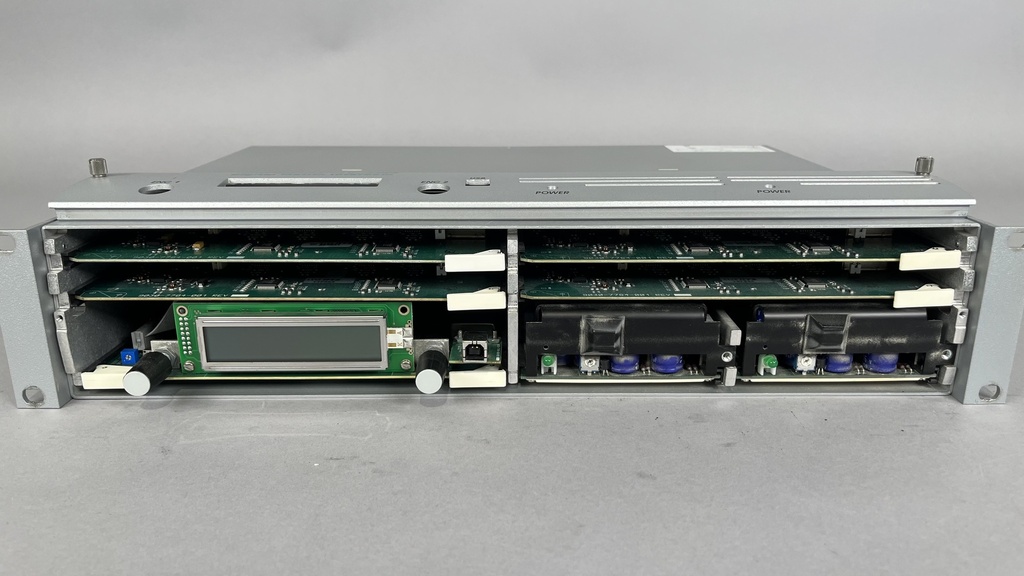

The RTS Cronus is a modular 32-port digital matrix intercom in 2 RU (rack units) that can hold up to four cards with eight ports each.
Based upon an advanced DSP architecture, Cronus has the ability to link up to four units into a single 128 port matrix. Through
the use of standard video coaxial cable, the maximum distance between the first and last Cronus system can be 300 ft., and still
appear as a single matrix. However, when using the Fiber Option card, the distance is increased up to 15 kilometers nominally.
When connected as a single matrix, the individual Cronus controls remains autonomous and independent at each matrix for the
highest reliability.

Features

USB Connectivity - Convenient front panel access as well as traditional rear access for programming. Only one port may be used at a time.

Advanced DSP - Digital signal processing designed to support audio signal processing on all 32 ports(Inputs).

Modular Architecture - The modular architecture allows for port expansion from 8 to 32 ports giving each user expandable systems in the field.

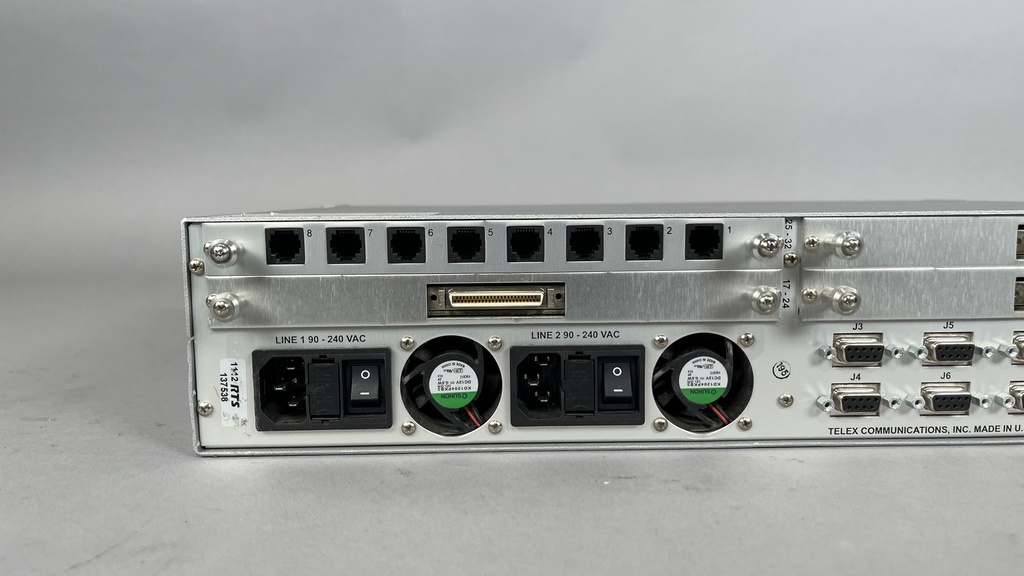

Redundant PSU - Each chassis is powered by two power supplies, either of which can sufficiently power all the equipment ALONE. This provides constant power and disaster recovery even with the failure of one power supply.

Optional Backcards - Different backcards with or without transformers available.

RVON-C VoIP Optional Card - Voice-Over IP Option expands the capabilities of the system.

No technical specifications available for this model

USER MANUAL

No user manual available for download
