RTS KP-32 (Used)
$ 250.00
KP-32 Classic (Black) (5-pin Female Headset Connection) Key panel Only. No Power supply
Select Condition
Need a Personalized Quote?
Add the product to the quote list now.

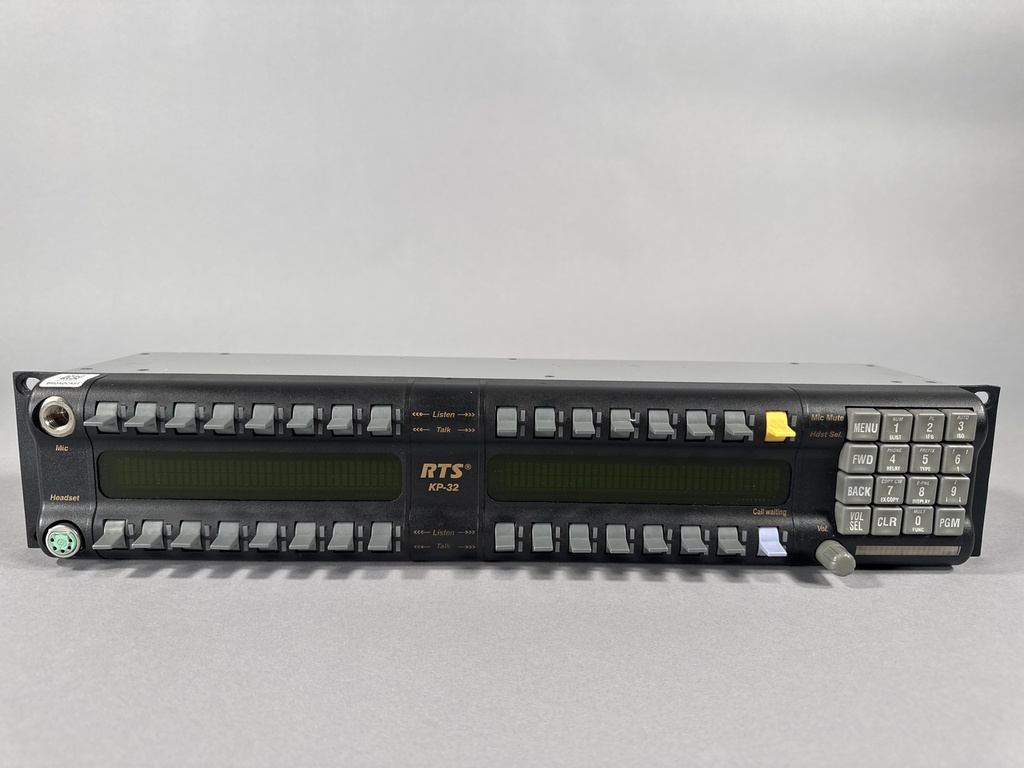

RTS KP-32 (Used)
RTS Modular 32 Lever Key Panel
Features
Standard 19" rack width, 2 rack units high.
Lever Key Functionality
32 lever keys total.
30 keys for intercom talk/listen assignments.
1 key for call waiting response.
1 key for headset/mic/program selection and volume control.
Keys can be latching (hands-free) or momentary (push-to-talk).
Display & Interface
Super-bright fluorescent displays for high visibility and durability.
Adjustable brightness for all lighting conditions.
Display saver mode with programmable scrolling message.
Enhanced programming keypad with menu prompts for easier setup.
Audio Processing and Routing
Built-in Digital Signal Processing (DSP) for mic voice activation, limiting, mixing, metering, and filtering.
Monaural 4-pin headset connector with adjustable monitoring.
Compact and Upgradeable Design
Depth: 90 mm behind the front panel (about 130 mm with connectors).
Suitable for tight spaces such as OB vans or console back panels.
Firmware upgradable via intercom connection.
Ready for future enhancements such as coax, fiber, and ISDN compatibility.
Microphone Preamplifier
Electret Mic Input Level @ 1 kHz: –42 dB, 150 Ω
Dynamic Mic Input Level @ 1 kHz: –50 dBm, 150 Ω
Output Level (to matrix): +8 dBu ± 0.2 dBu
Maximum Voltage Gain (Mic to Line): 70 dB ± 2 dB
Frequency Response: 100 Hz to 10 kHz ± 2 dB
Limiter: 8 dB above nominal
Tone Generator
Output Level (to matrix): +8 dBu ± 2 dBu
Output Frequency: 500 Hz
Headphone Amplifier
Maximum Voltage Gain: 200 dB
Frequency Response: 100 Hz to 10 kHz ± 2 dB
Headphone Impedance: 8 to 600 Ω
Output Power: 1 W into 50 Ω
Output Voltage Level: 8 V peak-to-peak (max)
Sidetone Range: 25 dB
Speaker Amplifier & Speaker
Frequency Response: 100 Hz to 10 kHz ± 2 dB
Output Power (per amplifier): 4 W into 4 Ω
Output Voltage Level: 12 V peak-to-peak (max)
Volume Control Range: 30 dB
Speaker Rating: 4 W max
Intercom Input/Output
Input: Nominal +8 dBu, Peak ± 20 dBu max
Output: +8 dBu ± 2 dBu nominal
External Line (Program) Input Level: +8 dBu nominal
Power Supply
Type: External, switching
AC Input: 100-240 VAC, 50/60 Hz
Connection: Locking DIN to panel; universal IEC for mains
Environmental
Storage Temperature: –40 °C to +60 °C
Operating Temperature: –10 °C to +41 °C
Dimensions
Width: 19″ (482.6 mm)
Height: 3″ (76.2 mm)
Depth: 3.5″ (90 mm)
Weight
Approximately 6.3 lbs (2.85 kg)

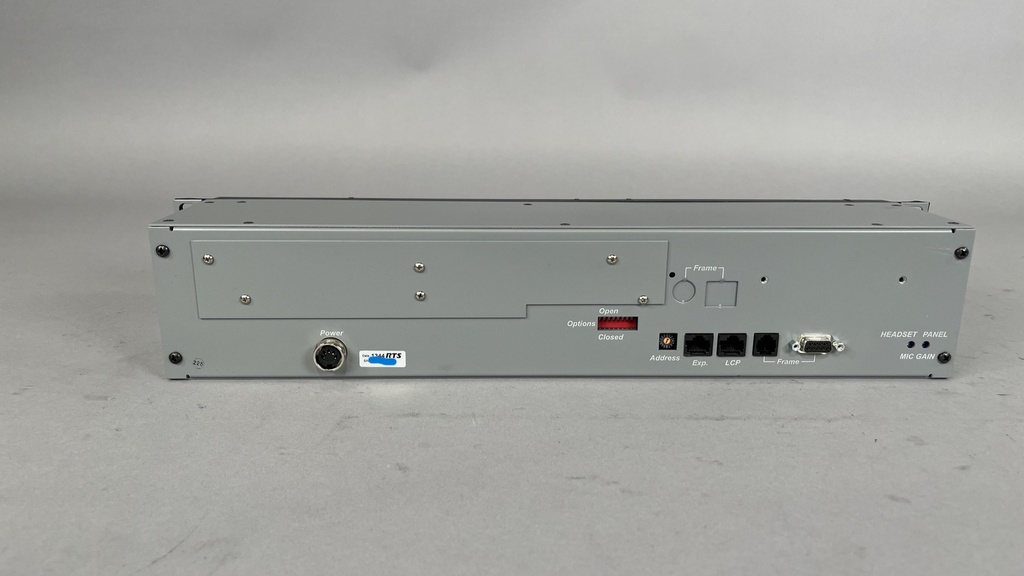

Connectors
Panel Microphone Connector: 3-circuit ¼″ phone jack (threaded metal bushing; compatible with RTS MCP5/6)
Tip: +Audio and DC bias
Ring: Common
Sleeve: Chassis ground
Headset Connector: XLR-4 Female
Pin 1: Mic Signal Low (Mic – / Shield)
Pin 2: Mic Signal High (Mic +)
Pin 3: Ear Signal Low (Headphone return/common)
Pin 4: Ear Signal High (Headphone +)
Power Input Connector: 5-pin locking DIN
Pin 1: Common
Pin 2: Common
Pin 3: +5 VDC, 1.5 A max
Pin 4: –15 VDC, 0.150 A max
Pin 5: +15 VDC, 0.5 A max
Intercom Connectors: Parallel-wired DB-9S and RJ-12 (supporting RTS RJ-12 or CAT-5 cabling)
DB-9S Pinouts: Data +/–, Audio in/out +/–, shields, etc.
RJ-12 Pinouts: Data –, Audio in +/–, Audio out +/–, Data +
