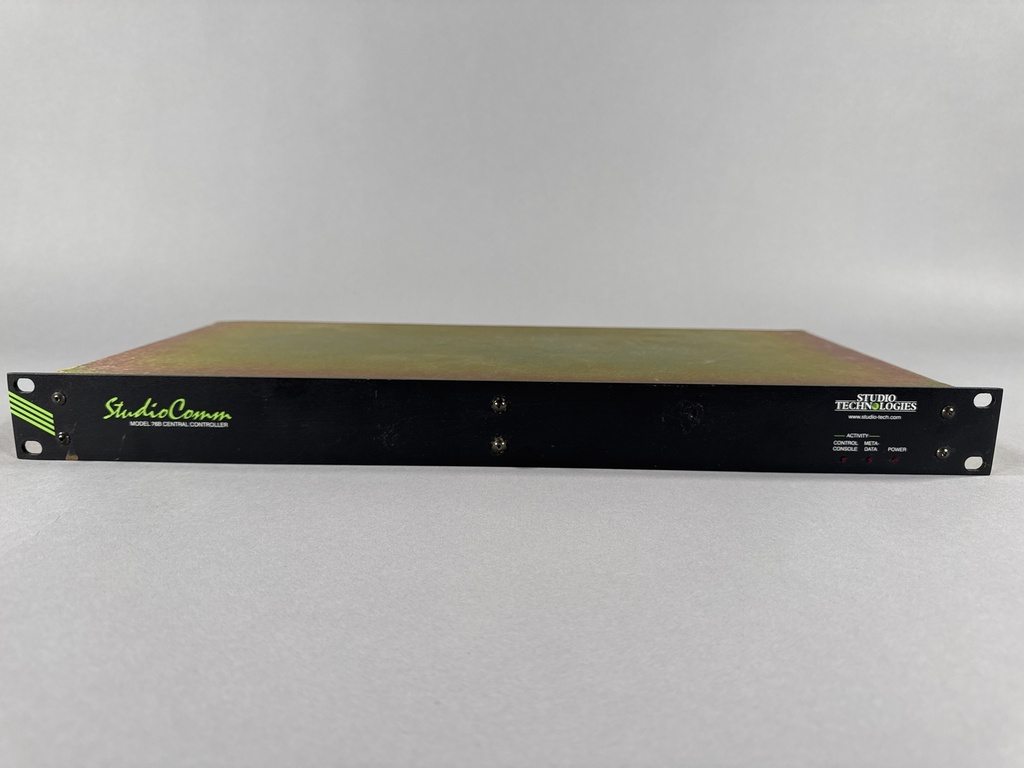

Studio Technologies Model 76B (Used)

1Ru Central Controller

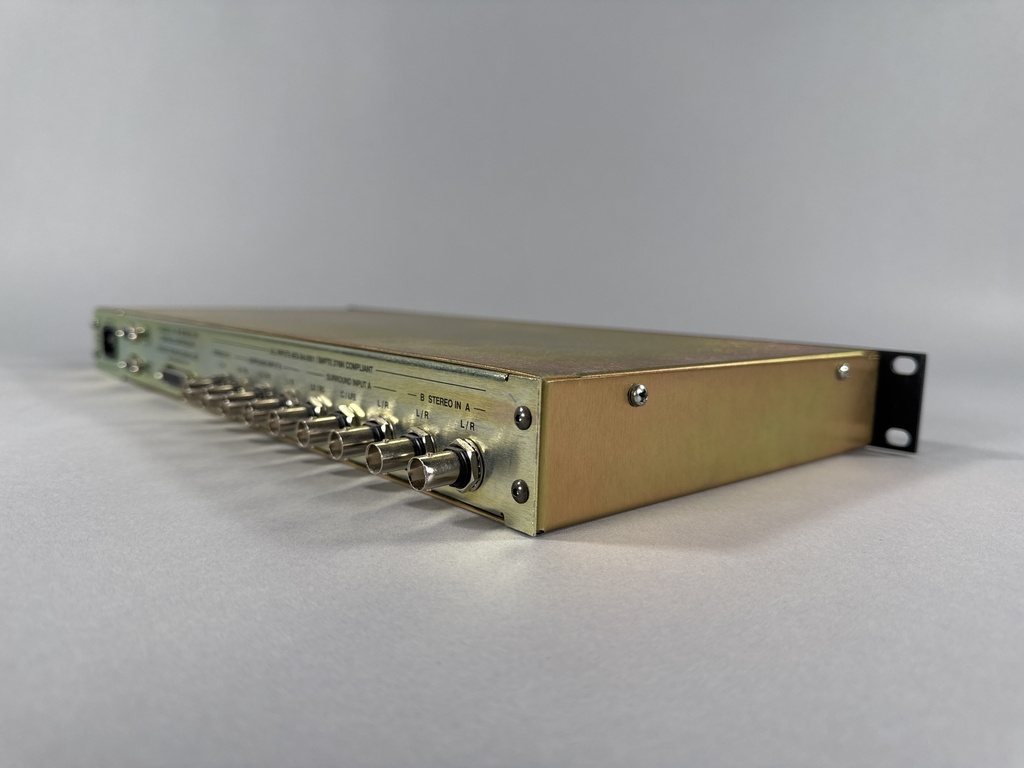

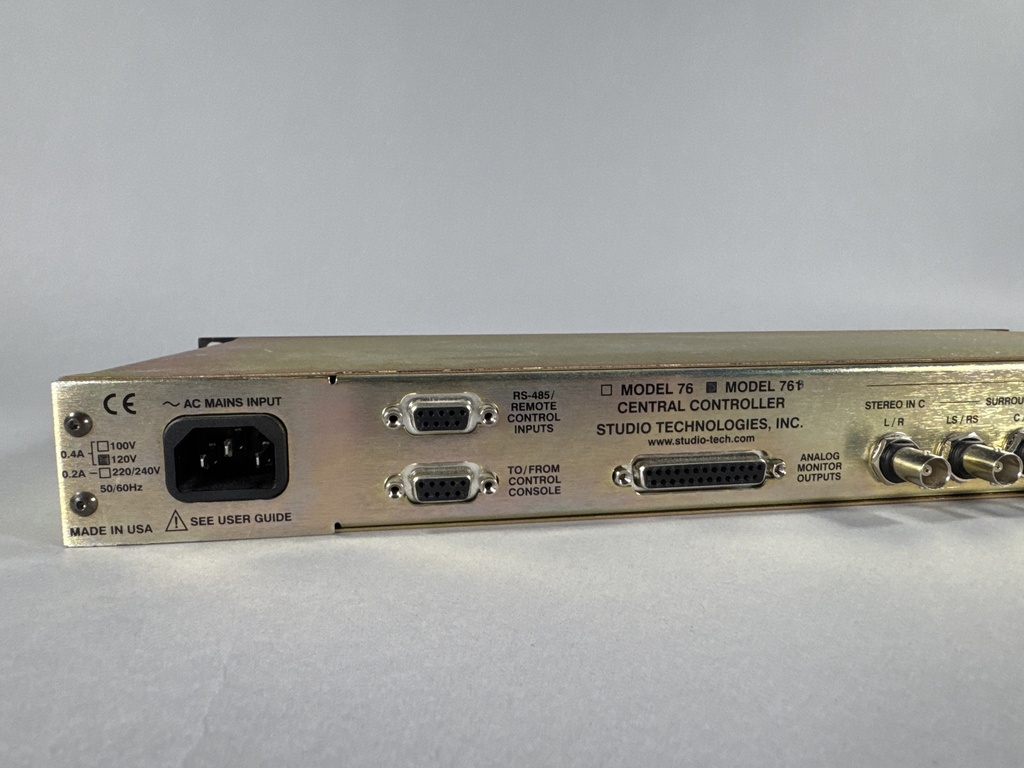

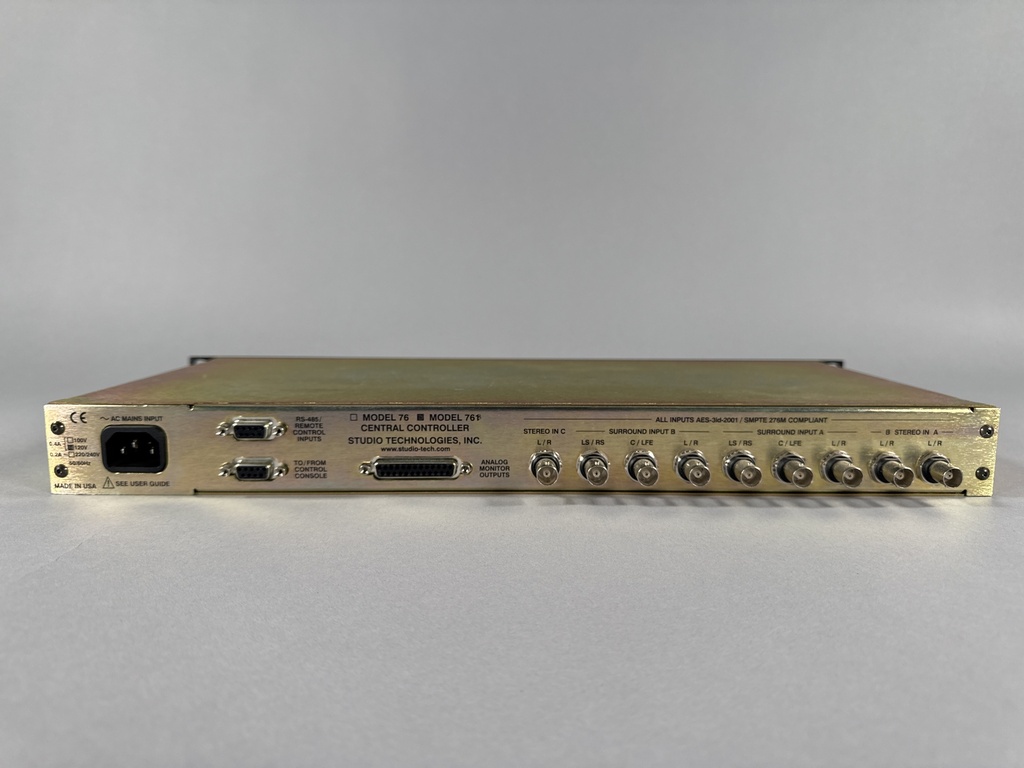

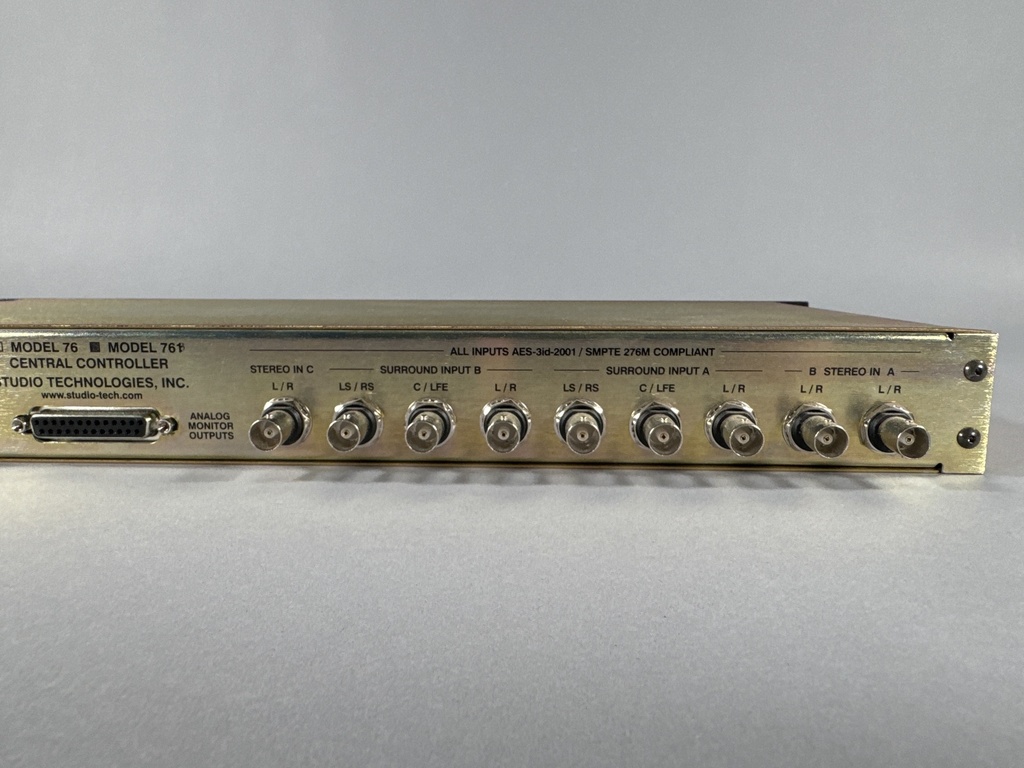

A StudioComm for Surround system starts with the Model 76B Central Controller. It occupies one space in a standard 19-inch rack. Two surround (5.1) and three stereo (2-channel) audio inputs, along with a surround (5.1) and an auxiliary stereo (2-channel) monitor outputs, are provided. The surround andstereo inputs are digital and compatible with AES3id sources. These unbalanced digital signals utilize BNC connectors and are ubiquitous in most post-production and broadcast environments. Sample rates of up to 192 kHz and bit depth of up to 24 are directly supported. With the system’s dynamic range of greater than 106 dB, there isn’t a problem ensuring that a source’s audio quality is maintained. The monitor outputs are analog, balanced line-level, with a maximum signal level of +26 dBu. They include power-up/power-down protection circuitry to help maintain the health of the connected loudspeaker systems.

• Dolby® E metadata dialnorm support
• Flexible input source selection
• Unbalanced digital inputs
• Supports multiple control consoles
• Excellent audio quality
• Channel pop solo function
