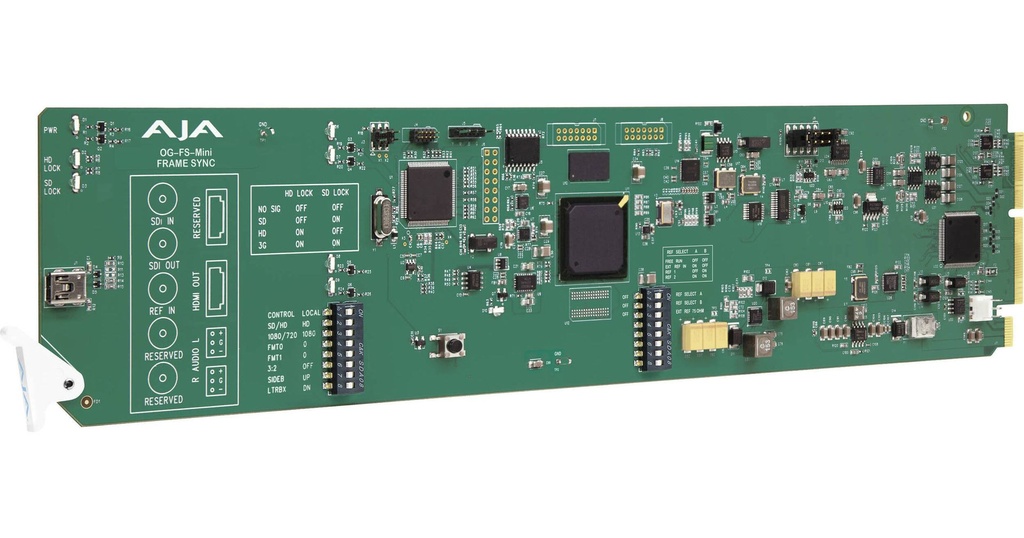

AJA OG-FS-Mini (New)

OG-FS-Mini is an openGear broadcast quality utility frame sync that packs the production-proven reliability of AJA’s leading FS frame sync technology into an openGear card, supporting frame synchronization of untimed 3G-SDI, HD, and SD video signals at an affordable price.

OG-FS-Mini allows users to synchronize and convert a wide range of video formats to their house standard with a 3G-SDI input and output, HDMI output, and two 3-pin terminal block connectors for balanced analog audio outputs. The OG-FS-Mini also provides high quality up, down, cross-conversion.

OG-FS-Mini is designed for use in high-density openGear’s 2RU frames including AJA’s OG-X-FR frame. DashBoard software support on Windows®, macOS® and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

openGear compatible card
Utility frame sync function times input signals to an external reference
Supports bi-level and tri-level references
High quality 10-bit video processing
Low latency processing, nominal video delay of 1 frame
Loss of Input management: Freeze, Black, or Mute
Synchronizes 3G, HD and SD video formats
Simultaneous SDI and HDMI outputs
16-channel embedded SDI audio I/O
8-channel HDMI output audio
2x 3-pin terminal block connectors for analog audio output
Utility frame rate conversion, supports 3:2 pulldown
Up, down, cross conversion between 3G, HD and SD video formats
AFD input detection, down-convert control
Remote configuration through Ross DashBoard software
Rear I/O card included
Compatible with OG-X-FR, OG-3FR and DFR-8321 openGear frames
Five year warranty
