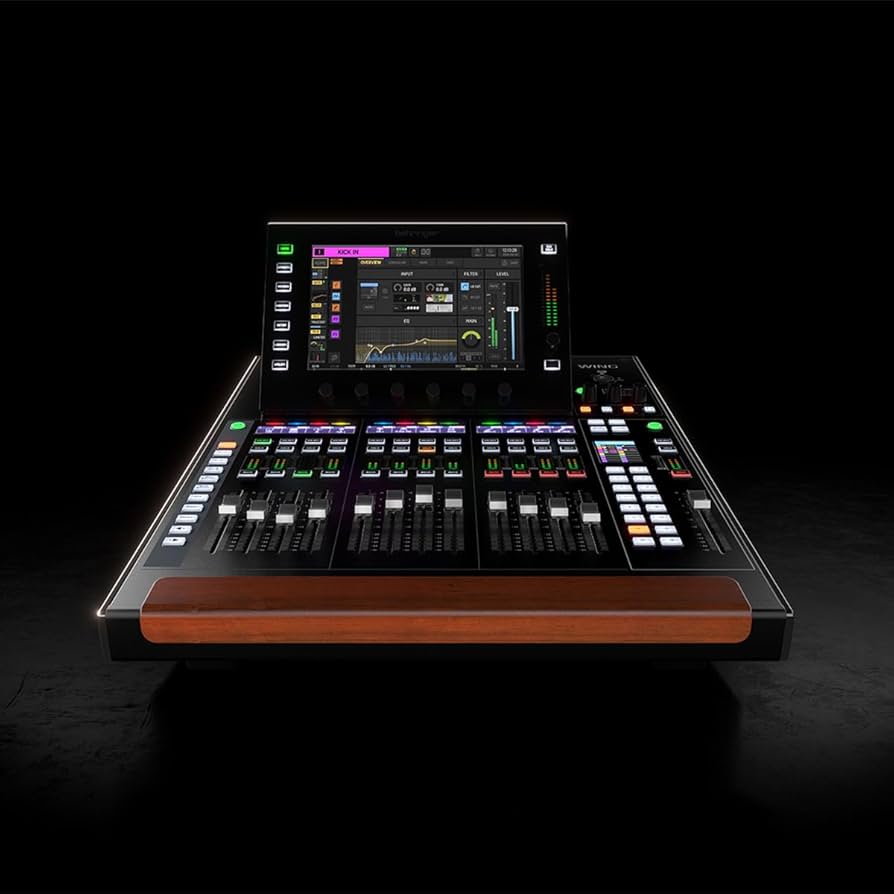

Behringer WING COMPACT 48 Channel 28 Bus Full Stereo Digital Mixing Console with 13 Fader Control Surface(BEH-WING-COMPACT) (New)

WING COMPACT 48 Channel 28 Bus Full Stereo Digital Mixing Console with 13 Fader Control Surface

The Behringer WING COMPACT features a console surface optimized for fast and accurate operation, excelling specifically in monitor mixing applications. Its dedicated master and bus section, with 4 layers of 16 hotkeys clearly labeled on its own color display, is breaking new ground in terms of speed and overview. The large touch screen with rotary controls for intuitive parameter adjustments offers the same innovative user interface that the full-size WING console is famous for.

WING stores the configuration (stereo/mono/mid-sides), gain, phantom power, along with a name, an icon, color and tags directly to every input. This combination is called a Source. You can easily edit Sources using your iPad while making the connections on stage.

Channels are automatically configured from the connected Source information and are ready to go. This enables quick setups and on-the-fly adjustments, prevents errors, and makes it easier than ever to manage WING's 380+ inputs. It's like having your own custom toolbox, where everything you need is perfectly organized and ready to use.

Transfer 32 channels of 44.1kHz/48kHz and 24-bit audio to and from I/O interfaces, hubs, personal monitoring mixers, and more using just one XLR/DMX cable.

24 Midas PRO Preamps On Board
Just like the venerable Midas M and PRO series mixers, WING COMPACT also comes with 24 Midas PRO preamps, delivering the same sweet sound and huge dynamic range.

All the Digital I/O
It's compact but uncompromising. The WING COMPACT has exactly the same number of digital I/O as the full-size WING: AES50, USB, AoIP, StageConnect-you name it.

24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
10.1" main display with multi-touch screen and adjustable swivel
Unique "Sends on Fader"-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
Integrated USB Audio/MIDI Interface for 48 audio channels in and out
Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
16 True-stereo effects processing engines, with 80+ world-class algorithms
3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
40 Stereo Input Channels with 5 variable plug-in processing slots each
8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
8 Mute Groups and 8 DCA's for track grouping and consolidation
2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Danter
Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI .
StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
2 channel GPIO for controlling almost anything with WING
5-Pin MIDI in and out for control and synchronization with external devices
DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
19" rack-mountable in 3 positions.
