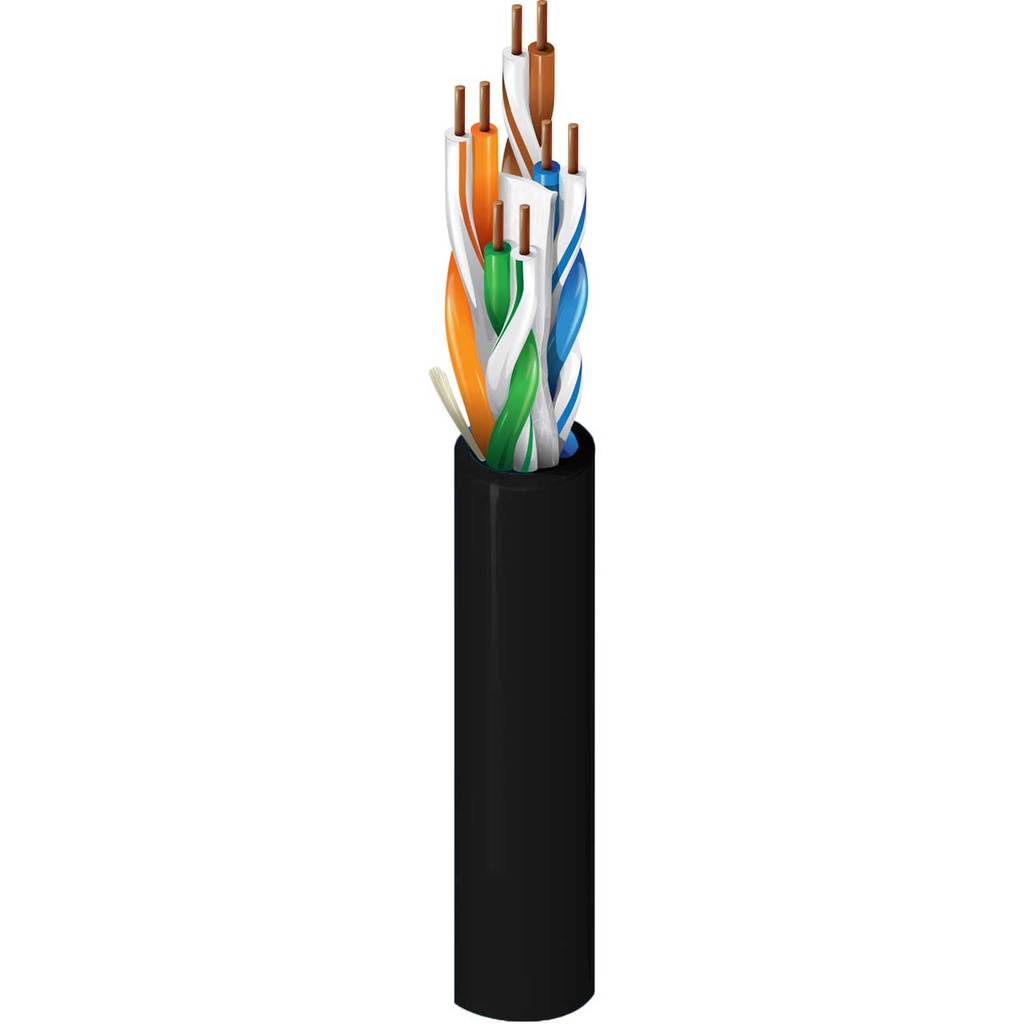

Belden Enhanced Premise 350MHz CAT6+ 4 Pair U/UTP Cable Solid Copper 23 AWG (BL-2412-1000) (New)
Price via quote
2412 CMR Enhanced Premise 350MHz CAT6+ 4 Pair U/UTP Cable Solid Copper 23 AWG - Black - 1000 Ft
Select Condition
Belden Enhanced Premise 350MHz CAT6+ 4 Pair U/UTP Cable Solid Copper 23 AWG (BL-2412-1000) (New)
2412 CMR Enhanced Premise 350MHz CAT6+ 4 Pair U/UTP Cable Solid Copper 23 AWG - Black - 1000 Ft
Nonbonded-Pair Cable
Belden 2412 is a Category 6+, U/UTP Enhanced Premise Horizontal Cable (350MHz). It's 4 Pair, 23 AWG with Solid Bare Copper Conductors in a Riser-CMR rated PVC Jacket.
Belden 2400 Series Cables consist of 4-pair UTP cables that exceed Category 6 requirements as per ANSI/TIA-568-C.2. When used as the horizontal cable in the REVConnect 2400 System, the channel provides at least 250 MHz of bandwidth.
Applications
Premise Horizontal Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++/PoE+/PoE
Features
Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radius
Environmental Space: Riser
Conductor Count: 8
Total Number of Pairs: 4
Conductor Size: 23 AWG
Material: Bare Copper
Ripcord: Yes
Insulation Material: PO-Polyolefin
Outer Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Nom. Diameter: 0.224 in (5.69 mm)
Overall Cable Diameter (Nominal): 0.224 in (5.69 mm)
Installation Temp Range: 0°C To +50°C
UL Temp Rating: 75°C
Storage Temp Range: -20°C To +75°C
Operating Temp Range: -20°C To +75°C
Bulk Cable Weight: 22 lbs/1000ft
Max Recommended Pulling Tension: 25 lbs
Min Bend Radius/Minor Axis: 1.0 in
Min Bend Radius/Installation: 2.25 in
NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMR
ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
CPR Euroclass: Eca
Data Category: Category 6
ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6
Telecommunications Standards: ANSI/TIA-568-C.2 Category 6
IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Third Party Performance Verification: Category 6
Item Includes:
2412 - Black - 1000 Ft Reel
Warranty:
Limited 10 Year Warranty
