Birddog X5 ULTRA (New)
Price via quote
20x 4K PTZ Camera (Black)
Select Condition

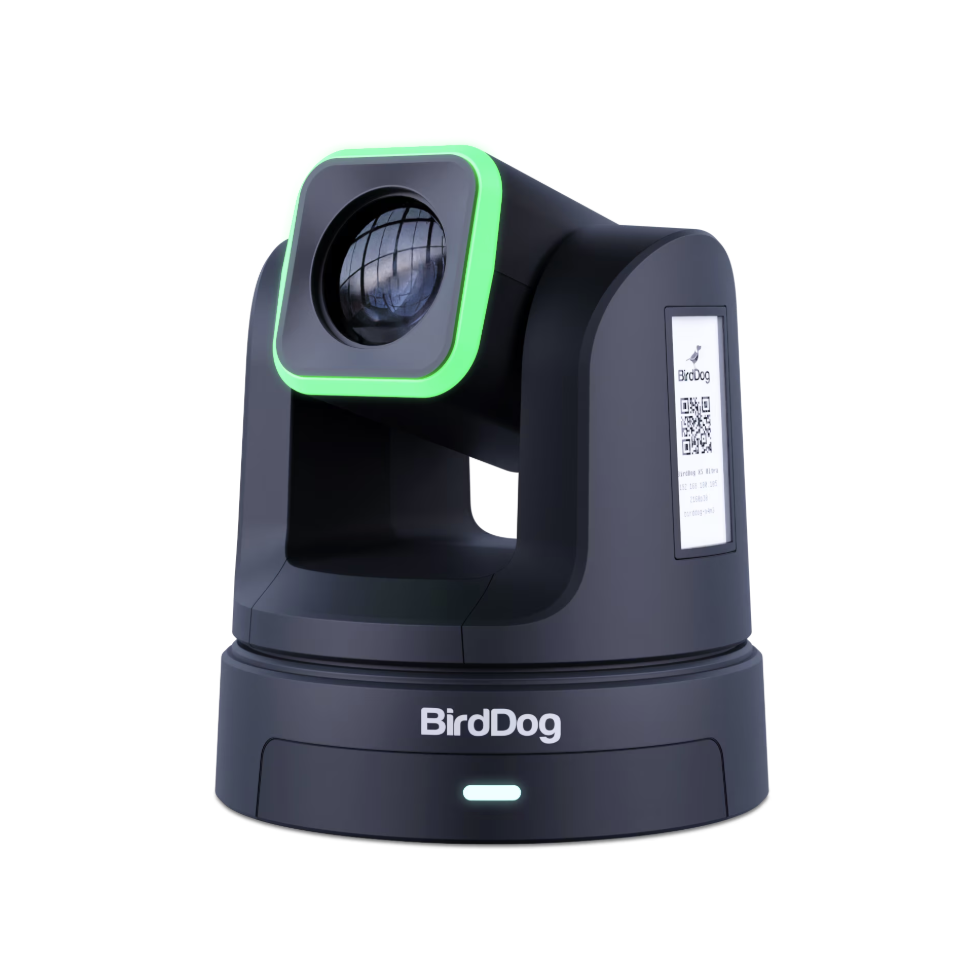

Birddog X5 ULTRA (New)
Ultra 20x 4K PTZ Camera (Black)
BirdDog X5 Ultra. Take your production to the next level. Category defining image quality meets uncompromising connectivity and advanced mechanical design. Featuring NDI | HX3 up to 4K60, 12G SDI connectivity, simultaneous NDI| HX2/3 decoding, Halo Tally light, dual e-Ink displays and advanced AI auto framing, tracking and control.
Features
4K Brilliance: BirdDog X5 Ultra features next-level image quality with the latest Sony image sensor, ensuring stunning visuals for every production.
Halo Tally: X5 Ultra sports the most visible and effective Tally system available. Up front, with a large, daylight-visible border keeping talent looking directly at the camera.
AI Tracking: X5 Ultra steps up AI capabilities with advanced motor control and subject tracking for more natural and predictable movement.
NDI | HX3: X5 Ultra has the highest possible NDI HX3 performance, even in 4K60. Superior image quality and low latency are guaranteed.
NDI | HX Decoder: A simpler, integrated solution that makes it so much easier to incorporate a teleprompter, return feed, or confidence monitoring.
Always-on dual e-ink label: Easily load camera details, name, and IP address for faster set-up, in-production management, and crew communication.
Dual Network Output: X5 Ultra combines NDI HX and SRT/RTMP protocols for seamless, on-premises and remote/CDN connectivity, ensuring ultimate flexibility in both streaming set-ups and distribution.
Serial Control: Take control effortlessly with older control protocols, seamlessly integrating with your existing infrastructure.
USB Webcam: X5 Ultra features USB-C for connecting directly to Zoom, Teams, and most apps that support a USB UVC input.
Control support. The X5 Ultra ships with its own IR remote, plus hardware control support for BirdDog PTZ Keyboard, Skaarhoj, and more.
BirdDog Apps. X5 Ultra is compatible with BirdDog Central and BirdDog Cloud.
IMAGING
Image Sensor: Sony 1/2.8” CMOS - ULTRA HD
Lens: f=5.4-104mm
Optical Zoom: 20x
Video Format: 2160p @ 60, 59.94, 50, 30/29.97/25fps, 1080p @ 60, 59.94, 50, 30/29.97/25fps, 720p @ 60, 59.94, 50fps
Horizontal angle of view: 56.6°(W)-3°(T)
Vertical angle of view: 32.5°(W)-1.7°(T)
Diagonal angle of view: 64.7°(W)-3.5°(T)
Aperture: F1.6(W)-F3.6(T)
Focus: Auto, Manual
Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
Shutter speed: 1/1 - 1/10000s
Backlight Compensation: Yes
Digital Noise Reduction: 3D Noise Reduction
SNR: >50dB
Effective Pixels: 8.46 MP
Filter ring: ∅49mm
AI Tracking: Presenter
MECHANICAL
Pan/Tilt Rotation: ±170°, -30° ~ +90°
Pan Control Speed: 0.1 -200°/sec
Tilt Control Speed: 0.1 -200°/sec
Preset Number: 128 presets, Speed Adjustable
Integrated Tally Light: Halo style, RGB
Pan/Tilt drive system: Ultra-fine drive
Quietness: Max 28dB at full speed pan
I/O INTERFACE
Video Output Interfaces: 12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC, 1Gb Network
Video Compression Formats: H.264, H.265
Network Interfaces: 1GbE adaptive Ethernet port; POE+ IEEE 802.3at
Encoder Network Protocols: NDI®|HX2, NDI®|HX3, SRT, RTSP, RTMP
HDMI Decoder Network Protocols: NDI®|HX2, NDI®|HX3
Decoder supported resolutions: 1080p @ 60 / 59.94 / 50 /30 / 29.97 / 25fps, 720p @ 60, 59.94, 50fps
Control Interfaces: 1GbE Ethernet, RS232 (input & output), RS422, TYPE-C(UVC1.1)
Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®
Analogue Audio: 3.5mm (1/4") Mic In / Line In (Stereo)
Digital Audio: Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)
GENERAL
Environmental operation: Internal
Input Voltage: DC 12V, POE IEEE 802.3at
Input Current: 2.0A (Max)Power Consumption: 18W (Max)
Working Temperature: 0ºC ~ +40ºC
Working Humidity: 20% ~ 80%
Dimension (WHD) mm: 185.7171.9200.90mm/ 271275245mm (before / after packing)
Dimension (WHD) in: 7.316.767.90in/ 10.610.89.6in (before / after packing)
Net and Gross Weight: 2.31kg/3.76kg (Net/Gross weight)
USER MANUAL
No user manual available for download
