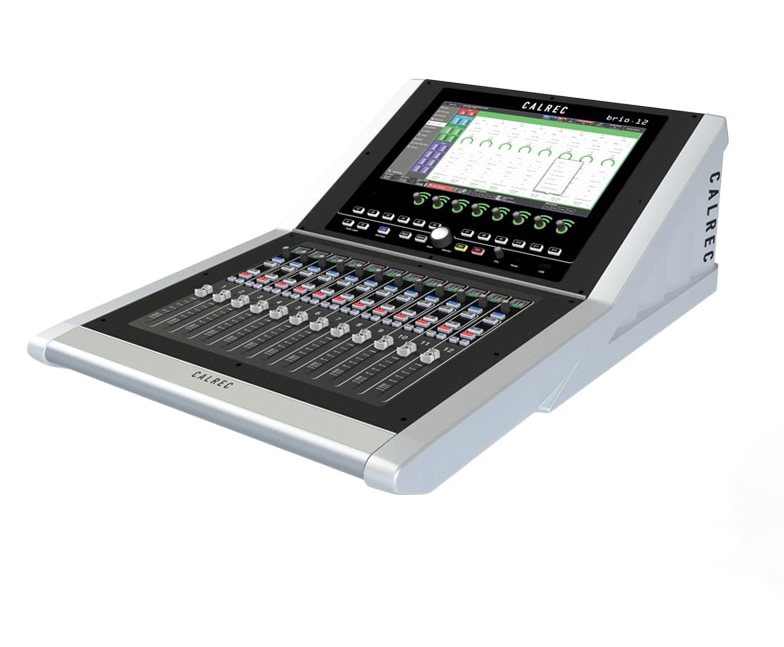

Calrec Brio 12 (New)
Price via quote
Brio 12 Compact Broadcast Consoles
Select Condition
Calrec Brio 12 (New)
Compact Broadcast Console
Brio is a plug-and-play fully-featured broadcast console with internal DSP and no DSP sharing so everything is available all the time, making it very flexible. It is fully loaded with dynamics and delay on every path. Its powerful feature set includes a huge internal router, multiple monitor outputs, comprehensive built-in I/O, plus it’s expandable for future growth.
It slots into any broadcast workflow and is easy to drive and learn. In fact, with comprehensive free training, market-leading technical customer support and Calrec’s renowned reliability, Brio meets your needs for years to come.
Brio can connect directly to an existing IP network via Calrec’s AoIP Unit.
Features
Comes with up to 124 internal DSP paths, internal Hydra2 connectivity and 64 input channels as standard.*
Surface
12 x dual layer faders - 100mm, motorised, with PFL overpress
Compact footprint only 498mm wide x 892mm deep x 270mm high,
with slim trim option (available on request) reducing it to 430mm wide.
1 x user assignable rotary control per strip
2 x user assignable buttons per strip
DSP
Freely configurable on the fly, operates at 44.1, 48, 88.2 and 96kHz:
48 legs assignable as mono, stereo, or 5.1 Input Channels
36 legs assignable as mono, stereo or 5.1 mains or groups (maximum of 4 mains and 8 groups)
24 legs assignable as mono or stereo Auxes
48 legs assignable as Insert sends and returns
48 legs assignable as Direct, or Mix-Minus Outputs
Automatic Mix-Minus
Off-Air Conference for Mix-Minus
- Expander/Gate/Ducker, with key input and sidechain EQ
- Compressor with key input and sidechain EQ
- Multiband Compressor
- 4 band full PEQ
- 2 band LF/HF filters, 12 or 24dB/octave
- Delay available on every path
- Additional 48 legs assignable as output delay
- 48 legs assignable as input delay of up to 5s
Monitoring/Metering
3 x Monitor outputs
Surround capable metering within each strip
Configurable meter screen output (DVI)
Loudness meter
Multiple Sample Rates
Freely configurable on the fly, operates at 44.1, 48, 88.2 and 96kHz
All DSP facilities are available at all sample rates
Remote/Automated Control
Remote/Automated Control
Advanced AutoFader (AFV) functionality
CSCP mixer control protocol interfaces with a variety of video switchers and production automation systems
SW-P-08 'Pro-Bel' router control protocol
EMBER
I/O
3 x Expansion slots to provide integrated I/O, or to provide interface to other formats, including SDI, MADI, Dante etc.
Hydra2 Module allows for further I/O to be connected, and to network audio with other consoles
* Max available with DSP upgrade to 64 channels. Standard Brio 12 has 48 input channels and 108 DSP paths
