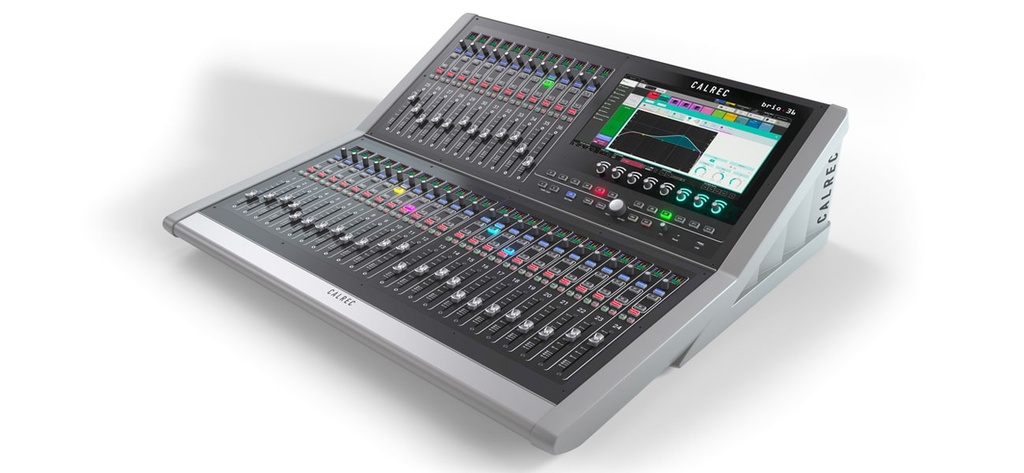

Calrec Brio 36 Duet (New)
Price via quote
Brio 36 Duet:
Comes with 156 internal DSP paths, internal Hydra2 connectivity, comprehensive built-in IO and 96 input channels as standard.
Select Condition
Calrec Brio 36 Duet (New)
Compact Broadcast Console
The Calrec Brio Duet comes with internal Hydra2 connectivity, comprehensive built-in I/O and 96 input channels as standard.
36 x dual layer faders - 100mm, motorised, with PFL overpress
DSP - Freely configurable on the fly, operates at 44.1, 48, 88.2 and 96kHz
Full dynamics on every input channel and group path
6 band EQ available on every Input Channel, Group, Aux and Main path
Calrec Hydra 2 Card allows for connection to any Calrec Hydra 2 audio network
Features
Surface
12 or 36 x dual layer faders – 100mm, motorised, with PFL overpress
Compact footprint:
– Brio 36 only 892mm wide x 892mm deep x 270mm high
– Brio 12 only 484mm wide x 892mm deep x 270mm high
1 x user assignable rotary control per strip
2 x user assignable buttons per strip
DSP
Freely configurable on the fly, operates at 44.1, 48, 88.2 and 96kHz:
Up to 96 legs assignable as mono, stereo, or 5.1 input channels
36 legs assignable as mono, stereo or 5.1 mains or groups
24 legs assignable as mono or stereo auxes
Up to 96 legs assignable as Insert sends and returns
Up to 96 legs assignable as direct, or mix-minus outputs
Automatic mix-minus
Off-air conference for mix-minus
Dynamics
Every input channel and group path:
Expander/gate/ducker, with key input and sidechain EQ
Compressor with key input and sidechain EQ
Multiband compressor
Expander/gate/compressor on every aux
Single band multi band compressor on every channel
2 x Automixers available to all mono input channels and groups
EQ
6 band EQ available on every input channel, group, aux and main path:
4 band full PEQ
2 band LF/HF filters, 12 or 24dB/octave
Delay
Delay available on every path with selectable position
Up to 64 legs assignable as path delay
Up to 64 legs assignable as output delay
Up to 64 legs assignable as input delay
Monitoring/Metering
3 x monitor outputs
Surround capable metering within each strip
Configurable meter screen output (DVI)
Loudness meters
Remote/Automated Control
Remote/automated control
8 x GPI + 8 x GPO built-in
Autofaders for Audio Follows video style control
CSCP mixer control protocol interfaces with a variety of video switchers and production automation systems
SW-P-08 ‘Pro-Bel’ router control protocol
EMBER
I/O
24 x mic/line inputs
16 x Analogue outputs
8 x AES3 inputs
8 x AES3 outputs
3 x expansion slots to increase standard built-in I/O, or to provide interface to other formats, including SDI, MADI, Dante etc
Hydra2 module allows for further I/O to be connected, and to network audio with other consoles
Up to 64 legs on Brio 12
** Brio 36 only
