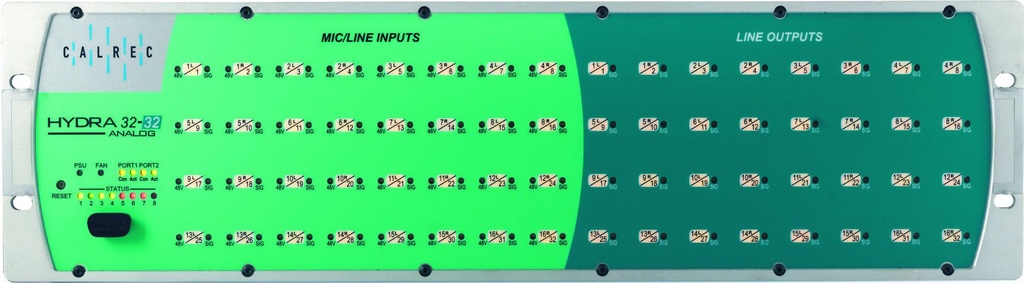

Calrec Hydra, AE5743-2, Analog Mic/Line 32in/32out – EDAC (New)

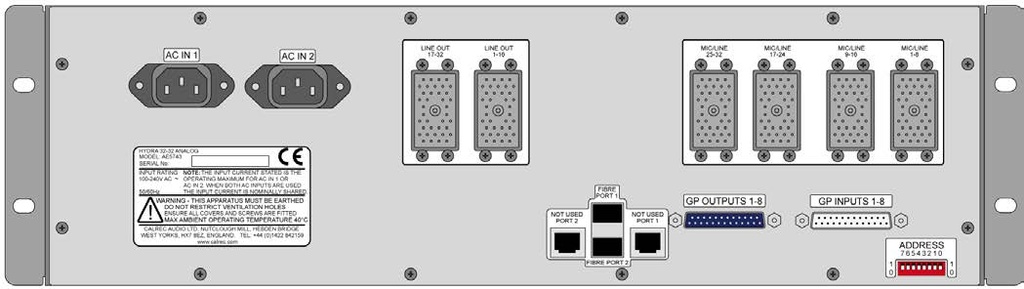

Standard connector layout (AE5743)

Standard connector layout (AE5743)
Format Analog
Inputs 32 Mic / Line
Outputs 32 Line Level
Audio Connectors 38 pin Male EDAC (Inputs & Outputs)
GPIO compatible Yes
Height 3RU

Format: Analogue
Inputs: 32 Mic / Line Level, Electronically Balanced
Outputs: 32 Line Level, Electronically Balanced (20 Hz–20 kHz Better than -35 dB, typically -45 dB
Audio Connectors: EDAC
Input Gain Range: -18 dB to +78 dB, remotely controlled per port
Phantom Power: 48 V, remotely controlled per port
Input Impedance: 2 kΩ @ Mic Level / 10 kΩ @ Line Level (auto-switching)
Output Impedance: <40 Ω
Sensitivity: -18 / -78 dB Mic / Line inputs
Equivalent Input Noise: -127 dB (150 Ω source)
Frequency Response (input): 20 Hz–20 kHz +/- 0.5 dB on Mic/Line inputs
Frequency Response (output): 20 Hz–20 kHz +/- 0.25 dB
Input CMR (Common Mode Rejection): >75 dB (Typical 85 dB) on Mic/Line inputs
ADC / DAC: 24 bit
GPIO Compatible: Yes (SW5739)
Height: 3U
Width: 19” rackmount (483 mm)
Depth: 9” (230 mm)
Depth inc. rear mating connectors: 12” (300 mm)
Approximate Weight: 11.5 lbs (5.2 kg)
Input Power: 100-240 V AC, 1.05-0.51 A RMS, 50/60 Hz
Acoustic Noise: 27 dB-SPL A-Weighted, 1 m from source
