ClearCom CC-110-X4 (New)

Model #: CC-110-X4

Price via quote

https://www.alliedbroadcast.com/web/image/product.template/66029/image_1920?unique=175973f

Lightweight Single On Ear Intercom Headset with Dynamic Mic and Four-pin Female XLR connector


Select Condition
New
Lightweight Single On Ear Intercom Headset with Dynamic Mic and Four-pin Female XLR connector
Price via quote

This combination does not exist.

ClearCom CC-110-X4 (New)

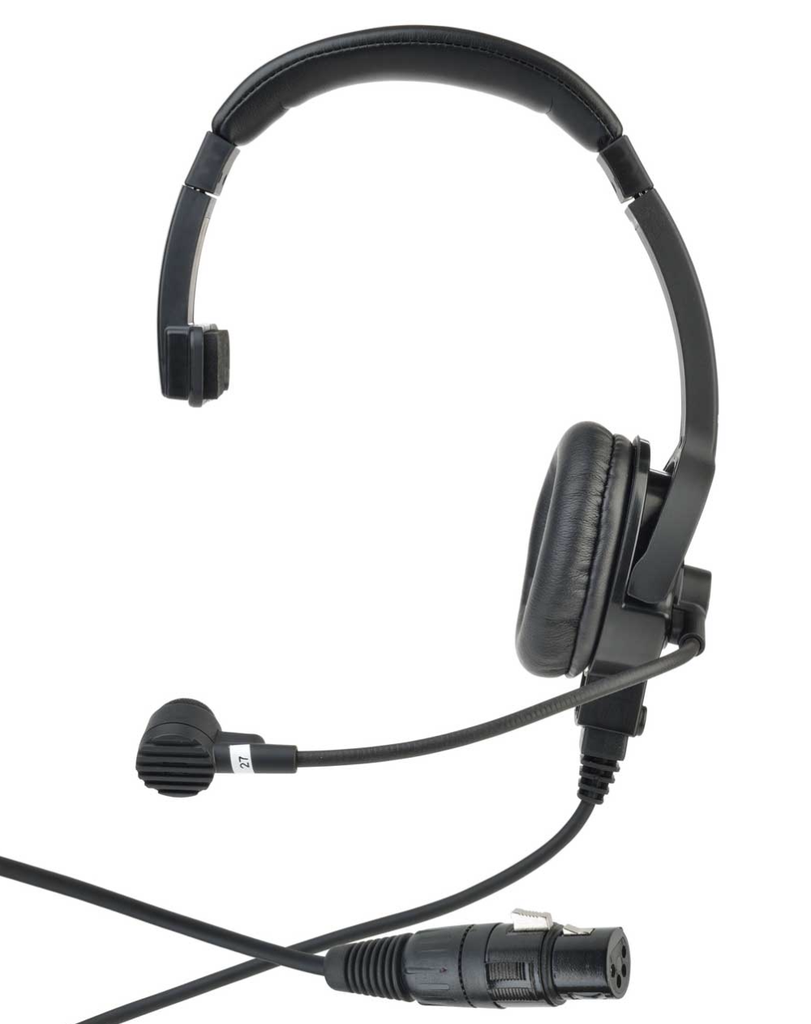

The CC-110-X4 is a premium lightweight, single-ear intercom headset terminated with a 4-pin female XLR connector that interfaces with ClearCom Encore and Freespeak beltpacks. The CC-100 features high performance headphones and a cardioid dynamic microphone that provide high quality audio. The CC-110 headset can be easily adjusted to accommodate the preference of any user. The microphone boom has a 300° rotation to allow the microphone to be worn on the left or right side of the head. You can make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette with foam padding, the headphones sit on the ear to provide a comfortable fit, a rotating, flexible gooseneck is included for optimal positioning.

The CC-110 headset microphone can be turned on and off by simply moving the microphone boom! To turn ON the microphone, pull the boom gently downwards, past the10 o'clock/2 o'clock position. To turn the microphone OFF, push the boom gently upwards, above the 10 o'clock/2 o'clock position. The CC-110 has also been designed so that the cabling and connector type can be adapted quickly on site. To change the connector cable in the field, simply disconnect the cable from the headset and exchange the cable with a standard Phillips screwdriver. The same process can be used to repair and replace a damaged cable on the fly.

Features

Single-ear premium light-weight headset
High quality dynamic cardioid microphone
20Hz -20KHz frequency response
Choice of earpads: leatherette or foam
Flexible gooseneck microphone positioning
Boom rotation ON/OFF switch for quick microphone muting
Interchangable cabling for easy connector change and repair
Fully serviceable headset
Rugged design

Headphone
Type: Closed-back
Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Frequency Response: 20Hz v- 20kHz

Microphone
Element: Dynamic
Driver: 15mm, neodymium magnet
Polar Pattern: Cardioid
Frequency Response: 250Hz - 20kHz

Sensitivity
Open Circuit Sensitivity: -64 dB ±3.5 dB; at 1kHz, typical
99 dB ±3 dB (SPL); at 1kHz typical

Power
Maximum: 500mW

Impedance
400 ohms ±30%; at 1kHz typical

Connector
Cable: 5ft (1.55m) long with 8-pin connector at
headset end; 4-pin Female XLR
