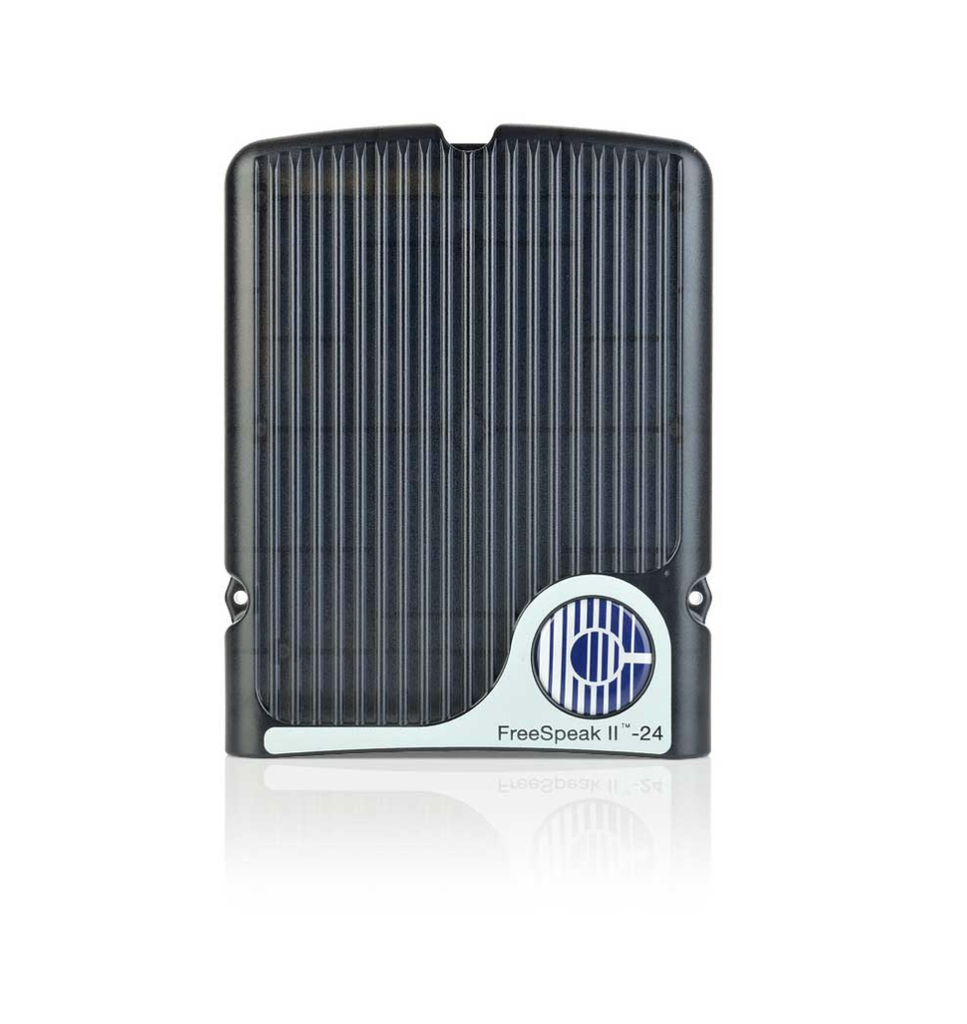

ClearCom FSII-TCVR-24 (New)
Price via quote
FreeSpeak II Active Transceiver Antenna for FreeSpeak II 2.4GHz Wireless Intercom Beltpacks
Select Condition
ClearCom FSII-TCVR-24 (New)
FreeSpeak II 2.4 Transceiver
The ClearCom FSII-TCVR-24 is an active transceiver antenna for the FreeSpeak II FSII-BP24 Intercom Beltpacks. FreeSpeak II is a high-performance wireless solution operating in the 1.9 and 2.4 GHz frequency bands designed for extensive communication in large-scale operations.
The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000 ft). The FSII-TCVR-24 has a mount for wall or microphone stand. A blue status light is visible from either mounting orientation. When mixed with FSII-TCVR-19 antennas, a single radio space can support up to 65-90 FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks.
The FSII-TCVR-24 is IP53 ready for the road! It's rated for wet weather and dusty conditions making it the perfect choice for outdoor productions.
Features
FreeSpeak II 2.4 Transceiver
Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware
Supports 4 FSII-BP24 beltpacks per FSII-TCVR-24 transceiver
Supports systems with up to 65-90 beltpacks when mixed with FSII-19-TCVRs
Blue LED status indicator on top and bottom
Mic stand or wall mount orientation (metric and imperial threads)
IP53 rating for wet and dusty conditions
Specifications
Frequency Spectrum: 2.400-2.483GHz for EU and US Cellular auto roaming technology
Modulation: GFSK, TDMA frame 10ms full slot
Output power: (EU): 18dBm, (RoW): 22dBm
Environmental
IP53 water and dust resistance
Operating: 32§-125§F (0§-50§C)
Storage: 32§-150§F (0§-70§C)
Humidity: Between 20% and 90%, Non-Condensing
Dimensions
6.75 x 5.5 x 2in (HxWxD)
(173 x 134 x 52mm)
Weight
15.7oz (0.45kg)
USER MANUAL
No user manual available for download
