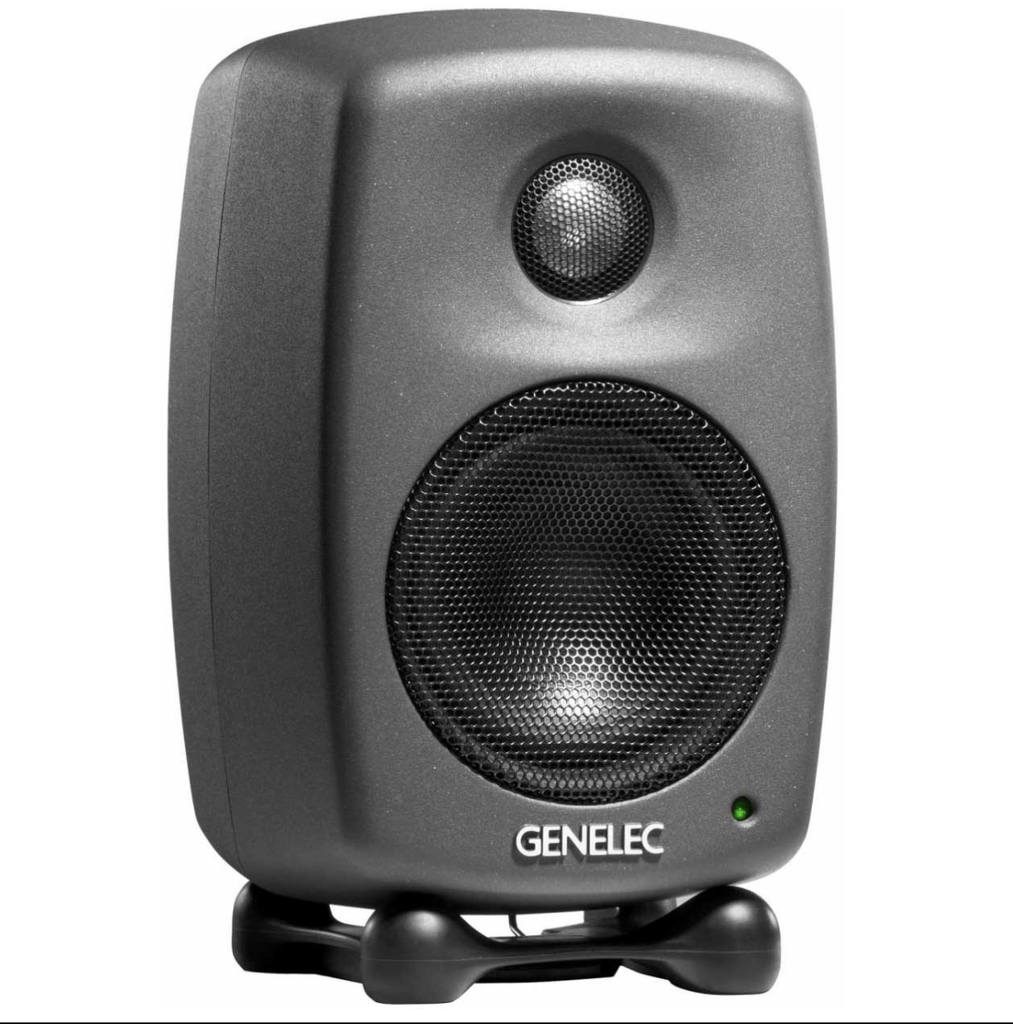

Genelec 8010AP (New)

3 Inch Bi-Amplified Active Monitor - Producer Black Finish

The Genelec 8010AP is a 3 inch, black bi-amplified active monitor. Designed for simplicity, the 8010A is as comfortable in a hotel room, a broadcast van or a small studio, with dedicated mounting accessories for each application. Each active monitor comprises balanced XLR inputs, a 3 inch woofer, a 3/4 inch tweeter and two efficient Class D power amplifiers. Genelec Intelligent Signal Sensing (ISS™) circuitry is also included, ensuring that when your system is not in use, your monitors switch into an environmentally friendly, power-saving stand-by mode. Wherever you work, the 8010A is your ideal travelling companion.

System Specs
Lower Cut-Off Frequency, -6 dB: < 67 Hz
Upper Cut-Off Frequency, -6 dB: > 25 kHz
Free Field Frequency Response (± 2.5 dB): 74 Hz-20 kHz
Max. Short Term Sine Wave Acoustic Output On Axis In Half Space, Averaged From 100 Hz to 3 kHz: ≥96 dB SPL at 1m distance, ≥102 dB SPL at 0.5 distance
Maximum Long Term RMS Acoustic Output In Same Conditions With IEC Weighted Noise: ≥91 dB SPL
Maximum Peak Acoustic Output Per Pair On Top Of Console, @ 1m Distance With Music Material: ≥105 dB
Self Generated Noise Level In Free Field @ 1m on axis (A-Weighted): ≤5 dB
Harmonic Distortion At 80 dB SPL @ 1m On Axis Freq 70 - 400Hz: < 3%
Harmonic Distortion At 80 dB SPL @ 1m On Axis Freq >400Hz: < 0.5%
Bass: 76mm (3 in) cone
Treble: 19mm (3/4 in) metal dome
Weight: 1.5kg (3.3 lb)
Height Including Iso-Pod™ Table Stand: 195mm (7 11/16 in)
Height Without Iso-Pod™ Table Stand: 181mm (7 1/8 in)
Width: 121mm (4 3/4 in)
Depth: 115mm (4 1/4 in)

Crossover Specs
Input Connector XLR Female 7 kOhm: pin 1 gnd, pin 2 + pin 3 -
Input level for 100dB SPL OutpLevel control range relative to max Output: -10dB (Sensitivity -10 dB on) ut At 1m: -6 dBu (Sensitivity -10 dB off)
Desktop Control Operating Range: 0 to -4 dB @ 200 Hz
Crossover Frequency, Bass/Treble: 3.0 kHz
Bass Tilt Control Operating Range In -2dB Steps: 0 to -6 dB @ 100 Hz

Amplifier Specs
Bass amplifier power with an 8 Ohm load: 25W
Treble amplifier power with an 8 Ohm load: 25W
Amplifier System Distortion At Nominal Output THD+N: < 0.08 %
Mains Voltage: 100 - 240V AC
Voltage Operating Range: ±10 %
Power Consumption: Standby <0.5W, Idle 5W, Full output 30W
