Lectrosonics DSQD (New)
Price via quote
DSQD 1/2 Rack 4-Channel Digital Receiver with Dante
Select Condition

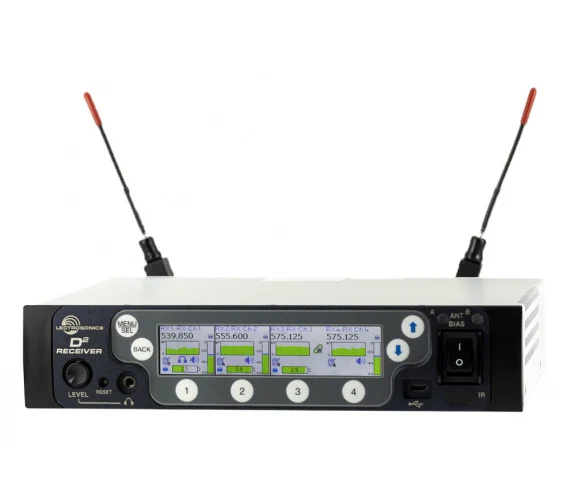

Lectrosonics DSQD (New)
1/2 Rack 4-Channel Digital Receiver with Dante
The Lectrosonics DSQD is a half rack receiver with analog and digital Dante® network audio outputs that utilize Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless ® systems with continuously tunable tracking filters covering 470.100 - 614.375 MHz. Antenna ports on the rear panel accept input from remote antennas, with a "loop-thru" output to another mainframe using the internal multi coupler.
Features
Four-channel, half-rack design.
Continuously tunable tracking filters covering 470.100 - 614.375 MHz.
Compatible with D2, DSW, Duet and Digital Hybrid Wireless(R) transmitters.
Built-in wideband antenna multicoupler with loop-thru for additional receivers.
Antenna bias power enabled from the front panel (fused and over-temperature protected).
IR bi-directional port for transmitter setup.
Analog and Dante(R) audio outputs with TalkBack (in applicable RX modes).
Ethernet and USB interface.
Operating Spectrum: 470.100 - 614.375 MHz
Frequency Adjustment Range: 25 kHz steps
Sampling Size and Rate: 24-bit, 48 kHz
Digital Modulation: 8PSK with Forward Error Correction Data Encoding: Proprietary ADPCM
Encryption: AES 256-CTR (per FIPS 197 and FIPS 140-2)
System Latency:
Digital Output: D2 mode: 0.75 ms plus Dante Duet mode: 1.4 ms plus Dante Hybrid modes: 2.0 ms plus Dante
Analog Output: D2 mode: 1.25 ms Duet mode: 1.9 ms Hybrid modes: 2.5 ms
Audio Performance:
Frequency Response: 20 Hz - 20 KHz, +\-1 dB THD+N: 0.05% (1 KHz @ -10 dBFS)
Dynamic Range: 108 dB A-wtd, NR=NORMAL
Adjacent Channel Isolation: >85 dB
Diversity Technique: Noiseless antenna switching
Sensitivity: -98 dBm for 10-5 BER
Antenna Inputs/Outputs: Dual BNC female, 50 ohm impedance
Audio Outputs: XLR: Balanced, -35 to +8 dBu
Headphone: 1/4 inch phone jack Dante: RJ45
External DC Power: 7 to 18 VDC; 2.5A (max).
