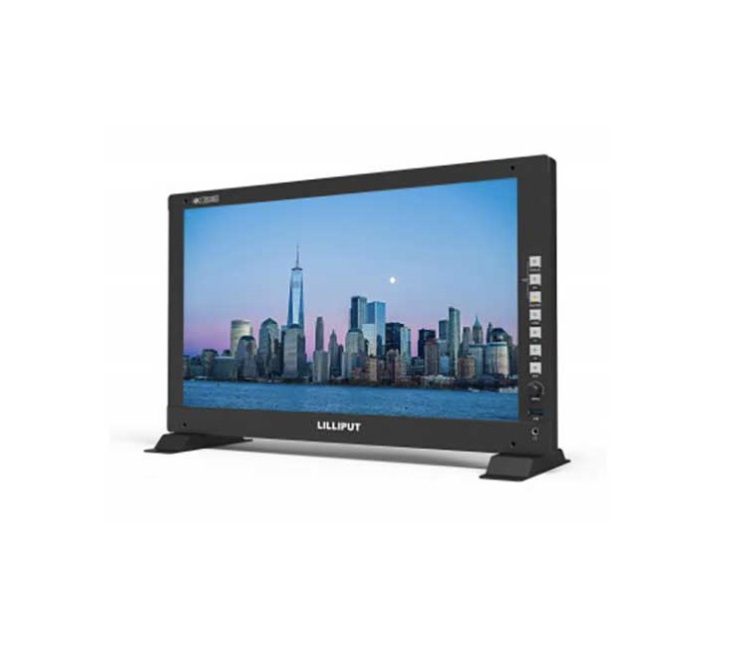

Lilliput Q17 (New)

Pro 17.3 Inch 12G-SDI / 4K HDMI 2.0 Production Monitor - 1920x1080 Resolution - V-Mount

The Lilliput Q17 is a 17.3 inch production monitor with 1920x1080 resolution, 12G-SDI , 3G-SDI, HDMI 2.0 and SFP. The Q17 pro 12G-SDI broadcast production monitor is perfect for camcorder and DSLR applications for taking photos and movies. The 12G-SDI, 12G SFP+, 4K HDMI and other signal transmission methods are integrated into this display to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096x2160 (60p, 50p, 30p, 25p, 24p) & 3840x2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The color calibration of Q17 model are including color spaces (SMPTE_C, Rec709 and EBU) and color temperature (3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to 2.8). It can support remote control application. To connect your computer to control the monitor via applications the interfaces of RS422 in and RS422 out can realize synchronization control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector, HDR and 3DLUT function.

Support standard 12G-SDI input interface (x2), 3G-SDI input interface (x2), and support Single-Link, Dual-Link and Quad-Link signals
Support HDMI 2.0/1.4 inputs and loop outputs
Support SFP optical Connector input, optical module for optional
Loop output signals support up to 3840x2160 23.98/24/25/29.97/30/50/59.94/60p and 4096x2160 23.98/24/25/29.97/30/47.95/48/50/59.94/60p
Monitor control via LAN, GPI, RS422
Customized Menu Knob
Support customized various waveform mode: Waveform/Vector/Histogram/4 Bar Display/Audio
Vector/Level Meter
HDR (High Dynamic Range) display supporting ST 2084 and Hybrid Log Gamma
Gamma selection: 1.8-2.8
Custom 3D LUT file load through USB
