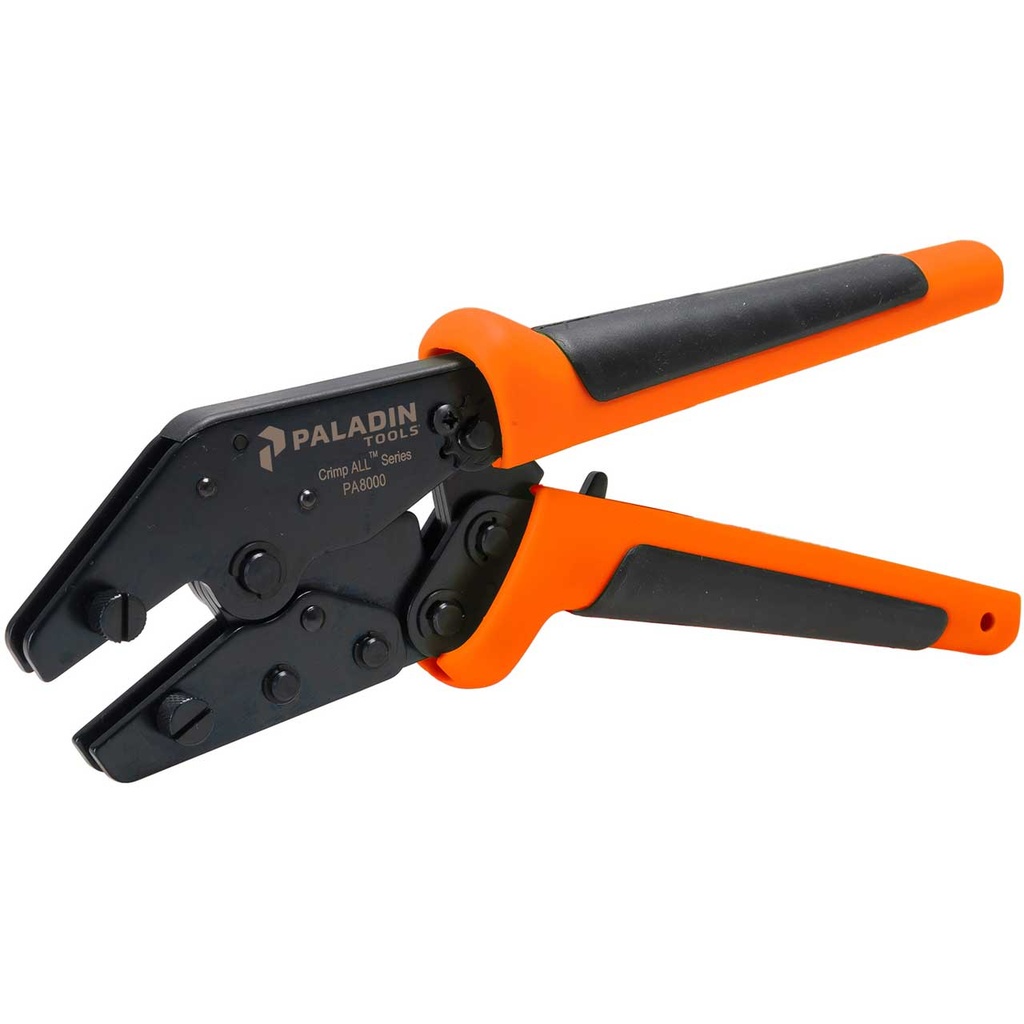

CrimpALL Crimp Tool Frame (Frame only)
CrimpALL Crimp Tool Frame (Frame only)
The Paladin PA8000 CrimpALL was designed with user satisfaction in mind and work with the most common BNC and coaxial cable brands. This world-class crimp tool is designed for superior confort and ease of use. It is an exceptional value and uses the same die sets as our 1300 Series crimpers. This is a Crimp Frame only. Dies Sold Separately.
Ulra-smooth, fully ratcheting crimp cycle with built-in safety release
Interchangeable die sets of heat-treated steel for long life
Soft, rubber-embedded handles
Long lasting tool that delivers over 50,000 crimp cycles
Rugged, double-plated jaw design to increase life span 10-year warranty
Angled head to prevent awkward wrist bending during operation
Reduced handle grip distance makes it easy for both small and large hands
Higher crimp force produced with less hand force so hand doesn't tire as quickly
No breakover hand-force -the effort required by most crimpers to make the last click at the end of the cycle to complete the crimp- the CrimpALL does the work!
Manufactured using the newest fine blanking technologies
EZI-Change die screws make changing die quick and easy -no screwdriver required
Cable Type: Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694F, 179DT
Crimping Range: 0.178" (4.500 MM), 0.255" (6.500 MM), 0.278" (7.000 MM), 0.068" (1.700 MM), 0.041" (1.000) Hex
Recommended BNC Connectors:: AMPH-112957-11, AMPH-112951-11, AMPH-112955-11
No user manual available for download
