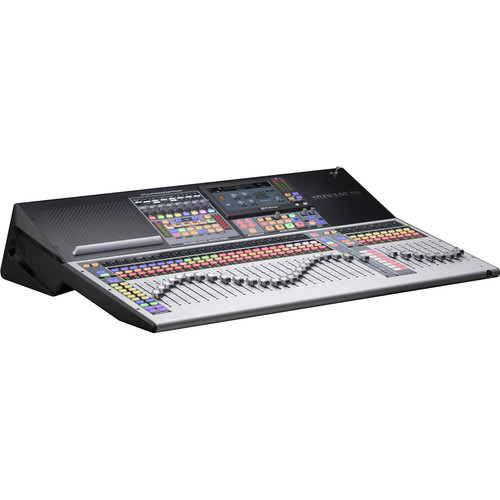

PreSonus StudioLive Series III 32S (New)
The StudioLive 32S is a powerful 32-channel mixer that provides the ultimate mixing experience, packing large format features into a small format chassis. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32S digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors-including 4 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording, 128 channels of AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32S delivers a fast and intuitive, surface-driven workflow for total control. Spend less time menu-diving and more time mixing-hands-on.
Features
The scalable digital mixer.
The StudioLive 32S digital mixer and the complete PreSonus® StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Connect NSB-series stage boxes to add remote analog inputs and outputs wherever they're required. Network with a StudioLive Series III rack mixer and add a dedicated monitor mixer. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mixes.
The best digital mixer for recording - with or without a computer.
PreSonus Capture® recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 32S digital mixer or on your computer running macOS® or Windows®. Record any combination of channels, FlexMixes, and the Main stereo mix via USB, to an SD Card, or both for the ultimate redundant live recording rig. StudioLive mix scenes can be stored with your recordings to speed up virtual soundchecks.
PreSonus Metro
PreSonus Metro is the latest innovation for Studio Live Series III mixers, delivering a first-to-market solution for live remote mixing overthe Internet with high-quality, low-latency audio streaming. With Metro, anyone, anywhere in the world, can connect to a StudioLive Series III mixer over the Internet and begin remotely controlling the mixer using UC Surface while listening in real-time with their local audio device.
The first solution for live remote mixing with high-quality, low-latency audio over the Internet. MyPresonus account integration establishes a secure peer-to-peer connection between users to facilitate broadcast mixing, troubleshooting, podcast production, and more.
-Live Stream and Podcast Production - Produce a livestream or podcast from anywhere in the world.
-Troubleshooting - Troubleshoot StudioLive Series III mixers quickly and conveniently from your home or office.
-Remote Recording - Ensure that a remote recording session is properly gain staged.
-Corporate conference - Remotely mix an all-day conference panel from the comfort of your couch.
-Professional assistance - Dial in a scratch mix remotely for a less experienced on site FOH or monitor engineer to use as a starting point
Microphone Preamplifier:
Input Type: XLR Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 1 kΩ
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (+/-1 dB): 0 dB to +60 dB
Maximum Input Level (unity gain): +12 dBu
Phantom Power (±2 VDC): 48 VDC, switchable per channel
Line Inputs:
Type: 1/4" TRS Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, +/-0.5 dBu
Input Impedance: 10 kΩ
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Maximum Input Level: +18 dBu
Tape Inputs:
Type: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +12 dBu, +/-0.5 dBu
XLR Outputs:
Type: XLR Male, balanced
Maximum Output Level: +24 dBu, ±0.5 dBu
Output Impedance: 100Ω
Line Outputs:
Type: 1/4" TRS Female, balanced
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100Ω
Tape Outputs:
Type: RCA Female, unbalanced (stereo pair)
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100Ω
Headphone Output:
Type: 1/4" TRS Female, active stereo
Maximum Output: 100 mW/ch. @ 60Ω load
Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
System Crosstalk
Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Digital Audio and Control
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
USB Recording Port: USB 2.0, Type-B
Bluetooth™ Input: 4.1, stereo
AES/EBU Output: XLR Male
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-bit, ?oating point
Sampling Rate: 48 kHz, 44.1 kHz
A/D/A Bit Depth: 24
Reference Level for 0 dBFS: +18 dBu
Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
