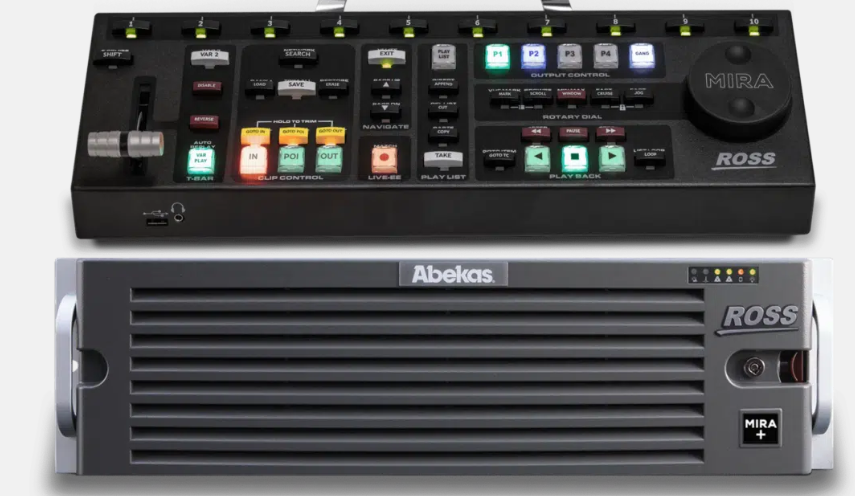

Ross Video MIRA+-AVC-8-04-HW (New)

Mira+ Replay System Hardware / AVC-I Native / 8-Channels / 480-Hour Media Storage

Mira+ Replay System with: AVC-Intra Class 100 I-Frame native codec; 8-Channels of video+audio via 3G SDI I/O; 480-Hours RAID-5 SSD Media Storage of HD 1080i59.94 video at 100Mb/s bit rate; 240-Hours of HD 1080p59.94 video at 200Mb/s bit rate; 60-Hours of UHD-4K 2160p59.94 video at 800Mb/s bit rate; 8 mono-tracks embedded digital audio in every video channel SDI I/O; 16 mono-tracks of discrete AES digital audio I/O via two female D25; Integrated Audio Router; Control over External Video Routers; Network Clip Play via 10GigE; Integrated Media File Import and Export tools; Integrated MultiViewer; Integrated Quad Viewer/Count-Down 1.5G SDI OUTs; 2X, 3X, 4X, 6X, and 8X Super Slow Motion camera support; (1) Mira Control Surface replay control panel.
VIDEO I/Os:
3G HD-SDI I/Os: (8) Female HD-BNC for RECORD V+A IN; (8) Female HD-BNC for V+A OUT
1.5G HD-SDI I/Os: (2) Female HD-BNC for Quad-Viewer SDI OUT
OTHER I/Os:
(1) Female HD-BNC for Reference IN; (2) Female RJ45 10G Ethernet; (1) Female RJ45 100-T Ethernet with POE; (2) 10G USB-3.1; (5) 1G USB-3.0; (1) Female XLR Time of Day LTC IN; (2) Female 25D AES-59/TASCAM-DIGITAL I/O Ports (breakout cable NOT supplied); (4) Female mDP Computer Display ports (cables not supplied).
SUPPORTED VIDEO STANDARDS:
SD: Not Supported
HD: 720p50; 59.94 / 1080psf23.98 / 1080i50; 59.94 / 1080p23.98; 24; 25; 29.97; 30; 50; 59.94; 60
UHD-4K: 2160p50; 59.94; 60 (2-Channels of V+A via Quad-Link 3G SDI I/O)
PHYSICAL EQUIPMENT:
3RU Rack-Mount Chassis with: (1) RAID-5 Disk Array with hot-swap SSDs; (1) USB Keyboard & Mouse kit; (2) EIC AC power cords; (1) Chassis Rack Mount kit; (1) 68D-to-RJ45 Octal break-out cable & D9 adapters for RS422; Dual-Redundant hot-swap Power Supplies.
