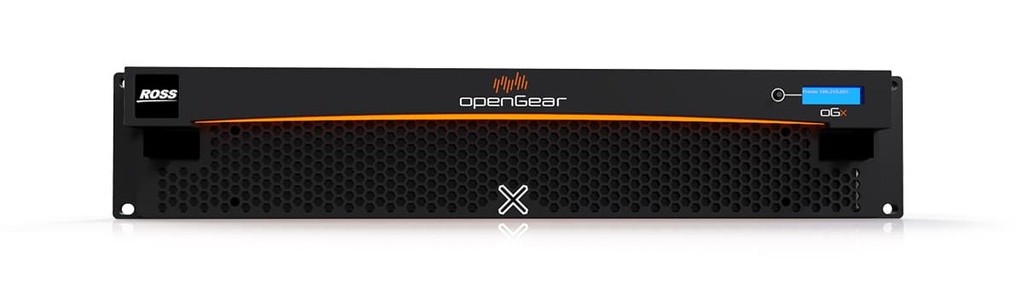

Ross Video OGX-FR-CN (New)

openGear OGX Frame with Cooling and Advanced Networking

oGx, the fourth-generation openGear modular frame from Ross embraces intelligent design, robust control, and unparalleled reliability. oGx reflects decades of broadcast expertise, offering an intuitive front panel, resilient power management and a vast ecosystem of openGear products. Every aspect of oGx is designed to meet the evolving demands of 24/7 broadcast and production operations. Explore the myriad features and discover how oGx seamlessly integrates the broader openGear universe.

Smart Modular Design
oGx offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio, and fiber, supporting analog to UHD and IP. The independent rear modules are available in different I/O configurations for select cards, including high density split rear modules allowing up to 20 independent openGear® cards in the oGx frame. Each frame also includes dual reference inputs.

Smart Front Panel
Know the status of your frame at a glance. Integrated LCD display provides frame name, IP address and reports any alarms. Customize the look of your installation with the bold, programmable RGB LED bar, which also doubles as not-to-be-missed alarm indicator. Color code your rack room by function, air chain, or whatever works for you!

Smart Power
oGx accommodates 2 front-loading, hot-swappable power supplies. The split outside location of the power supplies makes installation a breeze when utilizing an alternate phase power source. A single 600 watt supply can fully power a loaded frame, and the addition of a second (optional) supply gives the frame full power redundancy. Each power supply contains an independent cooling fan, status LED, and a front mounted power switch.

Smart Control
A rich set of control interfaces are included in every oGx Frame. Ethernet connectivity allows DashBoard control of openGear cards in the frame. DashBoard provides full setup, real-time control and monitoring, plus provides tools for creating customized workflow through CustomPanels. With the optional Advanced Networking controller, DataSafe will automatically backup card settings and restore them if the module is swapped. Optional SNMP support allows control and monitoring from third-party control solutions.

Smart Reliability
oGx was built from the ground up for reliability. Decades of engineering and broadcast experience have been poured into every detail to ensure oGx is up to the demand task of 24/7 operation. The system includes integrated smart cooling with redundant cooling for the power supplies and an easy-to-clean air filter. The frame features a passive backplane, so that every active component in the system can be hot-swapped from the front. oGx also supports hot-swappable redundant power supplies for maximum protection.

Smart Ecosystem
The oGx is built by Ross at our Iroquois facility and is the universal frame embraced by our openGear partners. This means you benefit from the collective genius of the entire openGear ecosystem. Multiple manufacturers’ products coexist within the oGx. Instead of being confined to a single vendor’s proprietary offering, the availability of diverse solutions from Ross and the openGear partners ensures the availability of solutions suited for every application.

Colour code your rack room by function, air chain, or whatever works for you! > Flash to identify frame for set-up.
2RU frame houses up to 20 openGear® cards.
Robust 600 watt redundant power supply with integral cooling.
Front LCD display for name, IP address and fault identification.
FrameGlow RGB LED bar, configurable from DashBoard.
Color code frames by function, air chain or other criteria.
Provide a clear indication of alarm presence.
Set to flash to quickly identify a specific frame.
Signal and format agnostic – supports any mix of analog, digital, video, audio, SDI and IP modules in the same frame.
Removable front door for easy fan servicing.
Easily removable air filter for periodic maintenance.
Standard DashBoard control system for setup, control and monitoring.
Optional SNMP control and monitoring.
DataSafe card backup and restore.
