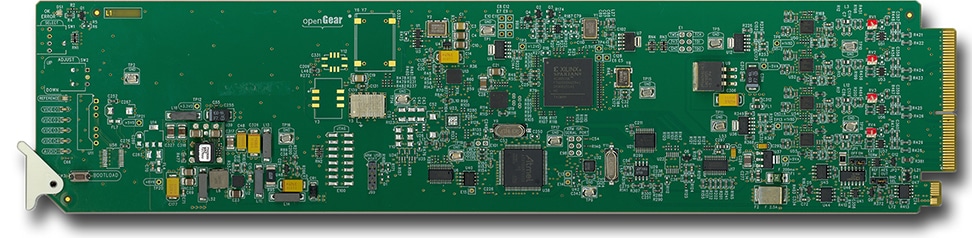

Ross Video SPG-8260-W (New)

Sync Pulse Generator with Word Clock

Sync Pulse Generator with Word Clock
Outputs tri-level and Color Black on 4 independent pairs of outputs with a dedicated Word Clock output.

The SPG-8260-W sync pulse generator provides 4 pairs of outputs with each pair independently programmed to be either tri-level sync or a composite signal. Each pair of outputs can be independently delayed relative to the incoming reference. The delay is in increments of the output’s interface sampling frequency (74.25MHz, 74.25/1.001MHz or 27MHz) up to 1 frame of video.

Tri-level sync output format is selectable from the following formats: 1080i 60, 1080i 50, 1080i 59.94, 1080p 23.98/24/25, 1080sF 23.98/24/25, 720p 50, and 720p 59.94.

The SPG-8260-W can lock to one of the two frame references, the card local reference input, or free-run using the SPG-8260-W internal oscillator. If the selected reference is lost, the SPG-8260-W switches to its internal oscillator without disturbing the outputs; when the selected reference returns, the SPG-8260-W locks back to the input reference.

The SPG-8260-W will generate TTL-level Word Clock Output.

Generates 4 pairs of outputs at a different frame rate than reference

Each pair of outputs can be independently delayed relative to the incoming reference

HD interfaces conform to SMPTE 274M and SMPTE 296M standards

SD interfaces conform to SMPTE 170M (NTSC) or PAL standards

Composite outputs: black or color bars

Generates a 48 kHz TTL-level Word Clock output

Fully compliant with openGear® specifications

5-year transferable warranty

Power: 6 watts
