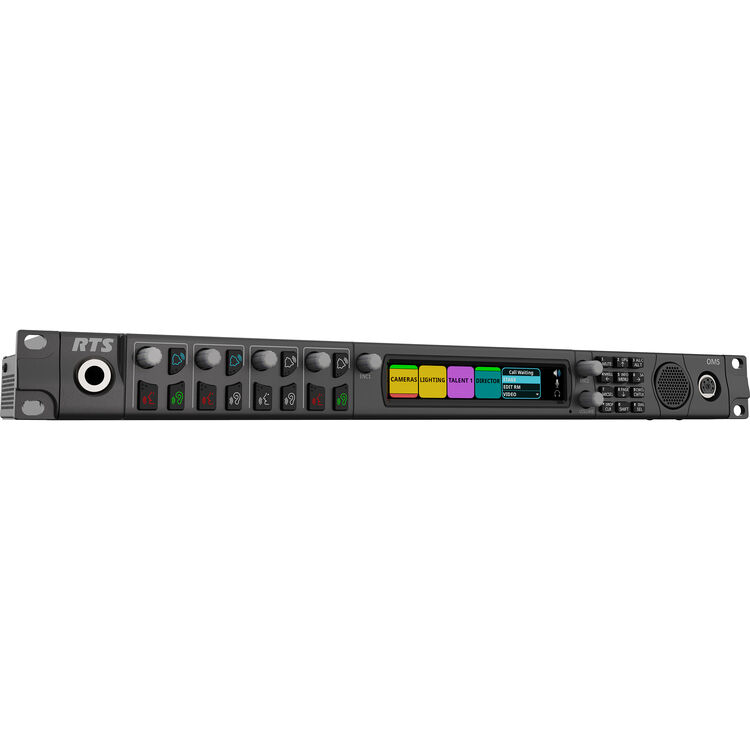

Main Station Intermediate 4-Channel Digital Partyline Intercom Base (5-Pin Female)
Select Condition
RTS OMS INTERMED 5F (New)
Main Station Intermediate 4-Channel Digital Partyline Intercom Base (5-Pin Female)
The RTS OMNEO MAIN STATION (OMS) Intermediate Digital Partyline with 5-Pin Female headset connector is the core component of the RTS Digital Partyline intercom system. It supports 20 OMNEO devices, ROAMEO support, 4 ports of analog 2-Wire, 2 program inputs, 1 stage announce, 4 GPI/ 4 Relays, 16 conferences, 4 ports of analog 4-wire AIO ports, 8 tielines, 4 keypanel capacity as well as Fiber support. This communications multi-tool is designed to bridge all standards and formats interconnecting both wired/wireless and IP/digital/analog devices. Full TCP/IP connectivity is supported for a wide range of customers including theaters, houses of worship, broadcast, AV rental, industrial facilities and entertainment/event venues.
Whereas current systems on the market offer analog-only, digital-only, proprietary or non-Dante-compatible products, OMS encapsulates a hybrid IP/digital/analog partyline intercom main station available in five licensed configurations to suit the user’s budget and application requirements: Advanced, Intermediate and Basic digital (each with OMNEO); Analog Plus and Analog (main station options for analog-only partyline systems).
OMNEO IP TECHNOLOGY
Incorporating Dante (audio transport), AES70 (device control) and more, OMNEO allows OMS to interconnect with RTS Digital Matrix products (including ADAM, ADAM-M, ODIN, KP series keypanels and ROAMEO DECT wireless) and forthcoming new members of the RTS Digital Partyline family. OMS can therefore provide a path from legacy equipment to the latest technology, allowing users to migrate to the flexibility of an IP infrastructure without the complexity of a matrix system - all while protecting the investment value of their existing analog partyline hardware.
Features
Supports 20 OMNEO Devices, ROAMEO Support, 4 Ports of Analog 2-Wire, 2 Program Inputs, 1 Stage Announce, 4 GPI/ 4 Relays, 16 Conferences, 4 Ports of Analog 4-Wire AIO Ports, 8 Tielines, 4 Keypanel Capacity as well as Fiber Support
Auto nulling capability (echo cancellation) available on 2-Wire interfaces.
Supports up to 8 keypanels (any mix of analog/OMNEO/RVON) depending upon product licensing. (Maximum 4 analog)
Includes stage announce output and additional OMNEO expansion audio ports reserved for connecting and networking with other OMS units. These expansion ports allow additional system capacity and partyline capability as part of a distributed system.
Power Type: Locking IEC 320 C14 style connector
AC Input: 100 VAC – 240 VAC, 60/50 Hz, 0.46 A / 0.24 A
Maximum Power Consumption: 30 W (based on 120 VAC)
Environmental: Operating Temperature: 32° F – 113° F (0° C – 45° C)
Storage Temperature: -4° F - 158° F (-20° C - 70° C)
Dimensions: 19" w/ rack ears (17.56" w/o rack ears) W x 1.7" H x 7.72" D (including connectors)
Dimensions: (482.6 mm w/ rack ears [446.1 mm w/o rack ears] W x 43.7 mm H x 196.1 mm D [including connectors])
Weight: OMS chassis: 5.29 lbs (2.4 kg)
AIO 4-Wire Analog
Connectors: 4 RJ-45 connectors
Signal Format: Differential RX/TX audio with differential RS-485 control data
Wiring Scheme: Both 568B & USOC supported
A/D and D/A Resolution: 24 bits
Max Input Level (balanced): +20 dBu w/o clipping
Digital Input Gain: Programmable (-20 dB - +20 dB)
Input Frequency Response: +1 dB/-3 dB from 100 Hz - +20 kHz
THD+N (8dBu input, unity gain): 0.025% non-weighted@1 kHz
<0.075% non-weighted, 100 Hz - +20 kHz
Nominal Input Impedance: >22 kΏ
Nominal Output Level: 8 dBu
Digital Output Gain: Programmable (-20 dB - +20 dB)
Maximum Output Level (balanced): 20 dBu w/o clipping
Output Frequency Response: +1 dB / -3 dB from 100 Hz - +20 kHz
Output Noise Floor: <-65 dBu
Crosstalk Isolation: >80 dB
PGM1 & PGM2: 3-pin XLR-F
Signal Format: Differential RX/TX audio
A/D Resolution: 24 bits
Max Input Level (balanced): +20 dBu w/o clipping
Digital Input Gain: Programmable (-20 dB - +20 dB)
Input Frequency Response: +1 dB/-3 dB from 100 Hz - +20 kHz
THD+N (8dBu input, unity gain): 0.025% non-weighted@1 kHz
<0.075% non-weighted, 100 Hz - +20 kHz
Nominal Input Impedance: >22 kΏ
Nominal Output Level: 8 dBu
Digital Output Gain: Programmable (-20 dB - +20 dB)
SA (Stage Announce): 3-pin XLR-M
Signal Format: Differential RX/TX audio
D/A Resolution: 24 bits
Max Input Level (balanced): +20 dBu w/o clipping
Digital Input Gain: Programmable (-20 dB - +20 dB)
Maximum Output Level (balanced): 20 dBu w/o clipping
Output Frequency Response: +1 dB / -3 dB from 100 Hz - +20 kHz
Output Noise Floor: <-65 dBu
Crosstalk Isolation: >80 dB
2-Wire Party Line Analog
Connector: four 3-pin female XLR connectors
Modes/Port supported: RTS CH1, RTS CH2
Audiocom (4 channel)
Clear-Com (4 channel)
4W/2W Echo Return Loss: >45 dB
Unbalanced Operation (RTS/Clear-Com):
Expected Termination Impedance: 200 Ώ
Noise Contribution: <-70 dBu
THD+N (w/ nominal input): <0.5%, 200 Hz - 7.3 kHz
Bridging Impedance: >10 kΏ
CALL Signaling: 20 kHz (RTS mode)
12 VDC (Clear-Com mode)
MIC KILL Signaling: 24 kHz (RTS mode)
Balanced Operation (Audiocom)
Expected Termination Impedance: 300 Ώ
Noise Contribution: <-70 dBu
THD+N (with nominal input): <0.5%, 200 Hz - 7.3 kHz
Bridging Impedance: >10 kΏ
CALL Signaling: 20 kHz (Audiocom mode)
MIC KILL Signaling: 24 kHz (Audiocom mode)
General Purpose Input/Output Ports
Relays (4 Relays)
Type: SPDT
Contacts: Common (C)
Normally Closed (NC)
Normally Open (NO)
Contact Rating: 1A @ 48 VDC
Inputs (4 Inputs):
Type: Optically Coupled
Input Voltage: 5 VDC - 12 VDC on A+
Note: A+ is internally pulled to +5 VDC. Connect Kto chassis ground to activate.
Control Port
Connector: RJ-45
Format: IEEE 802.3 compliant
Speed: 10/100/1000 Mbps
LEDs: Speed and Link/Activity
OMNEO Port (primary and secondary)
Maximum Capacity: 48 Full-duplex ports
Copper Connector Type: RJ-45
Format: IEEE 802.3 compliant
Copper Ethernet Speed: 100/1000 Mbps
LEDs: Speed and Link/Activity
Fiber Connector Type: Small Form
Factor Pluggable (SFP)
Multimode: Finisar FTLF8519P3BNL
500m / 2.125Gbps
Single Mode: Finisar FTLF1421P1BTL
15km / 2.67Gbps
Fiber Speed: 100/1000Mbps
LEDs: Speed and Link/Activity
LED Indicator: Optical Signal Present
Note: SFF-8472 fiber diagnostics supported
Warranty:
3 Years
