Sony HDVF-EL75 (New)
Price via quote
7.4”OLED Studio Viewfinder, direct camera mount
Select Condition
Sony HDVF-EL75 (New)

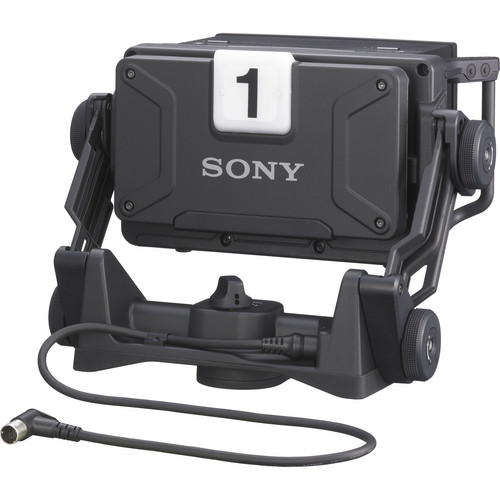

7.4" OLED HD ViewFinder for Portable Sony Cameras
7.4" OLED HD ViewFinder for Portable Sony Cameras
Features
The Sony 7.4" OLED HD ViewFinder for Portable Cameras is designed for use with HDC Series Cameras and helps to quickly track and focus on moving object, making it ideal for applications such as sports coverage, and focus assist function helps for accurate focusing. It uses organic Light Emitting Diode technology that draws less energy (19.5 W) and offers light emission from zero (deep blacks) to peak brightness (350 cd/m2) with a contrast ratio of more than 1,000,000:1.
A 10-bit panel driver ensures a smooth gradation from dark to bright portions of the image and allows you to precisely see contrast and color levels while framing a shot. The image magnification function can magnify the image displayed on the viewfinder. You can use the peaking plus function to improve the edge of an object by color, area selected, or both.
The 7.4" HD ViewFinder includes other user-friendly features such as four assignable switches, waveform monitor function, and stable and long-term color reproduction with Sony's feedback circuit. Flexible position adjustment mechanism offers various viewing positions – from high to low and left to right.
Panel: 7.4" (188 mm) color OLED panel
Effective Pixels: 960 (H) × 540 (V) × 3 (RGB)
Brightness: 350 cd/m² (peak brightness, typical)
Resolution: 500 or more lines
Color Temperature: D65
Camera Connector: Round 20-pin (x1)
Power Requirements: 10.5 V to 17.0 V DC (supplied by the camera)
Power Consumption: 19.5 W
Operating Temperature: -4 to 113° F (-20 to 45° C)
Weight: 7 lb (3.5 kg)
USER MANUAL
No user manual available for download
