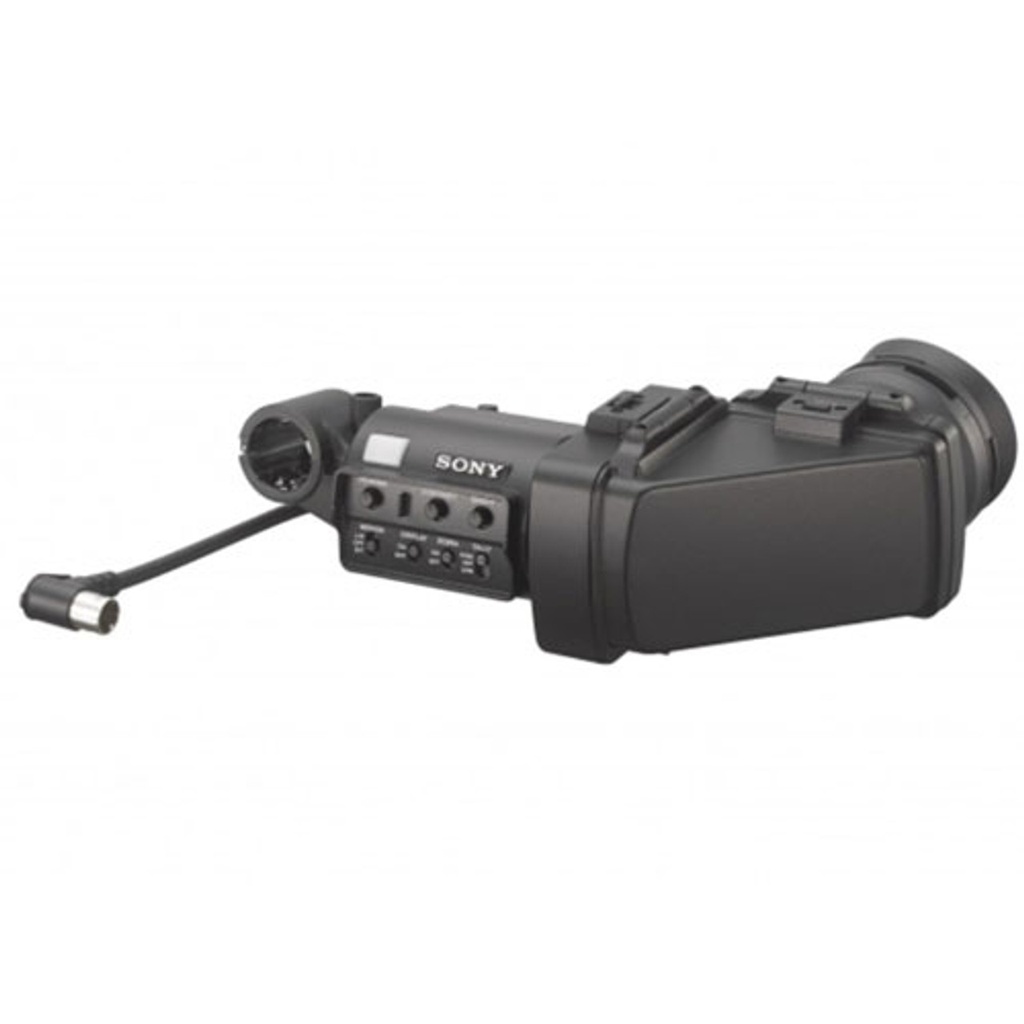

Sony HDVF-L10 (New)
3.5" Color LCD HD Viewfinder
Sony HDVF-L10 (HDVFL10) 3.5" Color LCD HD Viewfinder for HDVF Compatible Camera and Camcorders. 3.5" Color LCD HD Viewfinder for cameras with a round-type 20-pin viewfinder interface. The applicable cameras output the higher resolution QHD signal to this viewfinder. Camera operators can see the LCD, directly, because the optical loupe and the elbow parts can be flipped-up. In addition to the normal display mode, this viewfinder can switch over to another display mode that shows the reduced-size screen with tally display, surrounding on it. You can see the whole screen and tally easily when your eye is away from the eye-cup.
Features
3.5" Color LCD QHD Viewfinder
Uses round-type 20-pin viewfinder interface
Switchable display mode
General
Power supply 10.5 to 17.0 V DC (supplied by the camera)
Power consumption 3.3 W
Operating temperature -5℃ - 45℃
Storage temperature –20C to +60C (–4 F to +140 F)
Mass 700 g
External dimensions 201mm (8 in) x 255mm (10 1/8 in) x 60mm (2 3/8 in) 89mm (3 5/8 in)
3.5-inch colour TFT transflective
LCD Image display area dimensions 76.8 × 43.2 mm (31/8 × 13/4 inches) (H/V, 16:9 aspect ratio)
Performance
Brightness 200 cd/m2 (typical) (when eyepiece is attached)
Resolution 500 lines or more
Colour temperature 6500 K (typical)
Connector
Connector Round-type 20-pin connector
Supplied Accessories
Supplied accessories Operation manual (1)
Optional Accessories
Optional accessories Viewfinder Rotation Assembly : BKW-401
Compatible Products
Compatible products HXC-FB75KC, HXC-FB75H, HDC-1700,
HDC-2400, HDC-2500, HDC-2570,
HDC-3300R, HDC-4300, HSC-100R,
HSC-100RF, HSC-300R, HSC-300RF,
PDW-680, PDW-700, PDW-850,
PDW-F800, PMW-500, PXW-X400,
PXW-X500
