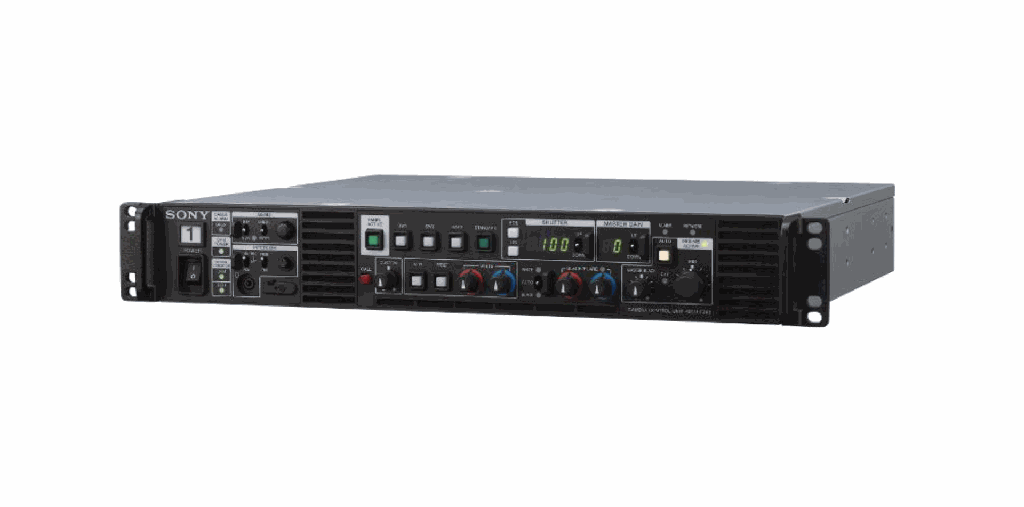

Sony HXCU-FZ90L (New)
Model #:
HXCUFZ90L
Price via quote
4K/HD Camera Control Unit for HXC-FZ90 Cameras - Lemo Connector Interface
Select Condition
New
4K/HD Camera Control Unit for HXC-FZ90 Cameras - Lemo Connector Interface
Price via quote
Sony HXCU-FZ90L (New)
4K/HD Camera Control Unit for HXC-FZ90 Cameras - Lemo Connector Interface
Features
Multiple frame rates over 3G-SDI and 12G-SDI signals
Future-proof 4K and 4K HDR support
Fiber cable extension
General
Power Requirements: AC 100 V to 240 V, 50/60 Hz
Operating Temp: 5°F - 104°F (5°C - 40°C)
Storage Temp: -4°F - 140°F (-20°C - 60°C)
Mass: 13lbs (5.9kg)
Dimensions (WxHxD): 19" (16-3/4") x 2-5/8" x 14-1/2" (482mm (424mm) x 66mm x 366mm)
Signal Format: 4K 2160: 59.94p, 50p (2SI, SQD, Level-A/B) HD 1080: 59.94p, 59.94i, 50p, 50i, 29.97PsF, 25PsF, 23.98PsF, HD 720: 59.94p, 50p SD 480: 59.94i, 576: 50i
- 1x D-Sub 25-pin, female
- INTERCOM (PROD, ENG), 4 Wire/RTS: 0 dBu, Clear-Com: -14 dBu
- PGM
- TALLY (R,G)
- PREVIEW OUT
Input
AC In: 1x AC 100 V to 240 V
- 3G/HD/SD SDI OUTPUT
- 4x BNC
- 3G SDI: SMPTE ST424/425 Level-A/B
- 0.8 Vp-p, 75Ω, 2.970 Gbps/2.967 Gbps
- HD SDI: SMPTE ST292, 0.8 Vp-p, 75Ω
- 1.485 Gbps/1.4835 Gbps
- SD SDI: SMPTE ST259, 0.8 Vp-p, 75Ω
- 270 Mbps
- 3G SDI/HD SDI/SD SDI
