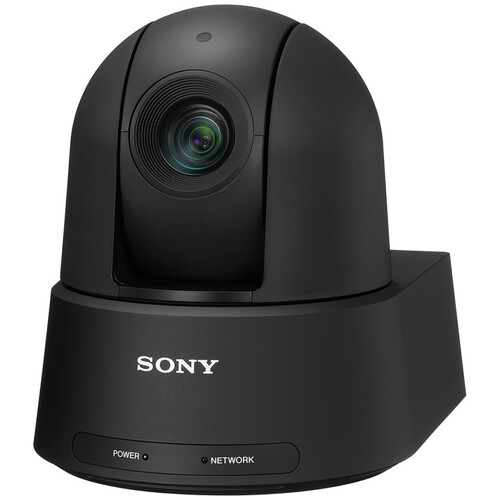

Sony SRG-A40 (New)
Price via quote
Camera with Built-In AI and 30x/40x Clear Image Zoom (Black)
Select Condition
Sony SRG-A40 (New)
4K PTZ
4K PTZ Camera with Built-In AI and 30x/40x Clear Image Zoom (Black)
Features
Up to UHD 4K Resolution at 29.97 fps
1/2.5" Exmor R CMOS Sensor
Built-In AI Framing & Tracking Analytics
30x 4K & 40x HD Clear Image Zoom
Full Body, Waist & Close-Up Frame Modes
3G-SDI, HDMI & Ethernet Output
340° Pan and 110° Tilt
Wide 70° Angle of View
Runs on PoE+ or DC Power
Remote Control & Ceiling Mount Included
Imaging:
Image Sensor 1/2.5"-Type CMOS
Horizontal Resolution (TV Lines)
1700 TV Lines
Sensor Resolution Effective: 8.5 Megapixel
Autofocus
Manual Focus
Exposure Control
Shutter Speed - 1/10000 to 1 Second
Gain - 0 to 48 dB
Minimum Illumination
1.6 Lux at 1/30 Shutter Speed
Flip / Mirror Support
Image Flip
White Balance
Presets: One Push, Indoors, Outdoors, Manual, Auto
Lens
Focal Length
4.4 to 88mm
Optical Zoom Ratio
20x
Max Digital Zoom
30x ( in DCI 4K)
40x ( in 1080p)
Field of View
Horizontal: 70°
Maximum Aperture
f/2 to 3.8
Minimum Focus Distance
Wide: 3.1" / 8.0 cm
Telephoto: 31.5" / 80.0 cm
Video Capture
Video Output
RJ45
3840 x 2160 at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
SDI/BNC
1920 x 1080p at 23.98/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
4:4:4/4:2:2 8-Bit via HDMI
3840 x 2160 at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Audio Recording
2-Channel AAC LC Audio
Broadcast Output
NTSC/PAL
IP Streaming
H.264, H.265, RTP, RTSP, SRT, TCP, UDP
3840 x 2160 at 60p (0.5 to 50.00 Mb/s)
1920 x 1080 at 60p (0.5 to 50.00 Mb/s)
1280 x 720 at 60p (0.5 to 50.00 Mb/s)
640 x 360 at 60p (0.5 to 50.00 Mb/s)
IP Multi-Stream Support
Simultaneous
H.264, H.265, RTP, RTSP, TCP, UDP: UHD 4K, 1080p, 720p, 360p at 60p
Control
Presets
256 via CGI
100 via VISCA
Tally Light
Yes
Supported Control Protocols
IR
RS-422
VISCA
Interface
Video I/O
1 x HDMI (Unspecified Signal) Output
1 x BNC (3G-SDI) Output
1 x RJ45 LAN Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O
1x RJ45 (RS-422, VISCA) Control Input
1x RJ45 (RS-422, VISCA) Control Output
1x RJ45 (LAN) (Shared with Video Output)
Power
PoE Support
PoE++ 802.3bt
Power I/O
1x Barrel (19.5VDC) Input
Power Consumption
Device: 80 W
PoE: 71.3 W
General
Mounting
1x 1/4"-20 Female for Tripod
Environmental Resistance
No
Operating Conditions
32 to 72°F / 0 to 40°C
Storage Conditions
-4 to 140°F / -20 to 60°C
OS Compatibility
Windows 10 or Later / macOS 11 to 12
OS Compatibility
Windows 10 to 11 (64-Bit Only)
macOS 11 to 12
Sound Level
NC30 (at Full Speed)
Dimensions (W x H x D)
6.2 x 7.2 x 7.9" / 156.7 x 184 x 200 mm
Weight
4.4 lb / 2.0 kg (Body Only)
