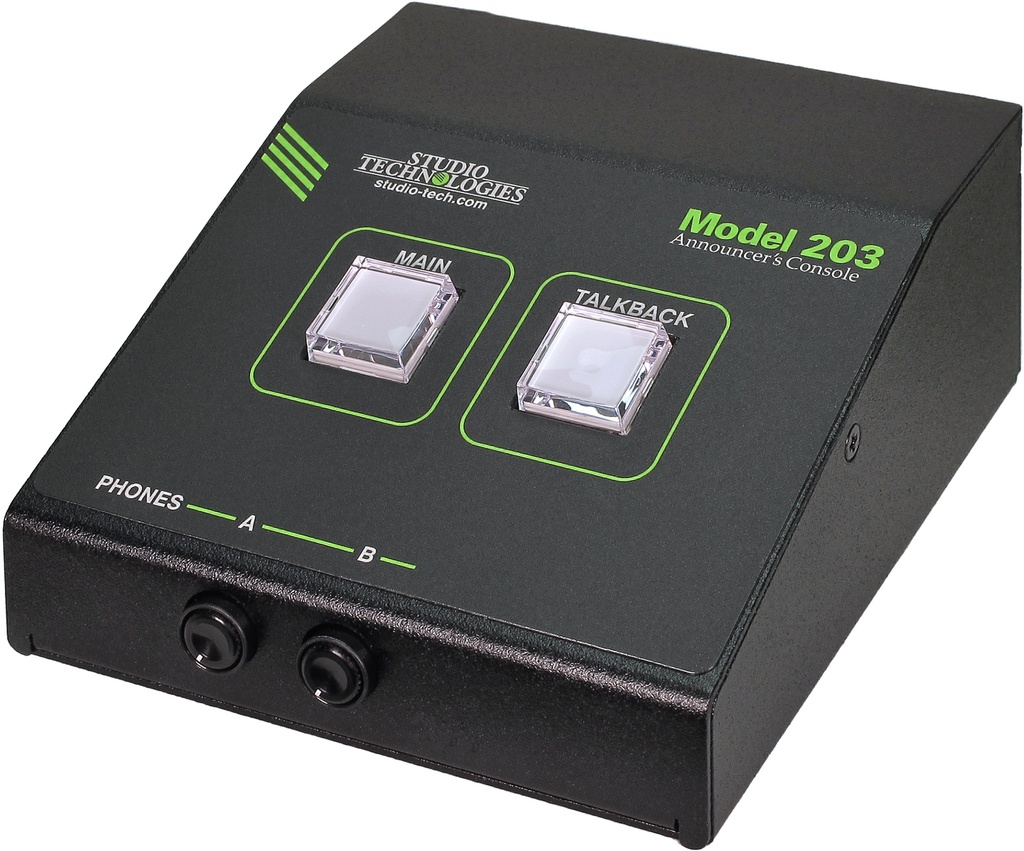

Studio Technologies Model 203 Announcers Console (New)
Price via quote
Dante Audio-Over-Ethernet Announcers Console-1Main/1 Talkback Channel
Select Condition
Studio Technologies Model 203 Announcers Console (New)
Dante Audio-Over-Ethernet Announcers Console - 1 Main / 1 Talkback Channel
The Studio Technologies Model 203 Announcer's Console offers the audio resources needed to directly support a complete broadcast on-air position. Using Dante® audio-over-Ethernet technology, the unit provides main and talkback output channels, talent cue (IFB) inputs, and sidetone capabilities. Housed in a compact, desktop package, it offers users a combination of the essential buttons and controls along with a range of important operating features. The Model 203 is compatible with the Dante Domain Manager™ (DDM) software application and is AES67-compliant for integration into many contemporary networked audio applications.
Optimized for broadcast sports and live entertainment events, eSports, and streaming broadcast applications, the Model 203 allows for simple deployment while maintaining "pro" audio quality and an intuitive user experience. Needing just a Power-over-Ethernet (PoE) data connection, a dynamic or phantom-powered microphone, and a pair of headphones or an earpiece, the unit will be ready for use in just moments. The STcontroller software application is used for configuring the unit's operating parameters including microphone preamplifier gain, P48 phantom power, headphone signal routing, sidetone operation, and main and talkback button action. The Model 203's audio quality is excellent, with low distortion, low noise, and high headroom. Careful circuit design and rugged components ensure long, reliable operation.
Applications
The Model 203 provides an "all-Dante" solution for one on-air talent location. A wide range of applications can be supported, including sports and entertainment TV and radio events, streaming broadcasts, corporate and government AV installations, and post-production facilities. The unit's small size makes it ideal for live-sports applications, such as basketball, where physical space for personnel is very limited. Two Dante audio input channels supply the user with their talent cue (IFB) signals. Should the cue signal be "mix-minus" an integrated sidetone function can provide the user with a microphone confidence signal. Two Dante audio output channels, one designated as main (for "on-air" use) and the other talkback, are routed via the associated local-area network (LAN) to inputs on Dante-compatible devices. Two pushbutton switches, main and talkback, provide the user with direct control over audio routing. The audio switching is performed in the digital domain and is virtually "click-free."
Features
Dante audio-over-Ethernet technology
Creates a complete on-air position
One main and one talkback output channel
Highly-flexible 2-channel headphone output
Integrated sidetone function
Excellent audio quality
Uses STcontroller for configuration
Power-over-Ethernet (PoE) powered
Power Source: Power-over-Ethernet (PoE): class 2 (low power, =6.49 watts) per IEEEr 802.3af
Network Audio Technology
Type: Dante audio-over-Ethernet
AES67-2018 Support: yes, selectable on/off
Dante Domain Manager (DDM) Support: yes
Bit Depth: up to 24
Sample Rate: 44.1,48, 88.2, and 96 kHz
Pull-Up/Down Support: no
Dante Transmitter (Output) Channels: 2 (main (pre- or post-compressor, selectable) and talkback (post-compressor)
Dante Receiver (Input) Channels: 2 (headphone channel 1 and headphone channel 2)
Dante Audio Flows: 4; 2 transmitter, 2 receiver
Network Interface
Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GigE) not supported)
Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s Ethernet not supported)
Microphone Input
Compatibility: dynamic or phantom-powered microphones
Type: balanced, capacitive coupled
Impedance: 2.8 k ohms, nominal
Gain: 36, 42, 48, 54, and 60 dB, selectable
Frequency Response: 30 Hz to 20 kHz, -3 dB at 30 Hz, -0.6 dB at 20 kHz
Distortion (THD+N): <0.020%, 1 kHz, 36 dB gain, -32 dBu input level
Dynamic Range: 96 dB, A-weighted
Phantom Power: P48 per IEC 61938 standard, on/off selectable with status LED
Compressor
Application: always used for Dante talkback audio output channel, can be used for Dante main output channel
Threshold: 1 dB above nominal level (-19 dBFS)
Slope: 2:1
Status LED: lights when compressor active
Headphone Output
Type: 2-channel
Compatibility: intended for connection to stereo (dual-channel) or mono (single-channel) headphones, headsets or earpieces with nominal impedance of 50 ohms or greater
Maximum Output Voltage: 3.1 Vrms, 1 kHz, 150-ohm load
Frequency Response: 20 Hz to 20 kHz, +0/-1 dB
Distortion (THD+N): 0.001%, +10 dBu output, 150 ohm load
Dynamic Range: >102 dB
Connectors
Microphone Input: 3-pin female XLR
Headphone Output: 3-conductor 1/4-inch jack
Ethernet: Neutrik etherCON RJ45 jack
USB: type A receptacle (located inside Model 203's enclosure and used only for updating firmware)
Configuration: uses Studio Technologies' STcontroller personal computer application
Environmental
Operating Temperature: 32 to 122 degrees F
Storage Temperature: -40 to 158 degrees F
Humidity: 0 to 95%, non-condensing
Altitude: not characterized
Dimensions (Overall)
4.3 inches wide
2.1 inches high
5.1 inches deep
Weight: 1.1 pounds
Deployment: intended for tabletop applications
Item Includes:
1x Studio Technologies Model 203 Dante Audio-Over-Ethernet Announcers Console - 1 Main / 1 Talkback Channel
