Studio Technologies Model 5401A (New)

DANTE Leader Clock for Dante Audio-over-IP & AES67 Applications

The Studio Technologies Model 5401A is suitable for use in fixed and mobile broadcast facilities, post-production studios, commercial and educational theater environments, and entertainment applications. Only power and one, two, or three Ethernet network connections are required for full operation. Using Dante's inherent capabilities two Model 5401A units can serve in primary and secondary Leader clock roles for redundant operation.

The unit's three Gigabit Ethernet ("GigE") network interfaces can be configured for use in a range of network implementations. For high-performance applications two of the interfaces can support Dante redundancy operation while the third is used for accessing the management webpages. To meet the latest interoperability standard the Model 5401A's Dante implementation supports AES67-2018. The unit also supports the Dante Domain Manager™ (DDM) software application.

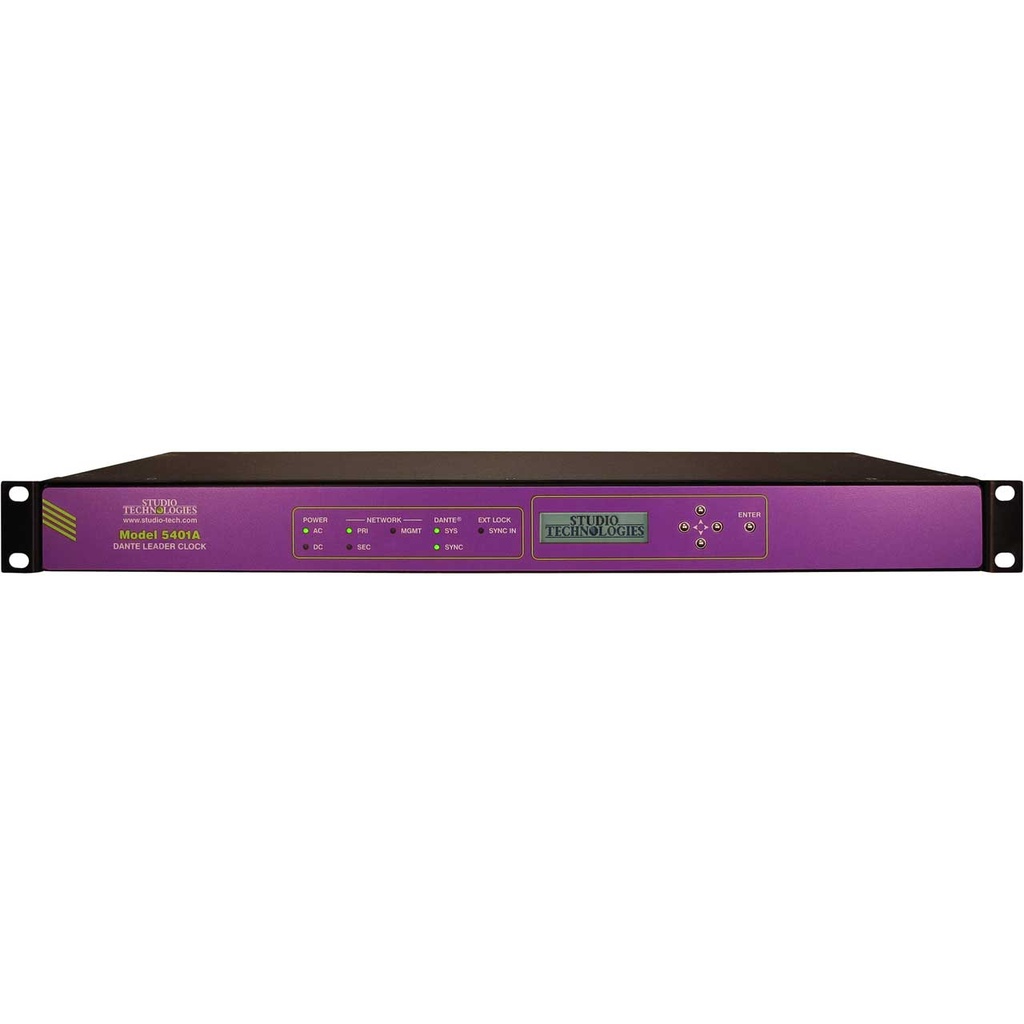

An integrated web server allows fast and flexible monitoring and configuration of the unit's networking, clocking, and Dante performance. Front-panel indicators, an LCD display, and pushbutton switches provide users with direct access to key operating parameters.

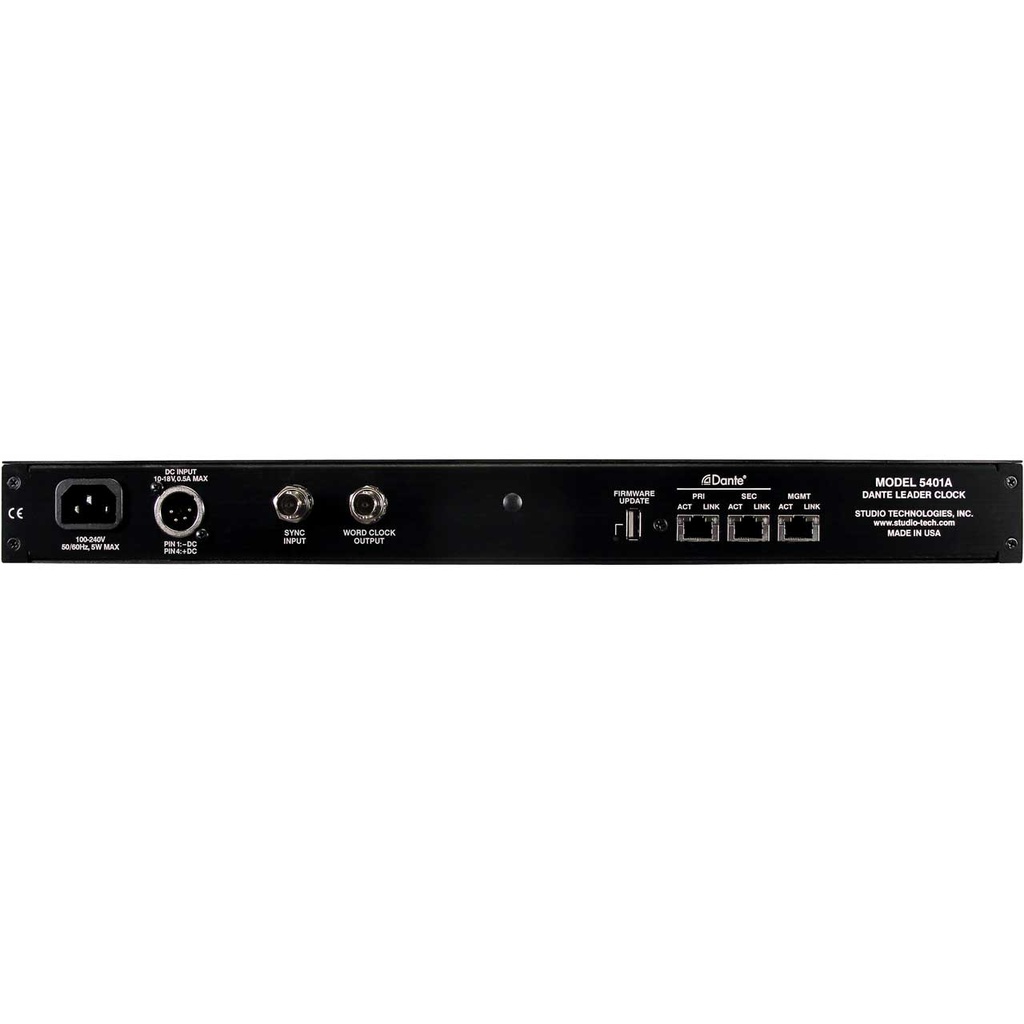

The Model 5401A can be powered by 100-240 V, 50/60 Hz mains or a source of 12 volts DC. Both can be simultaneously connected to provide redundant operation. The lightweight enclosure mounts in one space (1U) of a standard 19-inch rack. Industry-standard connectors are used for Ethernet, DC power, and AC mains interconnections.

Dedicated Leader clock for Dante audio-over-IP and AES67 applications
High-performance IEEE 1588 PTP v1 and v2 servers
Internal temperature-stabilized frequency reference
Compatible with external word clock, video sync, and 10 MHz sources
Word clock output with selectable rates
Eight configurable audio tone signals
Three Gigabit Ethernet interfaces support independent Dante and management networks
Webpage management and USB flash drive software updating
AC mains and 12 volts DC powering
Lightweight enclosure, single rack-space (1U) mounting
